Infiniton FG-780IX Manual de usuario

USER'S MANUAL

FG-780IX

Structure illustration

Troubleshooting

Important safety instructions

Cleaning and care

Helpful hints and tips

Storage of food

Technical specifications

Transport and handing

Installation

First use

Display controls

-1-

-6-

-7-

-8-

-9-

-10-

-14-

-15-

-17-

-20-

DIRECTORY

THIS PRODUCT IS FOR HOUSEHOLD USE

ONLY!

Please read these instructions carefully

before the first use of this product and

save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic

precautions should always be followed,

including the following:

1. This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and

understand the hazards involved. Children

shall not play with the appliance. Cleaning

and user maintenance shall not be made

by children without supervision.

2. Do not use if supply cord is damaged. If

damaged, it must be replaced by the

manufacturer or a similarly qualified person

in order to avoid hazard.

3. In order to save power consumption,

keep the air circulation around the

appliance and dispose of food packages

before placing them in the appliance as

soon as possible.

- -

4. Ensure the refrigerator is unplugged

before cleaning or if the product is not in

use.

5. To clean the appliance use only mild

detergents or glass cleaning products.

Never use harsh detergents or solvents.

6. It is not recommended to use this

refrigerator with an extension cord or power

board. Please ensure that the appliance is

plugged directly into the electrical outlet.

7. Do not place hot food or drink into the

refrigerator before it cools down to room

temperature.

8. Close the door immediately after

putting in any items so the inside

temperature will not rise dramatically.

9. Keep appliance away from any heat

source or direct sunlight.

10. To fix stably, the appliance must be

placed on a flat and solid surface. It should

not be laid on any soft material.

11. Do not place any other appliance on

top of the refrigerator, and do not wet it.

12. Do not store something like ether,

methanol, gasoline etc., which is easy to

evaporate burn or explode.

13. To avoid injury or death from electrical

shock do not operate the appliance with

wet hands, while standing on a wet surface

or while standing in water.

14. Do not use outdoors or in wet

conditions.

- -

15. Never pull the cord to disconnect it

from the outlet. Grasp the plug and pull it

from the outlet.

16. Keep the cord away from heated

surfaces.

17. Do not move the appliance when it is

well filled of foods to avoid any tipping

over.

18. Check that the voltage of the power

supply in your home is the same as the

voltage shown on the rating label of this

product.

19. Connect your refrigerator to an

independent electrical socket and use a

safe ground wire.

20. When the frost in freezer is removed, or

when there is no electricity or when

refrigerator ceases to be used, it should be

cleaned in order to prevent it from smelling.

21. Defrost the freezer at least once a

month because too much frost may affect

refrigeration.

22. Do not touch the appliance with wet

hands or with naked feet on a wet floor.

23. Do not store explosive substances such

as aerosol cans with a flammable

propellant in this appliance.

24. Turn on electricity only 5 minutes later

after electricity goes off. Otherwise, the

compressor may be damaged.

25. Children should be supervised to

ensure that they do not play with the

appliance.

- -

26. The appliance is not intended to be

operated by means of an external timer or

a separate remote –control system.

27. This appliance has been incorporated

with a grounded plug. Please ensure the

wall outlet in your house is well earthed.

28. It is recommended to check regularly

the supply cord for any sign of possible

deterioration, and the appliance should

not be used if the cable is damaged.

29. WARNING: Keep ventilation opening, in

the appliance enclosure or in the built-in

structure, clear of obstruction.

30. WARNING: Do not use mechanical

devices or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

31. WARNING: Do not use electrical

appliances inside the food storage

compartments of the appliance, unless

they are of the type recommended by the

manufacturer.

32. WARNING: Do not damage the

refrigerant circuit.

33. This appliance is intended to be used in

household and similar applications such as:

- staff kitchen areas in shops, offices and

other working environments;

- farm houses;

- by clients in hotels, motels and other

residential type environments;

- bed and breakfast type environments.

- -

35. Regarding the information for

replacing of the lamps of the appliance,

thanks to refer to the below paragraph of

the manual.

36. Regarding the information pertaining

to the installation, handing, maintenance,

servicing and disposal of the appliance,

thanks to refer to the below paragraph of

the manual.

- -

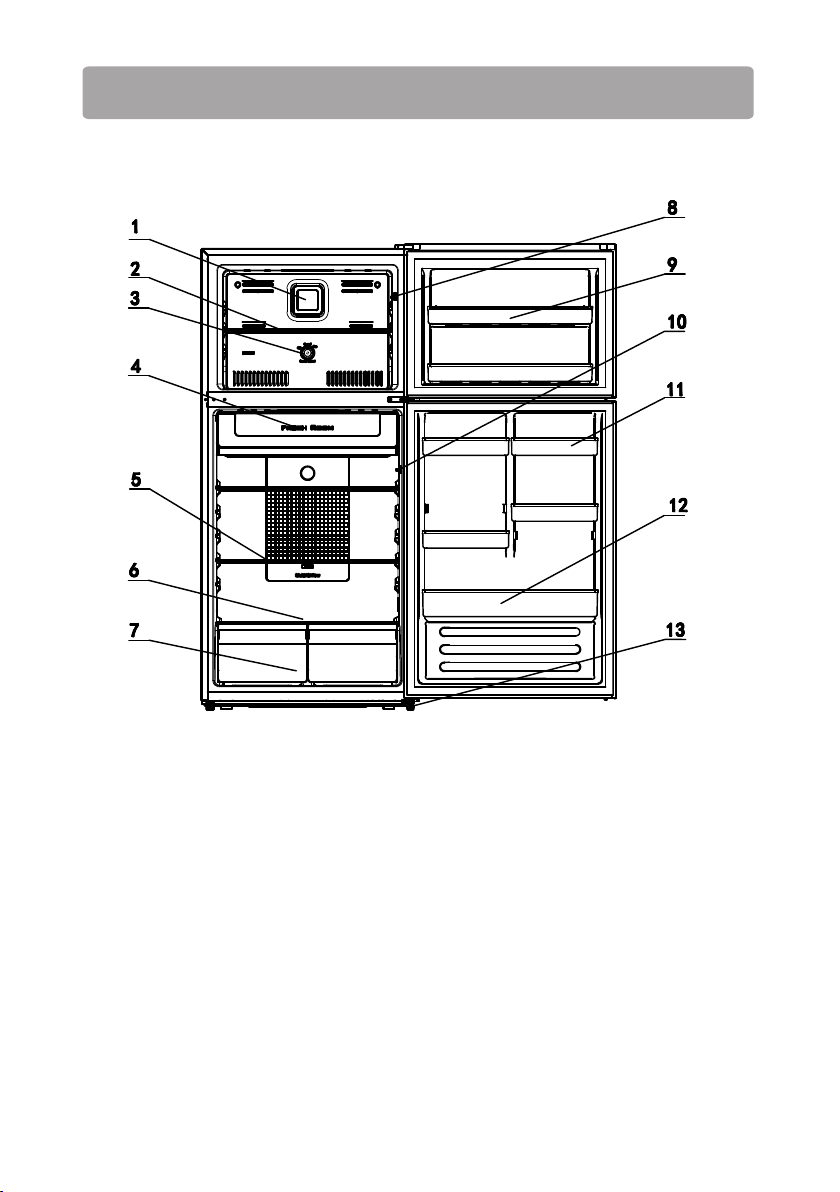

STRUCTURE ILLUSTRATION

- -

1.Atmosphere lamp

2.F shelf

3.Air knob

4.Fresh room

5.R Shelf

6.Vegetable Crisper cover

7.Vegetable Crisper

8.F Door switch

9.F Door balcony

11.R Door balcony

10.R Door switch

12.Bottle rack

13.Adjustable foot

TECHNICAL SPECIFICATIONS

- -

Rated voltage:

Rated current:

Rated frequency:

Defrost power input:

Lamp power:

Total volume:

Climate tape:

Refrigerant:

Energy consumption:

Protection against electrical shock:

Net weight:

Foam:

Energy class:

eference: FG-780IX

220-240V~

1.0A

50Hz

180W

483L

ST/N

R600a(60g)

365kWh/year

80kg

CYCLOPENTANE

A++

When transportation, hold the base and lift the

refrigerator carefully with an angle inferior at

45 degree. Never hold the door handle as

support. Never place it upside down nor

horizontally. Push refrigerator on its basis and

place it thanks to its roller feet.

To fix stably, the appliance must be placed on

a flat and solid surface. It should not be laid on

any soft material.

Choose a location where there is no heat

source. Keep the refrigerator away from direct

sunlight or other appliance producing heat.

Choose a dry and well-ventilated place where

there is no corrosive air.

In order to improve efficiency of the cooling

system and save energy, it is necessary to

maintain good ventilation around the

appliance for the dissipation of heat. For this

reason, sufficient clear space should be

available around the refrigerator. Suggest: It is

advisable for there to be at least 75mm of

space from the back to the wall, at least

100mm from its top, at last 100mm from its side

to the wall and a clear space in front to allow

the doors to open 135°. As shown in following

diagrams.

TRANSPORT AND HANDING

INSTALLATION

- -
