ELECTRIC OVEN

USER MANUAL

MODEL: HORNO ROT70

Before leaving the factory, this appliance was tested and regulated by expert and skilled

personnel to give the best operating results. Any repair or regulation that may

subsequently be necessary must be carried out with the greatest care and attention.

For this reason, we recommend you always contact the Dealer you bought the appliance

from or our nearest Service Centre, specifying the type of

problem and the model of your appliance. Please remember as well that the

original spare parts are available only from our Technical Service Centres.

Do not leave the packaging unguarded, both for the safety of children and for the

protection of the environment, but dispose of it in a centre for differentiated waste.

The symbol on the product or on the packaging means that the product must not be

considered as normal household refuse, but must be taken to the

appropriate collection point for the recycling of electric and electronic equipment.

The appropriate disposal of this product helps avoid potential negative

consequences on the environment and for health, which could be caused by

inappropriate disposal of the product. For more detailed information on the

recycling of this product, please contact your municipal offices, the local waste disposal

service or the store where the product was purchased.

TABLE OF CONTENTS

Important information regarding safety ................................................... ..: 1-2-3

Instruction for Installation .................................................................... ..…: 4-5-6-7

Device Cleaning and Maintenance, ..............................................................: 8-9

Oven Energy Efficiency ................................................................................ : 10

Oven Technical specification ………………………………………………………….……..……: 10

Oven Use, RO 64TF………………….…………………...............................................: 11

Using Digital Timer……………………………………………………………………………………..…………: 12,13,14,15

Instruction for cooking ..………………................................................................: 16

IMPORTANT INFORMATION ABOUT SECURITY

Dear Customer,

Thank you for choosing one of our products. This device is easy to use, but you

should read this booklet carefully before installing and using it. The booklet

contains instructions that will help you install, use and maintain the product in

the best way.

THANKS

We appreciate the purchase of our product. We hope you get the most out of

all the features and functions it offers.

Before using the product, please read this Instruction Manual carefully and in

its entirety. Keep this manual in a safe place for future reference. Also make

sure that people who are also going to use the product are familiar with these

instructions.

ATTENTION

- The first time you turn on the oven, it may give off an unpleasant odor. This is

due to the adhesive agent used in the insulating panels inside the oven. It is

completely normal and, if it happens, you just have to wait for the smell to

disappear before introducing food into the oven.

- The oven and its accessible areas will be heated during use.

- Take precautions to avoid touching the oven resistances.

- Keep children under 8 years of age away from the oven unless they are under

the constant supervision of an adult.

- This oven can not be used by children of 8 years or older or by persons with

reduced physical, sensory or mental faculties, lack of experience and

knowledge, or unless under supervision or following instructions on their use

in a safe and secure way. who understand the related dangers. You should

make sure that children do not play with the oven. Cleaning and maintenance

of the oven should not be carried out by children without supervision.

- Do not use abrasive cleaners or sharp metal scrapers to clean the oven glass,

as it could scratch the surface and permanently damage the glass.

IMPORTANT INFORMATION ABOUT SECURITY

- During use, the oven becomes very hot. Take precautions to avoid touching

the resistors inside the oven.

- Prevent children from approaching the oven during use, especially when

using the grill.

- Make sure the oven is switched off before changing the interior bulb to avoid

the risk of electrocution.

- A means of disconnection must be implemented in the fixed electrical

installation in accordance with the corresponding electrical specifications.

- During pyrolytic cleaning, accessible areas will heat up more than normal.

Keep children away.

- Children should be supervised to ensure they do not play with the oven.

- This device is not designed for use by people

(including children) with reduced physical, sensory or mental faculties, or lack

of experience and knowledge, unless under supervision or following

instructions on their use by the person responsible for their safety.

- Do not use the oven barefoot. Do not touch the oven if your hands or feet are

wet or damp.

- Do not open the oven door frequently during cooking.

- The oven must be installed and tuned by an authorized technician. The

manufacturer is not responsible for any damage that may have been caused by

its installation in an inappropriate place or by unauthorized personnel.

- Do not leave anything on top of the oven door when it is open, as it could

overturn the oven or break the door.

- Some components of the oven can keep the heat for a long time; Wait for it

to cool completely before touching the exposed points directly to the heat.

- If you are not going to use the oven for a long time, we recommend that you

unplug it.

- If the supply cable is damaged, it must be replaced by the manufacturer or its

authorized technical service to avoid any risk.

- Remove excess dirt residues before cleaning; consult the products that can be

used inside the oven during cleaning.

- Use only the temperature probe recommended for this oven.

- Do not use a steam cleaner.

IMPORTANT: The oven produces hot air or steam during the cooking process.

Be very careful when opening the door.

The user must not replace the appliance's power cord. It should only be

replaced by a qualified electrician.

Never cover the oven with aluminum foil. It could block the slots and prevent

regular heat exchanges, damaging the enameled surface.

Before you start using the oven to cook, you must remove the protective film

from the oven door and heat the empty oven to the maximum temperature

for about 45 minutes (this will remove the odors and fumes created by

manufacturing waste). After this, the oven should be thoroughly cleaned with

soapy water and rinsed well, but do not use too much water as it could

penetrate and damage the internal components.

Always call an authorized Technical Assistance Center and insist on original

spare parts if repairs are required. Repairs made by incompetent people can

cause damage.

The appliance is conform to the following European Directives and

Regulations :

Directive 2014/35/EC ( Low Voltage Appliances )

Directive 2014/30/EC ( ElectroMagnetic Compability )

Directive 2012/19/EC

Directive 2009/125/EC

Directive 2011/65/EC

Regulation 1935/2004/EC

Regulation 1907/2006/EC

( WEEE - Waste Electrical and Electronic

Equipment ) ( ErP - Eco Design )

( RoHS - restriction of hazardous substances)

( Materials intended to come into contact with

food ) ( REACH –Restriction of Chemicals)

INSTALLATION OF THE OVEN IN ITS SPACE IN THE KITCHEN

Place the oven in the space reserved for this appliance in the kitchen; It can

be placed under a work surface or in a vertical cabinet. Secure the oven in

place with two screws using the two fixing holes in the oven frame. To access

the fixing holes, open the oven door. To ensure adequate ventilation, respect

the measurements and installation distances indicated.

It is important NOT to COVER the front of the oven. This part can not be

placed behind any door for decorative purposes.

IMPORTANT

In order for the oven to function properly, the space for the oven housing

must be adequate. The surfaces of the kitchen next to the oven must be

made of a heat resistant material. Make sure that surface adhesives made of

varnished wood panels can withstand temperatures of at least 120 ° C.

Plastics or adhesives that can not withstand these temperatures will melt

and deform. Once the oven is installed in its place, completely isolate all

electrical components. It is a legal requirement on security. All protection

elements must be firmly fixed in place, so that they can not be removed

without using tools. Remove the rear part of the cabinet or space intended

for the oven to ensure adequate ventilation. There must be a minimum of 45

mm between the back of the oven and the adjoining wall or surface.

The installation must be carried out by an authorized technician in

accordance with the guidelines. Our company is not responsible for damages

to people, animals or property due to improper installation.

INSTALLATION WARNINGS

The dimensions and materials of the cabinet or cabinet in which the built-in

oven will be installed must be correct and must be resistant to temperature

increases. Install as shown in the Figure.

SEE THE FIGURE

* The walls of the furniture in which the oven is installed must be resistant to heat. The wall panels

must be resistant to 100 ° C, especially if the side walls are made of wallboard. Plastic panels or

adhesives that are not resistant to this heat can be deformed and damaged.

* For safety reasons, direct contact with the electric oven parts should be avoided.

* The insulation and protection parts must be installed in such a way that they can not be removed

with any tool.

* The oven must be installed as in the Figure to provide a more effective air flow.

* It is recommended to leave a space of at least 40 mm in the back of the kitchen unit in which the

oven is installed.

* A support must be placed under the oven that can support the weight when placing the oven.

* The rear section of the cab in the kitchen unit should be re-routed to provide a better fl ow of air.

* It is not recommended to install the device near refrigerators or freezers, otherwise the

performance of these devices would be affected by the radiated heat.

* Place the device centered in the inlaid cabin

* Open the oven lid and mount the body on the countertop with four thumbscrews aligning the

holes on the sides.

* The oven can be mounted in a cabinet above or below the counter, if desired

* When mounting a built-in electric stove on the countertop above the oven, the electricity cords of

the oven and the stove must be separated to remove the oven from the stove when necessary.

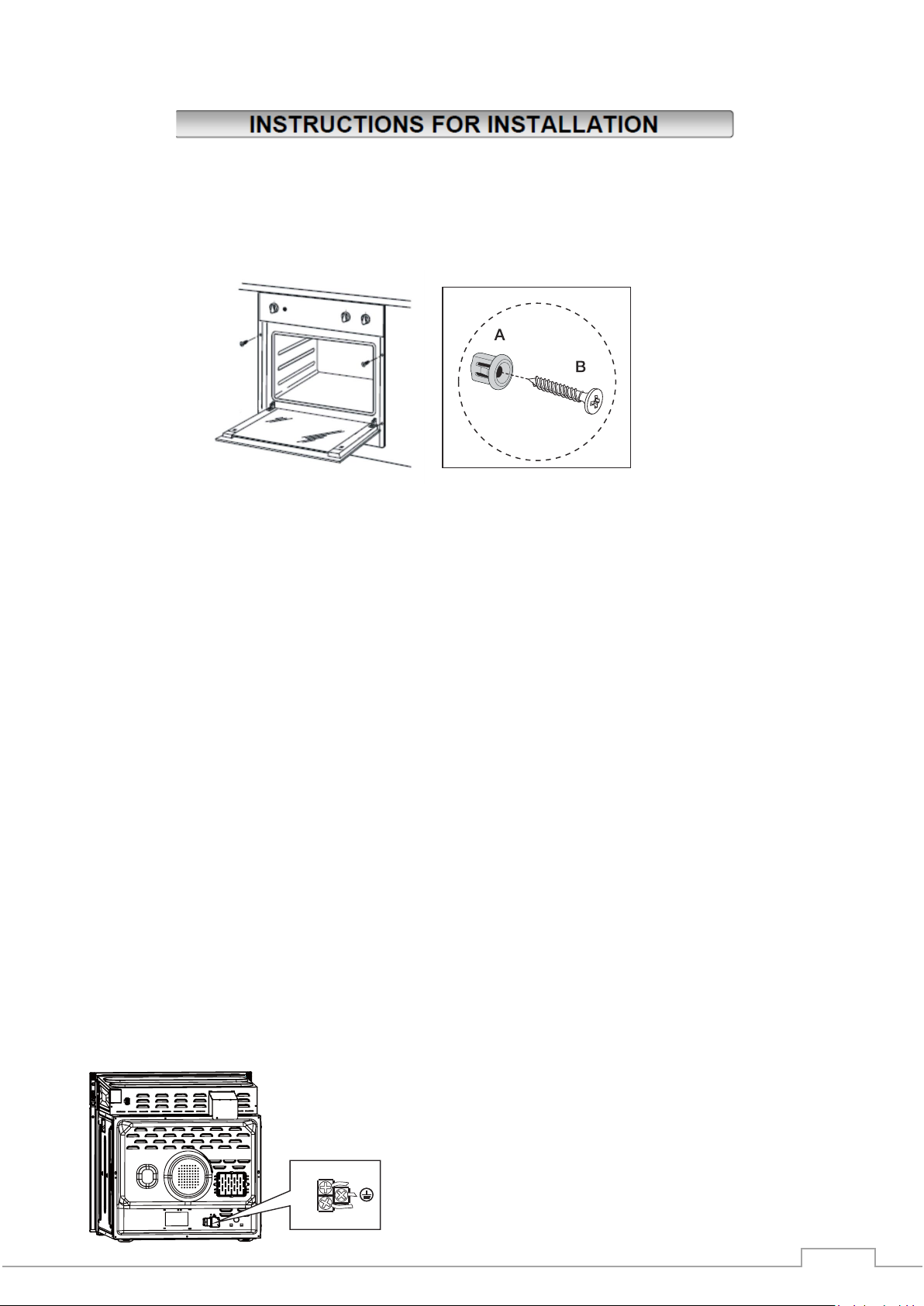

FIXING THE OVEN IN ITS COMPARTMENT

1. Place the oven in its compartment.

2. Open the oven door.

3. Secure the oven in your kitchen compartment with the two "A" fasteners,

which fit into the holes in the oven frame, and with the two "B" wood screws.

ELECTRIC CONNECTION

* The device must be connected to the main electrical network only by authorized

technicians in accordance with the laws and regulations in force.

* Ensure that the power of the main network is sufficient to supply the power indicated

on the information label placed on the lower front part of the device.

* If the fuse current in your home is less than 16 Amps, have a 16 Amp fuse connected

by a qualified electrician.

WARNING: The device must be absolutely grounded.

* Your oven includes a grounded plug mounted on the network cable. This plug must be

used with a grounded line. Have an authorized electrician perform the grounding

installation.

Before supplying electricity to the device:

Position the oven so that it is easier to reach the socket used for the electrical connection or the

bipolar switch.

Do not let the power cord touch the hot surfaces when it is placed and do not attach it to the

oven lid.

Contact the nearest authorized service center if the power cord is damaged. Make sure that the

authorized service has the opportunity with a new cable with plastic insulation of the same size

and that can withstand the electric current needed by the oven.

* A bipolar switch with at least 3 mm must be installed between the points of contact between

the device and the electric cable and suitable for transporting the desired load in accordance

with the laws in force.

if the device is to be connected directly to the electric wiring. Ground wire must not be cut

be double pole switch.

*It is not advised to use adapters, multi plugs or extension cords. If absolutely necessary,

adapters or extension cords in line with safety laws can be used. However, never go

beyond the maximum current capacity and maximum power stated for the adapter.

*Test heating elements for 3 minutes after the connections are done.

*Electricity safety of the device is guaranteed only if connected to suitable source correctly

with grounding in accordance with the rules. Our company cannot be held responsible for

the damages to people, animals or properties due to the failure to ground the device

properly.

WHEN THE DEVICE IS INSTALLED INITIALLY:

1. Set the Temperature Control to maximum level. (250 C MAX)

2. Set the Function button as Top and Bottom Grill (and + Fan if available).

3. Run the oven in this setup for 30 minutes.

4. Open a window for air circulation.

A smoke and smell resulting from insulation materials and heating elements can be

experienced for once during this period. If this happens, wait for the smoke and smell to

dissipate before placing food inside the oven.

*After these are done, clean the interior of the oven with a slightly wet soapy soft cloth.

IMPORTANT: Always use the middle section of the handle when opening the lid of the

oven.

WARNING: Carefully wash parts such as tray, grid etc before the first use of the oven.

For a good appearance and operation, keep the oven clean. The modern design of the

oven facilitates its maintenance, reducing it to a minimum. The elements of the oven

that come into contact with food should be cleaned regularly.

General cleaning

-Before performing any cleaning or maintenance task, unplug the oven.

-Set all the controls in the OFF position.

-Wait until the inside of the oven cools until it is only slightly hot; Cleaning is easier if the

oven is a little hot.

-Wipe the surfaces with a soft cloth, a sponge or a soft damp sponge and then dry them

with a cloth.

If it is very dirty, use hot water and a non-abrasive cleaning product.

-Do not use abrasive cleaners or sharp metal scrapers to clean the oven glass, as they may

scratch the surface and damage the glass.

-Avoid the contact of acidic substances (lemon juice, vinegar ...) with stainless steel

elements.

-Do not use a high-pressure cleaner to clean the oven.

-The oven trays can be washed with a mild detergent.

Inside the Oven

Appropriate chemicals can be used after consulting the recommendations of the

manufacturer and trying it on a small part of the gap. Abrasive cleaning agents or abrasive

clothes must not be used on the surfaces of the gap.

Do not clean with a jet of steam.

NOTE: The manufacturer of this appliance does not take responsibility for damages

caused by chemicals or abrasive cleaning.

REMOVING SIDE WIRE TRAYS OF THE OVEN

It is possible to remove and clean the side wire

trays in which trays and wire grids are placed

easily. Follow the procedure as shown in the

picture below to remove the oven interior wire

trays from the side walls.

Otros manuales para ROT70

Tabla de contenidos

Idiomas:

Otros manuales de Horno de Infiniton

Infiniton

Infiniton HSM-31B46 Manual de usuario

Infiniton

Infiniton HSM-12N18 Manual de usuario

Infiniton

Infiniton HORNO P709FB Manual de usuario

Infiniton

Infiniton HSM-20B31 Manual de usuario

Infiniton

Infiniton HORNO DG70 Manual de usuario

Infiniton

Infiniton HORNO H6BK Manual de usuario

Infiniton

Infiniton HSM-81C60B Manual de usuario

Infiniton

Infiniton HORNO 1040YA1 Manual de usuario

Infiniton

Infiniton HORNO P659AT Manual de usuario

Infiniton

Infiniton HORNO PYE7028 Manual de usuario

Infiniton

Infiniton CC-V350G Manual de usuario

Infiniton

Infiniton HORNO TBPYE27 Manual de usuario

Infiniton

Infiniton 36YA2 Manual de usuario

Infiniton

Infiniton HSM-63C20B Manual de usuario

Infiniton

Infiniton HORNO 67YB1 Manual de usuario

Infiniton

Infiniton HSM-70B09 Manual de usuario

Infiniton

Infiniton HORNO 48YA3 Manual de usuario

Infiniton

Infiniton HORNO 40ECD6 Manual de usuario

Infiniton

Infiniton HSM-71C28B Manual de usuario

Infiniton

Infiniton HORNO 818LB Manual de usuario

Infiniton

Infiniton HORNO B4VK Instrucciones de instalación y funcionamiento

Infiniton

Infiniton HORNO 70WH19 Manual de usuario

Infiniton

Infiniton HSM-26B61 Manual de usuario

Infiniton

Infiniton CC56BWC Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
