User Guide Please read the Important Notice and Warnings at the end of this document 002-34554 Rev. *A

www.infineon.com page 1 of 25 2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit

guide

About this document

Scope and purpose

This document is a user guide for the CY-SD4210 EZ-USB™ SX3 HDMI 4K capture solution demo kit. This kit

enables you to stream video and audio from an external HDMI source directly into a PC. See the relevant

sections based on your requirements:

•Introduction –Provides basic information on the kit

•Installing the kit software –Explains the installation of software needed to program the kit

•Kit hardware –Explains the kit architecture and system design details

•Kit programming –Describes the procedure to program the kit

•Kit operation –Explains the procedure to operate the kit

Intended audience

This document is intended for users of the EZ-USB™ SX3 HDMI 4K capture solution demo kit.



User Guide 2 of 25 002-34554 Rev. *A
 2022-08-01
CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide
Table of contents

Table of contents
About this document....................................................................................................................... 1
Table of contents............................................................................................................................ 2
1Introduction .......................................................................................................................... 3
1.1 Kit contents .............................................................................................................................................3
1.2 Downloading kit documents and hardware design files .......................................................................3
1.3 Board details ...........................................................................................................................................3
1.4 Kit features ..............................................................................................................................................4
2Installing the kit software ....................................................................................................... 5
2.1 Before you start.......................................................................................................................................5
2.2 Install SX3 Configuration Utility software ..............................................................................................5
3EZ-USB™ SX3 HDMI 4K capture kit system design....................................................................... 6
3.1 Top-level hardware design .....................................................................................................................6
3.2 CY-SD4210 design details........................................................................................................................6
3.2.1 USB connector (J1) ............................................................................................................................6
3.2.2 Switch (SW1).......................................................................................................................................6
3.2.3 Power supply......................................................................................................................................7
3.2.4 SX3 (U6) ..............................................................................................................................................7
3.2.5 SPI flash (U11) ....................................................................................................................................7
3.2.6 HDMI connector (J6) ..........................................................................................................................7
3.2.7 Crystal (Y1, Y3)....................................................................................................................................7
3.2.8 LED (LED1) ..........................................................................................................................................7
3.2.9 HDMI receiver (U17) ...........................................................................................................................7
3.2.10 Lattice ECP5 FPGA (U10) ....................................................................................................................7
3.2.11 DDR3 RAM (U12) .................................................................................................................................8
4Programming the EZ-USB™ CY-SD4210 SX3 controller ................................................................ 9
5Kit operation ........................................................................................................................14
5.1 Booting from the SPI flash ....................................................................................................................14
5.2 Audio setting..........................................................................................................................................15
5.3 Video streaming at 4K resolution .........................................................................................................16
5.4 Video streaming at 1080p resolution....................................................................................................17
6Troubleshooting ...................................................................................................................20
6.1 Programming test .................................................................................................................................20
6.1.1 No bootloader device detected.......................................................................................................20
6.1.2 FX3 USB bootloader device not detected in Windows Device Manager ........................................20
6.2 Video streaming test .............................................................................................................................21
6.2.1 SX3 camera not displayed in Device Manager................................................................................21
6.2.2 Black screen detected in the Camera app.......................................................................................21
References....................................................................................................................................22
Technical support..........................................................................................................................23
Revision history.............................................................................................................................24



User Guide 3 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

Introduction

1Introduction

The CY-SD4210 EZ-USB™ SX3 HDMI 4K capture solution demo kit is based on the SX3 product family of

Infineon’s configurable SuperSpeed USB controllers.

SX3 has a fully configurable general interface that can interface with any processor, ASIC, image sensor, or

FPGA. It provides easy and effortless connectivity to popular industry interfaces such as synchronous slave FIFO

and image sensor interfaces. The EZ-USB™ SX3 HDMI 4K capture kit combines hardware, software and

documentation that enable customers to stream video from an HDMI source directly into a PC. This user guide

describes the steps to install the software required by the SX3 HDMI 4K capture kit and to operate the

development board provided with the kit.

This kit is intended to be a solution demo kit for USB Type C audio and video streaming applications from an

HDMI source.

See the device datasheets [4] to understand and compare the various features supported by EZ-USB™SX3

controllers.

The CY-SD4210 EZ-USB™ SX3 HDMI 4K capture solution demo kit supports the following key features:

•Audio and video streaming up to 4K (UHD) at 30 fps from an HDMI source

•USB bus-powered operation

•Onboard regulators

To view the SX3 controller details, see the webpage.

1.1 Kit contents

The CY-SD4210 EZ-USB™ SX3 HDMI 4K capture solution demo kit consists of the following:

Table 1 Kit contents

Item

Type

Comments

SX3 HDMI 4K capture kit

Hardware

SuperSpeed USB-C cable

Cable

HDMI-A male cable

Cable

Hard copy of the quick-start

guide (QSG)

Documentation

Mechanical enclosure

Enclosure

Kit casing

Package

Foam

Package

To protect and maintain proper placement in the kit

container

1.2 Downloading kit documents and hardware design files

The documents and the hardware design files for CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit can be

downloaded from the kit webpage [3]. The documents include a QSG, kit user guide (this document), and

release notes. The hardware design files include schematic, bill of materials (BOM), and layout files.

1.3 Board details

This section lists the key interfaces of the CY-SD4210 board.

User Guide 4 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

Introduction

Figure 1 CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit

1.4 Kit features

The kit features an SX3 controller and ECP5 FPGA from Lattice Semiconductor that can be configured using the

configuration provided to stream video and audio from an external HDMI source directly into a PC. The onboard

ITE HDMI receiver enables users to stream HDMI video up to 4K at 30 fps. See Section 5 for more details.

User Guide 5 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

Installing the kit software

2Installing the kit software

This chapter describes the procedure to install software for the CY-SD4210 kit.

2.1 Before you start

The installation of the SX3 Configuration Utility software and other Infineon software may require

administrator privileges. However, privileges are not required to run the software once it is installed.

2.2 Install SX3 Configuration Utility software

Download and install the EZ-USB™ SX3 Configuration Utility from https://www.infineon.com/cms/en/design-

support/tools/configuration/usb-ez-usb-sx3-configuration-utility to configure and evaluate the example

templates on the CY-SD4210 kit.

Installable packages are available for Windows, Linux and macOS.

After the installation is complete, the contents are available at <Install Directory>\ EZ-USB SX3 Configuration

Utility.

Note:

1. For working with CY-SD4210 kit, SX3 Configuration Utility tool version should be v1.1.0.5 or higher.

2. The default <Install Directory> is C:\Program Files(x86)\Cypress.

3. See EZ-USB™SX3 Configuration Utility user guide for more details.

User Guide 6 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

EZ-USB™ SX3 HDMI 4K capture kit system design

3EZ-USB™ SX3 HDMI 4K capture kit system design

This section provides details of the CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit design. The kit is bus-powered

and supports a SuperSpeed USB-C cable to connect to the PC. To demonstrate the full functionality of the kit,

an HDMI source must be connected to the onboard HDMI connector.

3.1 Top-level hardware design

The CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit consists of the SX3 device, the ECP5 FPGA from Lattice

Semiconductor, an HDMI receiver, an external SPI flash module, the DDR3 SDRAM, onboard regulators, and

USB-C and HDMI connectors.

Figure 2 CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit architecture

3.2 CY-SD4210 design details

The CY-SD4210 board consists of the SX3 silicon (CYUSB3017-BZXI), SuperSpeed MUX, 64-Mbit SPI flash, HDMI

receiver, ECP5 FPGA and DDR3 SDRAM. The board is bus-powered and uses a 19.2 MHz crystal for operation.

The kit provides HDMI and USB-C interface connectors to connect an external HDMI source and PC,

respectively.

3.2.1 USB connector (J1)

A certified USB-C receptacle (J1) onboard allows SX3 to communicate with the PC via a SuperSpeed USB-C

cable that is provided with the kit. Use this port to test SX3 applications. Using the Type-C interface allows

access to the SX3 debug interface using serial terminal messages.

3.2.2 Switch (SW1)

Mode selection switch, SW1: Selects the mode in which SX3 must boot upon power ON. The kit can boot in

two modes based on the position of this switch.

Table 2 Boot modes

Boot mode

PMODE1

PMODE2

USB

SW1.2 ON

SW1.1 OFF

SPI

SW2.2 OFF

SW1.1 ON

To program the device, set SW1 in USB mode. After programming, setting the mode switch in SPI mode and

rebooting the device by power cycle allows SX3 to boot from the onboard SPI flash.

HDMI source

1080p at 60fps

/4K at 30fps

HDMI

Receiver

ECP5

FPGA SX3

SPI flash

64Mbit

DDR3 SDRAM

(frame buffer)

Power

Supplies

+3.3V

+2.5V

+1.5V

+1.2V

+1.1V

PC /

Laptop

HDMI

24-bit

video data

I2S audio

32-bit data

100MHz

Infineon

Parts

XTAL

19.2MHz

ESD

Diodes

USB-C

VBUS

Super

Speed

MUX

User Guide 7 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

EZ-USB™ SX3 HDMI 4K capture kit system design

3.2.3 Power supply

The kit consists of five DC-DC step-down regulators with ratings as listed below. AP3428KTTR-G1 from Diodes

Inc. is used due to its small form factor. All voltages listed below are generated from VBUS (i.e., 5 V ± 0.25 V).

•U1: 3.3 V ±5% at 1A

•U2: 2.5 V ± 5% at 1A

•U3: 1.5 V ± 5% at 1A

•U4: 1.2 V ± 5% at 1A

•U8: 1.1 V ± 5% at 1A

The kit also uses a 2A DDR termination controller (U9) to power the VTT bus terminations. It also provides the

reference output to the DDR IC.

3.2.4 SX3 (U6)

This is a USB 3.0 configurable SuperSpeed controller with a 32-bit ARM926EJ core CPU and 512 kB embedded

SRAM. It supports UVC, UAC, and USB vendor class protocols. With a general configurable interface of 8-, 16-, 24-

and 32-bit data bus at 100 MHz, SX3 supports slave FIFO and parallel camera interface features. It has dedicated

interfaces for SPI flash and I2C. SX3 supports selectable clock input frequencies at 19.2, 26, 38.4 and 52 MHz.

Additionally, a dedicated 19.2 MHz crystal input support is also available.

3.2.5 SPI flash (U11)

The kit configuration is stored on an Infineon Technologies 64-Mb SPI flash. After power-on, SX3 fetches the

required details from the configuration image, stores it in its RAM and starts executing from it.

3.2.6 HDMI connector (J6)

The kit has an onboard HDMI connector that allows it to connect to an external HDMI source using an HDMI cable.

3.2.7 Crystal (Y1, Y3)

Y1 is a 19.2 MHz crystal used by SX3 to generate the clock for its operation. Y3 is a 27 MHz crystal used by HDMI

RX.

3.2.8 LED (LED1)

LED1 (user LED) is a green LED connected to GPIO_4 of SX3. By default, with power-on, this LED glows green,

indicating the power to the kit. It can also be controlled by the application.

3.2.9 HDMI receiver (U17)

The kit uses a single-port HDMI receiver that supports HDMI 1.4b. It supports streaming of 4K videos with 24-bit

RGB digital video standard and up to four channels of I2S output.

3.2.10 Lattice ECP5 FPGA (U10)

The kit uses an ECP5 family FPGA from Lattice Semiconductor. It is a high-performance device with dedicated

DDR3 RAM interfaces and supports high-speed signaling. This FPGA acts as a bridge between the HDMI receiver

and the SX3 device. It receives 24-bit RGB video signals and I2S audio signals from the HDMI receiver, processes

and sends them to SX3 via the 32-bit slave FIFO interface at 100 MHz. This allows SX3 to directly communicate

with an HDMI source.

User Guide 8 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

EZ-USB™ SX3 HDMI 4K capture kit system design

3.2.11 DDR3 RAM (U12)

This kit has an onboard 2 Gb DDR3 SDRAM that is used by the FPGA to process the digital audio and video data

received from the HDMI receiver and communicate it to SX3 via the 32-bit slave FIFO.

User Guide 9 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

Programming the EZ-USB™ CY-SD4210 SX3 controller

4Programming the EZ-USB™ CY-SD4210 SX3 controller

The EZ-USB™ SX3 controller on the CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit is preprogrammed with the

latest configuration at the time of manufacturing. However, check the EZ-USB™ SX3 webpage for the latest

configuration.

The CY-SD4210 kit is preprogrammed with the firmware to stream 4K videos at 30 fps from an HDMI source. Use the

Configuration Utility only to change the program. Ensure that the tool version is 1.1.0.5 or higher.

1. Open the EZ-USB™ SX3 Configuration Utility. If the application is not present on the desktop, browse to the

SX3 SDK installation directory (C:\Program Files (x86)\Cypress\EZ-USB SX3 Configuration Utility).

Figure 3 SX3 Configuration Utility home screen

2. Click Import. Select SX3 Template Project and click (…).

Figure 4 Import configuration screen

User Guide 10 of 25 002-34554 Rev. *A

2022-08-01

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture kit guide

Programming the EZ-USB™ CY-SD4210 SX3 controller

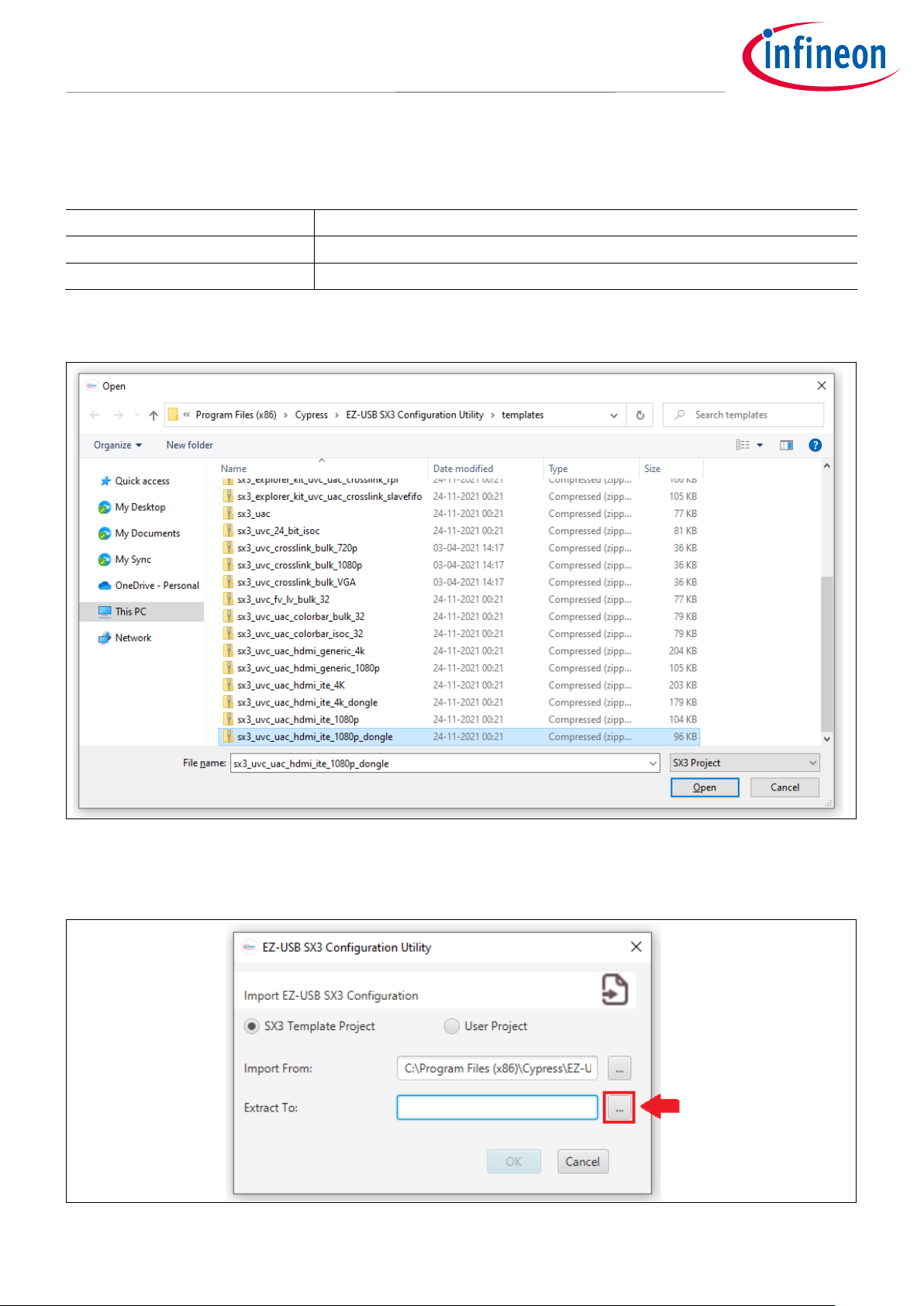

3. Browse to import the following configuration from the local folder based on the module planned for

streaming and click Open.

Table 3 Project files

Streaming media

Import file

1080p at 60 fps

sx3_uvc_uac_hdmi_ite_1080p_dongle.zip

4K at 30 fps

sx3_uvc_uac_hdmi_ite_4k_dongle.zip

An example window is shown below:

Figure 5 Project import screen

4. On the Extract To field, select the local folder, and click OK.

Figure 6 Project extract screen

Tabla de contenidos

Manuales populares de Tarjeta PCI de otras marcas

ERMA

ERMA SSI 1417 Manual de usuario

SIIG

SIIG CyberSerial Dual PCI Instrucciones de montaje

Moxa Technologies

Moxa Technologies CP-102E Manual de usuario

I-Bus

I-Bus IBC2602 Manual de usuario

Exsys

Exsys EX-60102 Manual de usuario

Chelsio Communications

Chelsio Communications T5 Series Manual de usuario

Conrad Electronic

Conrad Electronic 97 46 71 Manual de usuario

Micro Innovations

Micro Innovations USB650A Manual de usuario

KTI Networks

KTI Networks KF-310 Manual de usuario

Asus

Asus SpaceLink WL230 Manual de usuario

SIIG

SIIG SC2475 Manual de usuario

TRENDnet

TRENDnet TEW-703PI Manual de usuario

Belkin

Belkin F5D7000F Manual de usuario

Pericom

Pericom PI7C7100 Manual de usuario

ADLINK Technology

ADLINK Technology cPCI-3548 Manual de usuario

Digium

Digium TE200 Series Manual de usuario

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manual de usuario

Western Digital

Western Digital FireWire PCI Adapter Manual de usuario
