Inficon Southern Cross IRwin Manual de usuario

IRwin Quick Start Guide

Eﬀective October 2019

Southern Cross Inc.

www.southerncrossinc.com

3175 Corners North Court

Peachtree Corners, GA 30071

1.800.241.5057

Contents

How to assemble your leak detector.......................................................................................3

How to set the lower explosive limit to 5% vol........................................................................7

How to set unit to one point calibration..................................................................................9

How to set the threshold alarm.............................................................................................14

Data transfer/Bluetooth.........................................................................................................16

Charging the battery...............................................................................................................19

Troubleshooting/error messages............................................................................................22

How to set your leak detector in Universal Mode...................................................................5

How to Assemble your IRwin Methane Leak

Detector

Components of the IRwin

Bell Probe

Probe Rod

Hand Probe

How to assemble your IRwin Methane Leak Detector

Attach the probe rod to the bell probe.

Attach the hand probe to the probe rod.

Connect the probe tube of the hand probe to

the gas inlet on the leak detector.

Your unit is assembled.

How to set your IRwin Methane Leak

Detector in Universal Mode

(for a factory set unit)

For Operation in countries not following German DVGW directives

Start the device by pressing the ON button

Press followed by

Answer the function test questions and conrm test

results by pressing

Use to navigate to General and press

Use to navigate to Custom and press

How to set your IRwin Methane Leak Detector for Universal Mode

Use to navigate to Universal Mode

and press

Enter the Supervisor password code (1111 unless

changed by supervisor)

Use to navigate to Universal Mode

and press

Press to tick Universal Mode box

Press followed by and

Use to navigate to General and press

Press followed by

Use to select 100% CH4 LEL Conc

Use to navigate to Custom and press

How to set the Lower Explosive Limit (LEL)

at 5.0% vol on IRwin Methane Leak Detector

If prompted, enter the password code (1111 unless

changed by supervisor) and repeat step 4.

If not prompted, go ahead to the next step

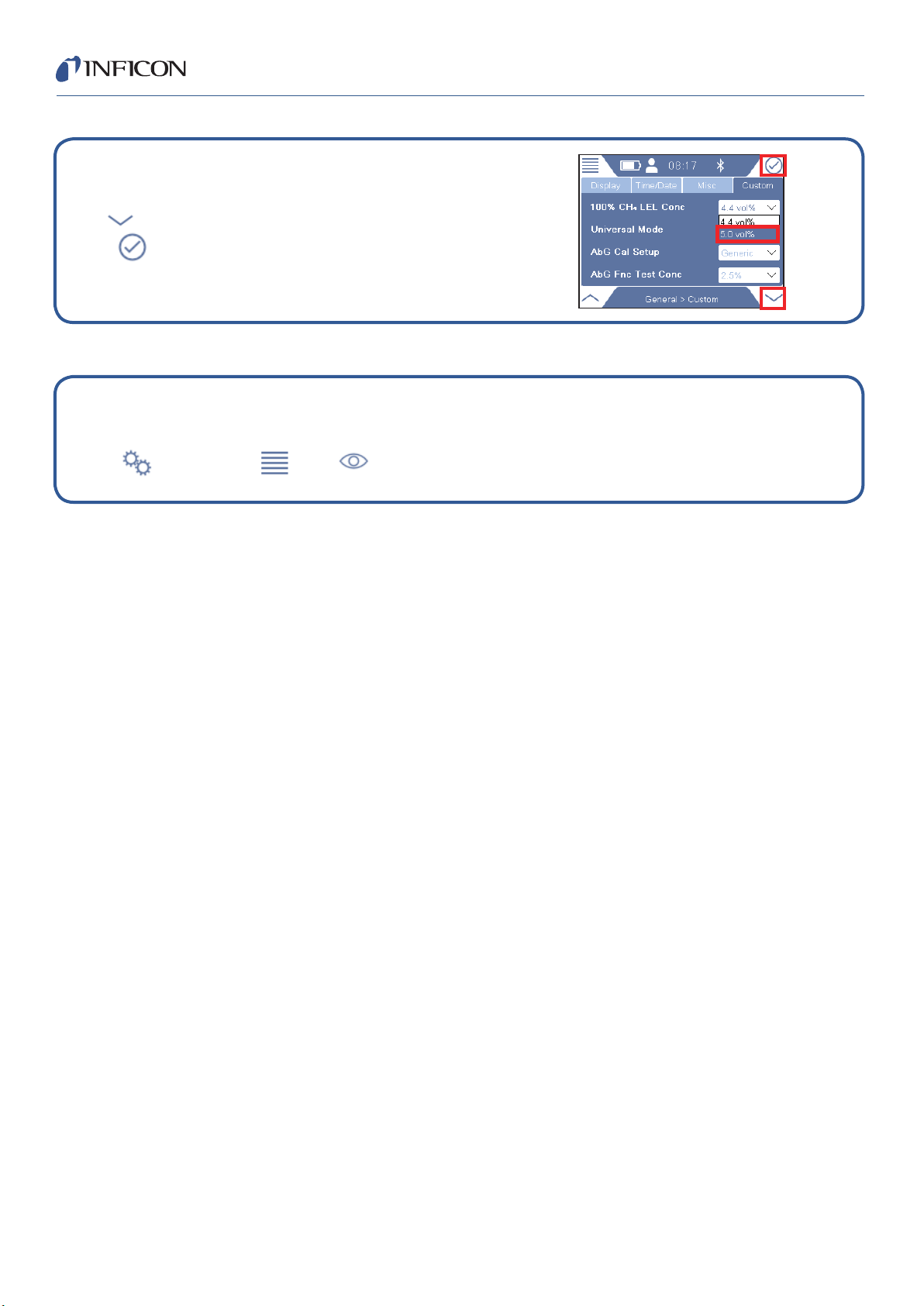

How to set the Lower Explosive Limit (LEL) at 5.0vol% on

IRwin Methane Leak Detector

Use to select 5.0 vol% in the drop-down menu,

press

Press followed by and

How to set your IRwin Methane Leak

Detector for 1 Point Calibration

(2.5%) - Universal Mode

Use to navigate to General and press

Make sure your IRwin is set in Universal Mode (see the How to set your IRwin for Universal

Mode quick start guide)

Press followed by

Use to navigate to AbG Cal Setup and press

Use to navigate to Custom and press

How to Set your IRwin Methane Leak Detector

for 1 Point Calibration 2.5%

Use to select Generic and press

followed by

Use and to navigate to Calibration

and press

Use to navigate to Settings and press

If prompted, enter the (min) Intermediate password code

If not prompted, go ahead to next step

If prompted, enter the Supervisor (Advanced) password code

If not prompted, go ahead to next step
