infaco EC1700 Manual de usuario
USER’S MANUAL EC1700
Reference Description
PW2 Poignée universelle de la gamme POWERCOUP PW2.
THD600 Taille-haie double, longueur du lamier 600 mm (23,5’’).
THD700 Taille-haie double, longueur du lamier 700 mm (27,5’’).
THS700 Taille-haie simple, longueur du lamier 700 mm (27,5’’).
TR8
Elagueuse, capacité de coupe max. Ø150 (5,9’’).
SC160 Tête de scie, capacité de coupe max. Ø100 (3’’).
PW930 Rallonge carbone, longueur 930 mm (3 ft ).
PW1830 Rallonge carbone, longueur 1830 mm (6 ft ).
PWT1650 Rallonge carbone, longueur 1650 mm (5,4 ft ).
EC1700 Effleureuse, perche télescopique 1,5m à 1,9m (59’’ to 74,5’’).
EP1700 Epampreuse, perche télescopique 1,2m à 1,6m (47’’ to 63’’).
OT2650 Vibreur à olives, perche télescopique 2,2 à 2,8m (86,5’’ to 110’’).
OF1830 Vibreur à olives, perche fixe 2,5m (98,5‘‘).
OF1530 Vibreur à olives, perche fixe 2,2m (86,5‘‘).
CONTENTS _________________________________________________________ 4
SAFETY INSTRUCTIONS ______________________________________________ 4
PERSONAL PROTECTIVE EQUIPMENT__________________________________ 4
ENVIRONMENTAL PROTECTION ______________________________________ 5
CHARACTERISTICS __________________________________________________ 5
VIEWS OF ACCESSORIES ____________________________________________ 5
USER’S MANUAL____________________________________________________ 6
INSTALLATION AND POWER CONNECTION ___________________________________________ 6
USING THE MACHINE ______________________________________________________ 6 - 7 - 8
SAFETY PRECAUTIONS_______________________________________________ 9
CARE AND MAINTENANCE _________________________________________ 10
WEEKLY GREASING_______________________________________________________________10
ASSEMBLING THE BRUSH ________________________________________________________ 11
SAFETY INSTRUCTIONS _____________________________________________ 12
WARRANTY CONDITIONS ___________________________________________ 13
RECOMMANDATIONS ______________________________________________ 14
TROUBLESHOOTING________________________________________________ 15
WARRANTY CARD _____________________________________________ 17 - 18
MATÉRIEL FABRIQUÉ EN FRANCE ____________________________________ 19
DÉCLARATION OF CONFORMITY CE__________________________________ 20
Contents
3
Keep all safety warnings and instructions so that you can refer to them at
a later date.
The term “tool” in the warnings refers to your electrical tool run off the main
supply (with supply power cord) or your electrical battery-operated tool (without
a supply power cord).
WARNING. Read all safety warnings and all instructions. Failure to
abide by warnings and instructions could lead to an electric shock, fire
and/or serious injury.
PERSONAL PROTECTIVE EQUIPMENT
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your
country. Electrical appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on
eco-compatible waste elimination.
SAFETY INSTRUCTIONS
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection.
Hand protection, for work gloves.
Foot protection by closed toed shoes
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not use
the extensions poles near electricity supply points or electrical wires.
Note: Do not place any part of your body close to the blade. Do not remove cut mate-
rial or hold the material you wish to cut while the blades are moving.
10m
4
GENERAL OVERVIEW
Removable handle
Electroflor brush
Telescopic pole
Reference EC1700
Power 1400W Max
Weight 2 kg 790
Length
1.63 à 2.26m
Blade speed Réglable de 200 à 1900 r/min
CHARACTERISTICS
VIEWS OF ACCESSORIES
Battery 500Wh
10,4Amp.
Réf : L810B
Power cord
Réf : PW225S
PW2 handle
Réf : PW2
NOT
L810B
NOT
PW2
NOT
PW2
Battery 150Wh
3,1Amp.
Réf : 731B
NOT
F3010
5
Battery 120Wh
2,5Amp.
Réf : 831B
NOT
F3015
USER’S MANUAL

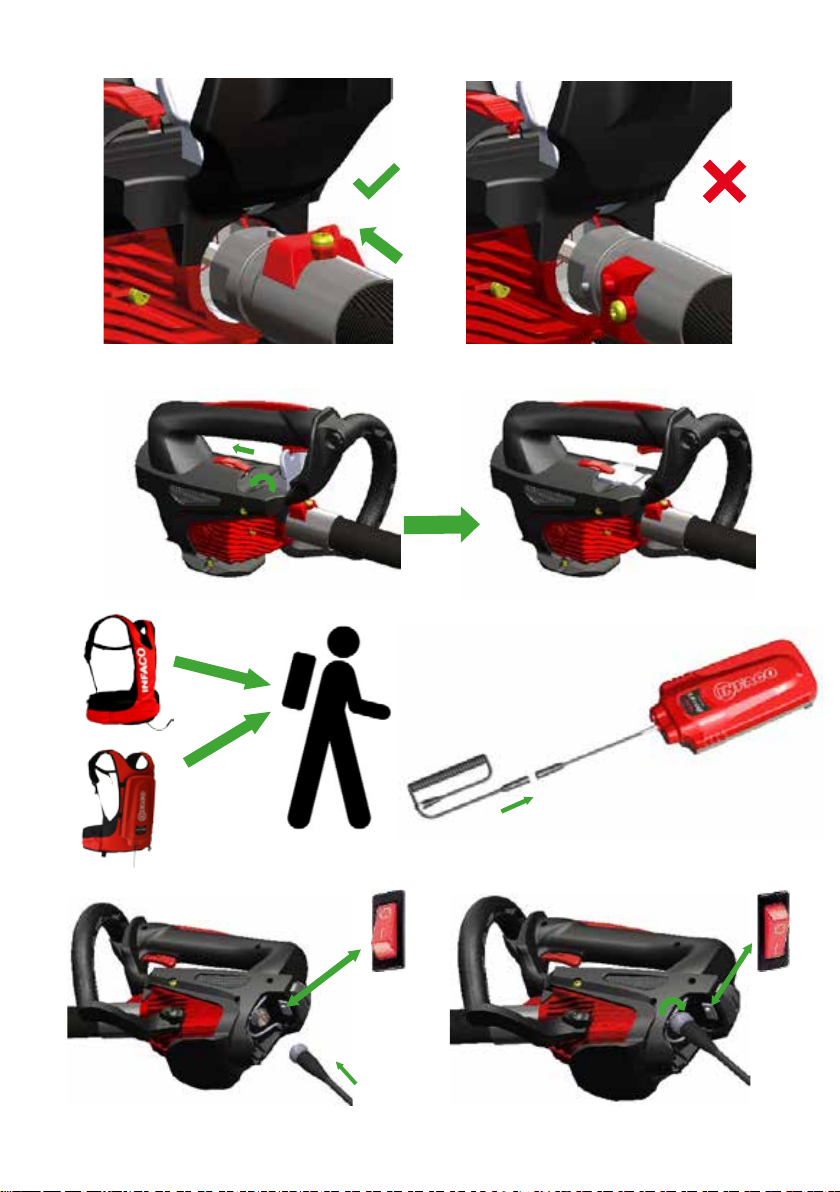

INSTALLATION AND POWER CONNECTION
USING THE MACHINE
AOFF ON
F
A/ B/
Only use INFACO brand batteries with a supply voltage 48 volts.
It is imperative to read the operating instructions for the tools and accessories
before handling or connecting the tool.
If it is raining, the battery vest must be worn underneath waterproof clothing so
that the battery unit and control box remain dry.
2
1
6
C/
OFF ON
1
1
1
2
2
2
6 7
D/ E/
F/ G/
H/ I/
J/
K/
C/
A/ B/
x10 short pulls
x1 long pull
2
1 Start : 2 short pulls of the trigger = ON
Standby output : 2 short pulls of the trigger = ON
2 Normal operations :
1 long pull of the trigger = ON / Releasing the trigger = OFF
1 short pull of the trigger = ON / 1 short pull of the trigger = OFF
Start the machine To enter the set-up mode, do a long pull
on the trigger.
The machine starts automatically at the
first increment on low speed.
Select the requested speed with successive short pulls on the trigger. 10 speed increments
available.
Validate the requested speed and exit the set-up mode with a long pull on the trigger until the
machine stops completely.
The machine is ready to work, the speed will be locked until the next set-up.
The tool is fitted with an electronic protection system. As soon as the brush becomes blocked
due to meeting strong resistance, the electronic system causes the motor to stop. Restart the
tool by carrying out operation «l» in “Using the Tool” on page 8.
SETTING OF ROTATION SPEED
10 speed increments available between 320 and 1900 r/min
ON
8 9
2 (x3)
L/
SAFETY PRECAUTIONS
For transportation, storage, maintenance, tool maintenance or any other
operation outside of using the tool you must unplug the tool.
1
O O
2
A / B /
c/
9
Care AND MAINTENANCE
WEEKLY GREASING
Before starting work
At the end of work daily
Each time the battery is
changed
Monthly
Yearly
If faulty
If damaged
As required
Weekly
All maintenance operations must be performed
with the tool disconnected from all power sources.
Maintenance of the tool depends on the frequency
of tool use.
Occasional use, space out intervals. Intensive use,
more frequent intervals.
Complete tool
Visual inspection X X
Cleaning X X
Have checked by dealer X X
Fixing the brush
Check X
Wire of brush
Visual inspection X
Change X X
Power cord
Visual inspection X X X
Battery
Visual inspection X X X X
Vest
Visual inspection X X X
Handle
Visual inspection X X
10
