IndigoVision Provision NVR5-32800 Guía de configuración rápida

Provision

NVR5-32800 (1.3)

Integration Guide

Agora Command and

Control

2 Integration Guide - v1-draft1

THIS MANUAL WAS CREATED ON THURSDAY, JULY 1, 2021.

DOCUMENT ID: IU-AG-MAN010-1-DRAFT1

Legal Considerations

LAWS THAT CAN VARY FROM COUNTRY TO COUNTRY MAY PROHIBIT CAMERA SURVEILLANCE. PLEASE ENSURE THAT THE RELEVANT LAWS

ARE FULLY UNDERSTOOD FOR THE PARTICULAR COUNTRY OR REGION IN WHICH YOU WILL BE OPERATING THIS EQUIPMENT. INDIGOVISION

LTD.ACCEPTS NO LIABILITY FOR IMPROPER OR ILLEGAL USE OF THIS PRODUCT.

THIS MANUAL IS PROTECTED BY NATIONAL AND INTERNATIONAL COPYRIGHT AND OTHER LAWS. UNAUTHORIZED STORAGE,REPRODUCTION,

TRANSMISSION AND/OR DISTRIBUTION OF THIS MANUAL,OR ANY PART OF IT,MAY RESULT IN CIVIL AND/OR CRIMINAL PROCEEDINGS.

INDIGOVISION IS A TRADEMARK OF INDIGOVISION LIMITED AND IS REGISTERED IN CERTAIN COUNTRIES. INDIGOULTRA , INDIGOPRO ,

INDIGO LITE , INTEGRA AND CYBER VIGILANT ARE REGISTERED TRADEMARKS OF INDIGO VISION LIMITED . CAMERA GATEWAY IS AN

UNREGISTERED TRADEMARK OF INDIGOVISION LIMITED. ALL OTHER PRODUCT NAMES REFERRED TO IN THIS MANUAL ARE TRADEMARKS OF

THEIR RESPECTIVE OWNERS.

SAVE AS OTHERWISE AGREED WITH INDIGOVISION LIMITED AND/OR INDIGOVISION, INC., THIS MANUAL IS PROVIDED WITHOUT EXPRESS

REPRESENTATION AND/OR WARRANTY OF ANY KIND. TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAWS, INDIGOVISION LIMITED

AND INDIGOVISION, INC.DISCLAIM ALL IMPLIED REPRESENTATIONS,WARRANTIES,CONDITIONS AND/OR OBLIGATIONS OF EVERY KIND IN

RESPECT OF THIS MANUAL. ACCORDINGLY,SAVE AS OTHERWISE AGREED WITH INDIGOVISION LIMITED AND/OR INDIGOVISION, INC., THIS

MANUAL IS PROVIDED ON AN “AS IS”, “WITH ALL FAULTS”AND “AS AVAILABLE”BASIS. PLEASE CONTACT INDIGOVISION LIMITED (EITHER BY

POST OR BY E-MAIL AT TECHNICAL.SUPPORT@INDIGOVISION.COM)WITH ANY SUGGESTED CORRECTIONS AND/OR IMPROVEMENTS TO THIS

MANUAL.

SAVE AS OTHERWISE AGREED WITH INDIGOVISION LIMITED AND/OR INDIGOVISION, INC., THE LIABILITY OF INDIGOVISION LIMITED AND

INDIGOVISION, INC .FOR ANY LOSS (OTHER THAN DEATH OR PERSONAL INJURY)ARISING AS A RESULT OF ANY NEGLIGENT ACT OR

OMISSION BY INDIGOVISION LIMITED AND/OR INDIGOVISION, INC.IN CONNECTION WITH THIS MANUAL AND/OR AS A RESULT OF ANY USE OF

OR RELIANCE ON THIS MANUAL IS EXCLUDED TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAWS.

Contact address

IndigoVision Limited

Charles Darwin House,

The Edinburgh Technopole,

Edinburgh,

EH26 0PY

Agora Command and Control

3 Agora Command and Control Integration Guide - v1-draft1

TABLE OF CONTENTS

Legal Considerations 2

Contact address 2

1 About This Guide 4

Safety notices 4

2 Supported versions 5

Supported cases 5

3 Before you begin 6

4 Configuration in Agora Command and Control 7

Device configuration in Agora Command and Control 7

5 Logical devices 10

6 Alarms 11

Alarms triggered by Provision NVR 11

Alarm triggered by the driver 12

7 Troubleshooting 13

Perform a connection test 13

PTZ cameras 14

Other tools 15

8 Frequently asked questions 16

4 Agora Command and Control Integration Guide - v1-draft1

1ABOUT THIS GUIDE

This guide is written for users of the Agora Command and Control software. It provides

installation and configuration information for the system variants, as well as a description of

the hardware and specifications.

Please ensure you read the instructions provided in the guide before using the system.

Safety notices

This guide uses the following formats for safety notices:

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in moderate injury,

damage the product, or lead to loss of data.

Indicates a hazardous situation which, if not avoided, may seriously impair operations.

Additional information relating to the current section.

5 Agora Command and Control Integration Guide - v1-draft1

2SUPPORTED VERSIONS

Firmware version 1.3 and earlier are supported.

Provision technical support was not able to provide a definitive list of supported devices

and versions.

Supported cases

The Agora Command and Control supported and unsupported cases are given in Table 1.

Table 1 Provision supported cases

Supported cases Unsupported cases

Automatic logical device(s) creation VideoSearch snapshots (FastRec snapshot)

Get live and recorded video Alarm mapping

PTZ commands

Alarm reception

Get live snapshots

Get recorded snapshots

Get Input/output (I/O) states

Set output state

It is not possible to map a Provision alarm to a custom Agora alarm.

6 Agora Command and Control Integration Guide - v1-draft1

3BEFORE YOU BEGIN

Before you begin, make sure you have completed the requirements given in Table 2.

Table 2 Pre-installation checklist

Requirement ü

A valid Agora Command and Control installation. c

IP access to the Provision device, for example, you can ping the Provision device from

the Agora server. c

A Provision recorder with a minimum of one camera. c

A Provision user with permissions for a minimum of one camera. c

The Provision integration with Agora Command and Control requires the installation of

Microsoft Visual Studio 2012 x64 redistributable..

7 Agora Command and Control Integration Guide - v1-draft1

4CONFIGURATION IN AGORA COMMAND AND

CONTROL

Before configuration, the appropriate driver must be installed. To do this, you must install

provision.

1. Run

Setup - provision.exe

2. Accept the License Agreement and click

3. Click

Install

to start the installation.

4. Select

Yes

to continue.

The installation will continue and when completed successfully the completed

window will be displayed.

5. Select

Finish

to exit setup.

Device configuration in Agora Command and Control

Once the driver is installed, it must be configured in Agora Command and Control as a

global device. To configure a driver, do as follows:

1. In Agora, log in to

Configuration

Use an account with configuration privileges to log in.

2. Access the site where the Provision recorder is be configured.

3. Use the

PLUS

button to create a new global device.

4. In the Create device window, do as follows:

a. Enter a

Name

to identify the device.

b. Set the

Brand

as PROVISION.

c. NVR5-32800 (1.3).

Name,Brand and Model are mandatory fields.

5. In the CONNECTION DATA section fill in the necessary information and press

Save

The Provision parameters are given in Table 3 and Figure 1.

4 Configuration in Agora Command and Control Provision

8 Agora Command and Control Integration Guide - v1-draft1

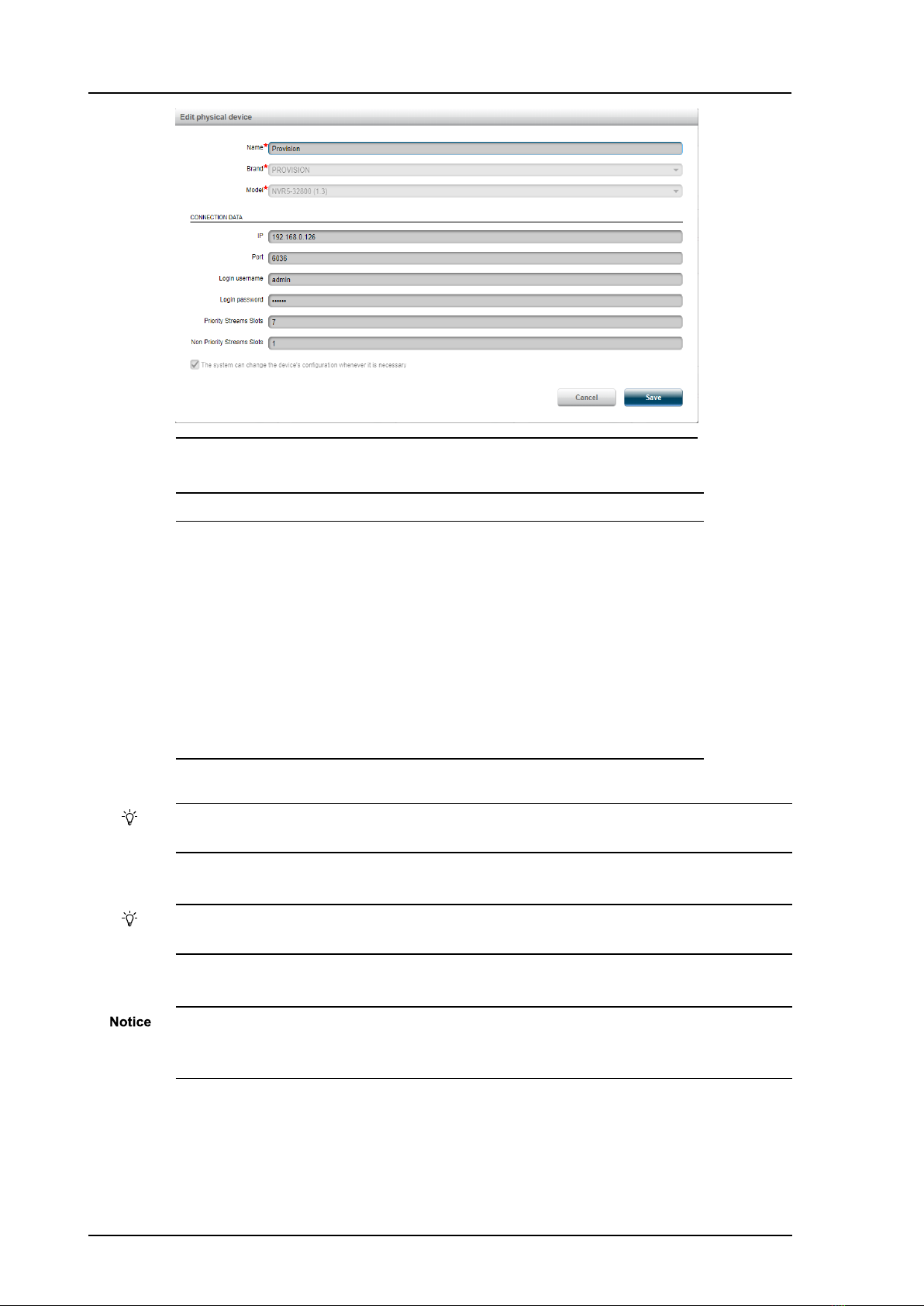

Figure 1: Provision parameters

Table 3 Provision parameters

Parameters Description

The IP address or hostname of the Provision

recorder

Port

The SDK port number

The default value is 6036

A Provision user with required permissions

The password for the user

Priority Streams Slots

The number of priority stream slots

The default value is 7

Non Priority Slots

The number of non priority stream slots

The default value is 1

Priority Streams Slots are reserved for live video, for example, alarms and video

recording. To learn more about stream slots, refer to the Configuration Manual.

Non-Priority Streams Slots are reserved for pre-alarm processing. To learn more about

stream slots, refer to the Configuration Manual.

The

CONNECTION DATA

parameters are not mandatory at this stage.

You must complete the parameters later and select Refresh. This will allow the driver to

work and allow you to create logical devices.

6. For each site, an Agora site must be mapped within the global device configuration

interface. Select

New

The New site mapping window opens

4 Configuration in Agora Command and Control Provision

9 Agora Command and Control Integration Guide - v1-draft1

7. Choose which Agora site the site will be added to.

You can map to an existing Agora site, or create a new site.

4 Configuration in Agora Command and Control Provision

10 Agora Command and Control Integration Guide - v1-draft1

5LOGICAL DEVICES

The driver will automatically create the supported devices.

The supported logical devices are given in Table 4, Table 5 and Table 6.

Table 4 Camera devices

Name Function State Creation rule User interaction Icon Hardware ID

<camera_

name>

Gets live/recorded video

streams and video status

alarms

None

One for each video

channel on the

subsystem

If pressed, Agora

will fetch

live/recorded video

from the camera

Table 5 Alarm sensor devices

Name Function State Creation rule User interaction Icon Hardware ID

<camera_

name>

Receive alarms from the

associated camera None

One for each video

channel on the

subsystem

None <channelID>

<physical_

device_

name> -

Fallback

Receive all alarms that do not

match other alarm sensors None One for each

physical device None FALLBACK

<physical_

device_

name> -

Technical

Receive technical alarms from

the subsystems None One for each

physical device None TECHNICAL

Table 6 Digital port

Name Function State Creation rule User interaction Icon Hardware

<input_

name> Show input states Green: Open

Red: Closed

One for each

input terminal on

the subsystem

None <input_idx>

<output_

name>

When used, Agora sends a

command to the subsystem to

activate/deactivate the output,

according to its current state

Green:

Activated

Red:

Deactivated

One for each

output terminal

on the subsystem

If pressed when

red, Agora sends

a command to

activate the

output

If pressed when

green, Agora

sends a

command to

deactivate the

output

<output_

idx>
