Indesit MOON 2006 Manual de usuario

All the parts included in this document are the property of Indesit Company S.p.A.

for possible errors or omissions and no part of it can be reproduced, used or removed without written

permission or a contractual clause.

SERVICE MANUAL

Washing machine 2006

MOON

SERVICE MANUAL

Washing machine 2006

MOON

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

Linguage

English

Service Manual

MOON - 2006

Edition

2006.06.12

CONTENTS OF THE MANUAL: NOTE FOR THE ENGINEER.

This manual is a supporting document for technical personnel.It contains a description of the various product

types, the general operating principles and indications concerning assistance.

Technical personnel should, in any case, consult the speciﬁc model on . (servicenet.

indesitcompany.com) to access data and updates of wiring diagrams, technical bulletins and spare parts.

Linguage

English

Service Manual

MOON - 2006

Edition

2006.06.12

CONTENTS

1. PRODUCT TYPE 4-6

Key 4

Interfaces 5

Technical data 5

Energy Label 6

2. OPERATING LOGIC 7-13

Innovative product characteristics 7-9

Instructions for settings and operation 10-11

Programmes 12-13

3. COMPONENTS 14

4. WIRING DIAGRAMS 15

5. ASSISTANCE 16-25

Demo Mode 16

Autotest (Testing / Running-in) 16

Autotest Sequence 16

Faults and Solutions 17-19

Doctor 20

Troubleshooting 20

Dismantling/Assembly 21-26

6. EXPLODED VIEWS 27-30

TYPE

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

1. PRODUCT TYPE:

1.1. KEY:

S I X L 12 5 S

1st letter 2nd letter 3rd letter 4th letter 1st&2nd Number 3rd Number 5th letter

Product line Brand Type Type Max Spin Speed Specs Colour

S = Smart I = Indesit X = maxi 6 kg. L = led 8 = 800 0 S = silver unit

S = Slim D = display 10 = 1000 1 blank = white unit

. .

14 = 1400 7

TYPE

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

1.2. INTERFACE:

1. On/OFF/RESET BUTTON

2. DOOR LOCK LED

3. Cotton Whites/PAUSE BUTTON

4. Mixed Coloureds Easy Iron/PAUSE BUTTON

5. Delicates/PAUSE BUTTON

1.3.TECHNICAL DATA:

MODEL: MOON

Capacity: da 1 a 6,0 Kg

Dimensions:

Width: 59,5 cm

Height: 85 cm

Depth: 56,5 cm

Water connections:

Maximum pressure: 10 bar

Minimum pressure: 0,5 bar

Tank Capacity 52 litres

Electrical connection:

Voltage: 220/240 volt. 50 Hz

Maximum power consumption: 1850 Watt.

Maximum spin speed: 1200 giri.

6. Rapid 30’/Rinse Only/PAUSE BUTTON

7. Programme PROGRESS RING

8. Door

9. Filter Cover

TYPE

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

1.3. ENERGY LABEL:

Energy

Manufacturer

Model

Washing

machine

More efficient

Less efficient

Energy consumption

kWh/cycle

(based on standard test results

for 60°C cotton cycle)

Actual energy consumption will

depend on how the appliance is used

Washing performance

A: higher G: lower

Spin drying performance

A: higher G: lower

Spin speed (rpm)

Capacity (cotton) kg

Water consumption

Noise Washing

(dB (A) re 1 pW) Spinning

Further information is contained in product

brochures

Norm EN 60456

Washing machine label Directive 95/12/EC

MOON

1200

6. 0

B C D E F G

1.02

INDESIT

B C D E F G

Brand

Model

Power Class

Power Consumption in standard cycle

(kW/h)

Washing Class

Spin Class

RPM

Maximum load (kg).

Maximum water consumption in

standard cycle

OPERATION

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

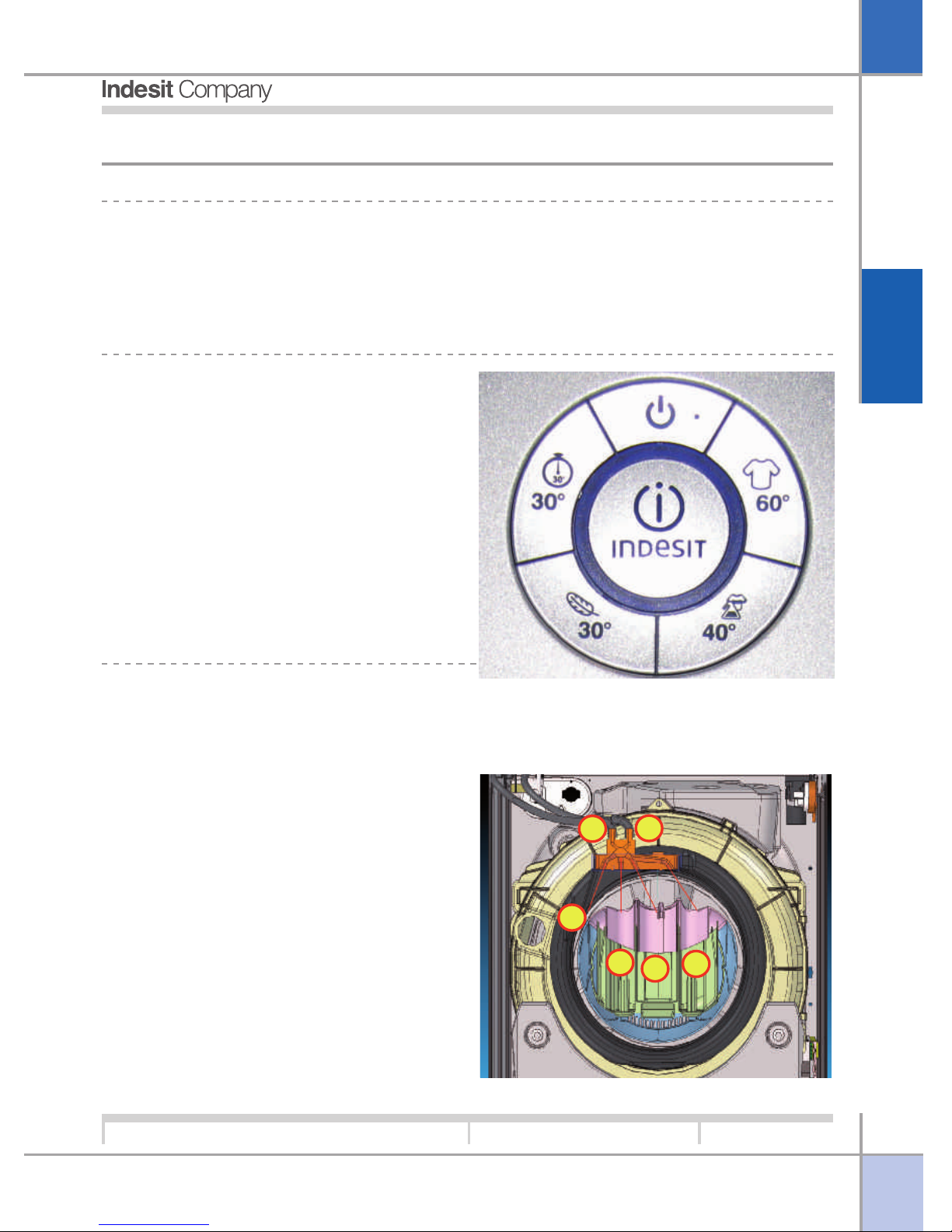

2. OPERATING LOGIC:

2.1. PRODUCT CHARACTERISTICS ANDTECHNOLOGICAL INNOVATIONS:

PROGRAMME SELECTOR:

The new circular programme selector features 5

backlit buttons, a central disc bearing the LOGO

and a ring with 12 blue leds between the buttons

and the disc. The leds around the ring light up to

indicate programme progress and, in the event of a

malfunction, the speciﬁc fault.

The MOON washing machine features many technological innovations, which are listed below:

WATER SYSTEM:

This machine features a water system designed

around two solenoid valves and a water dispenser,

connected by two hoses, which manage water

and detergent loading. With all programmes, the

appliance starts loading water with the ﬁrst solenoid

valve, but activates the Oko system only with the

“Cotton 60°” programme. During the wash phase,

water is loaded as follows:

1. The washing machine loads water with the ﬁrst

solenoid valve. (Flow 1)

2. Water is drained for two seconds (only for the

standard programme – Cotton 60°)

3. The machine ﬁnishes loading water with the second

solenoid valve, drawing the detergent into the drum.

(Flow 2)

During the rinse phase, the machine draws in fabric

softener with both solenoid valves.The ﬂow of water

creates a cross-stream inside the dispenser (Flow 1

+ 2), generating a thrust that allows the water to exit

through all the holes, drawing fabric softener into the

drum and cleaning all the other detergent dispenser

compartments.

1. Programme selector

2. Water system

3. Detergent dispenser

4. Door seal / Door

5. Vent tube

6. Drain pump

7. Conductivity sensor

Detailed explanation of these components is

provided below.

221+2

OPERATION

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

DETERGENT DISPENSER:

The detergent dispenser is located inside the

appliance, on the inside of the door.

It can be removed for cleaning by lifting it upwards

and carefully releasing the top cover.

The dispenser consists of three compartments: the

ﬁrst (left to right) is for liquid detergents.

The second (middle compartment) is for powder

detergents, while the last (right-hand) is for fabric

softener.

VENT TUBE:

The vent tube is connected to the part of the tub

where the water inlet feed is normally connected.

The vent tube steam outlet is located next to the inlet

hose at the point where, in machines with hot water

solenoid valves, the solenoid valve hose connection

is usually situated.

DOOR SEAL / DOOR:

The water dispenser is located at the top of the door

seal, ﬁxed with a metal plate.

The door does not allow you to see inside the drum;

the detergent dispenser is inside, and a small drip

tray provided with sponge has been ﬁtted under it.

OPERATION

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

DRAIN PUMP:

The drain pump is equipped with a new self-cleaning

bayonet ﬁlter which prevents large objects such as

coins, buttons, etc. from ending up inside the pump,

thus avoiding blockages and noisy operation.

It is located at the bottom right-hand side of the

machine. To access the ﬁlter, simply turn the ﬁlter

cover anti-clockwise until the bayonet coupling

releases, allowing access to the ﬁlter.

CONDUCTIVITY SENSOR:

The Moon washing machine is equipped with a new

Conductivity Sensor located on the plastic tub next

to the Oko hose, as shown in the photograph.

The Conductivity Sensor manages the “30 min” or

“Daily” programme. Its functions are:

1. If the wash load consists of clothes to be washed

without detergent, the machine will load water

and then test the level of alkalinity in the wash

water; if no alkalinity is present, the machine will

activate the standard “30 min” wash cycle;

2. If, on the contrary, the sensor detects that the

machine has been loaded with laundry plus

detergent, it will activate two 15 minute rinse

cycles.

NB: The conductivity sensor is provided with

a gasket to guarantee seal and prevent water

leaks.

A plastic cover has been ﬁtted on the ﬁlter to prevent

hands from coming into contact with the electrical

part of the pump, which must not be eliminated.

OPERATION

Service Manual

MOON - 2006

Linguage

English

Edition

2006.06.12

2.2. APPLIANCE OPERATION:

SWITCHING THE APPLIANCE ON/OFF:

The machine is switched on by pressing the On

button. The symbol on the button lights up, after

which the programme buttons start ﬂashing and

the leds on the ring light up one after another. At

this point the machine is on Stand By and is ready

for use.

SELECTING/STARTING A

PROGRAMME:

Programmes are started by pressing the relative

programme button, upon which the washing machine

starts immediately.

The Power On button and the selected programme

button leds will remain lit, while the other programme

leds and all those around the ring will switch off.The

leds around the ring will light up one after another to

indicate programme progress.

PAUSE/RIAVVIO DEL PROGRAMMA IN CORSO:

PAUSE/RESTART PROGRAMME:

The Pause/Restart function is used for interrupting

a wash cycle, which can then be restarted from the

exact point in the cycle where it was interrupted.

When the button of the programme in progress is

pressed, the washing machine stops, the Power On

button remains lit, the leds around the ring light up and

start ﬂashing, as does the selected programme led.

To restart the wash programme, simply press the

programme button once more.
