Indesit K6G210(X)/G Manual de usuario

Model type:

K6G210(X)/G

Commercial code:

F035979

mod.K6G210(X)/G page 2

General notes

Technical Documentation guidelines

----------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------

You can find herewith some generic information to simplify cunsulting of technical documentation:

1. Models of same range share the same exploded views, which report the richest set of spare parts:generally, a model does not

necessarly have a related spare part for each particular shown on exploded views.

2. Some spare parts can not be represented directly on the exploded views (instruction booklets, specific kit, etc...). You can find

those codes in the spare parts list with the same reference of particular where spares are installed or with references 099, 999.

Instruction booklets, once managed, appear with 000 reference.

3. On the higher right site of each exploded view there is a serial number which indicates the beginning of the production of

certain range:some models might have more than an exploded view for a given category, each distinguished by a different serial

no.and linked to another spare parts list, In this case, serial no. is required to supply the right spare part code. Exploded view to be

considered is the one with a more recent serial no. but previous than the one of the model that needs assistance.

4.Exploded views might require further updates even after publishing. Addition of new spares will go on following the already

existing numeration references. Revision number of an exploded view is shown into last four digits of serial number into upper

right hand corner.

5.The spare parts list associated to an exploded view shows related codes of spares managed for a certain model; for each spare

part other informations are available:

REF: reference no of spare into a table; SUBSTITUTE: list of spare(s) which can replace a code but that keeps same functional

characteristics

INDUSTRIAL CODE: list of variables of a model (shown into model label) where such spare is used; NOTICE: code of

information(s) to refer to complete technical intervention, track for changes or to find correct spare part code.

6. Some notices, into a same section are generic therefore cannot be directly linked to a spare part. In order to assist a model in

the best way as possible, it is helpful to pay attention to all notices and constantly verify documentation updates

7.Technical documentation cover shows model name and its commercial codes

mod.K6G210(X)/G page 3

4280170a Exploded views

mod.K6G210(X)/G page 4

4280170a Spare parts list

Ref. Code From To S/N Substitute Description Notice Industrial

000 C00112528 instruction book gb

002 C00090210 box cover hinge

003 C00033532 reducing grid - pan grids

004 C00052929 burner ring - medium

005 C00052932 burner cap semi rapide

006 C00110497 double pan support

007 C00052931 burner cap rapide (large) black

008 C00052928 burner ring/flame splitter - large

009 C00073878 stainless steel acc.s2000

010 C00052926 burner cup - medium burner

011 C00057740 gas jet ng 106 - small burner

012 C00052940 gas jet 116 ng large burner

013 C00052960 burner fixing screw (stainless

015 C00052925 burner cup - large burner

016 C00110458 gas pipe 4 60x60 piro

017 C00116140 gas pipe - aluminium tube l=480

018 C00090205 bolt m5x15 te

018 C00264392 80302... bolt m4x17.8 tsp esagonale sabaf

019 C00031027 80301... bolt m4

019 C00031028 80301... fixing saddle - gas tap

019 C00088881 fixing saddle - gas tap

019 C00264393 80302... fixing saddle - gas tap sab.

020 C00090011 one way multigas tap 41 copreci

020 C00090013 one way multigas tap 30 copreci

022 C00064142 cross beam mounting plane c60

023 C00115185 side panel right inox 50x60x60

024 C00098794 back panel cooker 60x60 lodz

025 C00115186 side panel left inox 50x60x60

026 C00109682 1 x C00144542 2 ways oven thermostat with

027 C00082729 push in spring clip - thermostat

028 C00092816 1 x C00089624 oven gas pipe - aluminium tube

028 C00092817 oven gas pipe - aluminium tube

029 C00098784 40512... back strut rh/lh c60x60 lodz

029 C00308395 40513... back strut rh/lh c60x60 lodz

031 C00010506 sealing washer - gas elbow/pipe

mod.K6G210(X)/G page 5

4280170a Spare parts list

Ref. Code From To S/N Substitute Description Notice Industrial

032 C00119341 spark generator + filter uk

033 C00004682 blanking tap 1/2 gas threading

033 C00039858 connection nut distributing pipe

034 C00052927 burner cup - small burner

035 C00066166 nat gas aux. burner nozzle rapido

036 C00052934 electrode clip

037 C00052951 ignition electrode (l=700)

037 C00118496 1 x C00052951 electrode l=520

039 C00064110 rear spacer

040 C00052930 burner base/flame splitter - small

041 C00052933 burner cap auxiliary (small) black

099 C00002478 1 x C00016138 washer 4,1x12x1

099 C00111155 jets kit gn g20 20mbar/g25

099 C00111156 jets kit lpg g30 29mbar/g31

099 C00640366 chain anchorage

mod.K6G210(X)/G page 6

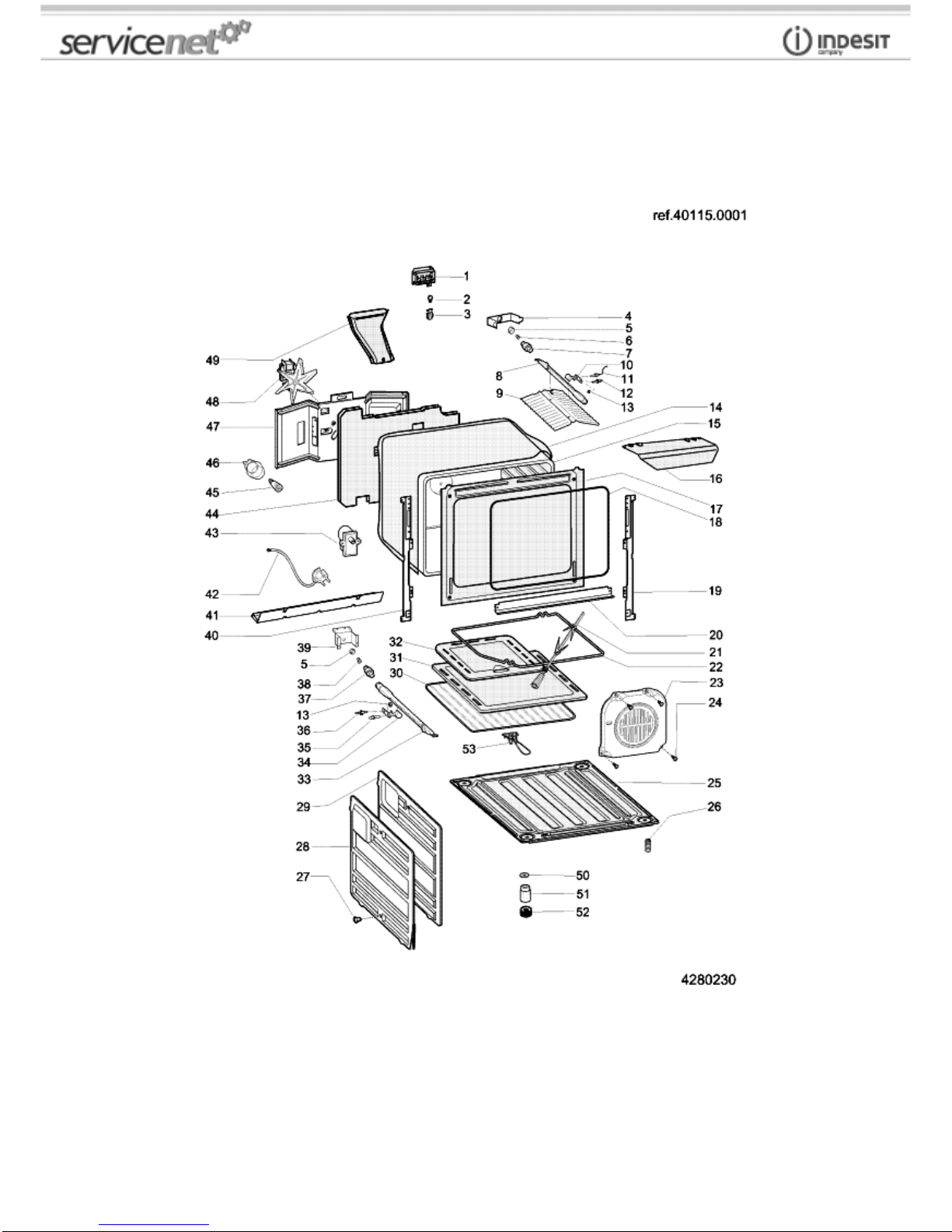

4280230 Exploded views

mod.K6G210(X)/G page 7

4280230 Spare parts list

Ref. Code From To S/N Substitute Description Notice Industrial

001 C00118110 mains terminal block

003 C00094418 stop mains supply cable

004 C00082150 support for gas injector body

005 C00002864 injector unit nut

006 C00025772 nat gas grill jet

007 C00025312 injector body

008 C00082332 60508... oven burners complete safety l=

009 C00024387 60508... grill burner deflector

010 C00082400 60508... bracket for thermocouple grill

011 C00099266 60508... spark plugs grill c60x60 lodz

011 C00145040 60509... electrode grill new cast l=500

012 C00051435 60508... stop ring thermocouple

012 C00078735 60508... thermocouple l = 1000 mm

012 C00143490 60509... 1 x C00307855 oven & grill thermocouple

013 C00038802 60508... nut for thermocouple nut m8x1

014 C00099257 1 x C00270919 gas oven insulation mat 60x60

015 C00111305 cavity oven gas c60x60

016 C00011093 deflector washer

016 C00011549 self-tapping screw 8px12,7 tsp-

016 C00112370 knob heat deflector plate

017 C00098802 oven front panel c60x60 lodz

018 C00081579 oven door seal

019 C00098793 1 x C00297712 hinge roller support right 60x60

025 C00098787 base plate c60x60 lodz

025 C00098788 bracket for base plate c60x60 lodz

026 C00016119 1 x C00055585 foot

030 C00081578 oven grid

030 C00099837 dripping-pan grid hotpoint/creda

031 C00099836 1 x C00270220 enamelled grill pan black

032 C00082736 floor gas oven

033 C00082734 60508... 1 x C00143492 oven burner

033 C00143492 60509... 1 x C00307854 oven burners complete new cast

033 C00143493 60509... 1 x C00113993 clip oven burners complete new

034 C00048753 60508... 1 x C00027147 bracket for thermocouple

035 C00082735 60508... 1 x C00140606 electrode

mod.K6G210(X)/G page 8

4280230 Spare parts list

Ref. Code From To S/N Substitute Description Notice Industrial

035 C00143489 60509... spark ignition plug new cast l=520

036 C00028639 60508... thermocouple oven (l=1200mm)

036 C00051435 60508... stop ring thermocouple

036 C00143490 60509... 1 x C00307855 oven & grill thermocouple

037 C00026277 1 x C00259573 gas injector body

038 C00048751 gas jet oven (119) - natural

039 C00082733 holder for gas injector

040 C00098792 1 x C00297711 hinge roller support left 60x60

041 C00099265 heating element protection l=526.4

042 C00044801 1 x C00279613 three-pole cable + plug 2m 3x1 uk

044 C00099258 oven insulation mat - rear 60x60

045 C00076978 oven lamp 25w 220v

046 C00078426 lamp assembly 25 w 230 v

047 C00119339 rear cross beam new s2000

049 C00098800 chimney c60x60 lodz

053 C00099839 handle for drip tray hotpoint/creda

054 C00145041 60509... grill burner complete new cast

mod.K6G210(X)/G page 9

4280340 Exploded views

mod.K6G210(X)/G page 10

4280340 Spare parts list

Ref. Code From To S/N Substitute Description Notice Industrial

003 C00112546 control panel k6g21(x)/g

005 C00016035 control knob disc spring

006 C00111340 timer knob bk ind c60x60 lodz

006 C00111341 burner knob

007 C00099195 oven inner door + inner door

008 C00141520 1 x C00193236 inox oven door 60 ind glass +

009 C00109322 oven door handle black l=593

010 C00098782 20118... warming drawer front 60x60 lodz

011 C00112393 black dishwarmer door support

012 C00111347 dishwarmer door inox c60x60 ind

014 C00139979 front drawer support

015 C00139980 drawer sheet metal c60x60

016 C00098780 drawer support left 60x60

017 C00098779 drawer support right 60x60

018 C00098796 hinge for oven door normal

019 C00033337 hinge support

021 C00111339 cover (ignition switch) - black

022 C00040109 switch support black

023 C00033335 lamp switch (na)

023 C00045793 ignition switch

024 C00099267 controls mounting panel c60x60

026 C00052527 minute timer d = 6mm

027 C00111342 control knob disc - black

099 C00017240 self-tapping screw 8px9,52 t1/2t-
