SERVICE MANUAL

YATE PRODUCTION DRYERS

All parts of this document are the property of Indesit Company S.p.A.

liability deriving from possible errors or omissions. Furthermore, no part may be reproduced, used or

disclosed except where authorized in writing or in accordance with a contractual clause.

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

CONTENTS OF THE MANUAL: NOTE FOR SERVICE TECHNICIAN.

This manual is a support document for technical personnel. It contains a description of the various product

types and their operating principle, and provides indications on serviceability.

Service technicians should always consult the speciﬁc model on

(www.servicenet.indesitcompany.com) to ﬁnd data and updates of wiring diagrams, technical bul-

letins and spare parts

Language

English

6 ExplodEd drawings 5 sErvicEability 4 wiring diagrams 3 componEnts 2 opEration i product typE

Service Manual

Yate Production Dryers

Edition

2006.09.21

INDEX

1 PRODUCT TYPE 3

1.1 PRODUCT LEGEND 4

1.2 PRODUCT STRUCTURE 4

1.3 PRODUCT INTERFACE 5

1.3.1 DISPLAY INTERFACE 5

1.3.2 LED INTERFACE 7

1.3.3 ELECTROMECHANICAL INTERFACE 8

1.4 TECHNICAL DATA 9

2 OPERATING LOGIC 10

2.1 CONDENSER DRYING CYCLE 10

2.2 VENTED DRYING CYCLE 14

2.3 ELECTRONIC CONTROL LOGIC 16

2.4 ELECTROMECHANICAL CONTROL LOGIC 16

2.5 PROGRAMMES - CONDENSER DRYER WITH DISPLAY 18

2.6 PROGRAMMES - CONDENSER DRYER WITH LEDS 21

2.7 PROGRAMMES - ELECTROMECHANICAL VENTED DRYER 24

3 COMPONENTS 25

3.1 ELECTRONIC CONDENSER AND VENTED DRYERS 25

3.2 ELECTROMECHANICAL CONDENSER AND VENTED DRYERS 30

4 WIRING DIAGRAMS 32

4.1 INDESIT ELECTROMECHANICAL VENTED MODELS 32

4.2 ARISTON ELECTROMECHANICAL VENTED MODELS 34

4.3 VENTED MODELS WITH SENSING BRUSH 36

4.4 VENTED MODELS WITH SENSING STRIP 36

4.5 CONDENSER MODELS WITH SENSING BRUSH 38

4.6 CONDENSER MODELS WITH SENSING STRIP 39

5 SERVICEABILITY 40

5.1 DEMO MODE 40

5.2 AUTOTEST AND FUNCTIONS SEQUENCE 40

5.2.1 AUTOTEST WITH LED INTERFACE 41

5.2.2 AUTOTEST WITH DISPLAY INTERFACE 41

5.3 FAULT IDENTIFICATION WITH LED INTERFACE 43

5.4 FAULTS AND TROUBLESHOOTING 44

5.5 DISASSEMBLY 55

5.5.1 CONDENSER DRYER COMPONENTS 55

5.5.2 VENTED DRYER COMPONENTS 63

6 EXPLODED DRAWINGS 67

6.1 AS60VEX 67

6.2 ASD70CEX 70

6.3 ISL70CEX 74

i product typE

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

1. PRODUCT TYPE:

1.1. PRODUCT LEGEND:

A = Ariston S = Scirocco Project L= LED 7 = 7 kg 0 = second digit V = Vented Market

I = Indesit D= Display 6 = 6 kg indicates a possible

G 0 =Electromechnical update C = Condenser

A S D 7 0 C EX

Vented models Condenser models

1.2. PRODUCT STRUCTURE:

i product typE

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

1.3. PRODUCT INTERFACES:

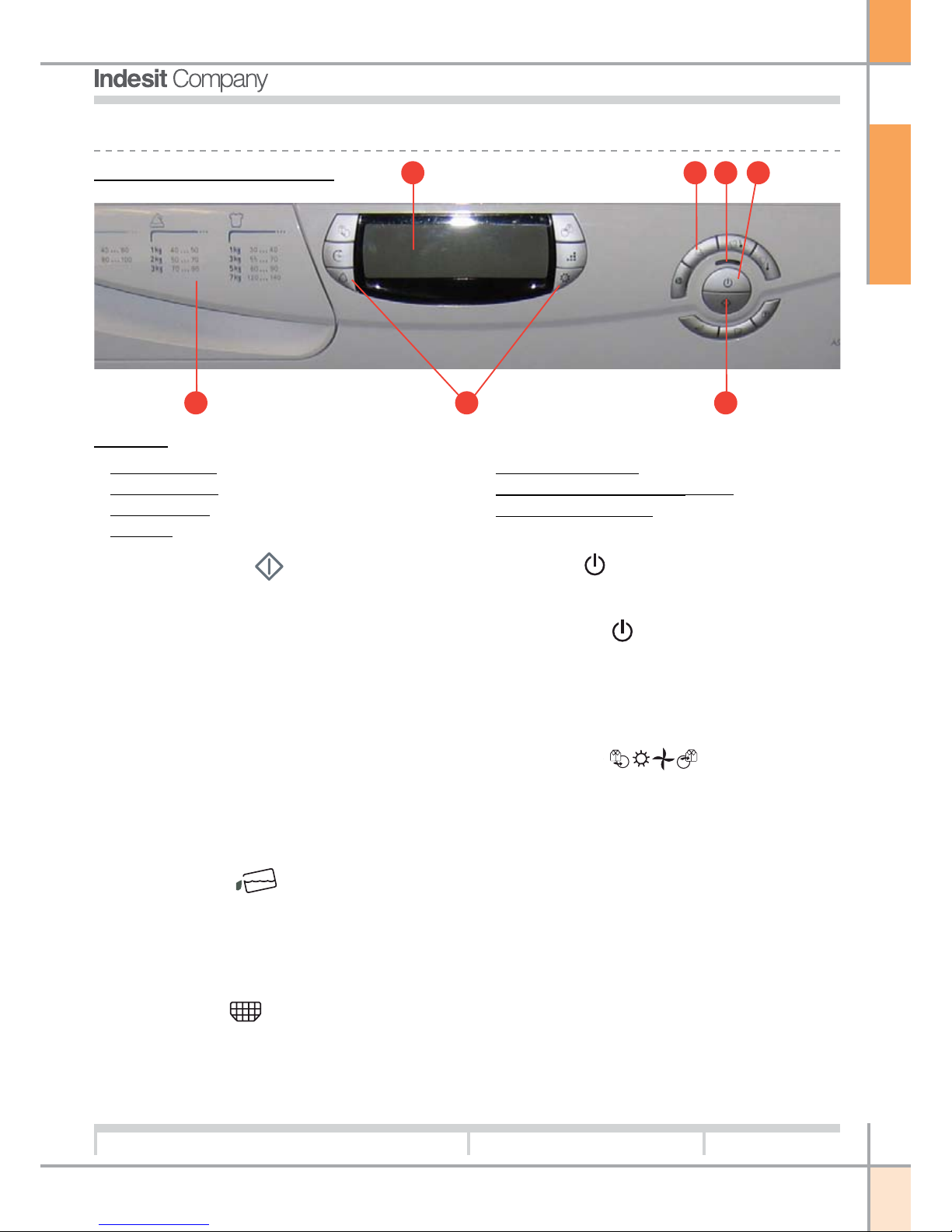

1.3.1 DISPLAY INTERFACE

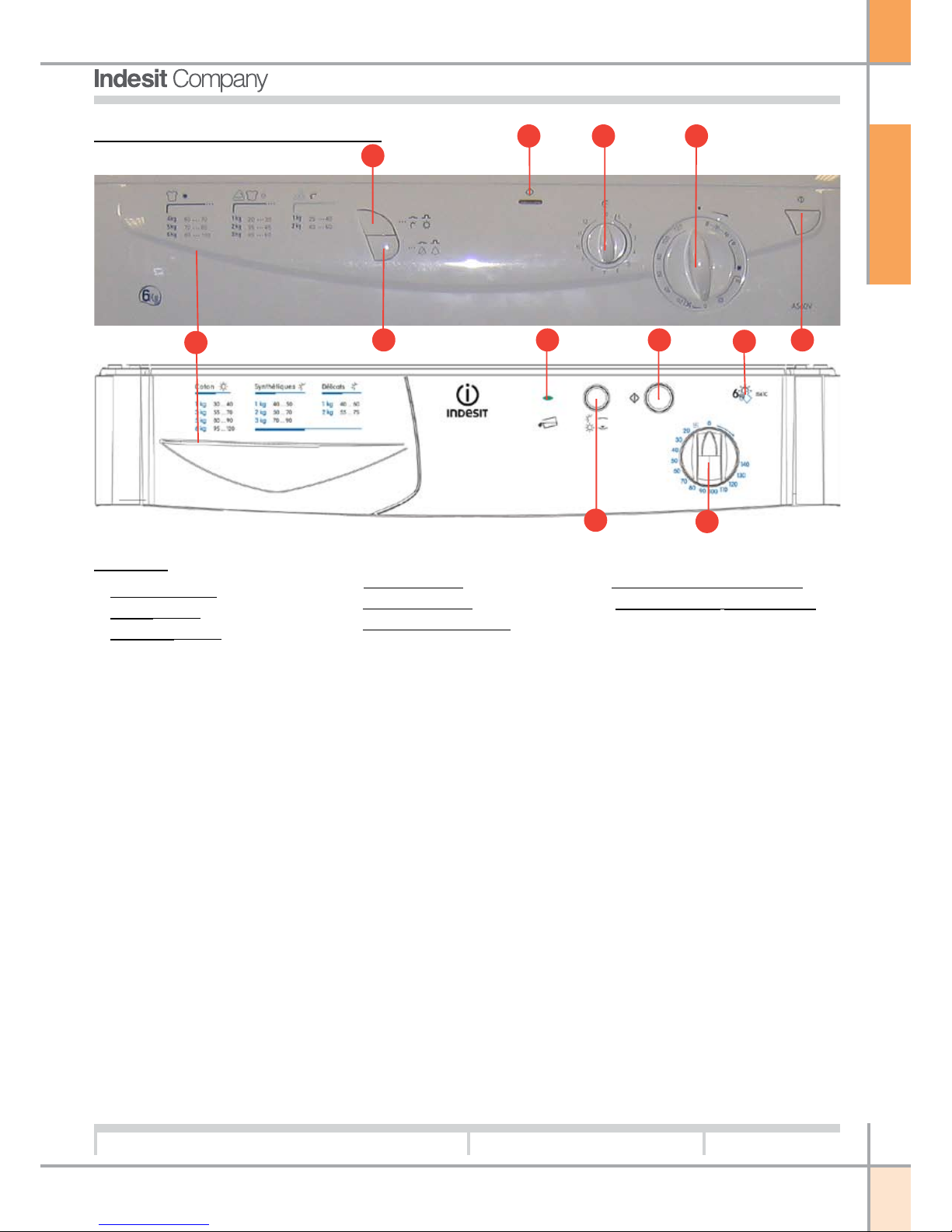

Legend:

1. DRYING GUIDE

2. OPTION buttons

3. ON/OFF button

4. DISPLAY

1 2 3

56 74

The START/CANCEL button starts a selected

programme. Pressing this button, a short beep is

heard and the progress icon blinks on and off to con-

ﬁrm the action. If no programme has been selected,

a succession of four beeps will be heard. Once a

programme is running, pressing and holding this

button produces a prolonged beep, and the dryer

will stop (see Start and programmes section).

OPTION buttons/icon: these buttons activate the

options available for the selected programme (see

Controls). The icons indicate that the option has

been selected.

The Drying Guide is a simple table indicating the

relationship between different fabrics and the loading

capacity of the drum.

The empty water icon indicates that the

water collection tray must be emptied.When the icon

blinks, the tray is full.

The indicator will stop blinking a few seconds after

the empty tray has been replaced; for this to occur,

the dryer must be in operation (see Controls).

The Clean Filter icon reminds the user to

clean the ﬁlter each time the dryer is used (see

Maintenance section).

The ON/OFF indicator conﬁrms that the dryer

is in operation, or ready for selection of a program-

me.

ON/OFF button: with the dryer in operation,

pressing this button will stop the cycle and shut off

the machine. Pressing the button again, the ma-

chine restarts. As long as the door has not been

opened, the START button can be pressed again

to continue.

Progress icons:

these indicate the current status of the programme.

As each successive step of the programme is indi-

cated, the relative icon lights up: Pre Care, Drying,

Cooling and Post Care (see Start and programmes

section).

The PROGRAMME selection buttons are used to set

the programme: press the button corresponding to

the desired programme (see Start and programmes

section).

Selecting the programme

1. Plug the dryer into the a.c. mains socket.

2. Select the laundry according to the type of fabric

(see Laundry section).

5. ON/OFF indicator Led

6. PROGRAMME SELECTION buttons

7. START/CANCEL button

i product typE

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

3. Press the door to release the latch, open the

dryer, then proceed to check the position and

cleanliness of the ﬁlter and make certain that

the water tray is empty and correctly in place

(see Maintenance section).

4. Load the laundry into the drum, taking care that

no part of any garment is trapped between the

door and the relative seal. Close the door.

5. If the ON/OFF indicator is not alight: Press the

ON/OFF button.

6. Press the Programme selection button corre-

sponding to the type of fabric being dried, che-

cking the programme table (see Programmes),

as well as the indications given for each type of

fabric (see Laundry).

- then select the option button for timed drying,

or, if available, select automatic drying (most

programmes have automatic as the default

setting); see the Programmes table.

7. Set a delay and select other options, if neces-

sary.

8. To select the option of a warning beep at the

end of the programme, press ALARM.

9. Press the START button to run the program-

me.

The display gives an indication of the time re-

maining.

During operation, the door can be opened to

allow the removal of clothes that have already

dried, leaving the remainder to dry further. Ha-

ving closed the door, the START button must

be pressed again for the dryer to resume ope-

ration.

10. During the ﬁnal few minutes of a drying program-

me, shortly before the end, the COOLING stage

will cut in (to remove heat from the fabrics); this

step must always be activated for the cycle to

ﬁnish.

11. A beep will sound (if the Alarm option has been

selected) to warn the user that the programme

has ﬁnished, and appears in the display.

Open the door and remove the laundry, then

clean and replace the ﬁlter. Empty the water

collection tray and replace (see Maintenance

section).

If Post Care has been selected and the laundry is

not removed immediately, the dryer will continue

to operate intermittently for 10 hours, or until such

time as the door is opened.

12. Unplug the dryer from the mains socket.

i product typE

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

The START/CANCEL button starts a selected

programme. Pressing this button, a beep is heard

and the progress icons blink on and off to conﬁrm

the action. If no programme has been selected, a

succession of four beeps will be heard. Once a pro-

gramme is running, pressing this button cancels the

programme and the dryer will stop (see Start and

programmes section).

The OPTION buttons activate the options available

for the selected programme (see Start and program-

mes section).

Each Option indicator lights up to conﬁrm that an

option has been selected by pressing the button on

the left of the indicator.

The Drying Guide is a simple table indicating the

relationship between different fabrics and the loading

capacity of the drum.

The luminous Empty Water indicator warns

that the water collection tray must be emptied.

When the indicator blinks, the tray is full.

The indicator will stop blinking a few seconds after

the empty tray has been replaced; for this to occur,

the dryer must be in operation (see Controls).

The ON/OFF indicator conﬁrms that the dryer is

in operation, or ready for selection of a programme.

If this indicator blinks, there is a fault in the machine

(see Fault ﬁnding).

ON/OFF button: with the dryer in operation, pressing

this button will stop the cycle and shut off the machine.

Pressing the button again, the machine restarts.

The Progress or Delay indicators show the current

status of the programme or, when blinking, the time

interval set for delayed programming.

During a delayed start, the Leds blink to indicate

the selected delay. When not in blink mode, each

single indicator remains permanently alight while the

corresponding step of the programme is in progress

(see Start and programmes section).

The PROGRAMMES knob is used to select the

desired programme: simply rotate the knob until

the indicator is positioned on the programme to be

selected (see Start and programmes section).

Legend:

1. DRYING GUIDE

2. OPTION buttons

3. OPTION indicator Leds

4. ON/OFF button

5. ON/OFF indicator Led

6. PROGRAMME selector knob

7. START/CANCEL button

8. EMPTY WATER indicator Led

9. CLEAN FILTER indicator Led

10. PROGRAMME PROGRESS indicator

Leds

123

56 7

i product typE

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

The selected drying programme is initiated by pres-

sing the START button (see Start and programmes

section).

The HEAT button is used to select the drying tem-

perature (see Start and programmes section).

OUT: HIGH temperature.

IN: LOW temperature.

The ALARM buzzer sounds at the end of a drying

cycle.

OUT: Buzzer ON.

IN: Buzzer OFF.

The luminous ON indicator conﬁrms that the dryer

is in operation. Pressing the ON/OFF button, the

indicator comes on and will remain alight until such

time as the door is opened or the machine switched

off. The indicator also remains alight when waiting

for a timer-delayed start.

The Drying Guide is a simple table indicating the

relationship between different fabrics and the loading

capacity of the drum.

The TIMER knob is used to set the interval of time

that must elapse before the start of a delayed drying

programme. Turn the knob clockwise to set the desi-

red length of time (number of hours) before the dryer

is to start; to go back, simply turn the knob counter-

clockwise (see Start and programmes section).

The PROGRAMME knob is used to select the de-

sired programme: rotate the knob clockwise, never

counterclockwise, until the indicator is positioned

on the programme to be selected (see Start and

programmes section).

Legend:

1. DRYING GUIDE

2. HEAT buttons

3. BUZZER buttons

4. ON/OFF button

5. ON indicator Led

6. DELAYED START knob

7.PROGRAMME SELECTORknob

8. EMPTY WATER indicator Led

1.3.3 MECHANICAL INTERFACE

5 6 7

i product typE

Language

English

Service Manual

Yate Production Dryers

Edition

2006.09.21

1.4TECHNICAL DATA - CONDENSER/VENTED DRYERS

MODELS

FEATURES

ENERGY CLASS

NOISE LEVEL

DIMENSIONS

DRUM SPEED

MAXIMUM LOAD

DELAY TIMER

DOOR LATCH RELEASE

HEATING ELEMENTS

THERMOSTATIC

SAFETY DEVICES

MOTOR

SPECIFICATIONS

MOTOR CAPACITOR

ACCESSORIES

TIMER

PCB

DRYING SYSTEM

ASD70CEX

Electronic control and di-

splay interface

72 dBA

H 850 mm

W 595 mm

D 584 mm

Weight 41 kg

7 kg

10 hours 1 hour steps

Push-Push

2300W - 230V

Resettable thermostat

106 °C

One-shot thermostat

143 °C

Single phase with start

capacitor - 2-pole - 2800

rpm

7µF

Condenser system

ISL70CNL

Electronic control and LED

interface

72 dBA

H 850 mm

W 595 mm

D 584 mm

Weight 41 kg

7 kg

12 hours 3 hour steps

Push-Push

2300W - 230V

Resettable thermostat

106 °C

One-shot thermostat

143 °C

Single phase with start

capacitor - 2-pole - 2800

rpm

7µF

Condenser system

AS60VEX

Rx/Lx rotation, End-of-pro-

gramme alarm

72 dBA

H 850 mm

W 595 mm

D 584 mm

Weight 35 kg

55 rpm Rx/Lx

6 kg

12 hours

Handle

2200 W 230V

1100 W 230V

Resettable thermostat

120 °C

One-shot thermostat

150 °C

Single phase induction

- 2-pole - Start Capacitor

- 2800 rpm - reversible

7,5 µF

Venting kit

Programme duration 140

min including 7.5 min for

drum cooling 2 ECO pro-

grammes and anti-crease

Vented system

Language

English

2 opEration

Service Manual

Yate Production Dryers

Edition

2006.09.21

2. OPERATING LOGIC:

2.1 CONDENSER DRYING CYCLE AND CIRCULATION OF EXTERNAL AIR - STEAM - WATER

1Filter

2Condenser steam inlet

3Condenser

4Front fan

5Tray collecting water produced by condensation

of steam

6Heating elements

7 Holes admitting hot air to drum

8Pump and hoses

9Motor

10 Rear fan

The motor sets the drum in rotation, as well as driving

two fans mounted coaxially with the motor shaft.

The front fan draws in cold air from outside the ma-

chine and directs it into the condenser.

The rear fan blows air through the heating elements

and into the drum.

The drum rotates clockwise and counterclockwise in

alternation; the alternating sequence is programmed

electronically or timed electromechanically.

When the drum rotates counterclockwise to di-

sentangle the clothes, the heating elements are

deactivated.

Front fan Rear fan and heating elements

Hot air blown by the fan enters the drum through the holes in the rear, causing the moisture in the fabrics

to turn to steam.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Indesit

Indesit

Indesit IDCA 835 Manual de usuario

Indesit

Indesit YT M10 81 R EU Manual de usuario

Indesit

Indesit IDPE 845 A1 ECO Manual de usuario

Indesit

Indesit IDVA 735 Manual de usuario

Indesit

Indesit IDCA 8350 Manual de usuario

Indesit

Indesit IS60V Manual de usuario

Indesit

Indesit IDCA G35 S Manual de usuario

Indesit

Indesit ISL65C Manual de usuario

Indesit

Indesit IDCA 7H35 B TM Manual de usuario

Indesit

Indesit EDPE 845 A1 ECO Manual de usuario

Indesit

Indesit IDCE G45X B H PS Manual de usuario

Indesit

Indesit EDPE 945 A2 Manual de usuario

Indesit

Indesit IDC 75 Manual de usuario

Indesit

Indesit IDCA 8350B Manual de usuario

Indesit

Indesit G73V Manual de usuario

Indesit

Indesit ISA60V Manual de usuario

Indesit

Indesit tcud93b Instrucciones de funcionamiento e instalación

Indesit

Indesit G84V Guía de instalación

Indesit

Indesit IS70C Manual de usuario

Indesit

Indesit IDCE 845 A Manual de usuario

Indesit

Indesit IS 41 V Guía de instalación

Indesit

Indesit TCAM 80C Aquarius Manual de usuario

Indesit

Indesit IDC 75 Manual de usuario

Indesit

Indesit G31V Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario
