IN-COMMAND NCSP35CM Manual de usuario

™

Patent # US 9,679,735

RV CONTROL AND MONITORING SYSTEM

NCSP35CM

Installation and Operation Manual (English)

NCSP35CM NCSP3DCCT

NCSP35CM

Read the iN-Command Manual, and these warnings and instructions carefully before using this product. Failure to follow the use

instructions in this owner’s manual, or improper use of the Mobile Application, Display Commander and/or Body Control Module, could

result in personal injury, including death.

Do not operate while vehicle is being driven.

The Mobile Application, Display Commander and/or Body Control Module should not be used while the vehicle is being driven. Use of

the Mobile Application, Display Commander and/or Body Control Module while the vehicle is being driven is dangerous and may cause

personal injury or property damage.

For adult use only.

The Mobile Application, Display Commander and Body Control Module are intended for adult use only, and are not to be used by persons

under the age of 18. Use by children may cause personal injury or property damage.

Operate only when you have a clear line of sight.

Do not operate any moving parts (including, but not limited to, awnings, jacks and slides), unless you have a clear line of sight to the

moving part. The Mobile Application, Display Commander or Body Control Module may be used only if you are giving instructions to,

and receiving instructions from, another person at least age 18 or older who can clearly see the moving part. Failure to follow these

instructions may result in serious personal injury or property damage.

Do not operate under the inuence of alcohol or drugs.

Do not operate the Mobile Application, Display Commander or Body Control Module while under the inuence of alcohol or drugs.

Doing so may result in personal injury or property damage.

Avoid moisture.

To reduce the risk of re or electric shock, do not expose this equipment to rain or moisture.

Use recommended accessories.

To reduce the risk of re or electric shock and annoying interference, use only the recommended accessories.

Important Safety Information

NCSP35CM

INTRODUCTION .....................................................................4

Thank You! .........................................................................4

Features .............................................................................4

Precautions ........................................................................4

Packing List........................................................................4

INSTALLATION ........................................................................5

Tools and Supplies .............................................................5

Disconnecting the Battery ..................................................5

Selecting the Mounting Location ........................................5

Mounting the Display Commander (DC) ............................5

WIRING ...................................................................................6

RV-C SYSTEM LAYOUT .........................................................7

SETUP MENU LIST .................................................................8

TRAVEL LOCKOUT (Safety) ...................................................9

OVERRIDE SWITCHES* .......................................................10

DISPLAY COMMANDER BUTTONS .....................................10

SPECIFICATIONS ................................................................. 11

FCC NOTES .......................................................................... 11

PASSCODE PROTECTION ..................................................12

PANIC WARNING ..................................................................12

SETTINGS .............................................................................12

Text Editing* .....................................................................12

Scroll List Editing..............................................................14

Slides................................................................................15

Awning..............................................................................15

Tank Heaters ....................................................................15

Passcode..........................................................................16

Set Passcode Timer ....................................................17

Change Passcode.......................................................17

Clear Passcode...........................................................17

Reset All Settings ........................................................18

MOBILE DEVICES: .............................................................................. 19

Pairing iOS Mobile Device to DC .................................................... 20

Pairing Android Mobile Device to DC .............................................. 23

Loading the DC Floor Plan.............................................................. 25

LANGUAGE SELECTION .................................................................... 26

CHECKING ACTIVE BLUETOOTH SESSION * ................................... 27

HVAC .................................................................................................... 28

Vent Fans ........................................................................................ 28

Fan Only Mode................................................................................ 28

AC Cooling ...................................................................................... 28

Heating............................................................................................ 29

Auto................................................................................................. 29

HVAC Schedule............................................................................... 30

Date & Time..................................................................................... 31

SOFTWARE UPDATE * ........................................................................ 32

GLOBAL CONNECT * .......................................................................... 35

FLOOR PLAN ....................................................................................... 38

Reset............................................................................................... 38

Custom*........................................................................................... 39

Notications..................................................................................... 40

TOUCH SCREEN CALIBRATION ........................................................ 42

SYSTEM CALIBRATION * .................................................................... 43

TROUBLESHOOTING .......................................................................... 45

• TABLE OF CONTENTS

NCSP35CM

• Thank You!

Thank you for choosing iN-Command. We hope you will nd the

instructions in this owner’s manual clear and easy to follow. If you take

a few minutes to look through it, you’ll learn how to use all the features

of your new NCSP35CM for maximum enjoyment.

• Features

Features of iN-Command system include:

• Simultaneous control by up to three Android Devices and one iOS

Device

• Control two zones of Interior Lighting

• Monitor all water tank levels

• Control and monitor the Water Heater (Switches between LP or AC)

• Control and monitor the Water Pump

• Control Awning

• Control Electric Slides

• Control Jacks (non-automatic function)

• Monitor Battery Voltage with Low Voltage Alert

• HVAC

• AUX Motor Control

• Global Connect

• Precautions

• Use the Proper Power Supply.

This product is designed to operate with a 12 volt DC, negative ground

battery system (the standard system in a North American vehicle).

• Use Authorized Service Centers.

Do not attempt to disassemble or adjust this precision product; contact

a professional for assistance.

• Avoid Moisture.

To reduce the risk of re or electric shock, do not expose this equipment

to rain or moisture.

• Avoid Cleaning Products.

The front of this unit should only be cleaned with a slightly damp cloth.

Do not use cleaning products.

(1) Cover, (1) Thumb Screws (1) Body Control Module (BCM)

(1) Display Commander (NCSPDCCT)

• Packing List

• Use Recommended Accessories.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND

ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED

ACCESSORIES.

• INTRODUCTION

NCSP35CM

It’s a good idea to read all of the instructions before beginning the

installation. We recommend having your NCSP35CM installed

by a reputable RV dealership

• Tools and Supplies

You will need these tools and supplies to install your NCSP35CM :

• Phillips screwdriver

• #2 square drive bit

• Wire cutters and strippers

• Electrical tape

• Volt meter/test light

• Crimping tool

• Fork Crimp connectors

• Minimum of 24 gauge wire required to connect DC to BCM

• 10 gauge wire for power and slide connections

• 14 and 18 gauge wire for all other connections

• Four #8 PH (0.164” x 0.75”) screws for the DC

• Six #8 PH (0.164” x 1.0”) screws for the BCM

• Disconnecting the Battery

To prevent a short circuit, be sure to turn off 12V power and remove

the negative (-) battery cable prior to installation.

• Selecting the Mounting Location

Select a mounting location, taking care to avoid the following:

• Places exposed to heat-radiating appliances such as electric heaters

• Adjacent to other equipment that radiates heat

• Under thermostats

• Poorly-ventilated or dusty places

• Moist or humid locations

CUTOUT FOR DISPLAY COMMANDER (DC)

NOTE: Before cutting the mounting hole, make sure the area

behind the mounting location is clear of wires, fuel and vacuum

or water lines; ensure there is at least a 2.75”clearance below

the Display Commander to allow for programming by USB stick.

RECOMMENDED CUTOUT

WALL FOR

REFERENCE

CUTOUT 4 11/16"

7 1/4"

• Mounting the Display Commander (DC)

• Use the mounting hole diagram to measure and cut a mounting hole,

allowing space below for future programming and behind for ventilation

• Route power and transmit wires through the hole and connect

• Check and ensure correct operation

• Mount the unit using four #8 PH (0.164” x 0.75”) screws

• Attach Trim ring

• INSTALLATION

• WIRING The Wiring Diagram Depicts All The Wiring Connections Required For Proper Operation Of The Unit.

Body Control Module (BCM) Connections

End of Lin e t e r minator r e s i ster.

End of Line terminator resister.

• RV-C SYSTEM LAYOUT

AUX MOTOR CONTROL RELAY KIT (OPTIONIAL)

End of Line terminator resister.

NCSP35CM

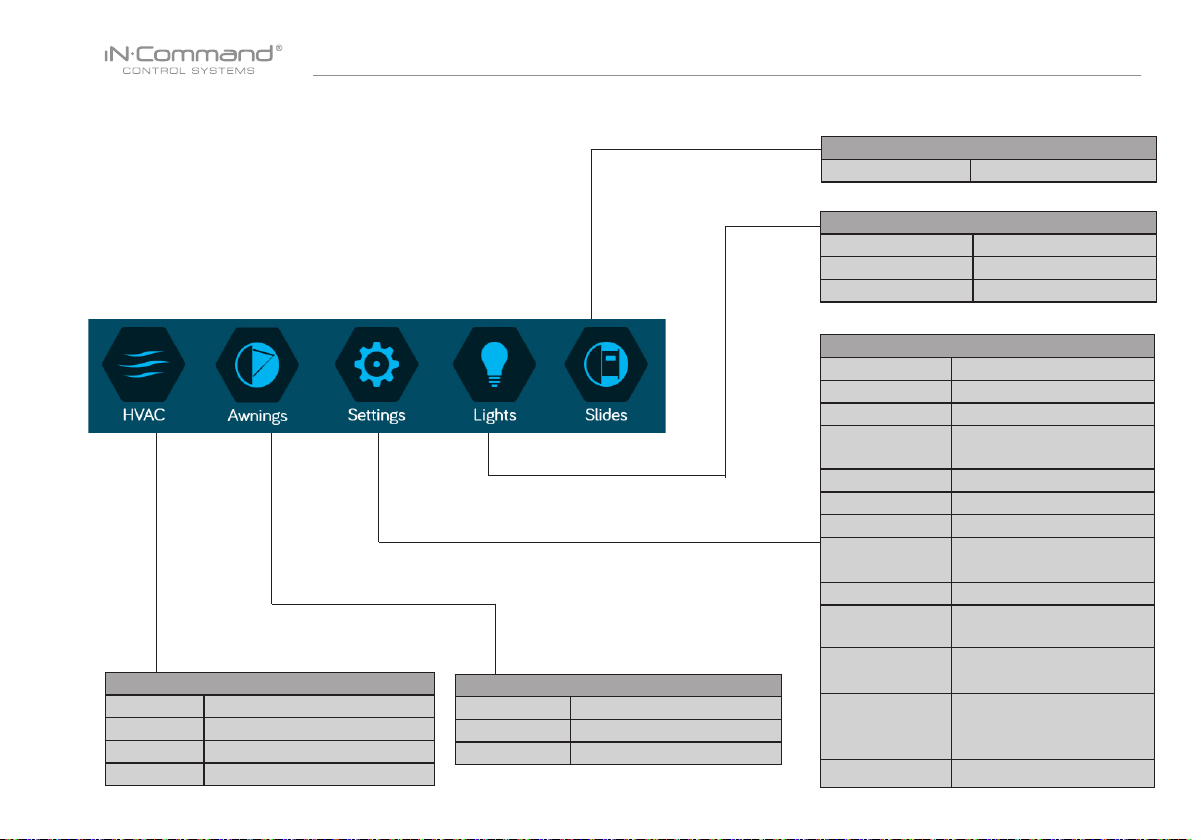

• SETUP MENU LIST

Tanks, light groups, and motor functions can be added or removed.

Motor functions may include slides, awnings, jacks, or any motor

that may be controlled with a momentary switch.

Refer to the Wiring Diagram and Terminal List when installing new

equipment. The BCM may not include relays for non-OEM

functions. Basic automotive 1505 relays (12VDC Coil, 40/30A

14VDC Contact) can be purchased for installation and repair.

HVAC (Zone1, Zone2, Zone3)

Mode On, Off, Fan, Cool, Heat, Auto

Vent Open, Shut

Vent Fan Off, Low, Medium, High

Schedule Start time, Stop time

Awnings

Awning Light No, Yes

Awning 1 In, Out

Awning 2 In, Out

Settings

Bluetooth Scan

Wi-Fi On, Off, Scan, Add

Date & time Edit

Edit Alarms, Awnings, Lights,

Slides

Passcode Setting

Brightness Up, Down

Calibration Set

Reset Floor plan OEM Floor Plan ,

Default Floor Plan

Information Information notes

Software DC, App, BCM, OTA,

Floor plan

Global Connect Login, Show Passcode,

Clear Account

Administration

App Data, Generator

Hour Meter, Log File,

Tanks

Language English, French

Lights

Light Group 1-2 No, Yes

Awning Light No, Yes

Dimmer Light 1-3 No, Yes

Slides

Slide 1-5 In, Out

NCSP35CM

• TRAVEL LOCKOUT (Safety)

iN-Command is equipped with a Travel Lockout feature to ensure

certain system functions are unavailable during transit.

When the Brake Signal (Towable) or Ignition (Motorized) is activated,

the iN-Command will lock down all motorized functions. The Display

Commander (DC) and mobile devices will also display “Travel Lock

Engaged” and the affected buttons will cease to activate.

The lights, water pump, water heater, and sensors will continue to

function.

To turn the Travel Lock off, press "Disengage" on the Display

Commander (DC), inside the RV, once the brake signal has been

removed.

Travel Lock on the Display Commander

Tabla de contenidos

Otros manuales de Sistema de control de IN-COMMAND

IN-COMMAND

IN-COMMAND NCSP35 Manual de usuario

IN-COMMAND

IN-COMMAND NCSP60CM Manual de usuario

IN-COMMAND

IN-COMMAND JRVCS2 Manual de usuario

IN-COMMAND

IN-COMMAND NCS40T Manual de usuario

IN-COMMAND

IN-COMMAND Lite Manual de usuario

Manuales populares de Sistema de control de otras marcas

Pentair Pool Products

Pentair Pool Products Compool Manual de usuario

ComfortNET

ComfortNET CTK04 Manual de usuario

Fireye

Fireye InSight II 95DSS3 Manual de usuario

CAME

CAME G3000 Manual de usuario

Idemia

Idemia MorphoAccess VP MD Manual de usuario

Axis

Axis P1445-LE-3 Manual de usuario

HEIDENHAIN

HEIDENHAIN TNC 150 B Manual de usuario

CNC-Step

CNC-Step High-Z T-Series Manual de usuario

Doosan

Doosan DVF Series Manual de usuario

Honeywell

Honeywell KAP 140 Manual de usuario

Honeywell

Honeywell vk41 series Manual de usuario

AirBench

AirBench FPW Guía de instalación

Cypress

Cypress HHR-3160 Manual de usuario

CAME

CAME GLT40AOS Manual de usuario

Zonex

Zonex GEN II -VVT Guía del usuario

Altronics

Altronics K 9650 Manual de usuario

micro-trak

micro-trak RoadMaster Manual de usuario

micro-trak

micro-trak Calc-An-Acre II Manual de usuario
