IMozen TC601 Manual de usuario

TC601

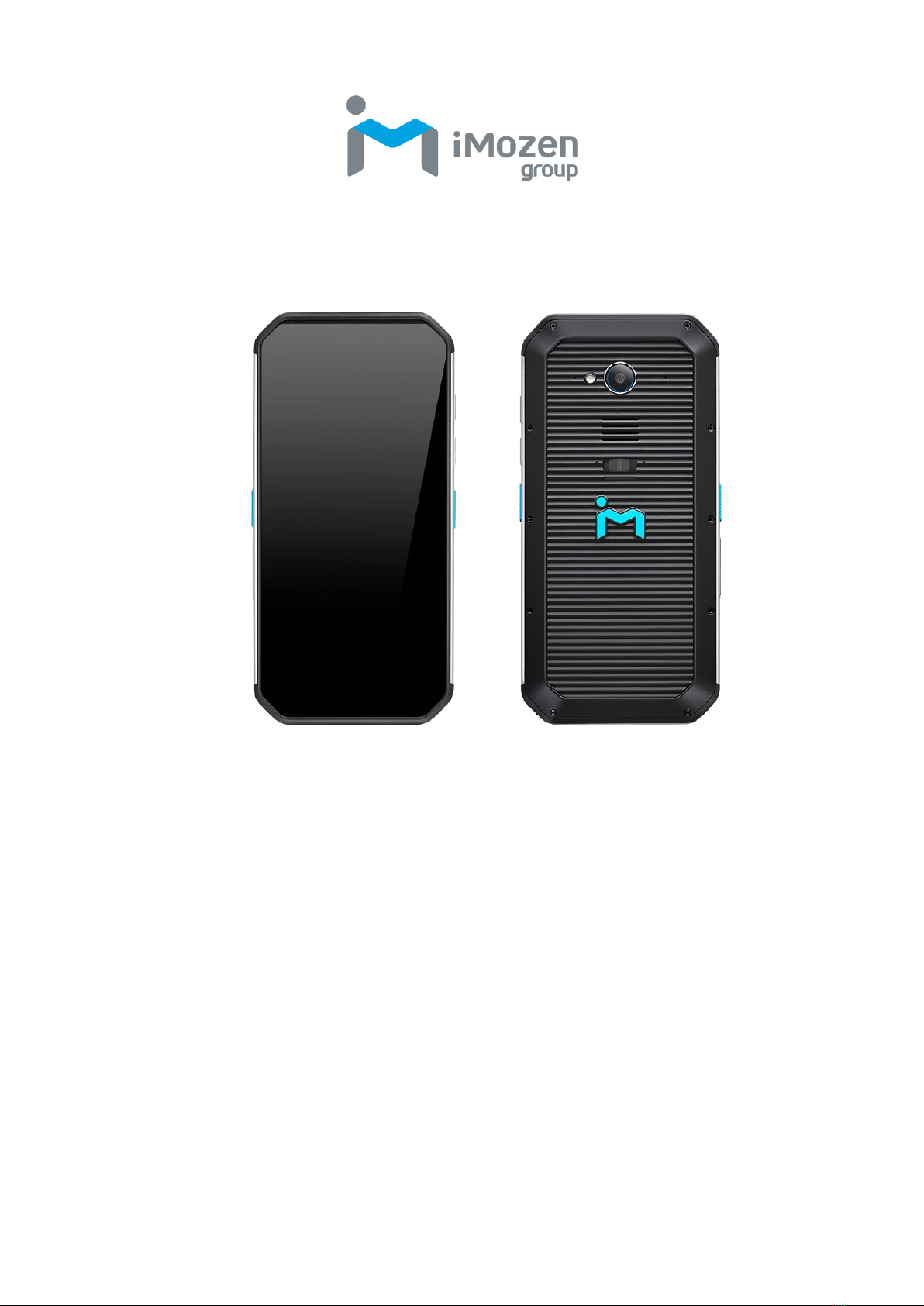

Portable data terminal

User’s Manual

Version 2.0 2023/07/17

iMozen Group Inc.

iMozen TC601 User’s Manual 2

About This Manual

Thank you for purchasing the iMozen TC601 Enterprise Mobile Computer.

This manual explains how to install, operate and maintain our product. No part

of this publication may be reproduced or used in any form, or by any electrical

or mechanical means, such as photocopying, recording, or information

storage and retrieval systems, without permission in writing received from

iMozen. The material in this manual is subject to change without prior notice.

Regulatory

This device has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference with radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

Signal Interference from TV or Radio

Data transmission or reception may fail or be affected by signal interference

from nearby TV or radio devices.

Bluetooth Precautions

This device is designed based on standard Bluetooth specifications, but

compatibility problems may occur when connecting with other Bluetooth

devices. To avoid wireless signal interference, make sure there are no other

wireless devices operating nearby in the same application area.

iMozen Group Inc.

iMozen TC601 User’s Manual 3

General Safety Precautions

Please read this User Manual thoroughly before using this device. Use only

the components and accessories supplied by the manufacturer. Do not

attempt to disassemble the TC601, as it does not contain parts that can be

repaired by the user.Any tampering will void the warranty. When replacing the

battery pack or at the end of life of the TC601, disposal must be performed in

compliance with the laws of your jurisdiction.

Laser Safety

Do not stare into the beam of the laser light from this device. The TC601 uses

an Imager Aiming System with a laser light that is visible to the human eye

and is emitted from the scan window at the top of the device.

Hearing Safety

Do not listen to earphones at high volume levels to prevent the possibility of

hearing damage.

Body-worn Operation Safety

This device was tested for typical body-worn operations. A minimum

separation distance must be maintained between the user’s body and the

handset, including the antenna: 0.5 cm to comply with the RF exposure

requirements in Europe. Third-party belt-clips, holsters and similar

accessories used by this device should not contain any metallic components.

Body-worn accessories that do not meet these requirements may not comply

with RF exposure requirements and should be avoided.

iMozen Group Inc.

iMozen TC601 User’s Manual 4

Important Notices and Precautions

The manufacturer has made safety the first priority during the design stage.

To avoid potential mishaps, please observe the following notices:

Do not stock this device under high temperature conditions that may

cause the battery to overheat.

Do not charge longer than required.

Charge this device in a place without water-spray or moisture.

Use a dry cloth to wipe any dust off the AC Adaptor plug to avoid

potential fire.

Do not drop this device on hard surfaces.

Do not place heavy objects on this device to avoid cracking the

enclosure.

Do not unplug the AC Adaptor with wet hands to avoid electric shock.

Do not use the TC601 AC Adaptor with any other devices.

Do not place the device in liquids to prevent short-circuits or fire.

Do not place this device near an open fire.

If the power or USB cable is seriously twisted or broken, stop using it

immediately to prevent electric shock, short-circuit, or fire.

Stop using immediately if there is any unusual smell or overheating

during charging or operation.

Stop using immediately if there is liquid or dew on the device.

Do not use theAC Adaptor outdoors.

Do not wrap the AC Adaptor with cloth or other objects that could block

heat dissipation and cause electric shock or fire.

When not charging, remove theAC Adaptor plug from the wallAC

outlet socket to avoid a fire hazard.

The manufacturer will not be responsible for warranty claims if damage

is caused due to improper personal use.


iMozen Group Inc.



iMozen TC601 User’s Manual 5

Table of Contents

About This Manual..................................................................... 2
Regulatory................................................................................................... 2
Signal Interference from TV or Radio.......................................................... 2
Bluetooth Precautions................................................................................. 2
General Safety Precautions ........................................................................ 3
Laser Safety.................................................................................................................3
Hearing Safety .............................................................................................................3
Body-worn Operation Safety........................................................................................3
Important Notices and Precautions ............................................................. 4
Table of Contents....................................................................... 5
Chapter 1: Getting Started ........................................................ 7
Introduction ................................................................................................. 7
Unpacking................................................................................................... 7
Features...................................................................................................... 8
Front View....................................................................................................................8
Side Views ...................................................................................................................9
Back View ..................................................................................................................10
Top View..................................................................................................................... 11
Bottom View...............................................................................................................12
Initial Setup ............................................................................................... 13
Battery Installation .....................................................................................................13
Charging the Battery..................................................................................................14
Nano SIM Card/Micro SD Card Installation ...............................................................15
Andriod Learning Center........................................................................... 15
Chapter 2: Using the TC601 .................................................... 16
Managing Settings .................................................................................... 16
Battery Management..................................................................................................17
Barcode Scanning......................................................................................................18
NTP Server ................................................................................................................24
Programmable key.....................................................................................................24
BarcodeStage ........................................................................................... 25


iMozen Group Inc.



iMozen TC601 User’s Manual 6

iMDemo..................................................................................................... 26
MDMClient ................................................................................................ 26
ScanAPP................................................................................................... 27
Chapter 3: Utility Applications................................................ 29
Google Mobile Services ............................................................................ 29
Chapter 4: Basic Care.............................................................. 32
Basic Care of the TC601........................................................................... 32
Product Storage........................................................................................ 32
Cleaning.................................................................................................... 32
Troubleshooting......................................................................................... 33
Appendix A: Technical Specifications.................................... 35
Key Features............................................................................................. 35
Specifications............................................................................................ 35
Technical characteristics ........................................................................... 39
Appendix B: Battery & Adaptor Notes.................................... 40
Battery Precautions................................................................................... 40
Replacing Batteries....................................................................................................40
Storing Batteries.........................................................................................................40
Adaptor Precautions.................................................................................. 41
Appendix C: Barcode Types.................................................... 42
Appendix D: Product Certification.......................................... 43
FCC Interference Statement ..................................................................... 43
NCC Interference Statement..................................................................... 44
Partners..................................................................................................... 45
Power and Frequency Ranges.................................................................. 46
DoC hyperlink............................................................................................ 47


iMozen Group Inc.

iMozen TC601 User’s Manual 7

Chapter 1: Getting Started

Introduction

The TC601 Enterprise Mobile Computer is a compact enterprise-focused

mobile computer that is ideal for industrial and commercial applications such

as retail, warehousing, logistics, and field service. The thin, lightweight, and

rugged TC601 offers secure and reliable management of corporate data and

wireless communications.

The TC601’s key features include a rapid Qualcomm®

SnapdragonTM 660

Octa core 64-bit processor, 6”touchscreen display, barcode imager, long

lasting battery, quick charge adaptor, and rugged durability.

This User’s Manual provides information on how to use this device and its

accessories.

Unpacking

Carefully remove and unpack the TC601 device and other package items

from the protective material. Save the containers for later storage and

shipping.

Check that you have received the following items:

TC601 mobile computer

Battery pack

Adaptor (Optional)

USB charging cable (Type C) (Optional)

Quick start guide

Inspect the items for damage. If any item is damaged or missing, contact your

customer support representative. Before using the TC601, remove the

protective film that covers the display, camera window, and scan window.

iMozen Group Inc.

iMozen TC601 User’s Manual 8

Features

The illustrations and tables below describe the features of the TC601 and a

description of their functions.

Front View

Table 1 –TC601 Front View Features and Functions

No.

Feature

Function

○

1

Receiver

Audio output when answering a call.

○

Charging LED

Lights red during charging, green when battery is

fully charged, and blue for message notification.

○

Scan LED

Lights red during scanning, and green when scan

is acquired.

○

Information LED

Lights when receiving information.

○

Front Camera

Takes photos and videos.



Touch Screen

Interact with the device via the touch screen.

iMozen Group Inc.

iMozen TC601 User’s Manual 9

Side Views

Table 2 –TC601 Side Views Features and Functions

No.

Feature

Function



Power Button

Press and hold to power on the device. Press

briefly to turn the display on and off. Press and

hold to power off.



Function Button

Engages app functions that can be set according

to an app’s instructions.



Scan Buttons

Press to scan for data capture.



SIM/Micro SD

Card Slot

Slot for installing SIM or Micro SD Card.

○

Volume Button

Increase or decrease audio volume.

iMozen Group Inc.

iMozen TC601 User’s Manual 10

Back View

Table 3 –TC601 Back View Features and Functions

No.

Feature

Function



Laser Warning

Label

Warns users not to stare into the laser light beam.



Flash LED

Provides camera flash.



Back Camera

Takes photos and videos.



Speaker

Audio output for music, videos, and speakerphone.

Tabla de contenidos

Otros manuales de Portátil de iMozen

iMozen

iMozen MC432 Manual de usuario

iMozen

iMozen TC603 Manual de usuario

Manuales populares de Portátil de otras marcas

Honeywell

Honeywell Dolphin 9900 Manual de usuario

Honeywell

Honeywell CN75 Manual de usuario

MiTAC

MiTAC Mio 168 Manual de usuario

Wasp

Wasp WDT92 Manual de usuario

Texas Instruments

Texas Instruments TI-Nspire Manual de usuario

AXEM Technology

AXEM Technology MBS Manual de usuario

Armstrong

Armstrong Brain Wave Instrucciones de montaje

Unitech

Unitech TB128 Manual de usuario

Symbol

Symbol MC9000-G Manual de instalación y operación

Unitech

Unitech HT1 1D Batch Manual de usuario

Ingenico

Ingenico IWL220 GPRS Manual de usuario

Intermec

Intermec CK61 Manual de usuario

Symbol

Symbol c2000 Manual de usuario

Symbol

Symbol MC18 Manual de instalación y operación

Acer

Acer n20 Manual de usuario

Intermec

Intermec CK61 Manual de usuario

Docomo

Docomo F-04H Manual de usuario

Toshiba

Toshiba e350 Series Manual de usuario

iMozen TC601 Manual de usuario

Manuales populares de Portátil de otras marcas
