VICTRIX 24 kW

Instant wall-hung boilers

condensation-type

VICTRIX 24 kW

VICTRIX 24 kW X

Condensation-type wall-hung

boiler for central heating only

or with an external

storage tank

STVkW ed 07/08 VICTRIX 24 kW Export

Technical Documentation Technical Documentation

VICTRIX 24 kW

Condensation wall hung room-sealed boiler for

central heating and the instant production of

domestic hot water.

VICTRIX 24 kW

VICTRIX 24 kW is an instantaneous wall-hung room-sealed

(type C) boiler with a nominal heating input of 24 kW (20640

kcal/h) for central heating and 26 kW (22337 kcal/h) for do-

mestic hot water which, thanks to the condensation technology,

stands out for its particularly high performance and ample

modulation range (from 20% to 100 % of the rated output).

e boiler is equipped with a total premix combustion system

that guarantees minimal polluting emissions and it can run on

either natural gas or L.P.G.

e VICTRIX 24 kW series of boilers is type-approved for in-

stallation outside the building in a partly sheltered location.

Note: By a partly sheltered location we mean a place where the

appliance is not exposed directly to the weather (rain, snow, hail,

etc.).

e boiler is adjusted and controlled by a microprocessor

controlled p.c.b. with continuous 2-sensor ame modulation

(d.h.w. and central heating), which, by means of a backlit dis-

play, shows boiler operating status (temperatures, safety devices,

etc.) and it also allows connection (optional) to the Remote

Control, to the external probe, to the zone control unit and

to the Multi-system Distribution Manifold.

e hydraulic circuit is equipped with a water-gas exchanger

with stainless steel heating coil and uses the new hydraulic unit

made in a composite material on which the devices to control

the hydraulic circuit are housed (the system’s absolute pressure

switch, 3-bar safety valve, automatic system by-pass, etc.), besides

the circulator and 3-way electric valve which allows, according

to requirements, the circulation of boiler water in the central

General features.

heating system or in a stainless steel plate exchanger for the

instant production of domestic hot water.

One of the boiler’s standard features is an antifreeze device

that protects against temperatures down to a minimum -5°C

(optional down to -15°C).

e VICTRIX 24 kW boiler must be installed using the intake/

outlet kits or ducting systems (60 mm Ø rigid, 80 mm Ø rigid

and 80 mm Ø exible) made of plastic and expressly conceived

and designed for Immergas condensation boilers.

STVkW ed 07/08 VICTRIX 24 kW Export

Technical DocumentationTechnical Documentation

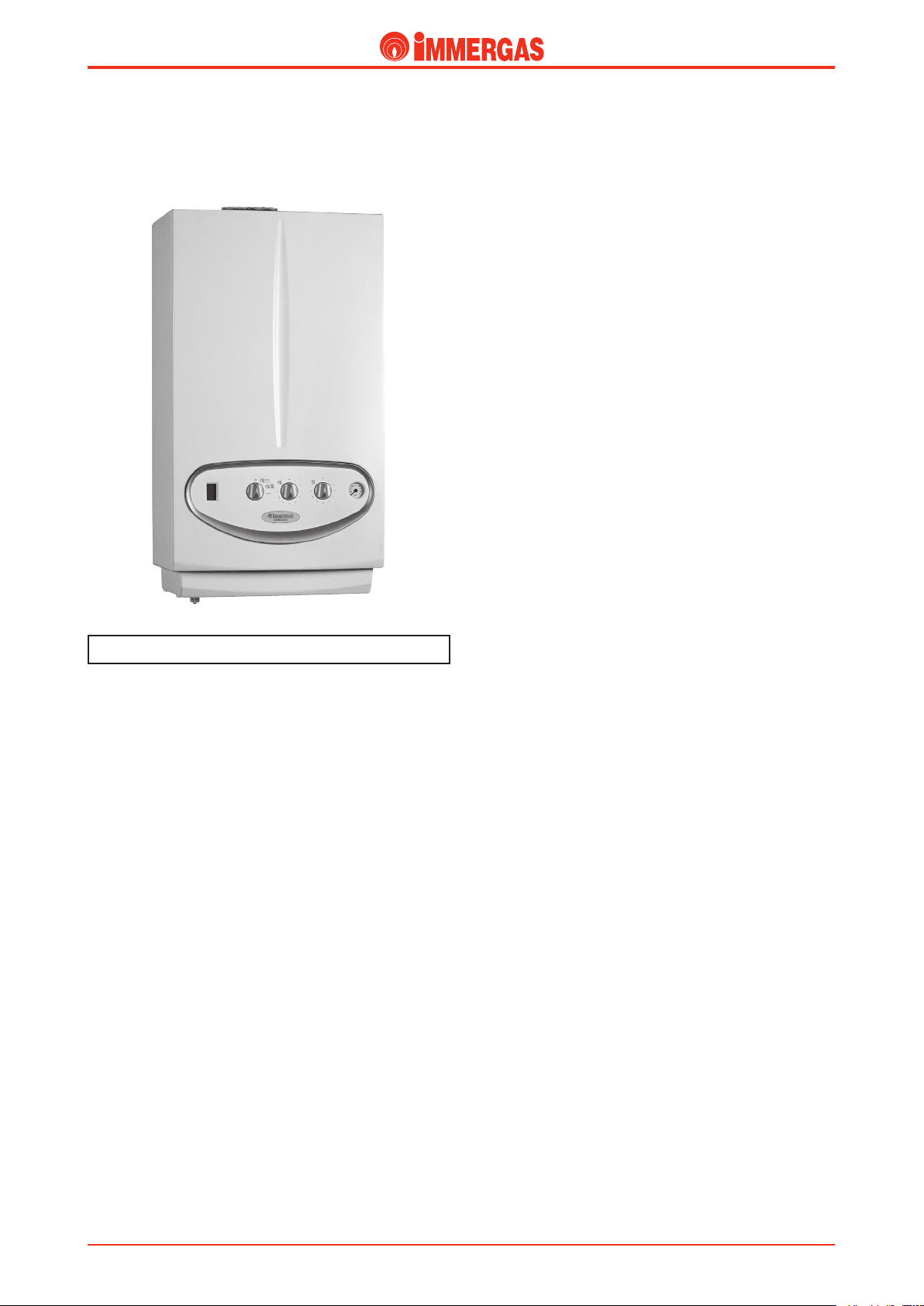

VICTRIX 24 kW X

Condensation wall-hung boiler for central

heating only which can be connected to a sepa-

rate storage tank.

VICTRIX 24 kW X

VICTRIX 24 kW X is a wall-hung room-sealed (type C) boiler

with a nominal heating input of 24 kW (20640 kcal/h) for

central heating only and designed, thanks to a kit (optional)

to be connected to a separate Storage tank with an 80, 105,

120 or 200 litre capacity.

e boiler, thanks to the condensation technology, stands out

for its particularly high performance and ample modulation

range (from 20% to 100 % of the rated output). e boiler is

equipped with a total premix combustion system that guar-

antees minimal polluting emissions and can run on either

natural gas or L.P.G.

e VICTRIX 24 kW X series of boilers is type-approved for

installation outside the building in a partly sheltered loca-

tion.

Note: By a partly sheltered location we mean a place where the

appliance is not exposed directly to the weather (rain, snow, hail,

etc.).

e boiler is adjusted and controlled by a microprocessor

controlled p.c.b. with continuous ame modulation which,

by means of a backlit display, shows boiler operating status

(temperatures, safety devices, etc.) and it also allows connection

(optional) to the Remote Control (with which you can easily

control the boiler remotely), to the external probe, to the zone

control unit and to the Multi-system Distribution Manifold.

e hydraulic circuit is equipped with a water-gas exchanger

with stainless steel heating coil and uses the new hydraulic unit

made in a composite material on which, besides the circulator,

the devices to control the hydraulic circuit are housed (the

General features.

system’s absolute pressure switch, 3-bar safety valve, automatic

system by-pass, etc.).

One of the boiler’s standard features is a antifreeze device

that protects against temperatures down to a minimum -5°C

(optional down to -15°C).

e VICTRIX 24 kW X boiler must be installed using the

intake/outlet kits or ducting systems (60 mm Ø rigid, 80 mm

Ø rigid, and 80 mm Ø exible) made of plastic and expressly

conceived and designed for Immergas condensation boilers.

STVkW ed 07/08 VICTRIX 24 kW Export

Technical Documentation Technical Documentation

VICTRIX 24 kW main dimensions and connections.

Legend:

V - Electrical connection

G - Gas supply

AC - D.H.W. outlet

AF - D.W. inlet

SC - Condensation runo (minimum inside diameter 13 mm Ø)

R - System return

M - System delivery

VICTRIX 24 kW X main dimensions and connections.

Legend:

V - Electrical connection

G - Gas supply

RU - Storage tank return (optional)

MU - Storage tank delivery (optional)

RR - System lling cock

SC - Condensation runo (minimum inside diameter 13 mm Ø)

R - System return

M - System delivery

Height (mm) Width (mm) Depth (mm)

795 440 250

CONNECTIONS

GAS WATER SYSTEM

G RR R M

3/4”* 1/2” 3/4” 3/4”

Height (mm) Width (mm) Depth (mm)

795 440 250

CONNECTIONS

GAS DOMESTIC

WATER SYSTEM

GAC AF R M

3/4”* 1/2” 1/2” 3/4” 3/4”

STVkW ed 07/08 VICTRIX 24 kW Export

Technical DocumentationTechnical Documentation

VICTRIX 24 kW control panel.

Legend:

1 - Boiler status indicator display

2 - Stand-by - D.H.W./Remote Control - D.H.W. and C.H. - Reset selector switch

3 - D.H.W. temperature selector switch

4 - C.H. temperature selector switch

5 - Boiler manometer

STVkW ed 07/08 VICTRIX 24 kW Export

Technical Documentation Technical Documentation

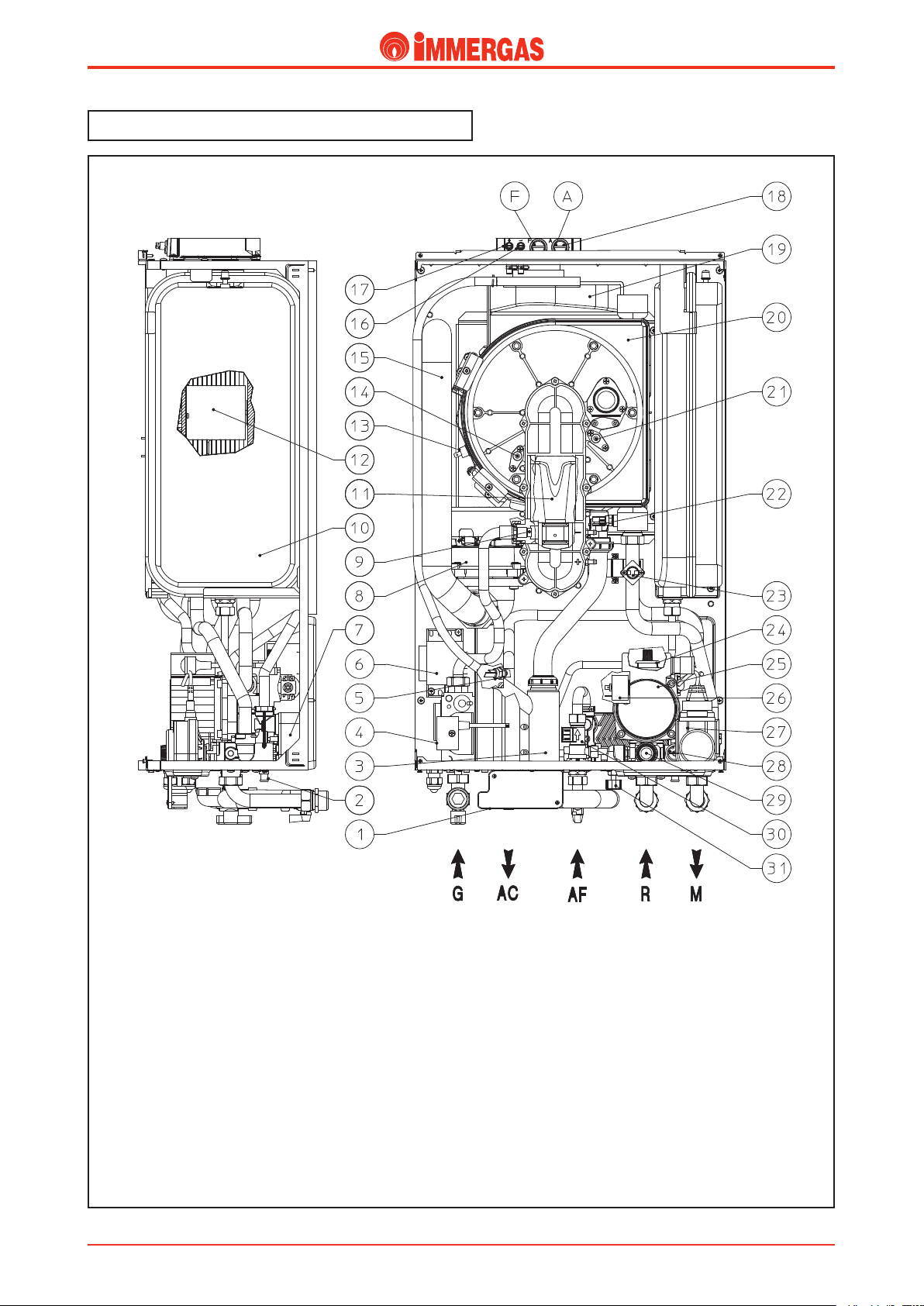

VICTRIX 24 kW main components.

Legend:

1 - Electrical connection terminal block

(extra low voltage)

2 - System draining cock

3 - Condensate siphon

4 - Gas valve

5 - D.H.W. probe

6 - Voltage transformer

7 - D.H.W. exchanger

8 - Fan

9 - Gas nozzle

10 - System expansion vessel

11 - Venturi

12 - Burner

13 - Flue safety thermostat

14 - Detection electrode

15 - Air intake pipe

16 - Pressure point, negative signal

17 - Pressure point, positive signal

18 - Testing holes (air A) - (fumes F)

19 - Draught diverter

20 - Condensation module

21 - Ignition electrodes

22 - Delivery probe

23 - Safety thermostat

24 - Automatic air vent

25 - Boiler circulator

26 - System pressure switch

27 - 3-way valve (motorised)

28 - Automatic by-pass

29 - 3-bar safety valve

30 - D.H.W. ow switch

31 - System lling valve

STVkW ed 07/08 VICTRIX 24 kW Export

Technical DocumentationTechnical Documentation

VICTRIX 24 kW X main components.

Legend:

1 - Electrical connection terminal block

(extra low voltage)

2 - System draining cock

3 - Condensate siphon

4 - Gas valve

5 - Voltage transformer

6 - Fan

7 - Gas nozzle

8 - System expansion vessel

9 - Venturi

10 - Burner

11 - Flue safety thermostat

12 - Detection electrode

13 - Air intake pipe

14 - Pressure point, negative signal

15 - Pressure point, positive signal

16 - Testing holes (air A) - (fumes F)

17 - Draught diverter

18 - Condensation module

19 - Ignition electrodes

20 - Delivery probe

21 - Safety thermostat

22 - Automatic air vent

23 - Boiler circulator

24 - System pressure switch

25 - Automatic by-pass

26 - 3-bar safety valve

27 - System lling valve

STVkW ed 07/08 VICTRIX 24 kW Export

Technical Documentation Technical Documentation

e hot water for heating and domestic use is produced by a

primary and secondary (D.H.W.) circuit that activated accord-

ing to the request made.

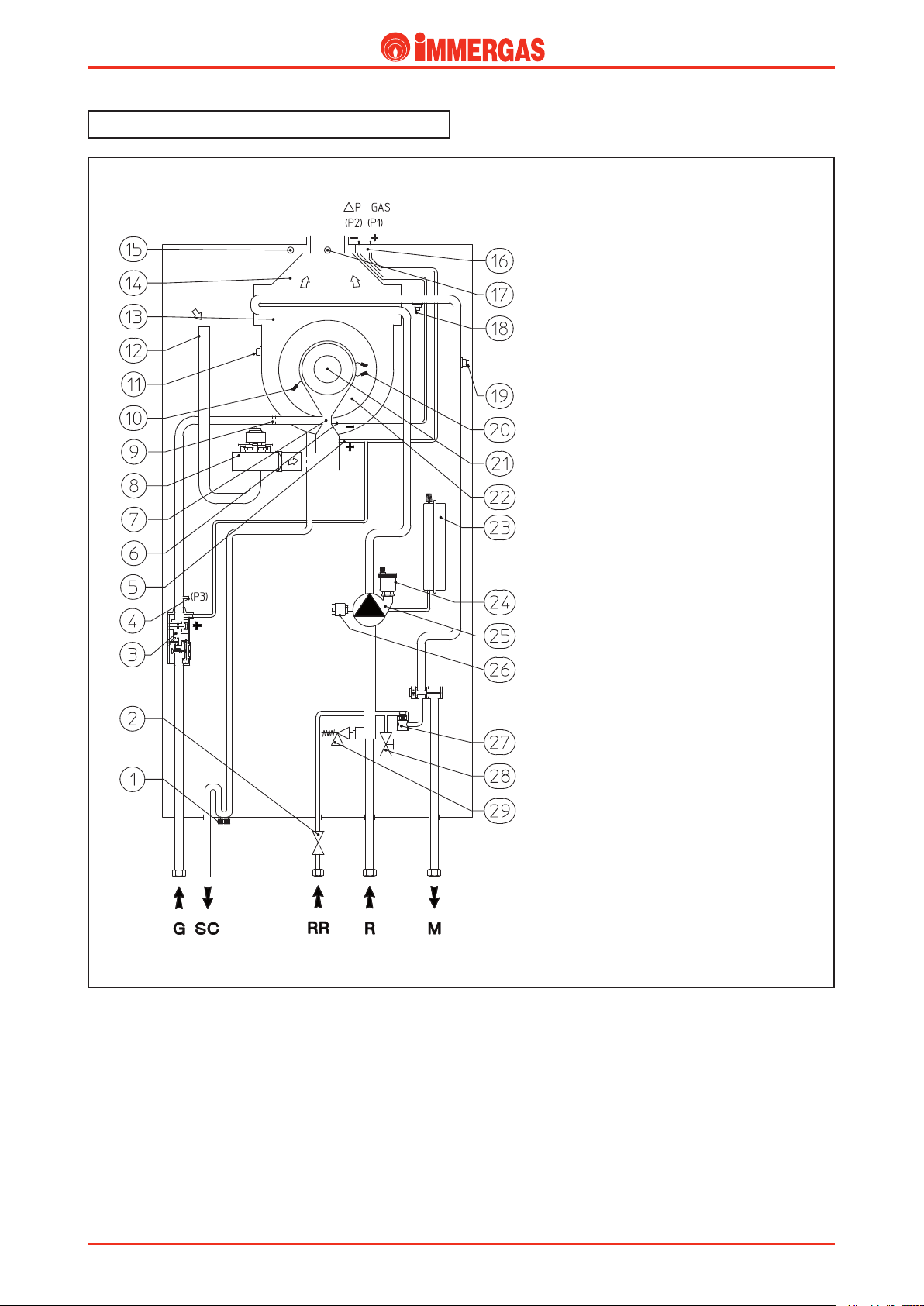

VICTRIX 24 kW hydraulic diagram.

Legend:

1 - Condensate siphon

2 - D.H.W. ow switch

3 - Flow limiter

4 - System lling valve

5 - D.H.W. probe

6 - Gas valve

7 - Gas valve outlet pressure point (P3)

8 - Venturi positive signal(P1)

9 - Venturi negative signal(P2)

10 - Venturi air/gas manifold

11 - Fan

12 - Gas nozzle

13 - Detection electrode

14 - Flue safety thermostat

15 - Air intake pipe

16 - Condensation module

17 - Draught diverter

18 - Air testing hole

19 - ∆p gas pressure point

20 - Flue testing hole

21 - Delivery probe

22 - Safety thermostat

23 - Ignition electrodes

24 - Burner

25 - Condensation module lid

26 - System expansion vessel

27 - Automatic air vent

28 - Boiler circulator

29 - System pressure switch

30 - D.H.W. exchanger

31 - 3-way valve (motorised)

32 - Automatic by-pass

33 - System draining cock

34 - 3-bar safety valve

G - Gas supply

AC - D.H.W. outlet

AF - D.W. inlet

SC - Condensation runo

R - System return

M - System delivery

STVkW ed 07/08 VICTRIX 24 kW Export

Technical DocumentationTechnical Documentation

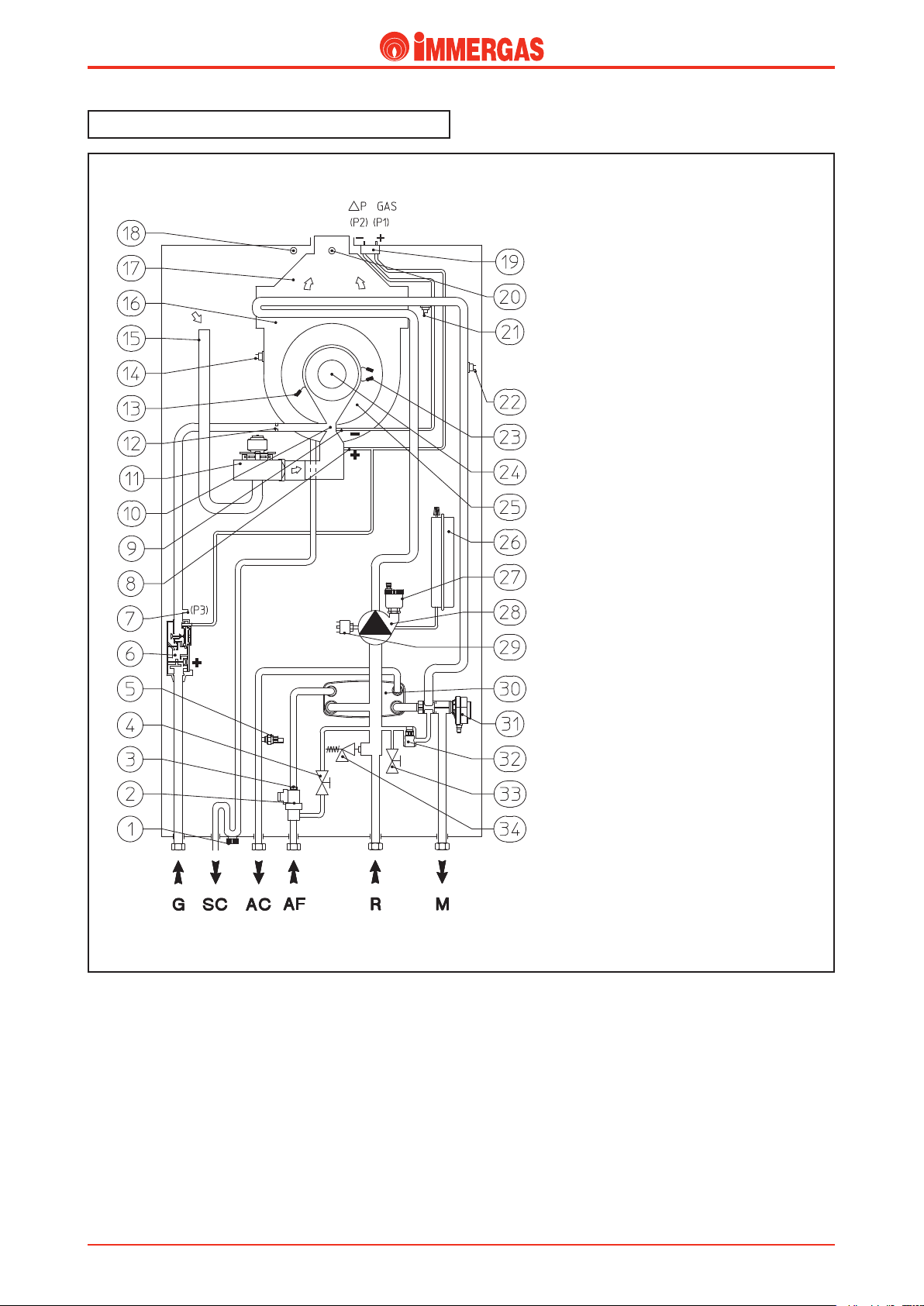

VICTRIX 24 kW X hydraulic diagram.

Legend:

1 - Condensate siphon

2 - System lling valve

3 - Gas valve

4 - Gas valve outlet pressure point (P3)

5 - Venturi positive signal(P1)

6 - Venturi negative signal(P2)

7 - Venturi air/gas manifold

8 - Fan

9 - Gas nozzle

10 - Detection electrode

11 - Flue safety thermostat

12 - Air intake pipe

13 - Condensation module

14 - Draught diverter

15 - Air testing hole

16 - ∆p gas pressure point

17 - Flue testing hole

18 - Delivery probe

19 - Safety thermostat

20 - Ignition electrodes

21 - Burner

22 - Condensation module lid

23 - System expansion vessel

24 - Automatic air vent

25 - Boiler circulator

26 - System pressure switch

27 - Automatic by-pass

28 - System draining cock

29 - 3-bar safety valve

G - Gas supply

RU - Storage tank return (optional)

MU - Storage tank delivery (optional)

RR - System lling cock

SC - Condensation runo

R - System return

M - System delivery

e primary circuit and its control and safety devices start

working each time a central heating or antifreeze request is

made.

Otros manuales para VICTRIX 24 kW X

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Caldera de Immergas

Immergas

Immergas NIKE ECO 24 Guía del usuario

Immergas

Immergas MINI NIKE 24 4 ERP Manual del producto

Immergas

Immergas VICTRIX 26 2 I Manual de usuario

Immergas

Immergas MINI NIKE X 24 3 E Manual de usuario

Immergas

Immergas VICTRIX Zeus 26 1 I Manual de usuario

Immergas

Immergas NIKE MYTHOS 24 2E Series Manual del producto

Immergas

Immergas ZEUS Superior Series Manual de usuario

Immergas

Immergas VICTRIX 24 TT 2 ERP Manual del producto

Immergas

Immergas Victrix Pro 80 1 I Manual del producto

Immergas

Immergas VICTRIX 20X TT 1E Manual del producto

Immergas

Immergas VICTRIX EXA 28 1 ERP Instrucciones de funcionamiento

Immergas

Immergas VICTRIX R 24 1 I Manual de usuario

Immergas

Immergas Mini Eolo 24 3 E Manual del producto

Immergas

Immergas NIKE MINI 28 KW SPECIAL Manual del producto

Immergas

Immergas MINI NIKE X 24 3 E Manual de usuario

Immergas

Immergas VICTRIX 26-2 Manual de usuario

Immergas

Immergas HERCULES CONDENSING ErP Series Instrucciones de funcionamiento

Immergas

Immergas VICTRIX X 12-24 2 I Manual de usuario

Immergas

Immergas VICTRIX 26 2 I Manual de usuario

Immergas

Immergas Victrix Tera 28 1 Manual del producto

Immergas

Immergas Victrix Zeus 25 Manual de usuario

Immergas

Immergas Victrix-Zeus-Superior 32 KW I Manual de usuario

Immergas

Immergas UB INOX SOLAR 200 ERP Instrucciones de funcionamiento

Immergas

Immergas AVIO 24 2 ERP Manual de usuario

Manuales populares de Caldera de otras marcas

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manual de usuario

Radijator

Radijator BIO max 23.1 Manual de usuario

Brunner

Brunner BSV 20 Manual de usuario

Buderus

Buderus Logamax GB062-24 KDE H V2 Manual de usuario

Potterton

Potterton 50e Hoja de datos

UTICA BOILERS

UTICA BOILERS TriFire Manual de usuario

Joannes

Joannes LADY Series Manual

ECR International

ECR International UB90-125 Manual de instrucciones

Froling

Froling FHG Turbo 3000 Manual de usuario

Froling

Froling P4 Pellet 8 - 105 Manual de usuario

U.S. Boiler Company

U.S. Boiler Company K2 Manual de usuario

Henrad

Henrad C95 FF Manual de usuario

NeOvo

NeOvo EcoNox EF 36 Manual de usuario

Potterton

Potterton PROMAX SL 12 Manual de usuario

Eco Hometec

Eco Hometec EC 25 COMPACT Manual de usuario

Viessmann

Viessmann VITODENS 200 Guía

Baxi

Baxi Prime 1.24 Manual de usuario

REXNOVA

REXNOVA ISA 20 BITHERMAL Manual de usuario
