Internet Fax Option Setup Guide

Models 5000 and 3500

ifax.doc 11/29/02

Table of Contents

Internet Communication Illustration..……………………………….Page One

Installing the Internet Board (Part # (6429769)……………………Page Two

Installing the Internet Board (Part # (6429769)

to a machine which has the PCL Option

(6429760) installed. (AC Adapter 6429770

required for I’F Kit when PCL Kit is installed)……………………Page Five

Attaching the Internet Fax Kit to a machine

which has a PCL Option (6429760) and a

Second Line Option (6429764) installed.

Internet Board (6429769) AC Adapter (6429770)………………..Page Eight

Pre-Installation Information Form…………………………………..Page Twelve

Glossary…………………………………………………………………Page Thirteen

Internet Installation Procedures……………………………………Page Fourteen

1

Installing the Internet Fax board (Attaching Internet Fax Kit only)

Part # - 6429769

Note: Make sure to turn off the fax machine before proceeding with the following steps.

1. Confirm the Jumper pin is located on the INT. (Internal power supply) position.

Option cover A

INT. EXT.

2. Remove the OPTION COVER A.

3. Remove the REAR COVER, and then remove the SHIELD PLATE.

2

4. Connect one end of the connection cable to the P14A on the main board. And pass the other end of the connection

cable through the machine’s frame.

5. Plug the CONNECTION CABLE to the IN connector on the Internet Fax board. Then insert the Internet Fax board into

the right slot.

O.P. Shield B

6. Attach the O.P. Shield B and secure it using screws, as shown below.

3

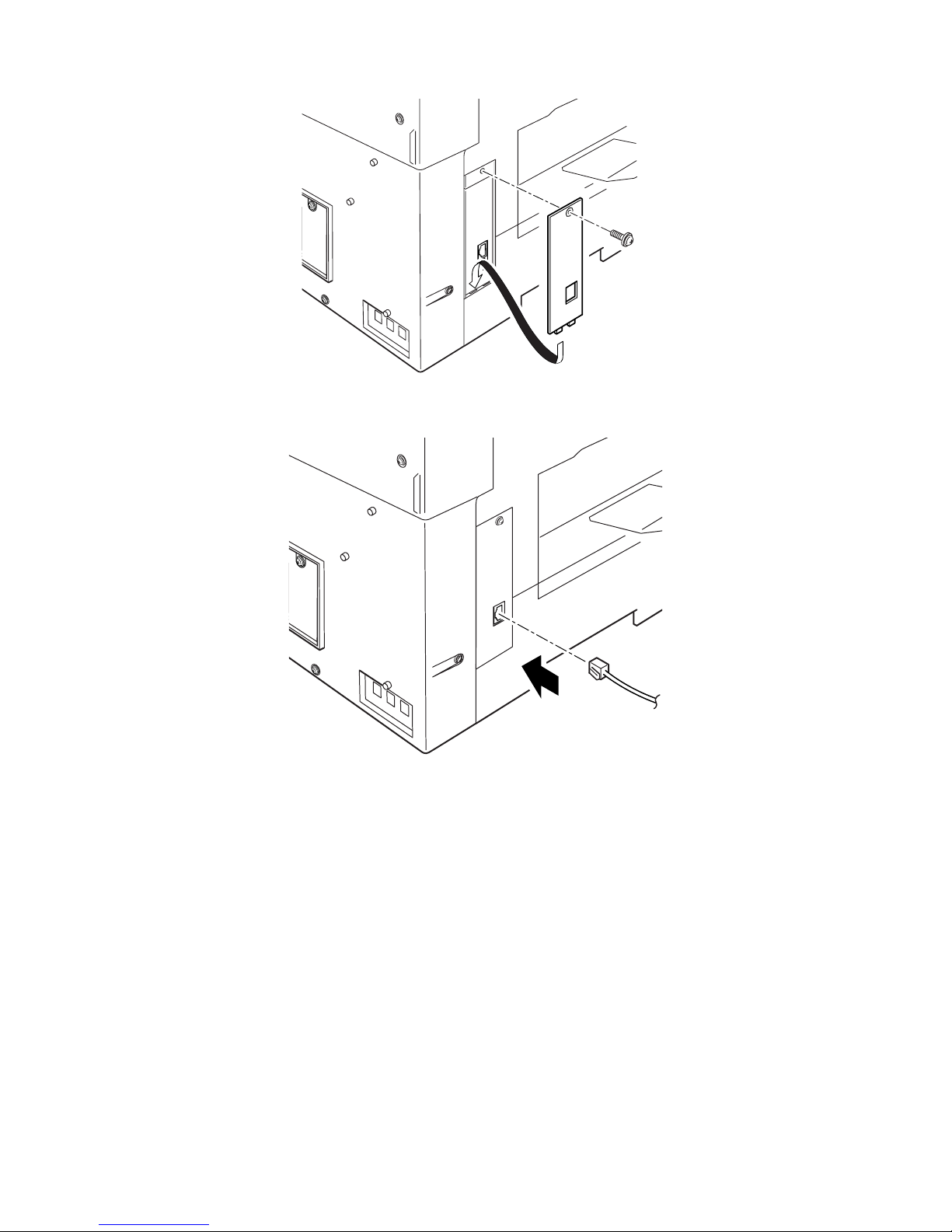

7 Re-attach the SHIELD PLATE and the REAR COVER you have removed in step 3.

8 Attach the OPTION COVER C.

9 Connect the Ethernet cable to the Internet Fax network port.

4

Installing the Internet Fax board (# 6429769)

Attaching the Internet Fax Board to a machine which has the PCL Option (#

6429760) installed. (AC Adapter 6429770 needed for I/F Kit when PCL Kit is

installed)

Note: Make sure to turn off the fax machine before proceeding with the following steps.

1. Remove the REAR COVER, and then remove the SHIELD PLATE.

2. Disconnect the connection cable of the PCL from the P14A on the main board. Then connect the connection cable of

the Internet Fax board to the P14A.

5

3. Remove the harness cover from the rear cover.

You will pass the connection cable through this hole.

harness cover

4. Reattach the SHIELD PLATE.

5. Reattach the REAR COVER as shown below.

6. Attach the Box panel to the bottom chassis, and then attach Blind label to the position shown in the illustration below.

Attach the four Angle plates.

Blind label

Box panel

7. Attach the Internet Fax chassis to the rear cover.

6

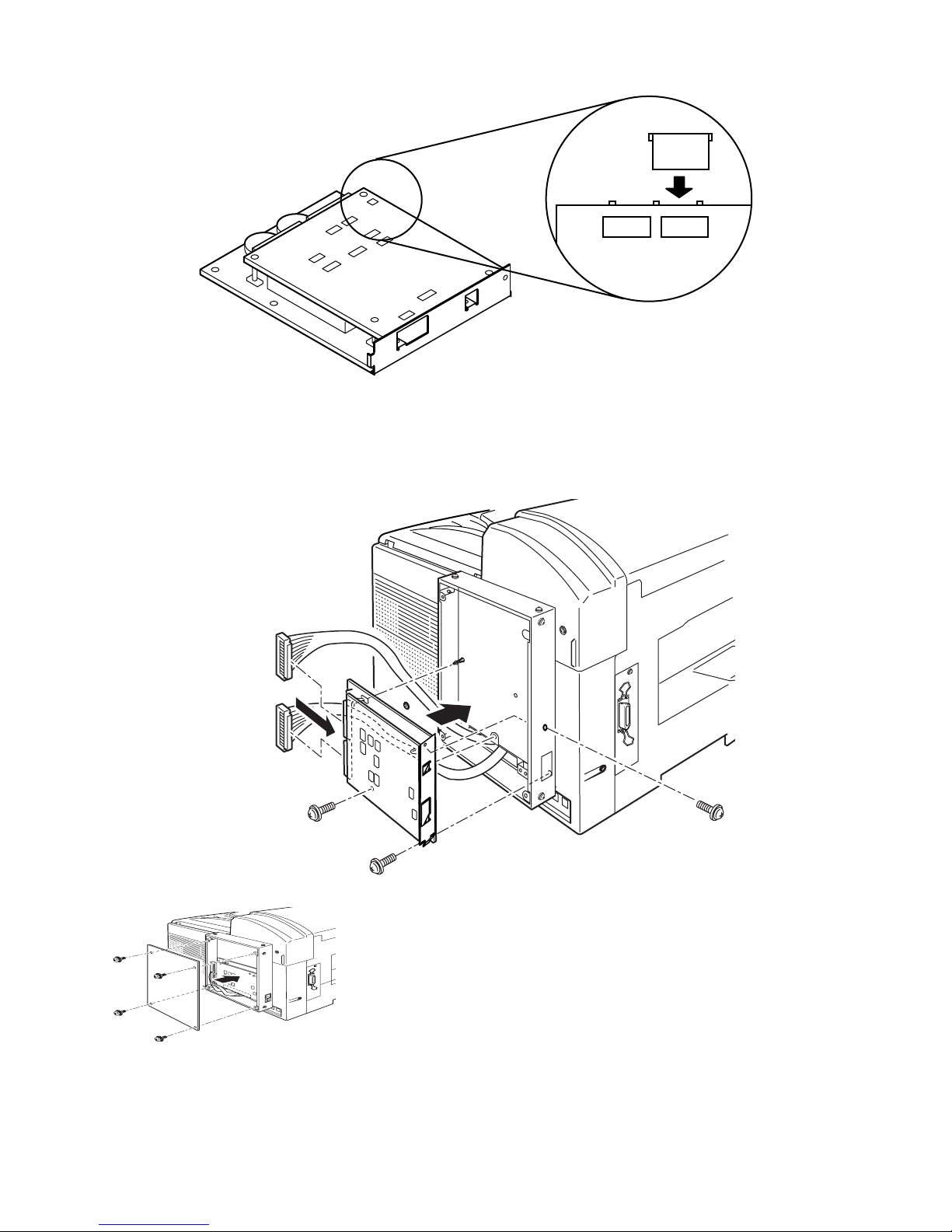

8. Confirm the Jumper pin is located on the EXT.(External power supply) position.

10 Attach the module cover.

INT. EXT.

9 Connect the connection cable of the Internet Fax to IN connector on the Internet Fax board.

Connect the PCL connection cable to OUT connector on the Internet Fax board.

Then attach the Internet Fax board to the chassis using three screws.

.

7

11 Attach the ferrite core to the DC cable of the AC adapter, as shown.

ID Label

12 Connect the DC cable to the DC jack.

Connect the Ethernet cable to the Internet Fax network port.

Attach the ID label to the bottom chassis.

8
