Ildvr Digital Technology USA INC-MP1300 Manual de usuario

M0320

Edition 10.1

Issued on December 2011

IP Camera User Manual

For

INC-MP Series

INS-MP1300

Megapixel IPCamera

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchasers for

backup purposes, without the express written permission of ILDVR Digital Technology USA Inc. (“ILDVR”)

Product warranty or service will not be extended if: (1) the product is repaired, modified, or altered, unless such repair, modification

of alteration is authorized in writing by ILDVR; or (2) the serial number of the product is defaced or missing.

ILDVR PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ILDVR, ITS DIRECTORS, OFFICERS, EMPLOYEES OR

AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING

DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND

THE LIKE), EVEN IF ILDVR HAS BEEN ADVISED OR THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE

ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ILDVR. INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS

AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective

companies, and are used only for identification or explanation and to the owners’benefit, without intent to infringe.

To contact us:

Headquarter: www.ildvr.com

Branches

Europe: www.ildvr.eu

Russia: www.ildvrcom.ru,

China: www.ildvr.net

ILDVR Global Distribution & Service

Danmark: www.ildvr.dk

Germany: www.ildvr.de

Hungary www.ildvr.hu

Italy: www.ildvr.it

Netherland: www.ildvr.nl

Russia: www.il-dvr.ru

www.ildvr-video.ru

Ukraine: www.ildvr.com.ua

USA: www.ildvr-usa.com

Tech-support: support@ildvr.com

______________________________________________________________________________________________________________________________________________________________

INC-MP Series & INS-MP1300 Megapixel IP Camera User Manual

Directory

Introduction……………………………………………………………………………………………………………………………………..………1

1Physical Interface Description……………………….……………………………….………………………………….………………………………..2

1.1 Box Camera……………………………………………………………………………….…………..………………………………………………2

1.1.1 INC-MP20A……………………………………………………………………………………………………………………………………………………2

1.1.2 INC-MP12CD………………………………………………………………………………………………………………………………………………….4

1.1.3 INC-MP20CD and INC-MP50N……………………………………………………………………………………………………………………………….5

1.2 Dome Camera……………………………………………………………….…………..………………………………………………………………6

1.3 Mini Dome Camera…………………………………………………………………….…………………………………………….….………………….7

2Hardware Installation…………………….……………………………….……………………………………………………………………………….8

2.1 Prepare Audio Connector……………………………………………………………………………………………………….……………………….8

2.2 Box Camera Installation………………………………………………………………………………………….………………………...9

2.3 Dome Camera Installation……………………………………………………………………………………….…………..………………………….10

2.4 Mini Dome Camera Installation……………………………………………………………………………………….…………..……………………….12

2.5 IP Speed Dome Installation………………………………………………………………………….…………..………………………………………….16

2.5.1 General Steps………………………………………………………………………………………………………………………………………………….16

2.5.2 Wall Mount…………………………………………………………………………………………………………………………………………………….21

2.5.3 Corner Mount…………………………………………………………………………………………………………………………………………………22

2.5.4 Pole Mount……………………………………………………………………………………………………………………………………………………23

2.5.5 Pendant Mount………………………………………………………………………………………………………………………………………………..23

2.5.6 Surface Ceiling Mount………………………………………………………………………………………………………………………………………..24

2.5.7 Recess Ceiling Mount………………………………………………………………………………………………………………………………………...26

3Software Installation…………………….……………………………………………………………….……………………………………….………..27

______________________________________________________________________________________________________________________________________________________________

INC-MP Series & INS-MP1300 Megapixel IP Camera User Manual

3.1 Search and Modify IP Address……………………………………………………………………………………………………….……………………….27

3.2 Connect to HVR Server and Live Center………………………………………………………………………………………….………………………...28

3.3 Camera System Configuration……………………………………………………………………………………….…………..………………………….29

3.4 Continuous Record Setup……………………………………………………………………………………………….…………..……………………….31

3.5 Motion Detect Alarm Record Setup………………………………………………………………………………………….……………………………….31

3.6 Sensor Trigger Alarm Record Setup…………………………………………………………………………………….……………………………….33

3.7 PTZ Operation…………………………………………………………………………………….………………………………………………………34

3.8 Display on TV-wall…………………………………………………………………………………….………………………………………………………37

4Advanced Operation……….……………………………………………………………….……………………………………….………..38

4.1 SD Card Local Record Setup……………………………………..……………………………….…………………………………………………38

4.2 Audio Chat to IP Camera………………….…………………………………………………..……………………………………….…………………….38

4.3 Manually Trigger Alarm Out………….……………………………………………………………………………….…………………………………….38

4.4 Mobile Phone Access Viewing………………………………………………………………………….……………………………………………………..39

4.5 IE Web Client Operation……………………………………………………………………………….…………………………………………………….40

4.6 ePTZ Operaion ……………………………………………………………………………….………………………………………………………………43

______________________________________________________________________________________________________________________________________________________________

INC-MP Series & INS-MP1300 Megapixel IP Camera User Manual [1]

Introduction

ILDVR INC-MP series megapixel P camera integrates the traditional camera and network video technology. It adopts video and audio data collection, compression,

transmission and storage together. It can be used alone with SD card record or used in a network environment. It can connect to network directly without any auxiliary

device.

ILDVR IP cameras use H.264 video compression technology and G.711/OggVorbis audio compression technology, which maximally guarantee the audio and video

quality.

Key features:

•Advanced H.264 compression with high compression ratio. Support both variable bit rate and variable frame rate.

•Compressed video and audio are synchronous. You can select either mixed stream or only video stream.

•Support SD card local record, up to 64GB.

•Alarm Function includes sensor alarm, Motion Detection, video tampering, network offline, IP address conflict, Storage exception etc.

•Multi-level user management leads to high system safety. Up to 16 users.

•Support dynamic DNS (DDNS)

•Support Email Alarm Notification

•Remote management, maintenance and upgrade the firmware.

•Support bi-direction voice talk or one-way voice broadcast.

•Built-in web server, support IE browser preview and record.

•Multi-purpose design. Weatherproof , vandal-proof and multiple power supply: DC12V/AC24V/POE (48V)

•Wide range of product lines, pixels from 1.3M (1280*960) to 5.0M(2560*1920)

Default settings

Default IP address is 192.168.1.200, subnet mask 255.255.255.0, gateway 192.168.1.1

User ID is “admin”, password is “12345”, video port is “8000” and web port is “80”

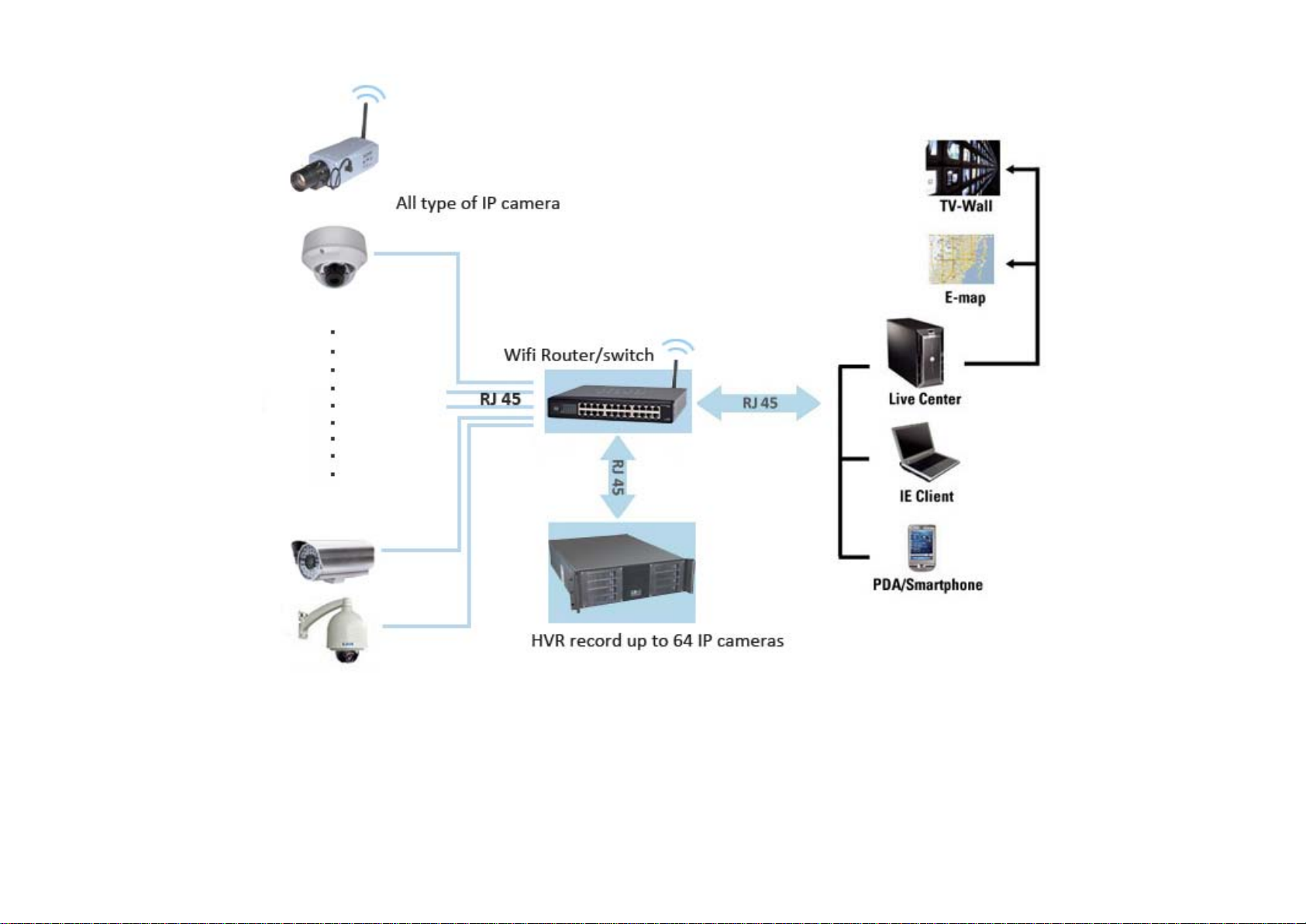

Typical network connection diagram:

______________________________________________________________________________________________________________________________________________________________

INC-MP Series & INS-MP1300 Megapixel IP Camera User Manual [2]

1Physical Interface Description

1.1 Box Camera

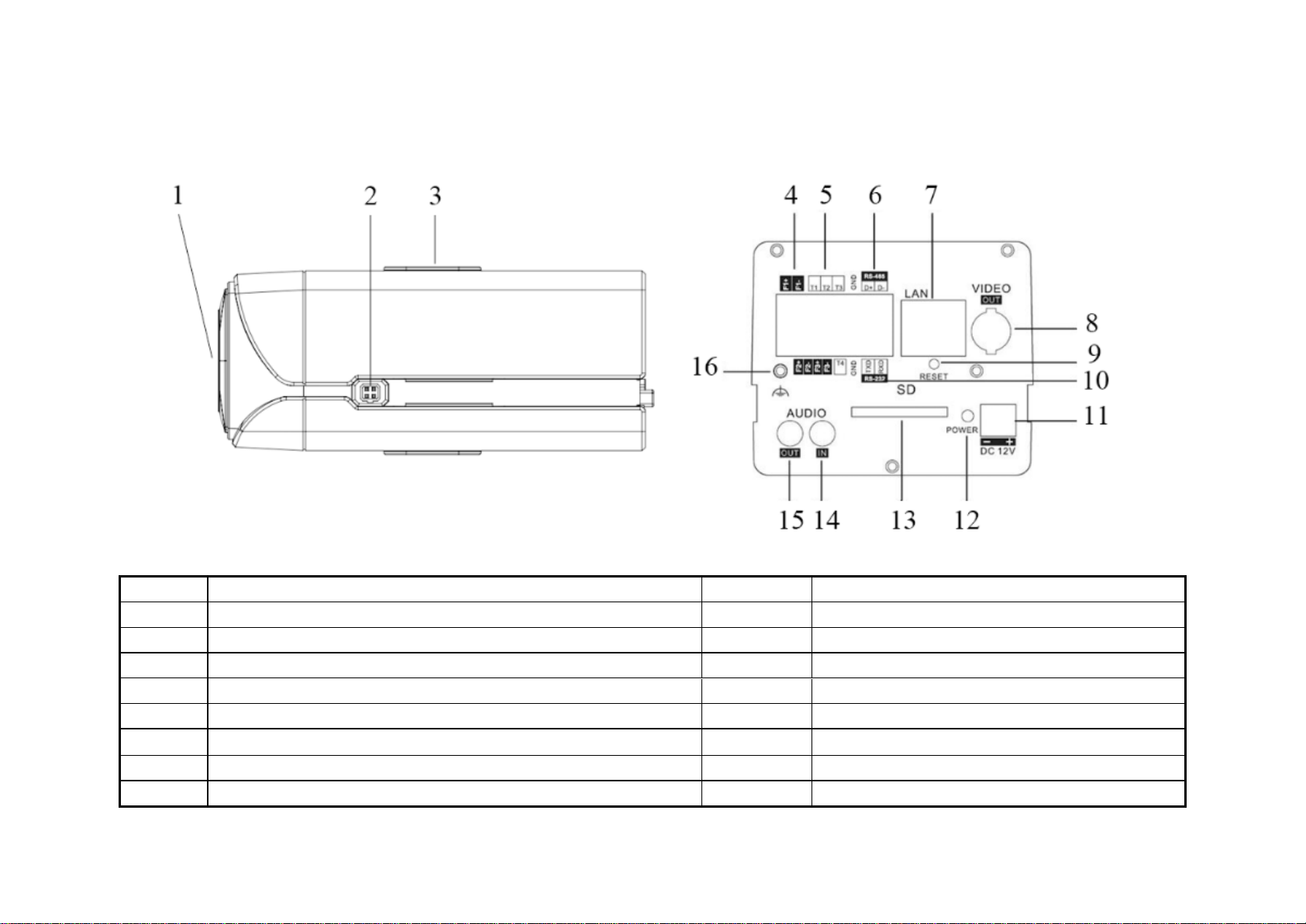

1.1.1 INC-MP20A

______________________________________________________________________________________________________________________________________________________________

INC-MP Series & INS-MP1300 Megapixel IP Camera User Manual [3]

Camera description:

Item Description Item Description

1 Lens mount 9 Power supply

2 Back Focus Ring 10 MIC IN: Audio input interface

3 SD: SD card slot 11 D+, D-: RS-485 interface

4 Auto iris interface 12 IN, G: Alarm input interface

5 10M/100M self-adaptive Ethernet interface 13 1A, 1B: Alarm output interface

6 VIDEO OUT: Video output interface 14 Ground

7 AUDIO OUT: Audio output interface 15 RESET: Reset the camera

8 PWR: Power LED indicator 9 Power supply

______________________________________________________________________________________________________________________________________________________________

INC-MP Series & INS-MP1300 Megapixel IP Camera User Manual [4]

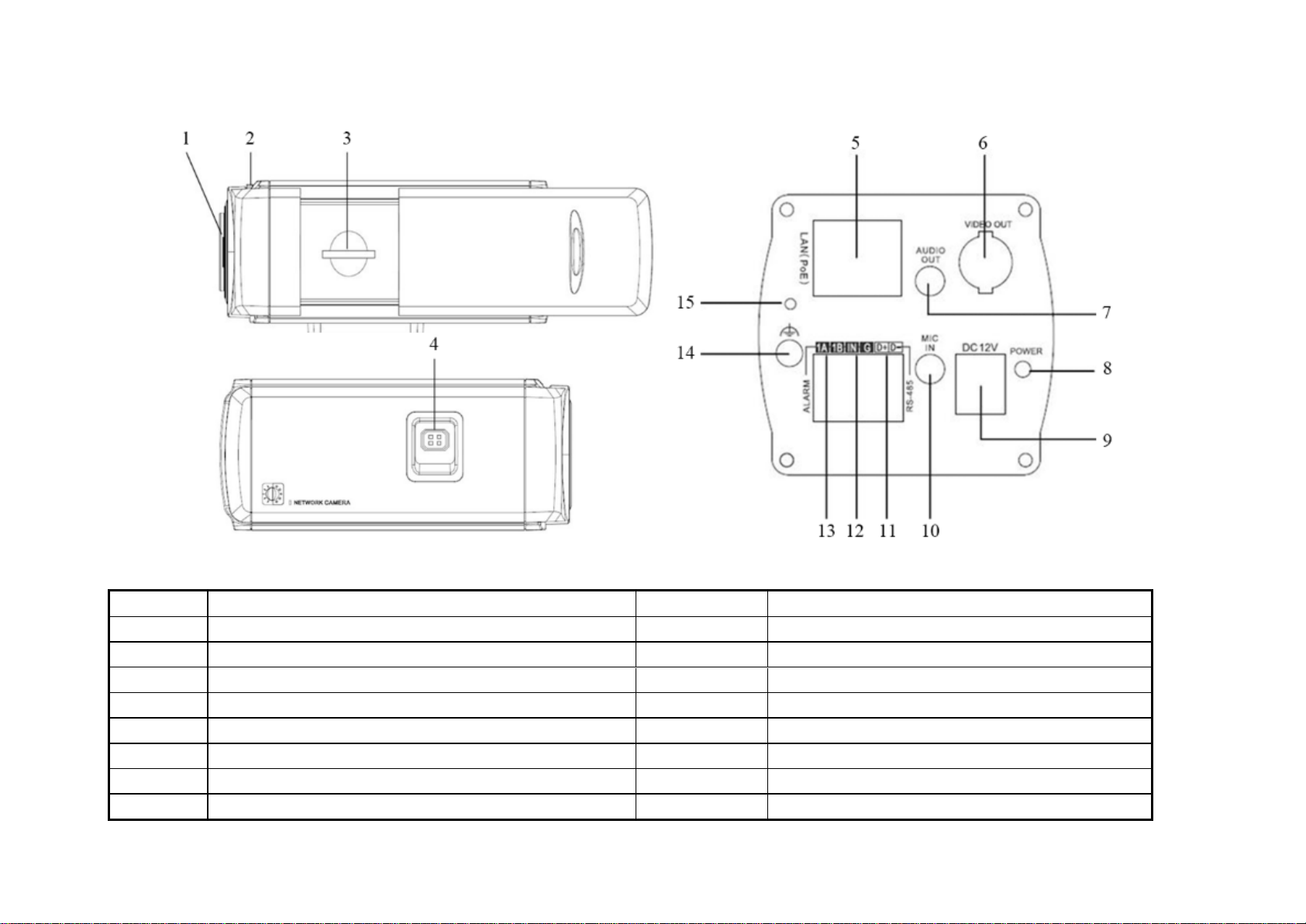

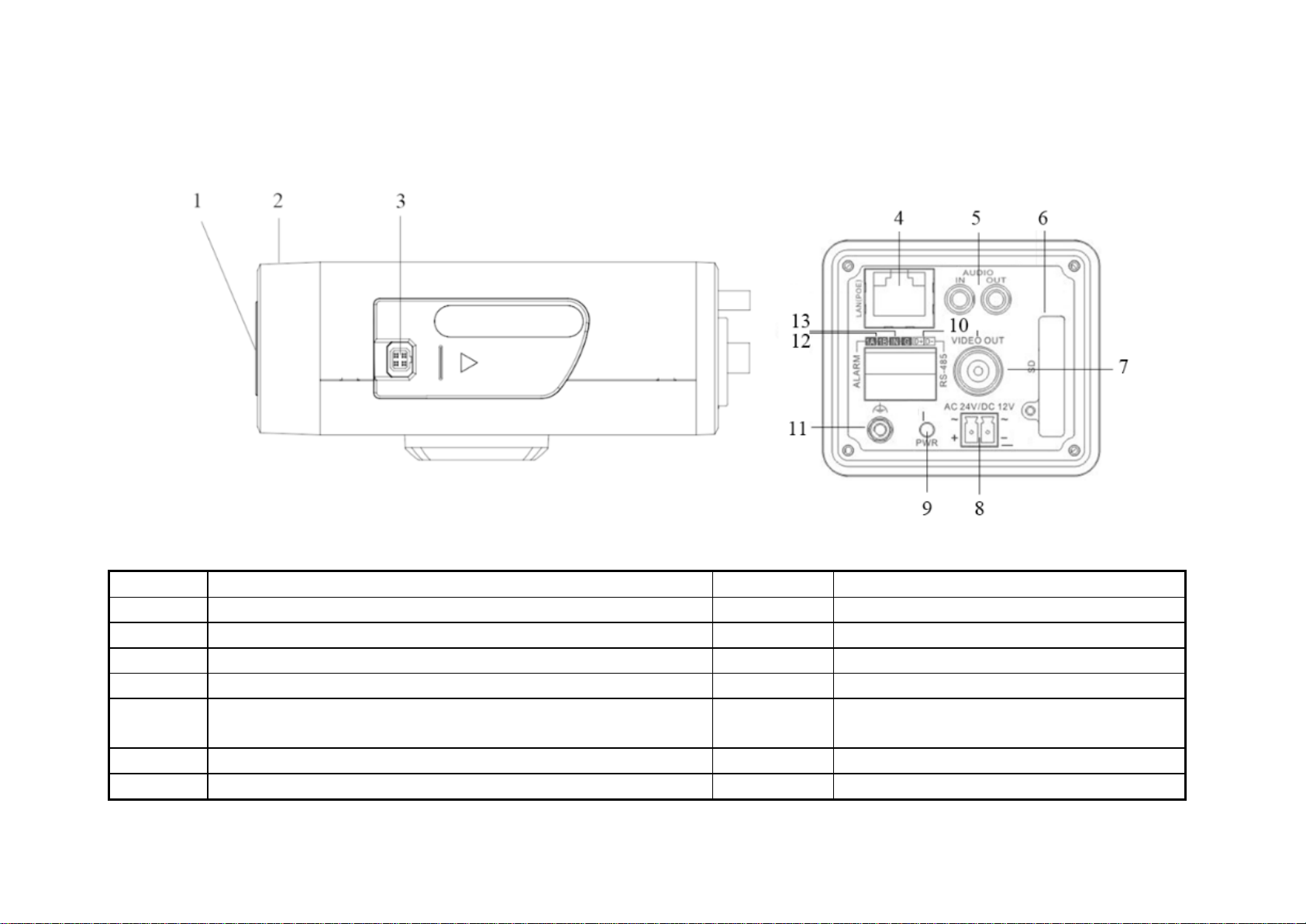

1.1.2 INC-MP13CD

Camera description:

Item Description Item Description

1 CS Lens mount 8 Power supply

2 Back Focus Ring 9 PWR: Power LED indicator

3 Auto iris interface 10 D+, D-: RS-485 interface

4 10M/100M self-adaptive Ethernet interface 11 Ground

5 AUDIO IN: Audio input interface

AUDIO OUT: Audio output interface

12 1A, 1B: Alarm output interface

6 SD: SD card slot 13 IN, G: Alarm input interface

7 VIDEO OUT: Video output interface
