Ikelite 6910.63 Manual de usuario

Product Registration

Please register your product at ikelite.com within 15 days of purchase.

Our product registration database is the best way for us to get a hold

of you in the event of a product update or recall.

Underwater Housing for

Sony Alpha A6300

Product Number 6910.63

About this Product

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please visit ikelite.com to register your product to

receive information on any updates, notices, or recalls pertaining to

your equipment.

Included in the Box

• Housing

• Waterproof bulkhead cap

• Silicone lubricant

• Control + push button tip assortment

Important Notices

»This housing requires a compatible Lens Port for waterproof

operation. The housing is not waterproof without a Lens Port

attached.

»To prevent salt build-up and sticking controls, submerge the

empty housing in clean, freshwater. Operate the controls

several times each while underwater to ush out any residue.

»Never leave a housing in a rinse tank, even if it is the only

system in the tank. Most catastrophic oods happen when the

user walks away from a housing while it is in the rinse tank.

»Do not use alcohol, cleaning agents, spray lubricants, Rain-X,

or other solvents on the housing or lens port. Use of an

incompatible chemical compound can damage the plastic and

o-rings, and may result in leaking.

Contents

Product Registration 1

About this Product 2

Included in the Box 2

Important Notices 3

Getting to Know Your Housing 5

Setting Up Your Camera 7

Pre-Installation Checklist 7

Setting Up Your Housing 7

Opening the Housing 7

Inserting the Camera 8

Attaching the Hotshoe 9

Closing the Housing 9

Attaching the Lens Port 10

Final Check 11

Entering the Water 11

Setting Up An External Strobe 13

About the Built-In Flash 13

About Sync Cords 13

Attaching a Sync Cord 13

About Fiber Optic Cords 14

Attaching a Fiber Optic Cord 15

Maintenance 15

Post-Dive 15

Travel and Storage 16

Troubleshooting 16

Limited Warranty 18

Service and Repairs 19

Getting to Know Your Housing

Shutter

button

Power ON/OFF

Custom 1 (C1)

Electrical

bulkhead

Fiber optic ports

Tray mounts Lens port

mount

Lid

snap Lens

release

START/STOP

DISP

ISO

START/STOP

DISP

ISO

O-Ring

Control dial

Camera

Mounting

Plate

Control

wheel

AE/MF/

AEL

Flash pop

Custom 2 (C2)

Playback

Mode dial

Start/Stop

Control

wheel Up/

down/left/

right/center

Setting Up Your Camera

Pre-Installation Checklist

1. Insert a fully charged camera battery.

2. Insert a properly formatted memory card.

3. Set Smile/Face Det. to OFF.

4. Set FINDER/MONITOR to Monitor.

5. Set ISO to ISO AUTO or a specic ISO setting. Do not use ISO

AUTO Multi Frame NR setting if using a ash. This setting will

prevent the ash from ring.

ISO

Multi Frame Noise Reduct.

ISO

AUTO

100

200

400

ISO

AUTO

Setting Up Your Housing

Opening the Housing

1. Push the lid snap lock forward and start to lift the curved end away

from the housing.

2. Lid snaps are designed to provide enough force to compress the

o-ring for a proper seal. Keep rm pressure against the lid snap

while lifting it away.

Lid Snap Lock

3. Repeat with remaining lid snaps.

4. Remove the housing back.

Inserting the Camera

1. Remove any lanyard or neck strap which may be attached to the

camera.

2. Check to see whether the camera’s lens will t through the port

opening of the housing. If not, the lens will need to be removed

from the camera body and re-attached AFTER the camera body is

insalled in the housing.

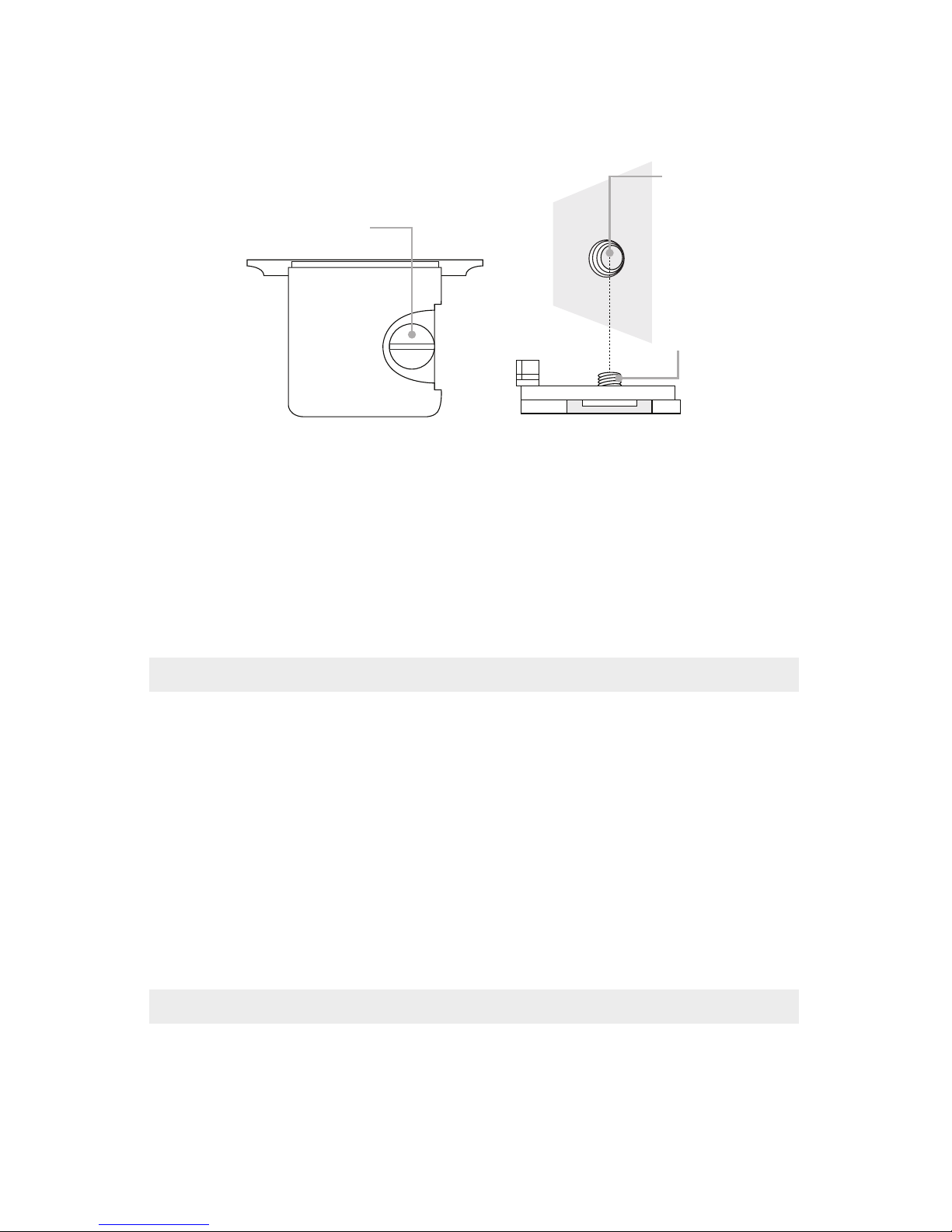

3. Remove the camera mounting plate from the housing.

4. Line the mounting screw up with the camera’s tripod socket. Use a

coin or at head screwdriver to tighten the mounting plate to the

camera.

BOTTOM SIDE

Mounting screw

1/4-20 thread

Camera tripod

socket

FRONT

5. Pull out on the housing control knobs to move them out of the way.

6. Insert the mounting plate into the slot on the inside bottom of the

housing. Push the camera all of the way forward until the back of

the mounting plate is ush with the back of the housing mount.

Attaching the Hotshoe

1. Make sure the contacts are clean.

2. Slide the hotshoe onto the camera with the LOCK marking towards

the back of the camera.

3. Push the hotshoe forward until it is unable to go any farther. The

hotshoe must be pushed all of the way forward to make proper

contact with the camera and provide TTL operation.

4. Rotate the locking ring clockwise until snug.

Closing the Housing

1. Make sure the o-ring is clean and in its proper location on the back

of the housing. The main o-ring does not require lubricant to make

a seal.

2. Place the back onto the housing front.

3. Make sure no controls or wires are interfering with the o-ring or the

back of the housing.

4. Place each lid snap into the corresponding hook on the housing

back.

5. Push the lid snaps towards the housing until they are at against

the housing and the lock has engaged. Close opposing lid snaps at

the same time.

6. Check the o-ring seal. The o-ring should form a uniform, solid line

around the back of the housing. There will be a small, even gap

around the housing between the housing back and the housing

front.

Attaching the Lens Port

A compatible lens port is required for waterproof operation.

Never submerge the housing without a lens port attached.

1. Lightly lubricate the o-ring on the port base. When properly

lubricated, the o-ring should have an even, slightly shiny

appearance. Wipe off any excess lubricant. Lubricant prevents the

o-ring from rolling or extruding; it is not a sealing mechanism.

2. If using a gear sleeve, place it on the port base with the teeth side

outwards.

3. Slide the lens port onto the housing port base and press evenly

down towards the housing until it stops. There should be a very

thin, even gap between the bottom of the port and the housing

front.

4. If using a dome with a shade, rotate the lens port gently so that the

wider extensions are oriented on the top and bottom. If the shade is

misaligned, it may cause vignetting (dark shadows in the corner of

the image).
