Ikelite 6871.06 Manual de usuario

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please refer to the back page of this manual to

Port Lock

IKELITE

SLR-DC Housing

instruction manual

6871.06 Canon E S 6D

Table of Contents

Specifications ..............................................................P. 3

Package Contents ........................................................P. 4

Preparation ..................................................................P. 4

Attach External “Tray with Handles” to Housing ............P. 4

Parts of the Housing - Front/Side View ..........................P. 5

Parts of the Housing - Back View ..................................P. 6

Initial Camera Setup........................................................P. 7

Opening the Housing ......................................................P. 7

Housing Conversion Circuitry..........................................P. 8

Setting the Conversion Circuitry Strobe ID Switch..........P. 8

Using the Conversion Circuitry........................................P. 9

Using Non-Ikelite or Ikelite Non-DS Substrobes ............P. 9

DS50 and DS125 Substrobe Compatibility ....................P. 10

Attaching the Flash Connection for External Strobes ....P. 10

Attach Camera to Housing Tray......................................P. 11

Installing Camera in Housing ..........................................P. 11

Closing the Housing ........................................................P. 12

Final Check ....................................................................P. 12

Attaching a Sync Cord to the Housing ............................P. 13

Turn Camera On..............................................................P. 13

Zoom Clamp & ear Sleeve Installation ........................P. 14

Manual Focusing ............................................................P. 18

Installing the Port ............................................................P. 19

Lens Ports ......................................................................P. 20

Attaching an Ikelite Strobe Arm to the Housing Handle..P. 21

Table of Contents - continued

Usage ............................................................................P. 22

Pre-Dive Your System ....................................................P. 22

Lubricants ........................................................................P. 22

Troubleshooting ........................................................P. 23

Recommended Accessories ....................................P. 25

Accessory Mounting Points ............................................P. 25

EV-Controller Use............................................................P. 25

Maintenance..................................................................P. 26

Storing the Housing ........................................................P. 29

Spare Parts ..................................................................P. 29

Photo Tips ....................................................................P. 29

Technical Support ........................................................P. 30

Limited Warranty ........................................................P. 31

Returning Products for Service ................................P. 31

Product Registration ..................................................Back Cover

Specifications

- Controls ............All important camera functions are accessible. Controls

are not provided for Multi Function Lock Switch, Depth-of-Field Preview

Button, and Dioptric Adjustment Knob.

- Width ................10 in (250mm) including controls

- Height ..............6.9 in (175mm) including controls

- Depth ................6.6 in (168mm) including controls

- Weight ..............5.5 lb (2.5kg) without tray & handles

- Buoyancy ..........Slightly negative in freshwater

- Depth Rating ....200ft (60m)

- Built-in Flash ....Not accessible

- Tray Mounting ..12-24 thread with 3in spacing (76mm)

- SLR-DC Housing

- Envelope containing tray

installation hardware,

maintenance kit, and extra

control end tips.

Package Contents

- Aluminum Tray & Dual Handles

- Silicone Lubricant

- Standard Zoom Clamp & Sleeve Set

- #5509.28 Large Diameter Zoom

Clamp & Sleeve Set

This product has been water pressure tested at the factory and is depth

rated to 200 ft. (60m). Thoroughly inspect and immerse the empty

housing completely in water before installing a camera. If any fogging

occurs or droplets of water enter the housing, do not install a camera.

Clean the housing main o-ring and retest to make sure that it is

watertight. Refer to the Troubleshooting section, page 23.

We suggest that you read this instruction booklet thoroughly before use

to have a full understanding of where each camera control is located,

and what function each control provides. Please read your camera

manual thoroughly to have a full understanding of each camera function.

If you are new to underwater photography, be sure to read the Photo

Tips section.

Due to the power required to operate the camera and LCD screen, start

each dive with a fully charged camera battery.

Preparation

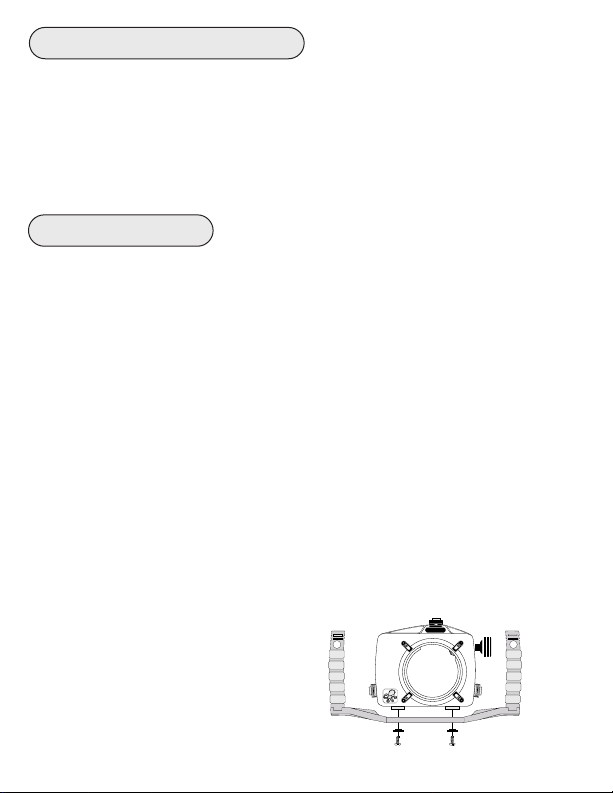

Attach External “Tray with Handles” to Housing

Use hardware and instructions

located in the clear Ikelite pouch

to attach the “Tray with Handles”

to your Ikelite housing.

Port Lock

IKELITE

Port Lock

IKELITE

Parts of the Housing - Front View

Handle

Port

pening

ear Sleeve

Drive ear

Shutter

Button

Main Dial

Lid

Snap

Side View

ear

Sleeve

Optional

Port

Port O-ring

Main Housing

O-ring

Camera Tray

Camera

Mounting Bolt

Aluminum Tray

Lid

Snap

Shutter

Button

Lens

Release

Zoom

Control

Mode Dial/Lock Release

<AF-ON>

Start/Stop

Button

LCD Illumination Button

Leveling Screw (factory adjusted)

14 15 16

Back View

1. Power Switch

2. Menu Button

3. Info Button

4. Super-eye Optical Viewfinder

5. Live View/Movie Switch

6. Start/Stop Button

7. ӿ AE/FE Lock Button

8. AF Point Selection Button

9. Index/Magnify/Reduce Button

10. Quick Control Button

11. Playback Button

12. Multi-controller

13. External Strobe Connector & Cap

14. Multi-controller

15. Setting Button

16. Multi-controller

17. Multi-controller

18. Quick Control Dial

19. Erase Button

20. Flash Mode “-” Compensation

21. Flash Mode “+” Compensation

Quick Release

Strobe Arm Mount

AF Operation Selection Button

Drive Mode Selection Button

ISO Speed Setting Button

Metering Mode Selection Button

pening the Housing

Lid Snaps have a Lock. To open, push Lid Snap

Lock forward and lift as shown. Keep pressure

on the Lid Snap so it does not fly open quickly.

Lid Snaps have a lot of spring tension once they

go over center, so have a firm grip on the Lid

Snap. Lid Snaps may be opened one at a time.

Lift

Push Forward Lid

Snap

Lock

Initial Camera Setup

- Insert a fully charged battery.

- Insert a high capacity SD or SDHC card.

- Set the mode dial to “M” manual or “Av” aperture priority.

In “M” mode, set shutter speed to 1/60th second or 1/180th second for

fast moving subjects. Maximum shutter speed of 1/250th second

recommended to allow full power flashes from strobes. Set aperture to

F8 for general photography or F22 for macro photography (close-ups).

In “A” mode, adjust aperture as necessary for good exposure. With a

DS-series strobe attached, shutter speed will vary from 1/60th to 1/180th

second. For fast moving subjects, set shutter speed to “1/180th second

fixed” in the External Speedlite Control camera menu.

- Set Image quality to JPE “L”, or other desired setting.

- Set Image review to “4 seconds.”

- Set External Speedlight control to “Flash firing - Enable.”

- Set ISO speed to “100” and White Balance to Auto “AWB.”

- Set Live View Shoot to “Enable.”

- Set Metering Mode to “Center-weighted” andAF Mode to “One-Shot AF.”

- Set AF Area to “Manual Selection.” Choose the Center Point.

- Set AF Method to “Quick Mode” and Auto Power Off to “8 min.”

- Set E-TTL II meter. to “Evaluative.”

Note: This housing is designed for use with an external strobe. The

camera’s internal flash cannot be used while in the housing.

Setting the Conversion Circuitry Strobe ID Switch

Housing Conversion Circuitry

This housing contains Ikelite designed and patented Conversion

Circuitry. Once attached, turn the strobe on first before turning on the

camera.

When used with Ikelite DS Substrobes the Conversion Circuitry provides

real TTL flash exposure with over and underexposure compensation

from +2 to -2 f-stops in 1/2 stop increments.

The Conversion Circuitry also offers Manual exposure control with 3 1/2

f-stops of underexposure control in 1/2 stop increments.

The Conversion Circuitry is powered by the Ikelite DS Substrobe when

connected to the housing with the 4103.51 single or 4103.52 dual sync

cord. When using two strobes with the dual sync cord, the primary

strobe connected to the cord without the red band, must be turned on to

power the Conversion Circuitry. Always keep both strobes connected to

your dual sync cord underwater. Do not exchange your secondary

strobe for a dust cap which may not be waterproof.

On the bottom of the housing camera tray is a switch for setting the DS

Substrobe ID. Set the switch to the Model of DS Substrobe being used.

When using dual strobes of different models such as a DS51 and a

DS161, set the ID switch to DS51 or the smaller strobe.

Set

DS Substrobe

to TTL Mode

50-51

TIGHTEN HOLDOWN BOLT

WITH COIN

OR SCREWDRIVER

160-161

125-200

Strobe ID Switch

Using Non-Ikelite or Ikelite Non-DS Substrobes

(Substrobe 50, 100A, 200, 400) with this Housing

The Conversion Circuitry is automatically disabled when used with a

Non-Ikelite or Non-DS Substrobe. These Substrobes can be used in their

manual mode utilizing any power settings provided on the Substrobe.

Using the Conversion Circuitry (Set DS Substrobe to TTL mode)

-Mode and Compensation Buttons

The Conversion Circuitry default is set to TTL. To switch between TTL and

Manual Modes, depress both Mode Buttons at the same time and keep

them depressed until you see the desired Yellow LED Mode illuminate.

-TTL Mode (indicated when the yellow LED directly below TTL is

illuminated). TTL Mode is the default setting. When the DS Substrobe is

powered ON, the yellow TTL LED will illuminate. None of the Red LEDs

will illuminate. This indicates that no (+) plus or (-) minus compensation is

selected. Depress the Mode buttons to select +/- compensation. Note that

the TTL +/- compensation values are in the yellow bar with the heading

TTL.

-Manual Mode (indicated when the yellow LED directly below the M is

illuminated). When the Manual Mode is selected, the Red LED directly

below the F (full power) will illuminate. Note that the Manual minus (-)

compensation values are in the black bar with the heading M. Set DS

Substrobe to TTL mode. This will allow the strobe power to be varied

in manual mode.

Red LEDs (Compensation)

Manual Mode - Yellow LED

TTL Mode - Yellow LED

Mode &

Compensation

Buttons

DS50 and DS125 Substrobe Compatibility

- Older DS50 Substrobes with Serial Number below 63,850 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS50 Substrobes with Serial Number between 63,850 and 69,999

require upgrade of electronics to operate. Cost of update depends on

strobe circuitry. Strobe must be returned to Ikelite for evaluation to

provide an estimate of upgrade cost.

- Older DS125 Substrobes with Serial Number below 2,500 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS125 SubStrobes with Serial Number between 2,500 and 4,999

require upgrade of electronics to operate. Cost of update depends on

strobe circuitry. Strobe must be returned to Ikelite for evaluation to

provide an estimate of upgrade cost.

Attaching the Flash Connection for External Strobes

When using an external

strobe, connect the housing

hotshoe connector. Slide

the connector into the

hotshoe mount on the

camera from the back of

the camera as shown. Slide

the connector forward until

it stops. Due to limited

clearance between the

camera hotshoe mount and

the housing back, the

hotshoe connector should

be attached before the

camera is secured with the

mounting bolt.

Front

External Strobe Connector

and Waterproof Cap

Housing Back

Hotshoe

Connector

Tabla de contenidos

Otros manuales de Accesorios para cámaras de Ikelite

Ikelite

Ikelite 6973.10 Manual de usuario

Ikelite

Ikelite 6147.95 Manual de usuario

Ikelite

Ikelite Olympus SP-350 Manual de operación y mantenimiento

Ikelite

Ikelite DCR-SR190 Manual del propietario

Ikelite

Ikelite 6282.70 Manual de usuario

Ikelite

Ikelite Olympus SP-500 Manual de operación y mantenimiento

Ikelite

Ikelite ULTRAcompact TG-3 Manual de usuario

Ikelite

Ikelite POWERSHOT G11 Manual de usuario

Ikelite

Ikelite 6148.70 Manual de usuario

Ikelite

Ikelite DLM Dome Port with Zoom Extension .375 Guía de inicio rápido

Ikelite

Ikelite 6171.07 Manual de usuario

Ikelite

Ikelite DSC-W90 Manual de usuario

Ikelite

Ikelite 4077.67 Hoja de especificaciones

Ikelite

Ikelite 5650.01JVC Picsio GC-FM1Video Camera Manual de usuario

Ikelite

Ikelite 6184.99 Manual de usuario

Ikelite

Ikelite Canon A630 Manual de usuario

Ikelite

Ikelite IXUS65 Manual de usuario

Ikelite

Ikelite 6165.01 Manual de usuario

Ikelite

Ikelite 6243.35 Manual del propietario

Ikelite

Ikelite Canon HG-10 Manual del propietario

Ikelite

Ikelite 6870.70 Canon EOS 70D Manual de usuario

Ikelite

Ikelite 6184.7 Manual de usuario

Ikelite

Ikelite DSC-W5 Manual de usuario

Ikelite

Ikelite DSLR-A100 Manual de usuario

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Olympus

Olympus PT-EP05L Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario
