Ikelite 6243.50 Manual del propietario

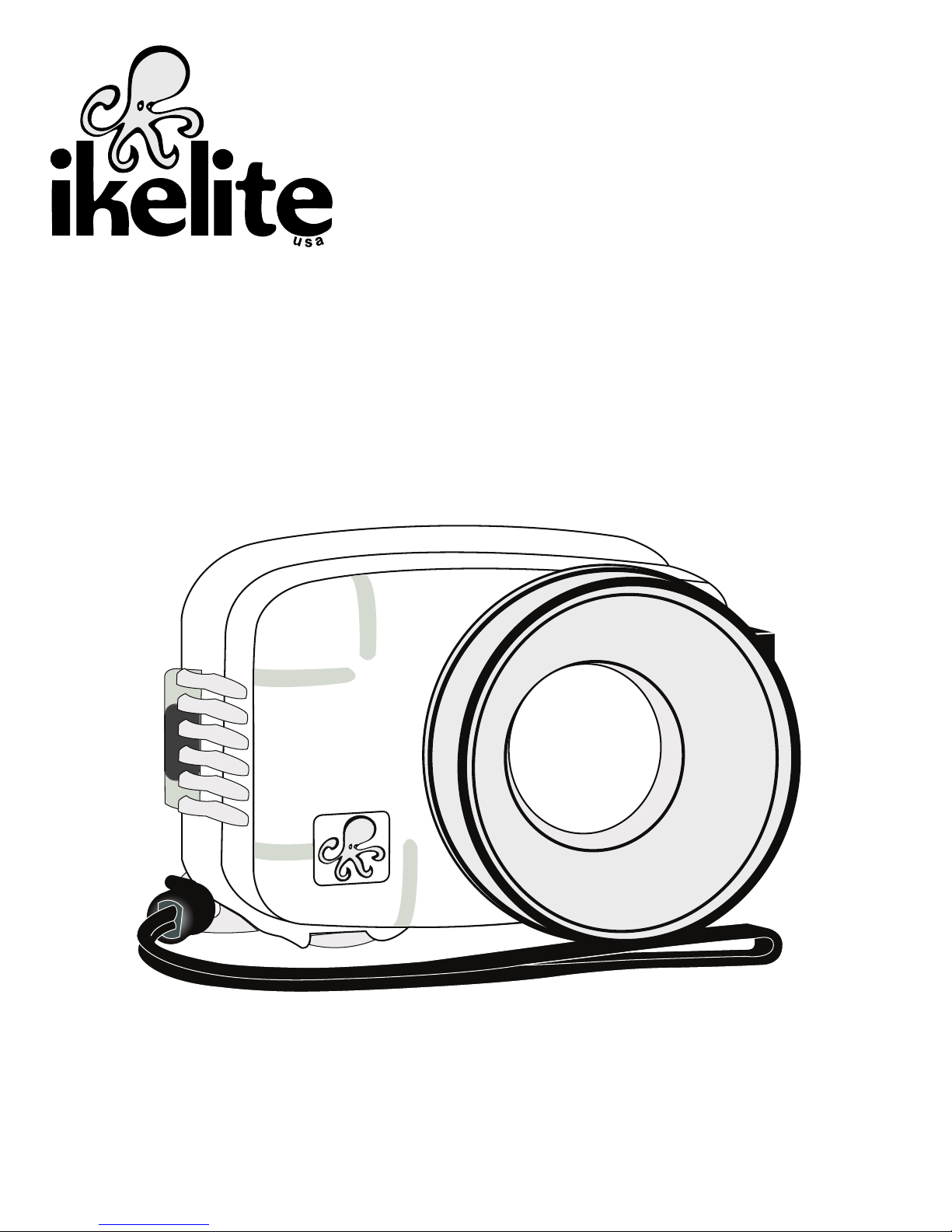

Digital Housing

Supplemental Instructions

6243.50 Canon Elph 150 I , IXU 155

Thank you for your purchase of Ikelite equipment. Please read the

“Instruction anual” and “Supplemental Instructions” completely before

attempting to operate or dive with this product.

Housing pecifications

Controls ............................All camera functions

Width ................................5.8 in (147 mm) including controls

Height ..............................4.5 in (114 mm) including controls

Depth ................................4.5 in (114 mm) including controls

Weight ..............................1.6 lb (725 g)

Buoyancy..........................Slightly positive in freshwater

Depth Rating ....................200 ft (60 m)

Built-in Flash ....................Yes

Strobe Connection............Slave or Fiber Optic

ain O-Ring ....................0132.45

Port O-Ring ......................0103

Port Outer Diameter ........3.9" (99 mm)

Use 46mm Lenses............No

Use 67mm Lenses............ acro lenses only with 9306.82 acro Adapter

Use Bayonet Lenses ........No

upplied Accessories

- 0200.08 Vinyl Port Cover

- 0321.10 Safety Lanyard

- Flash Diffuser

- Flash Deflector

- 0184.1 Silicone Lubricant

- Extra Control Tips and Sleeves

ULTRA

compact

Made in USA

Parts of the Housing

Back View

Power Switch

1. Playback Button

2. ovie Button

3. Auto/Single Erase/UP Button

4. ECO Button

5. FUNC./SET Button

Latch

6. Flash / Right Button

7. DI P. Display / Down Button

8. ?Help Button

9. MENU Button

Zoom Control

Front View Lens Port

Shutter-release Button

Tray ounts

Fiber Optic Ports

Initial Camera ettings (before placing camera in housing)

- Insert a fully charged battery. Due to the power required to operate the

camera and LCD screen, start each dive with a fully charged camera

battery.

- Set Flash to “On Flash always fires.”

- In FUNC./ ET:

Set Light etering to “ Center Weighted Avg.”

- Set White Balance to Auto “AWB.” For best results, set to Custom “ ”

and reset for each working depth.

- Set ISO to “200.”

- Set Shooting ode to “P” Program.

- Set Focus Range to “Normal” or “ acro” for close-up shots.

- Set Image Recording Size to “L” 20 .

- Set ovie Quality to “HD.”

- In MENU hooting ettings:

- Set AF Frame to “Center”

- Set Digital Zoom, AF-Point Zoom and Servo AF to “Off.”

- Set Continuous AF to “On.” A strobe focusing light is recommended to

assist AF underwater.

- Set Lamp Setting and Red-Eye Corr. to “Off.”

- Set Review Image after shooting to “8 Seconds.”

- Set Blink Detection and Grid Lines to “Off.” Set IS ode to “Continuous.”

- In MENU Camera ettings:

- Set Date/Time and Time Zone.

- In Power Saving, set Auto Power Down to “Off”; Display Off to “3 min.”

- Insert and Format an SCHD memory card.

Notes: Enable acro mode when shooting close-up subjects. If

overexposure occurs, back away from the subject and zoom in, and/or

use “-” exposure compensation.

Camera functions not mentioned should be set to user’s desired setting.

External Accessory Lenses

External Macro Adaptor 9306.82

Allows attachment of 67mm threaded macro lenses from Inon and

Epoque. NOT for use with 67mm threaded wide-angle lenses.

WD-4 Wide-Angle Conversion Dome 6430.4

The removeable WD-4 corrects light refraction underwater,

restoring the camera’s original angle of coverage. Approximately

3/4 of the camera's zoom range can be used with the dome in

place.

Note: Other wide angle conversion or accessory lenses cannot be used

with this housing.

AF35 trobe Package 4035

The AutoFlash AF35 kit is a great compliment, and an effortless,

affordable way to add a flash to your new Ikelite point and shoot camera

system. Everything you need to get started is in the box. Just attach it to

the bottom of your housing and start taking pictures!

The AF35 Strobe Package is available to support your housing along

with a full range of accessories. Please visit www.ikelite.com to see the

most current information about recommended accessories for your

housing.

ikelite

AUTOFLASH

Limited Warranty

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Customer upport

Please read the troubleshooting section of the “Instruction anual”

before contacting Ikelite.

6243.50_ Canon_Elph_150is_1-0514

Ikelite Underwater ystems

50 West 33rd treet

Indianapolis, IN 46208 U A

www.ikelite.com
