Ikan LBX8 Manual de usuario

www.ikancorp.com | 1.713.272.8822 | [email protected]

LBX8 / LWX8

Quick Start Guide

Lyra Low Proﬁle Soft Panel Light w/ DMX

What’s Included

1 x Lyra Light Fixture

1 x Power supply

1 x Yoke Mount

1 x Power Cord

www.ikancorp.com | 1.713.272.8822 | [email protected]

General Information

Thank you for buying the Ikan Lyra DMX LED Lights. This ﬁxture has been designed to perform

reliably for years when the guidelines in this booklet are followed. Please read and understand the

instructions in this manual carefully and thoroughly before attempting to operate this unit. These

instructions contain important information regarding safety during use and maintenance.

Every ﬁxture has been throughly tested. Carefully check the shipping carton for damage that may

have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for

damage and be sure all accessories necessary to operate the unit have arrived intact. In the event

damage has been found or parts are missing, please contact our customer support team for further

instructions. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

Safety Instructions

This ﬁxture is an extremely sophisticated piece of electronic equipment. To guarantee a smooth

operation, it is important to follow the guidelines in this manual. The manufacturer of this device will

not accept responsibility for damages resulting from the misuse of this ﬁxture due to the disregard of

the information printed in this manual.

This device falls under PROTECTION CLASS 1. It’s essential this device be grounded properly. Only

qualiﬁed personnel should perform all electrical connections.

For proper operation, follow the Installation guidelines described in this manual. Only qualiﬁed and

certiﬁed personnel should perform installation of this ﬁxture and only the original rigging parts (yoke)

included with this ﬁxture should be used for installation. Any modiﬁcations will void the original

manufacturer’s warranty and increase the risk of damage and/or personal injury.

Never look directly into the light source of this ﬁxture to prevent risk of injury to your retina, which

may induce blindness.

Always disconnect from main power source before performing any type of service and/or cleaning

procedure. Only handle the power supply by the plug end, never pull out the plug by tugging the wire

portion of the cord.

Do not operate this ﬁxture if the power cord has become frayed, crimped and/or damaged. If the

power cord is damaged, replace it immediately with a new one of similar power rating.

INDOOR USE ONLY!

DO NOT EXPOSE TO RAIN AND/OR MOISTURE!

DO NOT PLUG FIXTURE INTO A DIMMER PACK!

www.ikancorp.com | 1.713.272.8822 | [email protected]

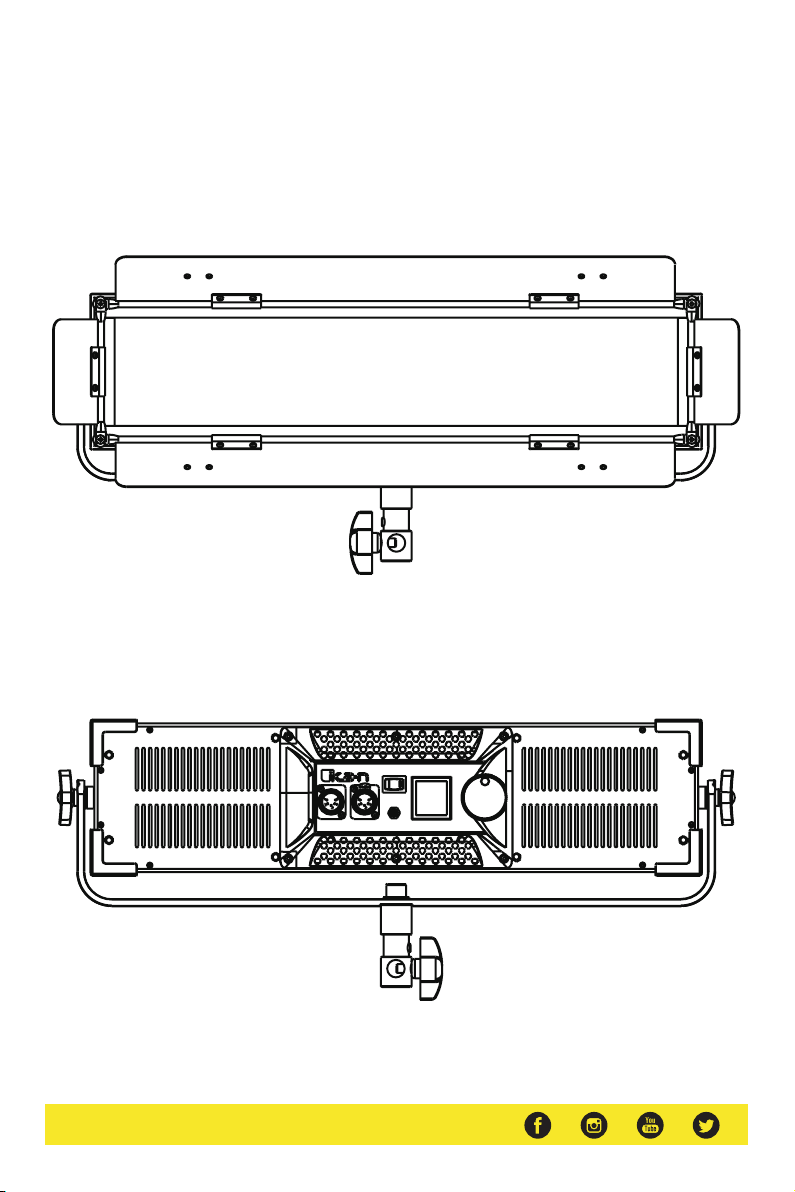

Fixture Overview

Front

Back

www.ikancorp.com | 1.713.272.8822 | [email protected]

DMX Channel

The DMX512 channel selection can be made from the back of the ﬁxture using the large yellow knob

to dial in the correct DMX number. When a DMX signal is detected on the ﬁxture, all other controls are

closed down and only DMX channel control can be selected on the rear of the ﬁxture.

Depending on the model, the DMX channel selected will require different channels for use on the

DMX board. LBX8 will require two channels, one for brightness and one for color temperature. LWX8

will require one channel for brightness.

Cleaning & Maintenance

CAUTION! Disconnect power before cleaning or maintenance.

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light output, and an extended

life. The frequency of cleaning depends on the environment in which the ﬁxture operates: damp,

smoky, or particularly dirty environments can cause greater accumulation of dirt on the ﬁxture.

Never use alcohol, solvents, or ammonia- based cleaners

MAINTENANCE

Regular inspections are recommended to insure proper function and extended life. There are no user

serviceable parts inside this ﬁxture. Please refer all other service issues to an authorized ikan service

technician. Should you need any spare parts, please order genuine parts from your local ikan dealer.

Light Channel Brightness Color

LBX8 (Bi-Color) 5 Ch 5 Ch 6

LWX8 (Daylight) 5 Ch 5 N/A

Fixture Menu

ON-BOARD SYSTEM MENU

The ﬁxture comes with an easy to navigate system menu. The next section will detail the functions of

each command in the system menu.

LCD MENU CONTROL KNOB

The control knob allows for local control as well as control from DMX board. The local control gives

the user adjustment from 10%-100% in brightness. The user can also adjust the DMX channels 1

thru 512 by pressing down on the large yellow dial.

www.ikancorp.com | 1.713.272.8822 | [email protected]

General Guidelines

NEVER OPEN THIS FIXTURE WHEN IN USE!

Please make sure there are NO FLAMMABLE MATERIALS close to the ﬁxture while operating, to

prevent any ﬁre hazard.

The ﬁxture must be installed in a location with adequate ventilation, at least 1.5 feet (.5m) from

adjacent surfaces. Be sure no air ventilation slots are blocked.

DO NOT attempt installation and/or operation without knowledge of how to do so.

DO NOT permit operation by persons who are not qualiﬁed to operate this type of ﬁxture. Most

damages are the result of operations by nonprofessionals. Consistent operational breaks may ensure

the ﬁxture will function properly for many years to come.

DO NOT shake ﬁxture and avoid using brute force when installing and/or operating the ﬁxture.

Always install the ﬁxture with an appropriate safety cable. When installing the ﬁxture in a suspended

environment, always use correct mounting hardware that can be inserted into the Baby 1/8 in. or

Junior 1-1/8 combo pin adapter.

Use the original packaging and materials to transport the ﬁxture in for service.

Cleaning & Maintenance continued...

Please refer to the following points during routine inspections:

- Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during

normal operation resulting in damage or injury as larger parts could fall.

- Check for any deformations on the housing, rigging hardware and rigging points (ceiling, suspension,

trussing). Deformations in the housing could allow for dust to enter into the ﬁxture. Damaged rigging

points or unsecured rigging could cause the ﬁxture to fall and seriously injure a person(s). Electric

power supplies and cables must not show any damage or fraying. Never remove the ground prong

from the power cable.

www.ikancorp.com | 1.713.272.8822 | [email protected]

LBX8 Speciﬁcations

LBX8 Photometrics

Beam Angle 110 Degree

Head Type Bi-Color 3200K-5600K

Lens ½ Stop Soft DIffusion

Cooling System Passive Cooling

Control/Dimming Knob Control or DMX

Build Material Heavy Duty Resin Plastic, Aluminum

Yoke Baby 5/8" -- Junior 1 1/8" Combo Pin

Fixture Size 24 x 6.8 x 1.75 in.

Fixture Weight 2.8lbs

Power Supply Input: 110-220VAC

Output: 24VDC 2.75A; 66W

Power Consumption 50W

DISTANCE FC LUX

5ft. / 1.5m 65 695.5

10ft. / 3m 19 204

15ft. / 4.5m 9 101.5

DISTANCE FC LUX

5ft. / 1.5m 64 685.8

10ft. / 3m 18 195.5

15ft. / 4.5m 9 97.6

DISTANCE FC LUX

5ft. / 1.5m 57 609

10ft. / 3m 17 178.3

15ft. / 4.5m 8 88.4

5600K CRI: 97 TLCI: 98

4400K CRI: 96 TLCI: 98

3200K CRI: 96 TLCI: 98

www.ikancorp.com | 1.713.272.8822 | [email protected]

Optional Accessories

Some other products that work well with the Lyra Lights available from Ikan include:

KCP-703

ROLLR-STND10

SW-04

IDX-096

Stage Clamp with 16mm Stud

2-Stage Roller Stand 10 ft 6 in

Safety Wire

96 Channel DMX Console

LWX8 Speciﬁcations

LWX8 Photometrics

Beam Angle 110 Degree

Head Type Daylight 5600K

Lens ½ Stop Soft DIffusion

Cooling System Passive Cooling

Control/Dimming Knob Control or DMX

Build Material Heavy Duty Resin Plastic, Aluminum

Yoke Baby 5/8" -- Junior 1 1/8" Combo Pin

Fixture Size 24 x 6.8 x 1.75 in.

Fixture Weight 2.8lbs

Power Supply Input: 110-220VAC

Output: 24VDC 2.75A; 66W

Power Consumption 50W

DISTANCE FC LUX

5ft. / 1.5m 67 721.1

10ft. / 3m 20 215.3

15ft. / 4.5m 10 107.6

5600K CRI: 97 TLCI: 98

www.ikancorp.com | 1.713.272.8822 | [email protected]

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing

errors.

• The components and maintenance service fee will be charged if the warranty period is

expired.

Free Service will not be Provided in the Following Situations:

(Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the

company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
