OPERATING MANUAL

Advancing the science of washing

m e

achin

CONTENTS

KNOW YOUR MACHINE 6

INSTALLATION 7

=Pre Installation

=Unpacking

=Setting Up

=Water Inlet

=Water Outlet

=Electrical Connection

USING YOUR MACHINE 9

=Control Panel

=Automatic Detergent Dispenser Tray

=ON - OFF Switch / Programme Selector Knob

=Programme Selection

=Programme Selection Chart

OPERATION 13

=Sorting of Garments

=Loading the Machine

=Detergent to be used and Quantity

=Treatment of stains

=Wash Load Guide

=International Washing Symbols

=Programme Run

=Switching Off the Machine

=Check Points

MAINTENANCE 19

=Fluff Filters

=Drum

=Sieves

=Frost Protection

=Draining During Emergencies

FAULT DIAGNOSIS 21

=Why does it happen?

SAFETY PRECAUTIONS 22

TECHNICAL DATA 23

CONTENTS

KNOW YOUR MACHINE

INSTALLATION

USING YOUR MACHINE

OPERATION

MAINTENANCE

FAULT DIAGNOSIS

SAFETY PRECAUTIONS

TECHNICAL DATA

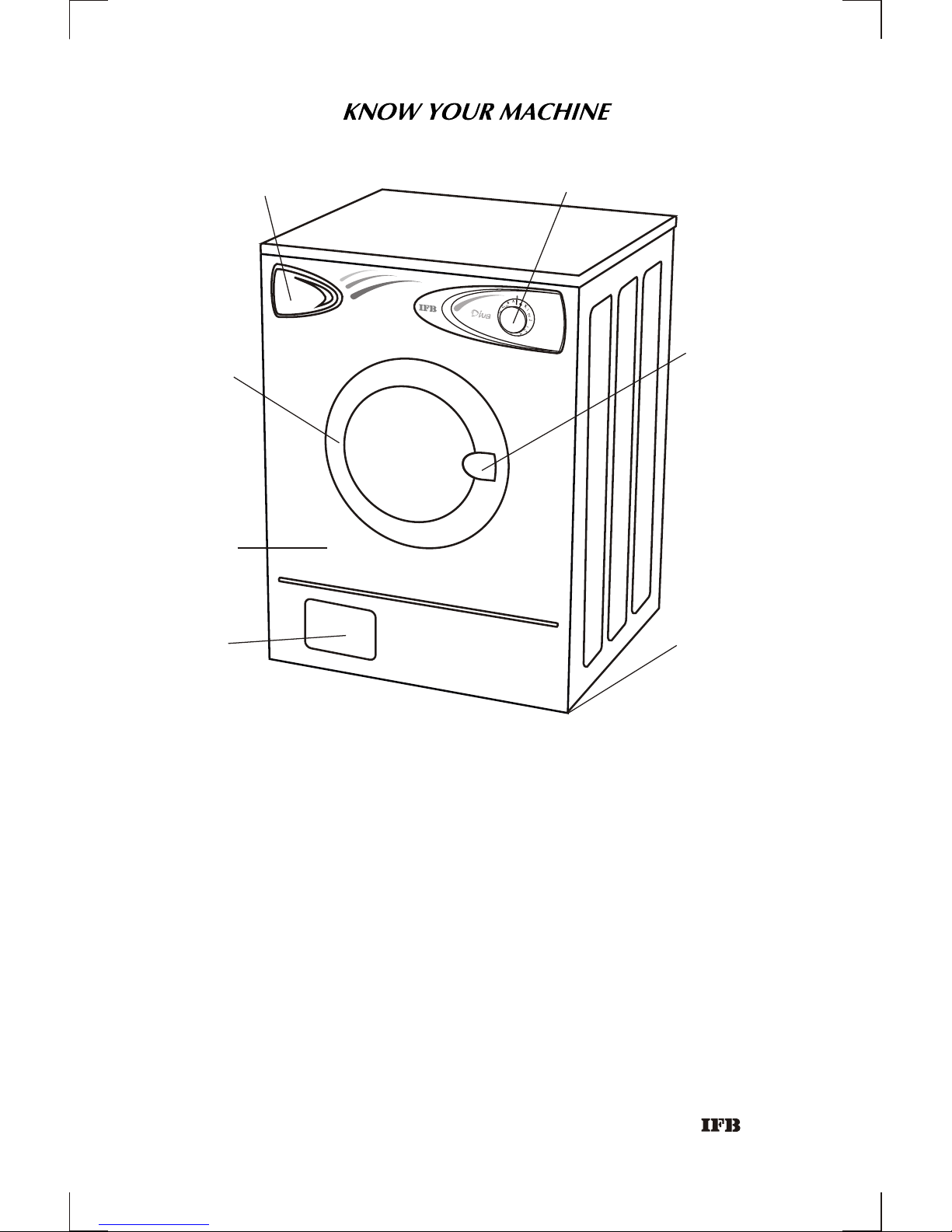

PORTHOLE

DOOR

DETERGENT DISPENSER TRAY

ON-OFF SWITCH/PROGRAMME

SELECTOR KNOB

INTERLOCKING

DOOR LOCK

HANDLE

ADJUSTABLE

FEET FOR

LEVELLING

SPECIAL

POWDER

COATED

GALVANISED

STEEL

CABINET

FLUFF

FILTER

DOOR

ADVANTAGES OF TUMBLE WASH

qMOST EFFECTIVE CLEANING AS THE CLOTHES PASS THROUGH

SOAPY WATER AND ALSO FALL ON SOAP SOLUTION IMPROVING

WETTING OF CLOTHES.

qRESEMBLES THE THUMPING AND RUBBING ACTION OF GENTLE

HAND WASH.

qUSES LESS WATER COMPARED TO TUB TYPE TOP LOADERS.

qLESS WATER MEANS LESS DETERGENT AND ELECTRICITY

CONSUMPTION.

qWASHING IS EFFECTIVE BY DETERGENCY, SOAKING, HEATING,

TUMBLING AND SQUEEZING.

qGIVES BETTER DRYING EFFECT BY SPINNING.

ADVANTAGES OF TUMBLE WASH

1. Remove Carton.

2. Remove wooden base. Keep machine on floor

or trolley.

3. Place the machine at the site at which it is to be

installed.

4. Remove transit bolts.

5. Insert plastic caps provided into holes vacated and press till they click into

place.

6. Remove packing from the bottom of the motor

7. Keep transit bolts carefully. They will be required in case you need to shift the

machine again.

8. For shifting and re-installation at a new site,please get in touch with our service

personnel.

9. Keep packaging material carefully. It comes handy while shifting residence.

10. PLEASE DO NOT OPERATE THE MACHINE TILL TRANSIT BOLTS HAVE BEEN

REMOVED.

INSTALLATIONINSTALLATION

WATER INLET

DRAIN

PIPE

WATER INLET

DRAIN

PIPE

AERW T

SPL

PT OS

CL O K

RDCR

EUE

MACHINE

WTR

INLET

21 / 3/4

1. Make sure there is a 16 amp. 3-pin electrical point preferably with a 16 amp.

fuse, within 1 meter of the machine. Make sure it has proper earthing.

2. Fixed plumbing is recommended for

the machine. The water inlet of the

machine has a collarwith3/4”parallel

internal threads. The water supply

point with an external 3/4” parallel

thread should be available within1

meter of the machine’s location.

4. Please inform our service centre for installation and demonstration of the

machine once the points mentioned above have been completed.

3. Two options on the water inlet and drain

pipe connection are shown. In case these

possibilities do not exist for the drain pipe,

please arrange an additional length of pipe.

PRE-INSTALLATIONPRE-INSTALLATION

UNPACKINGUNPACKING

16 AMPS

WATER INLET

DRAIN

PIPE

1. MAKE SURE THAT THE MACHINE RESTS ON ALL

FOUR FEET ON A LEVEL SURFACE.Adjustable

screws are provided at the bottom to allow

levelling.

2. Loosen securing nut. Adjust the screw to change

level. Tighten securing nut to ensure that screw is

locked into place.

3. MACHINE SHOULD BE LEVELLED AGAIN IN CASE

IT IS MOVED TO A NEW SITE.

1. A drain pump is provided in the machine to pump out

used water.

2. The end of the outlet should be placed near a drain. If

necessary, it can be placed over the edge of a sink

at a maximum height of 1 mt. from the floor level.

3. Allow free flow of water from the outlet pipe.

1. Check that the electrical line can take the required

load.

2. Connect to a 220V, 50 Hz single phase AC supply.

3. Machine must be earthed properly before

operation. This can be done by using a 3 pin plug

and properly earthed socket of 16 ampere rating.

4. Ensure that there is a firm connection between the 3

pin plug and socket, else it may result in sparking and

subsequent failure of 3 pin plug.

5. Use of extension cord not recommended.

SETTING UPSETTING UP

WATER INLET

DRAIN

PIPE

1. Connect inlet hose to water tap/line.

2. Do not connect machine to a hot water supply.

WATER INLETWATER INLET

WATER OUTLETWATER OUTLET

ELECTRICAL CONNECTIONELECTRICAL CONNECTION

ON-OFF SWITCH / PROGRAMME SELECTOR KNOB

DETERGENT DISPENSER TRAY

AUTOMATIC DETERGENT DISPENSER TRAY

Designed for automatic dispensing of detergent. The Detergent

Dispenser Tray should be filled with recommended detergent quantity

before the start of a programme.

The detergent tray must be pulled out, filled as required and shut before

the machine is switched on.

ON - OFF SWITCH / PROGRAMME SELECTOR KNOB

To switch ON the machine and to select the right programme as per

the fabric being washed and extent of soilage.

qA choice of 10 programmes is available to wash different kinds / loads

of clothes.

qProgramme selection should be done before the machine is switched

ON.

qTHE STARTING POINT OF PROGRAMME NEEDS TO BE SELECTED

BY SHIFTING THE PROGRAMME SELECTOR KNOB ADJACENT

TO PRINTED LETTERS. OPERATING THE MACHINE BEYOND

PRINTING ZONE MAY RESULT IN HIGHER CONSUMPTION OF

WATER & ELECTRICITY AND WILL NOT IMPROVE WASH

QUALITY.

qMachine should be switched on by gently pulling out the programme

selector knob.

qAfter initiating the programme, machine runs through automatically.

If for any reason you wish to change the programme switch OFF the

machine by pushing in the programme selector knob, then set the

desired programme and re-start.

qKNOB SHOULD BE TURNED ONLY IN CLOCKWISE DIRECTION.

AUTOMATIC DETERGENT DISPENSER TRAY

ON - OFF SWITCH / PROGRAMME SELECTOR KNOB

THE STARTING POINT OF PROGRAMME NEEDS TO BE SELECTED

BY SHIFTING THE PROGRAMME SELECTOR KNOB ADJACENT

TO PRINTED LETTERS. OPERATING THE MACHINE BEYOND

PRINTING ZONE MAY RESULT IN HIGHER CONSUMPTION OF

WATER & ELECTRICITY AND WILL NOT IMPROVE WASH

QUALITY.

PROGRAMME SELECTION

Symbols of the Programme Selector

Wash Rinse Spin

1. Normal wash programme A to E

To be used for whites and coloureds of cotton or predominantly

of cotton in case of mixed load.

STAGE I : Main Wash - A/B/C

qClothes are soaked, tumbled in hot water with detergent to remove

dirt. Before draining dirty water,it is cooled down by adding cold

water. Clothes are tumbled to expose more surface, squeezed by

spinning to remove dirt inside the fabric.

qIF CLOTHES ARE NOT VERY DIRTY, THE WASH CYCLE CAN BE

STARTED BY DIRECTLY SETTING THE PROGRAMME SELECTOR

KNOB AT POINT B, OR C TO REDUCE WASHING TIME.

STAGE II : Rinse - D

qAfter washing, the rinsing is done automatically four times to

remove traces of detergent and dirt from clothes.

qFor most efficient rinsing, two intermittent shorts spin are provided.

STAGE III : Spin Drying : E

qSpin drying takes place at 600 rpm.

PROGRAMME SELECTION

Symbols of the Programme Selector

1. Normal wash programme A to E

J E

2. Easy Care Programme : G to K

To be used for easycare fabrics like polyester blends or predominantly

having such fabric in mixed load.

STAGE I : Main Wash : G/H

qClothes are soaked, tumbled in hot water with detergent for lesser

duration than main wash of Normal wash programme before

draining of dirty water, it is cooled down by adding cold water.

Clothes are tumbled to expose more surface, squeezed by spinning to

remove dirt from the fabric.

STAGE II : Rinse : J

qAfter washing the rinsing is done automatically three times to

remove traces of detergent and dirt from clothes.

STAGE III : Spin Drying : K

qSpin drying takes place at 600 r.p.m.

Exclusive spin drying programmes : E & K

qCan be used for spin drying hand washed/wet clothes.

qTurn programme selector knob directly to the spin drying points after

loading the clothes.

qSwitch ON the machine.

Note:

IN CASE ELECTRICITY/WATER SUPPLY GOES OFF,THE MACHINE

STOPS AND STARTS AGAIN FROM THE SAME POINT,

AUTOMATICALLY, ON RESUMPTION OF ELECTRICITY/WATER

SUPPLY.

2. Easy Care Programme : G to K
