IEI Technology IOVU-752S Manual de usuario

IOVU-752S Panel PC

Page i

IEI Technology Corp.

User Manual

MODEL:

IOVU-752S

RISC-Based Panel PC, 7" Touch Screen, 667 MHz Samsung

ARM11 S3C6410, PoE, USB, SD, RS-232/422/485,

IP 64 Compliant Front Panel, RoHS Compliant

Rev. 1.00 – 11 January, 2012

IOVU-752S Panel PC

Page ii

Revision

Date Version

Changes

11 January, 2012 1.00 Initial release

IOVU-752S Panel PC

Page iii

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the part

of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

TRADEMARKS

All registered trademarks and product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of their respective

owners.



IOVU-752S Panel PC
Page iv
Table of Contents
INTRODUCTION.......................................................................................................... 1
1 OVERVIEW.................................................................................................................. 2
2 BENEFITS ................................................................................................................... 2
3 FEATURES................................................................................................................... 3
4 FRONT PANEL............................................................................................................. 3
5 CONNECTOR PANEL.................................................................................................... 4
6 INTERNAL OVERVIEW................................................................................................. 4
7 DIMENSIONS............................................................................................................... 5
8 TECHNICAL SPECIFICATIONS ...................................................................................... 6
9 CERTIFICATIONS ......................................................................................................... 7
UNPACKING................................................................................................................. 8
1ANTI-STATIC PRECAUTIONS........................................................................................ 9
2 UNPACKING PRECAUTIONS......................................................................................... 9
3 UNPACKING CHECKLIST........................................................................................... 10
4 OPTIONAL ITEMS.......................................................................................................11
INSTALLATION ......................................................................................................... 12
1 INSTALLATION PRECAUTIONS................................................................................... 13
2 SD CARD INSTALLATION.......................................................................................... 14
3 EXTERNAL PERIPHERAL INTERFACE CONNECTORS................................................... 15
3.1 DC Power Interfaces........................................................................................ 15
3.1.1 9 V~30 V DC Power Jack......................................................................... 15
3.1.2 9 V~30 V DC Terminal Block .................................................................. 16
3.2 Ethernet Connector.......................................................................................... 16
3.3 Serial Interfaces............................................................................................... 18
3.3.1 RS-232 Serial Interface Pinouts................................................................ 18
3.3.2 RS-232/422/485 Serial Interface Pinouts.................................................. 19
3.3.3 Connecting the Serial Port........................................................................ 20
3.4 USB Connectors............................................................................................... 21
4 MOUNTING THE SYSTEM .......................................................................................... 22



IOVU-752S Panel PC
Page v
3.4.1 Wall Mounting.................................................................................................. 22
3.4.2 Panel Mounting................................................................................................ 25
3.4.3 Arm Mounting .................................................................................................. 27
3.4.4 Stand Mounting................................................................................................ 28
3.5 SOFTWARE................................................................................................................ 29
A CERTIFICATIONS .................................................................................................... 30
A.1 ROHS COMPLIANT.................................................................................................. 31
A.2 IP64 COMPLIANT FRONT PANEL ............................................................................. 31
B SAFETY PRECAUTIONS......................................................................................... 32
B.1 SAFETY PRECAUTIONS............................................................................................. 33
B.1.1 General Safety Precautions............................................................................. 33
B.1.2 Anti-static Precautions .................................................................................... 34
B.1.3 Product Disposal............................................................................................. 35
B.2 MAINTENANCE AND CLEANING PRECAUTIONS........................................................ 35
B.2.1 Maintenance and Cleaning.............................................................................. 35
B.2.2 Cleaning Tools................................................................................................. 36
B.3 FCC PRECAUTIONS ................................................................................................. 37
C HAZARDOUS MATERIALS DISCLOSURE......................................................... 38
C.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 39

IOVU-752S Panel PC

Page vi

List of Figures

Figure 1-1: IOVU-752S....................................................................................................................2

Figure 1-2: IOVU-752S Front Panel...............................................................................................3

Figure 1-3: IOVU-752S Peripheral Connectors............................................................................4

Figure 1-4: IOVU-752S Physical Dimensions (millimeters)........................................................5

Figure 3-1: Rear Panel Retention Screws ..................................................................................14

Figure 3-2: SD Card Installation..................................................................................................14

Figure 3-3: IOVU-752S Peripheral Connectors..........................................................................15

Figure 3-4: Power Terminal Block...............................................................................................16

Figure 3-5: LAN Connection........................................................................................................17

Figure 3-6: Ethernet Connector...................................................................................................17

Figure 3–7: Serial Port Pinouts...................................................................................................19

Figure 3-8: Serial Port Mode Setting...........................................................................................20

Figure 3-9: Serial Device Connector...........................................................................................21

Figure 3-10: USB Connector........................................................................................................21

Figure 3-11: Wall-mounting Bracket...........................................................................................23

Figure 3-12: Chassis Support Screws........................................................................................24

Figure 3-13: Secure the IOVU-752S ............................................................................................24

Figure 3-14: IOVU-752S Panel Opening (mm)............................................................................25

Figure 3-15: Panel Mounting Clamps .........................................................................................26

Figure 3-16: Tighten the Panel Mounting Clamp Screws.........................................................26

Figure 3-17: Arm Mounting Retention Screw Holes..................................................................27

Figure 3-18: Arm Mounting Retention Screw Holes..................................................................28

Figure 3-19: Stand Mounting.......................................................................................................29

IOVU-752S Panel PC

Page vii

List of Tables

Table 1-1: Technical Specifications..............................................................................................7

Table 2-1: Package List Contents...............................................................................................10

Table 2-2: Optional Items.............................................................................................................11

Table 3-1: External Interface Connectors...................................................................................15

Table 3-2: 9 V~30 V Power Connector Pinouts..........................................................................16

Table 3-3: Ethernet Connector Pinouts......................................................................................17

Table 3-4: Ethernet Connector LEDs..........................................................................................18

Table 3-5: RS-232 Pinouts ...........................................................................................................18

Table 3-6: Serial Port Pinouts......................................................................................................19

Table 3-7: USB Connector Pinouts.............................................................................................22

IOVU-752S Panel PC

Page 1

Chapter

1 Introduction

IOVU-752S Panel PC

Page 2

1.1 Overview

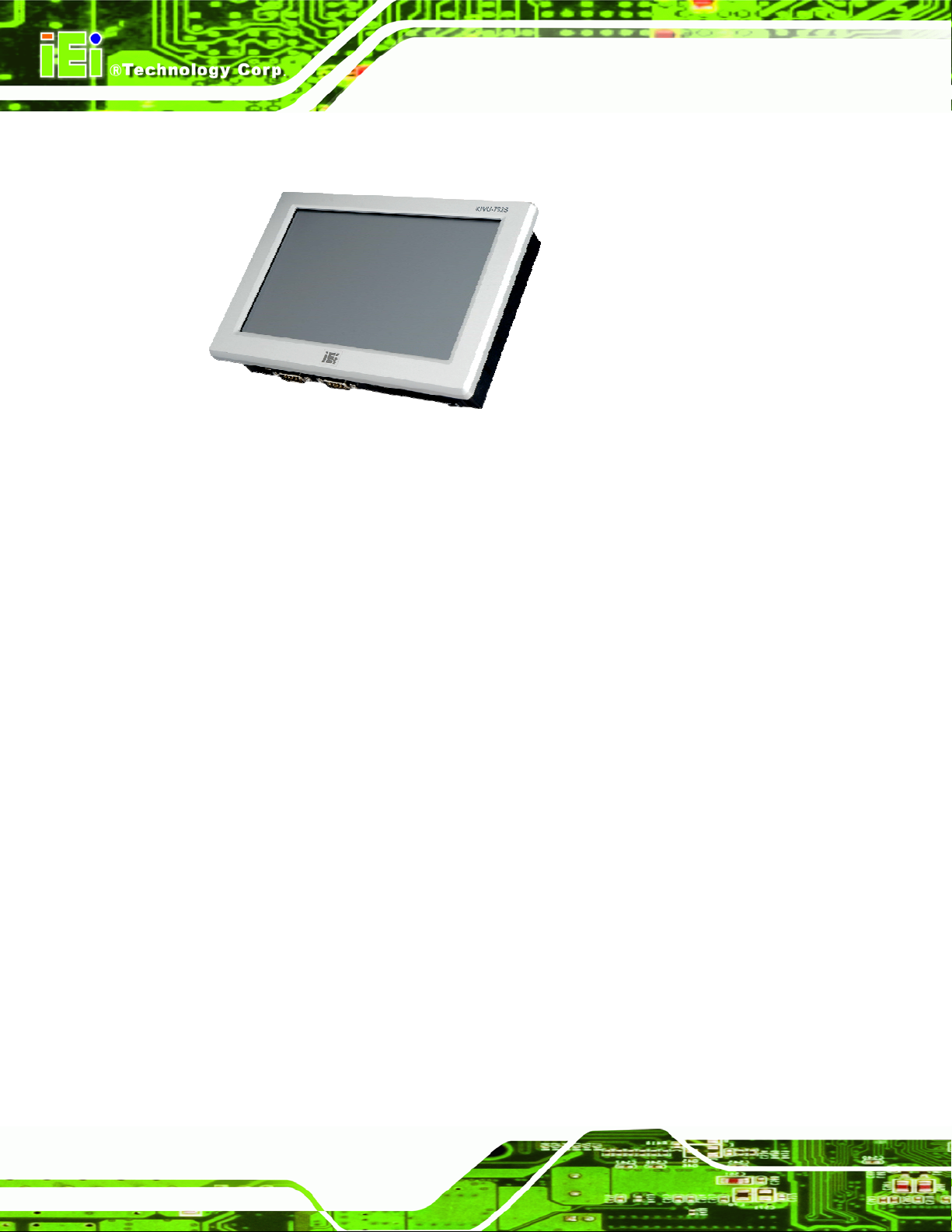

Figure 1-1: IOVU-752S

The IOVU-752S is an RISC-based panel PC that features a 667 MHz Samsung ARM11

S3C6410 processor and has 256 MB DDR2 memory. The IOVU-752S provides rich input

capabilities utilizing the touch screen. Output capabilities are provided through

RS-232/422/485 ports, network port and USB ports.

The IOVU-752S is an extremely low power Panel PC. The system is fanless, which allows

quiet and reliable operation. The IOVU-752S is preinstalled with Windows® CE 6.0 OS to

provide rich application development support and connectivity to network and I/O devices.

1.2 Benefits

Some of the IOVU-752S benefits include:

Rugged, compact, operates over wide temperature variations, and low power

consumption embedded hardware design without failure-prone hard disk and

fan.

Easy installation with a wide range of input voltages supported

Standard peripheral connectors including Ethernet port, serial ports, USB

ports, Secure Digital memory, and touch input.

Open architecture to run third party application software.

PoE (Power over Ethernet) capability reduces communications and power

supply to a single CAT5e cable.

IOVU-752S Panel PC

Page 3

1.3 Features

The IOVU-752S features are listed below:

Embedded 667 MHz Samsung ARM11 S3C6410 processor

128 MB Nand Flash

On-board 256 MB DDR2 memory

Supports MPEG 1, MPEG 2, MPEG 4 and WMV 9 video file formats

7" color active matrix TFT display

4-wire resistive touch panel

One high performance 10/100 Mb/s Ethernet connector with PoE (Power over

Ethernet) capability

Preinstalled with Windows® CE 6.0 OS

Two USB 2.0 ports

One RS-232 serial communication connection

One RS-232/422/485 serial communication connection

One SD card socket

Two 1.5 Watt speakers

9V~30V DC input

IP 64 compliant front panel

RoHS compliant

1.4 Front Panel

The IOVU-752S front panel (Figure 1-2) comprises a 7" TFT WVGA color touch screen

LCD.

Figure 1-2: IOVU-752S Front Panel
