IEI Technology IMBA-H610 Manual de usuario

ATXMotherboardsupportsLGA1155 Intel Core™i7/i5/i3,

Pentium ,Celeron CPUperIntel H61, DDR3,

VGA/DVI-D, DualRealtekPCIeGbE,USB 2.0, SATA3Gb/s,

HDAudioandRoHS

IMBA-H610

Quick Installation Guide

Version1.01

Aug. 13, 2011

PackageList

IMBA-H610 package includesthe followingitems:

l1 xIMBA-H610 SingleBoard Computer

l4 xSATACable

l1 xI/OShielding

l1 xMiniJumperPack

l1 xUtilityCD (within manual)

l1 xQIG(QuickInstallationGuide)

l1 xOne KeyRecoveryCD

2011 Copyright byIEI Technologycorp.

Allrightsreserved.

All manuals and user guides at all-guides.com

all-guides.com

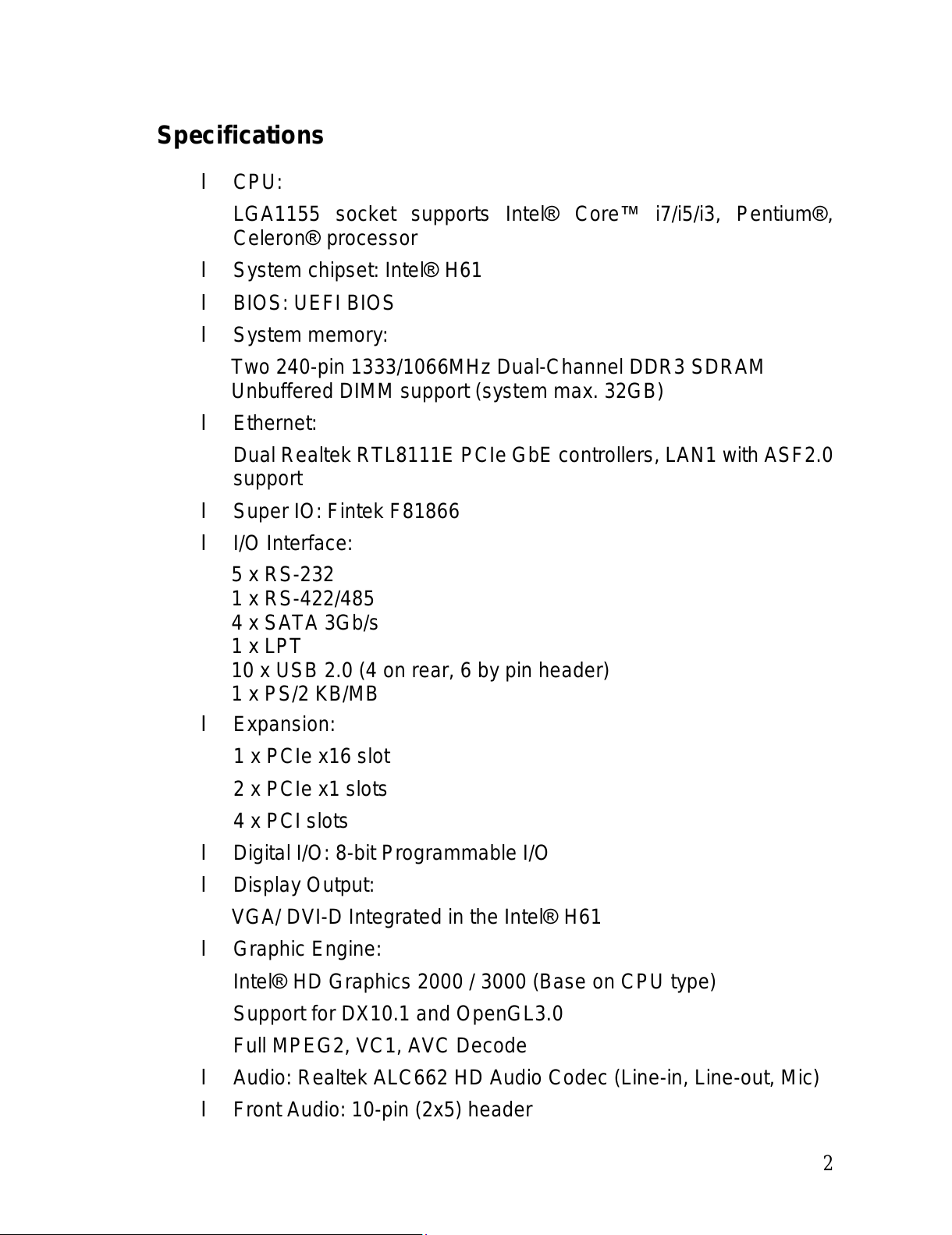

Specifications

lCPU:

LGA1155socket supportsIntel®Core™i7/i5/i3,Pentium®,

Celeron®processor

lSystemchipset: Intel®H61

lBIOS:UEFIBIOS

lSystemmemory:

Two 240-pin 1333/1066MHzDual-ChannelDDR3SDRAM

Unbuffered DIMM support (systemmax. 32GB)

lEthernet:

DualRealtekRTL8111EPCIe GbEcontrollers,LAN1 withASF2.0

support

lSuperIO: FintekF81866

lI/OInterface:

5 xRS-232

1 xRS-422/485

4 xSATA3Gb/s

1 xLPT

10 xUSB2.0 (4on rear, 6 bypinheader)

1 xPS/2 KB/MB

lExpansion:

1 xPCIe x16 slot

2 xPCIe x1 slots

4 xPCI slots

lDigitalI/O:8-bitProgrammable I/O

lDisplayOutput:

VGA/ DVI-D Integrated in the Intel®H61

lGraphicEngine:

Intel®HDGraphics 2000 / 3000(Baseon CPUtype)

Support forDX10.1and OpenGL3.0

Full MPEG2,VC1, AVCDecode

lAudio: RealtekALC662HDAudioCodec(Line-in, Line-out, Mic)

lFront Audio: 10-pin (2x5)header

All manuals and user guides at all-guides.com

lTPM: 20-pin (2x10)header

lSMBus: 4-pin (1x4)wafer

lI2C: 4-pin (1x4)wafer

lWatchdog Timer:

Software programmable supports1~255sec. Systemreset

lPowersupply:AT/ATXsupported

lPowerConsumption:

3.3V@1.65A, 5V@6.31A, 12V@0.18A,Vcore@7.88A,

5VSb@0.15 (Intel®Core™i5-2400 3.10GHzCPUwith 1333MHz

DDR3 4GBx4 memory)

lTemperature: Operation: -10°C~60°C

lHumidity: Operation: 5%~95%non-condensing

lDimensions: 244mmx305mm

Ordering Information

lIMBA-H610-R10

ATXMotherboardsupportsLGA1155 Intel®Core™i7/i5/i3,Pentium®,

Celeron®CPUperIntel®H61, DDR3, VGA/DVI-D,DualRealtek

PCIe GbE,USB2.0, SATA3Gb/s, HD Audioand RoHS

l19800-003100-100-RS DualportsUSB cablewith bracket

l32200-074800-RS RS-422/485 cable, 200mm

l19800-000051-RS RS-232 cable, 230mm

l32102-000100-200-RS SATApowerCable

l19800-000049-RS LPTCable

lCF-1156A-RS High performance LGA1155/LGA1156 Coolerkit, 1U

Chassiscompatible, 73W

lCF-1156B-RS HighperformanceLGA1155/LGA1156 Coolerkit, 95W

lCF-1156C-RS High performance LGA1155/LGA1156 Coolerkit, 1U

Chassiscompatible, 45W

lCF-1156D-RS High performance LGA1155/LGA1156 Coolerkit, 1U

Chassiscompatible, 65W

lTPM-IN01-R11 20-pinINFINEON TPM module, software

management Tool, Firmware V3.17

All manuals and user guides at all-guides.com

Jumperssetting and Connectors

LABEL

FUNCTION

J_CMOS1 CMOS State Setting

J_AUTO1 AT modeor ATXmodeSelection

SATA1,2,5,6Serial ATA3Gb/sConnector

F_PANEL1 FrontPanel connector

JSPI1 SPI FlashProgramConnector

TPM1 TrustedPlatformModule connector

COM3,5,6 Internal Serial PortDB-9Connectors

LPT1 Parallel PortConnector

DIO1 Digital I/O Connector

SYS_FAN1~2

SystemFANConnector

FP_AUDIO1FrontPanel AudioConnector

ATX1 24PinATXPower SupplyConnector

CPU12V1 +12VPower Source Connector

CPU_FAN1 CPUFAN

I2C_1 I2Cconnector

SMBUS_1 SMBUS connector

USB1~4 Internal USB2.0Connectors

KB_MS2 PS/2MOUSE &KEYBOARDConnector

COM1 External SerialPortDB-9Connectors

LAN1_USB01_1

RJ45 LANandUSB2.0Connector

LAN2_USB23_1

RJ45 LANandUSB2.0Connector

AUDIO_CV1

AudioConnector

COM4 Internal Serial PortRS422/RS485 Connectors

All manuals and user guides at all-guides.com

COMS1

:ClearCMOSSetup

PINNO.

DESCRIPTION

Short1

KeepCMOS Setu

(default)

Short2

Clear CMOSSetup

_AUTO

ATXmode orATmode Selection

PINNO.

DESCRIPTION

OPEN

ATMode

SHORT

ATXMode

COM3,5,6

Internal

Serial

PortConnector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

NDCD1

NCTS1

NDSR1

NDTR1

NSIN1

XRI1

NRTS1

GND

NSOUT1

GND

SYS_FAN1 SYS_FAN2:

SystemFanConnector

PINNO.

DESCRIPTION

FANIO

+12V(PWM)

GND

CPU_FAN

CPUFanConnector

DESCRIPTION

GND

+12V

FANIO1

PWM

SATA1,2,5,6

:Serial ATA3Gb/s

Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 GND 5 RXN_A

2 TXP_A 6 RXP_A

3 TXN_A 7 GND

4 GND 8 GND

9 TXP_B 10 TXN_B

11 GND 12 RXN_B

13 RXP_B 14 GND

All manuals and user guides at all-guides.com

TPM1 :TPMConnector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

Clock

GND

Frame#

NC(KEY)

Reset#

+5V

LAD3

LAD2

+3.3V

LAD1

LAD0

GND

SMBCLK

SMBDATA

+3.3VStandby

SerialIRQ

GND

ClockRun#

PowerDown#

DREQ#

AUDIO_CV1

:Audioinput and output connector

PIN NO.

DESCRIPTION

Line-inCD/DVDorotheraudio source input port

Line_otConnect thisport to headphoneorspeaker

Microphone

Connect thisport to microphone

JSPI1: FlashSPIROMConnector

USB01, USB23, USB45

PINNO.

DESCRIPTION

PINNO.

DESCRIPTION

1 +3.3V 2 GND

3 CS0 4 CLK

5 SO0 6 SI

7 NC 8 NC

F_PANEL1

PWR

& RSTButtons

and Indicators

panel

DESCRIPTION

PWR_LED

ACPILED

BEEP_PWR

BUZZER

GND

PWR_BTN

PWRBTN_SW#_

C 8

PC_BEEP

GND

NC RESET

HDD_LED

IDELED

EXTRST-

IDELED

GND

All manuals and user guides at all-guides.com

all-guides.com

DIO1 :Digital Input / Output

Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 GND 2 VCC

3 Output 3 4 Output 2

5 Output 1 6 Output 0

7 Input3 8 Input2

9 Input1 10 Input0

LPT

:Parallel PortConnector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

STROBE#

AUTOFORM

FEED#

DATA0

ERROR#

DATA1

INITIALIZE#

DATA2

PRINTER

SELECTLN#

DATA3

GND

DATA4

GND

DATA5

GND

DATA6

GND

DATA7

GND

ACKNOWLEDG

GND

BUSY

GND

PAPER EMPTY

GND

PRINTER

SELECT

N/C

P_AUDIO1

:AudioSource Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 LMIC2_L 2 AUD GND

3 LMIC2_R 4 PRESENCE#

5 LLINE2-R 6 MIC2-JD

7 F_SENSE 8 NC

9 LLINE2-L 10 LINE2-JD

All manuals and user guides at all-guides.com

ATX1: 20Pin ATXPower SupplyConnector

PINNO.

DESCRIPTION

PINNO.

DESCR

IPTION

+3.3Vdc

-12Vdc

GND

+5Vdc

PS-ON

GND

+5Vdc

GND

PWR-OK

-5Vdc

+5VSby

+5Vdc

+12Vdc

+5Vdc

SMBus

DESCRIPTION

+5V_DUAL

SMBCLK

SMBDATA

GND

SB1

Internal USBConnectors

DESCRIPTION

1 VCC 2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-

7 GND 8 VCC

COM4

DESCRIPTION

RXD485#

RXD485

TXD485+

TXD485

ATX12V1

+12VMAINPOWERConnector

DESCRIPTION

+5V

GND

+12V

I2C_1

DESCRIPTION

+5V_DUAL

PCH_GP38_PU

PCH_GP39_PU

GND

All manuals and user guides at all-guides.com

KB_MS2

:Mouse

Keyboard

Connector

DESCRIPTION

Keyboard Data

Mouse

Data

GND

VCC

Keyboard Clock

Mouse

Clock

COM1

ExternalSerial

PortConnector

DESCRIPTION

DATACARRIERDETECT

(DCD

)

RECEIVEDATA

(RXD

)

TRANSMITDATA

(TXD

)

DATATERMINAL READY

(DTR

)

GND

(GND

)

DATASETREADY

(DSR

)

REQUESTTOSEND (RTS

)

CLEAR TOSEND (CTS

)

RINGINDICATOR

(RI

)

LAN1 LAN2: LAN port connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 MDIA3- 2 MDIA3+

3 MDIA2- 4 MDIA1-

5 MDIA1+ 6 MDIA2+

7 MDIA0- 8 MDIA0+

USB 2.0 :USB 2.0 portconnector

PIN NO.

DESCRIPTION

1 VCC

2 DATA-

3 DATA+

4 GND

All manuals and user guides at all-guides.com

Board Layout:Jumperand Connector Locations

Unit:mm
