IDTRONIC ID IDENT 4000 Manual de usuario

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 1 of 18

ID IDENT 4000

RFID and Barcode Reader



Subject to change without prior notice Version 01
Copyright © 2022 iDTRONIC GmbH 2022-04-11 / MB
ID IDENT 4000 User Manual EN v01.docx Page 2 of 18

Contents
Disclaimer................................................................................................................................................................ 3
Preface ................................................................................................................................................................ 4
1. Product introduction.................................................................................................................................... 4
2. Product feature ............................................................................................................................................ 4
Product appearance............................................................................................................................................ 5
1.1. OVERALL INTRODUCTION ......................................................................................................................... 5
1.2. PRODUCT SIZE CHART ............................................................................................................................... 6
Product parameters ............................................................................................................................................ 8
1. General parameter....................................................................................................................................... 8
2. Recognition parameter ................................................................................................................................ 8
3. Electric parameter........................................................................................................................................ 9
4. Work environment....................................................................................................................................... 9
Interface definition ........................................................................................................................................... 10
1. RS485 & wiegand interface definition ....................................................................................................... 10
2. Ethernet interface definition...................................................................................................................... 11
Device configuration ......................................................................................................................................... 12
Installation method........................................................................................................................................... 15
Access scenario application .............................................................................................................................. 16
1. Using scenario diagram.............................................................................................................................. 16
2. Access control system wiring diagram........................................................................................................... 17
Attention ........................................................................................................................................................... 18
Contact info....................................................................................................................................................... 18



Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 3 of 18

Disclaimer

Before using the product, please read all the contents in this Product Manual carefully to ensure the

safe and effective use of the product. Do not disassemble the product or tear up the seal on the

device by yourself, or iDTRONIC will not be responsible for the warranty or replacement of the

product.

The pictures in this manual are for reference only. If any individual pictures do not match the actual

product, the actual product shall prevail. For the upgrade and update of this product, iDTRONIC

reserves the right to modify the document at any time without notice.

Use of this product is at the user's own risk. To the maximum extent permitted by applicable law,

damages and risks arising from the use or inability to use this product, including but not limited to

direct or indirect personal damage, loss of commercial profits, iDTRONIC. will not bear any

responsibility for trade interruption, loss of business information or any other economic loss.

All rights of interpretation and modification of this manual belong to iDTRONIC

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 4 of 18

1. Preface

Thank you for buying the ID IDENT 4000 QR/barcode reader provided by iDTRONIC.

Reading this document carefully can help you understand the functions and features of this device,

and quickly master the use and installation of the device.

1.1. Product introduction

The ID IDENT 4000 QR/barcode reader was a specially designed product for access control, which has

various output interface, support wiegand and RS485, can connect to the traditional access

controller. It also support Ethernet output interface, with built-in relay module.

1.2. Product feature

A. Scan QR/barcode & reading card all in one.

B. Fast recognition, high accuracy, can reach 0.1s the fastest.

C. Easy to operate, more easy to debug with the humanize tool.

D. Built-in relay module, can connect to the access system directly.

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 5 of 18

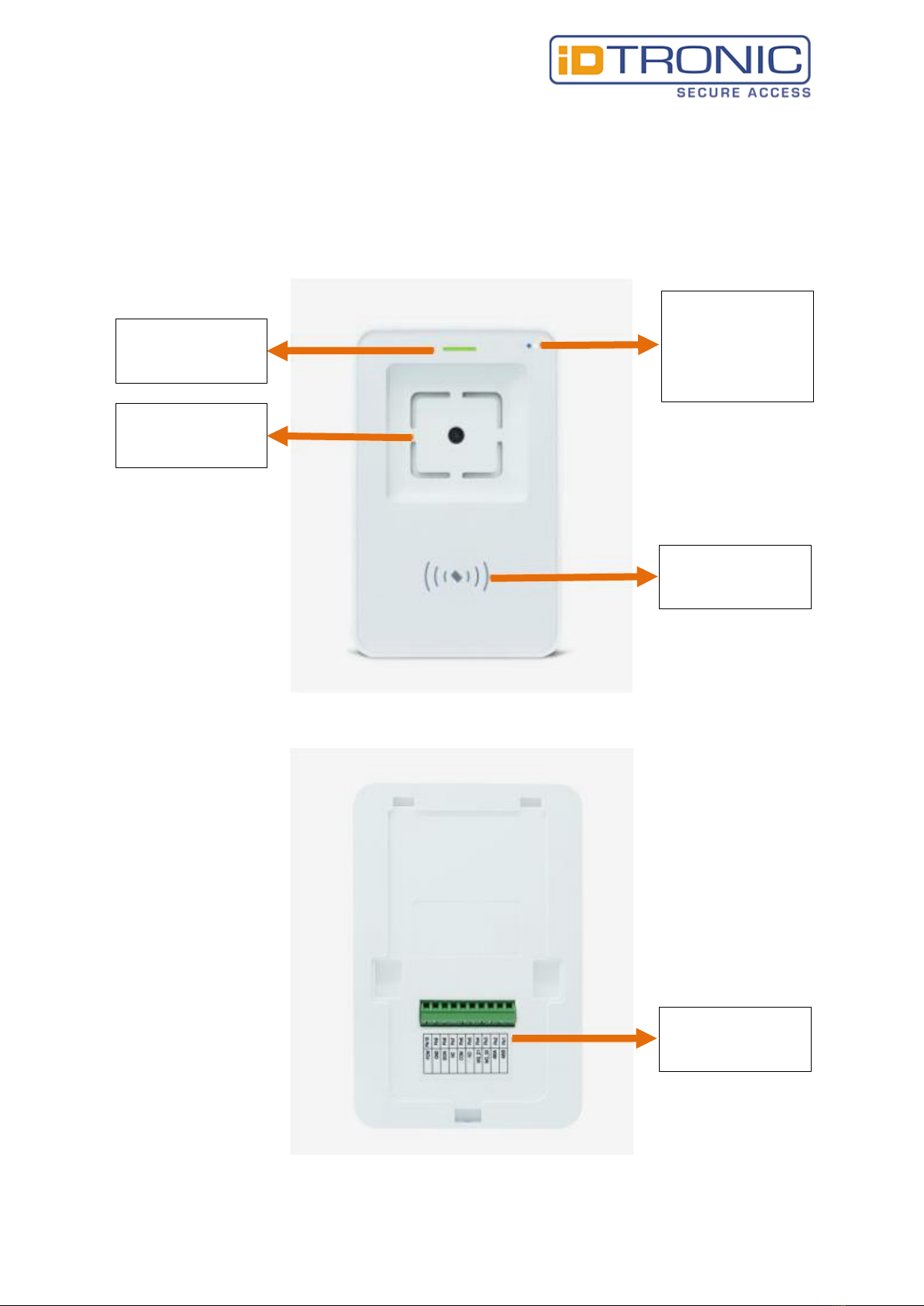

2. Product appearance

2.1.1. OVERALL INTRODUCTION

Red/Green light

scanning feedback

Scanning area

Blue:

network status light

White:

Power source light

NFC area

Output interface

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 6 of 18

2.1.2. PRODUCT SIZE CHART

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 7 of 18

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 8 of 18

3. Product parameters

3.1. General parameter

General parameter

output interface

RS485, wiegand, Ethernet, relay

indicating method

Red,green, blue, white indication light

Beep

imaging sensor

300,000 pixel CMOS sensor

max. resolution

640*480

supported operating systems

Windows (XP, 7, 8, 10)

installation method

Wall mounted type

product dimensions

132*88*21mm

recognition window size

60mm*56mm

product material

Imported PC & tempered glass

3.2. Recognition parameter

QR code recognition parameter

symbologies

QR, PDF417, CODE39, CODE93, CODE128, ISBN10,ITF,EAN13 etc

supported decoding

mobile phone screen/ printed barcodes

reading disteance

15.9mm - 75.68mm(QRCODE: 15mil)

reading accuracy

> 7mil

reading speed

100ms per time (average), support reading continuously

reading direction

Tilt±59.5° rotation±360° deflection±63.5°

(70 character 15milQR)

FOV

Horizontal 72.4° vertical 54.2° FOV 84.8°

(70 character 15milQR)

RFID parameter

type

ISO 14443A,ISO 14443B protocol

operation method

read UID, read the sector of M1 card

frequency

13.56 Mhz

distance

< 5cm

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 9 of 18

3.3. Electric parameter

The power input can be provided only when the device is connected properly. If the device is plugged

in or unplugged while the cable is live (hot plugging), its electronic components will be damaged.

Make sure that the power is turned off when plugging and unplugging the cable.

Poor power supply, too short interval power off and on operation may cause the device cannot work

in a stable and normal status. It is necessary to keep the power input stable. After turning off the

power input, it need to takes more than 2 seconds to turn on the power input again.

Electric parameter

working voltage

DC 12V –24V

working current

100mA (12V typical value)

power consumption

1,2W (12V typical value)

relay

DC 30V/1A

3.4. Work environment

work environment parameter

ESD protection

±8kV (air discharge) ±4kV (direct discharge)

working temperature

-20°C - 70°C

storage temperature

-20°C - 70°C

relative humidity

5% - 95% (no condensation, under normal temperature)

ambient light

0-80000Lux (Non direct sunlight)

Subject to change without prior notice Version 01

ID IDENT 4000 User Manual EN v01.docx Page 10 of 18

4. Interface definition

4.1. RS485 & wiegand interface definition

wiegand wiring diagram

RS485 wiring diagram
