Weather Compensation Kit - Installation

INTRODUCTION

This kit provides the facility to apply outside air temperature control to the boiler water ow temperature which provides

energy savings. The outside sensor provided measures outside air temperature and sends a signal to the boiler, which

adjusts the maximum boiler ow temperature in response. If outside air temperature is greater than the system design

temperature, the boiler ow temperature is reduced providing running cost savings. The boiler will operate in the

condensing mode more frequently increasing savings.

Once the sensor is tted it is automatically detected.

The sensor operation may be congured by adjustment of the boiler operating parameters, if necessary.

KIT CONTENTS

A. Outside Air Sensor

B. SAP Registration Label

C. Connector

(Required only for boilers

marked with *. See above)

Model Name:

Model Qualifier:

Signed:Date:

UIN 212050 A01

OS2

ErP Class II

IDEAL BOILERS LTD

I certify that this boiler is connected to a weather

compensation temperature sensor which is

compatible with the boiler and provides weather

compensation control that has been

permanently enabled. The boiler has been

commissioned in accordance with manufacturer

instructions, which have been supplied to the

householder. The central heating temperature

control knob should normally be set in the

mid-position.

Terminal block

(2 way)

wire connection

Cable Entry

Fixing screw & wall plug

supplied inside cover

NOTE.

To be mounted onto wall

in orientation shown

Clip on

cover

Ideal OS2 (Outside Sensor 2)

Class II used in isolation, Class VI used with Ideal PRT4

Contribution to Seasonal Space Heating Energy - 2% (Class II), 4% (Class VI)

* Refer to Frame 1, item C.

This kit is suitable only for the domestic gas boilers listed below:

COMBI BOILERS

*Logic Combi C

*Logic Combi C IE

Logic Combi ESP1

Logic Code Combi ESP1

Logic+ Combi C

*Independent Combi

*Independent+ Combi

*i-mini C

Vogue Combi C GEN2

Vogue Combi C IE GEN2

Logic Max Combi C

Vogue Max Combi

HEAT BOILERS

Logic Heat H

Logic Heat H IE

Logic+ Heat H

Logic Max Heat H

SYSTEM BOILERS

Logic System S

Logic System S IE

Logic+ System S

Vogue System S GEN2

Vogue System S IE GEN2

Logic Max System S

Vogue Max System

Weather Compensation Kit - Installation

FITTING THE KIT

Notes.

1. A timer should be tted to the system so that CH will be

switched off when appropriate.

2. The Connector (Frame 1, item C). is pretted to certain

boilers. Boilers that don't have this tted are marked with

an * on page 2.

FITTING THE SENSOR

The air sensor should be located on an external wall of the

building to be heated. Fix the sensor to a north/north-east

facing wall to avoid direct radiation from the sun. The air

sensor should be located to avoid any heating effect from the

boiler ue.

To x the air sensor to the wall, unscrew the sensor box plastic

cover and screw/plug the sensor body to the wall.

Wire a twin core 0.5mm2cable from the sensor to the boiler

through a RH grommet located on the underside of the boiler.

Cable length between sensor and boiler should be no greater

than 20m. Note that this connection is protected extra low

voltage. It is not necessary for the person carrying out the

wiring to be approved to Part P of the Building Regulations.

Avoid running this cable alongside mains voltage cables.

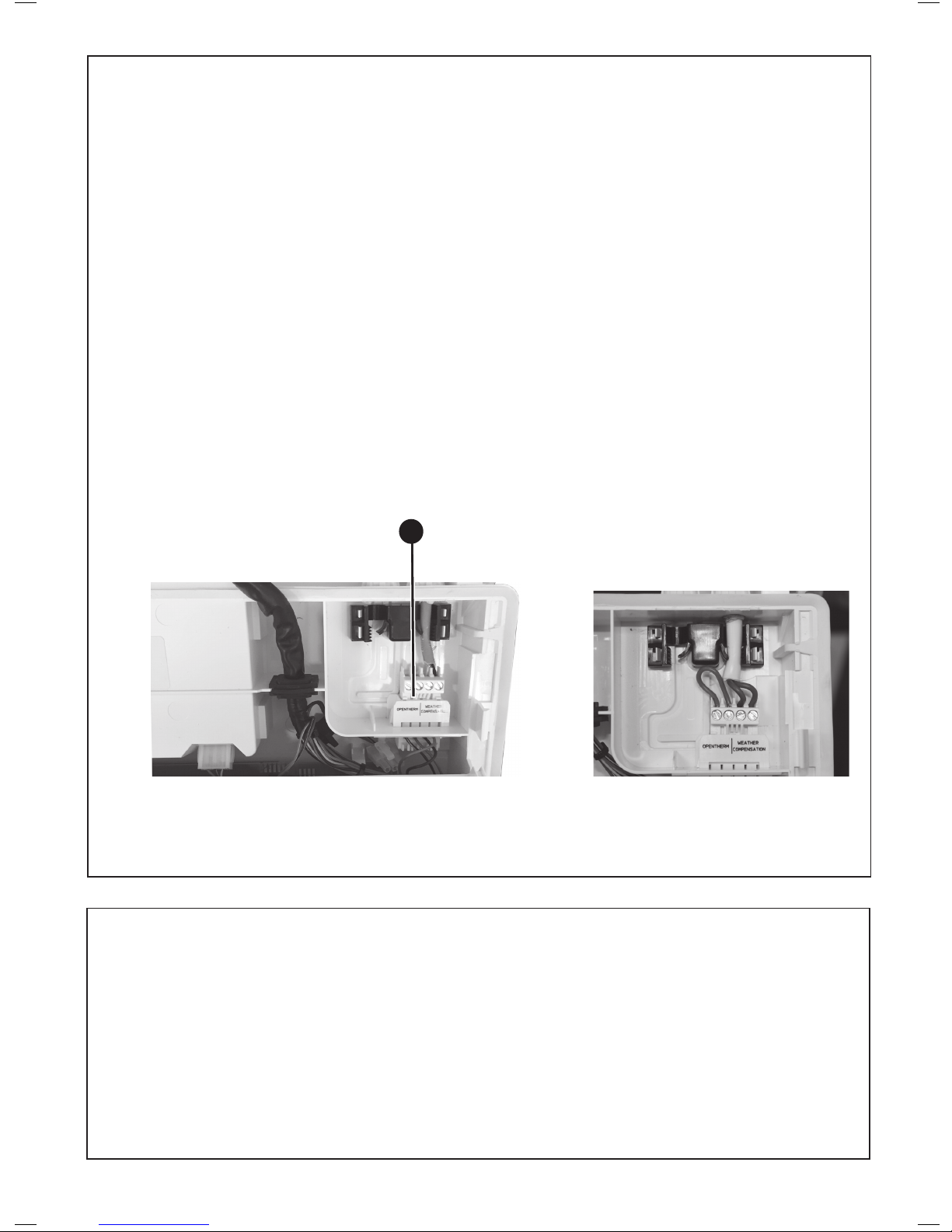

WIRING THE WEATHER COMPENSATION KIT TO THE BOILER

1. Isolate the electricity supply to the boiler.

2. Remove the boiler front panel (refer to boiler installation

instructions).

3. Hinge down the control box.

4. Unclip and rotate the installer connections cover towards

you until it clips into the retention holes.

5. Connect the wires from the outside sensor into the RHS

two terminals of the 4 way connector. Insert the connector

into the socket marked 'OPENTHERM / WEATHER

COMPENSATION'

6. Re-assemble in reverse order.

7. Record your name and today’s date on the enclosed label

and adhere it to the boiler in a position which will be visible

for future inspection.

Combi boiler

INSTALLER WIRING - HEAT & SYSTEM BOILERS ONLY

When tting the outside sensor to the Heat or System boiler, refer to the changes required to the S and Y plan wiring on

the following pages.

Heat & System

Weather Compensation Kit - Installation

INSTALLER WIRING S & Y PLAN DRAWINGS - LOGIC SYSTEM BOILERS ONLY



> /E> /E> E 

Ɛ>Ϯ Ɛ>ϭ

D/E^/E

K/>Z

^

KE

,t

K&&

,t

KE

Z^

KE

,

KE

E

> E 

>

&h^

^WhZ

^z^dDK/>Zt/d,zW>EΘKhd^/^E^KZ

> E

,tK&&

,KE

,tKE

Z^

^

zW>E

s>s

d/DZ

Ž

Ő

ǁ

ŐǇ

ď

L BLR

C/S

OFF

R/S

FUSED

SPUR

SYSTEM BOILER WITH S PLAN & OUTSIDE SENSOR

L N

HW OFF

CH ON

HW ON

R/S

C/S

S PLAN

VALVE HW

TIMER

S PLAN

VALVE CH

g/y b

br o

N E

L IN L IN L N E

sL2 sL1

MAINS IN

BOILER

g/y

SYSTEM BOILER WITH S PLAN SYSTEM & OUTSIDE SENSOR KIT

SYSTEM BOILER WITH Y PLAN SYSTEM & OUTSIDE SENSOR KIT

Weather Compensation Kit - Installation

INSTALLER WIRING S & Y PLAN DRAWINGS - HEAT BOILERS ONLY



/E> /E> E 

Ɛ>Ϯ Ɛ>ϭ

D/E^/E

K/>Z

^

KE

,t

K&&

,t

KE

Z^

KE

,

KE

E

> E 

>

&h^

^WhZ

,dK/>Zt/d,zW>EΘKhd^/^E^KZ

> E

,tK&&

,KE

,tKE

Z^

^

zW>E

s>s

d/DZ

WhDW

ď

Ž

Ő

ǁ

ŐǇ

Ž

ŐǇ

^

KE

,t

K&&

,t

KE

Z^

KE

,

KE

E

> >Z

KE

&h^

^WhZ

,dK/>Zt/d,^W>EΘKhd^/^E^KZ

> E

,tK&&

,KE

,tKE

Z^

^

^W>E

s>s,t

d/DZ

/E> /E> E 

Ɛ>Ϯ Ɛ>ϭ D/E^/E

K/>Z

^W>E

s>s,

WhDW

Ő

ď

ďƌŽ

ďƌE  ŐǇ

ď

Ő

HEAT BOILER WITH S PLAN SYSTEM & OUTSIDE SENSOR KIT

HEAT BOILER WITH Y PLAN SYSTEM & OUTSIDE SENSOR KIT

Weather Compensation Kit - Installation

INSTALLER WIRING S PLAN DRAWINGS - VOGUE SYSTEM BOILERS ONLY

L BLR

C/S

OFF

R/S

FUSED

SPUR

SYSTEM BOILER WITH S PLAN & OUTSIDE SENSOR

L N

HW OFF

CH ON

HW ON

R/S

C/S

S PLAN

VALVE HW

TIMER

S PLAN

VALVE CH

g/y b

br o

N E

L IN L IN L N E

sL2 sL1

MAINS IN

BOILER

g/y

BLR

SYSTEM BOILER WITH S PLAN SYSTEM & OUTSIDE SENSOR KIT

Weather Compensation Kit - Installation

CH OPERATION

The On and Off time control of central heating should be

controlled by a separate timer.

During programmed On times the Central Heating Radiator

Flow Temperature is controlled by the boiler relative to the

Outside Temperature as shown in the diagram.

The Room temperature can be adjusted using the Central

Heating Temperature Control Knob on the boiler as follows.

Essentially rotating the knob clockwise increases the room

temperature and rotating the knob anti-clockwise decreases the

room temperature.

The Room Temperature Setpoint in the associated graph is

not directly related to the Actual Room Temperature but is the

Nominal Room Temperature during a programmed CH period.

This can be adjusted between 5 and 30 degrees by the

CH Potentiometer Knob on the Boiler when the Outside

Temperature Sensor is connected. The graph only shows

temperatures between 12 and 30 degrees for clarity.

Examples:

1. If the CH Potentiometer Knob is set to display 22ºC on the

Boiler Display the Room Temperature Setpoint will be 22ºC

and the curve 22 will be followed, indicated by 11th curve

in from the left hand side. So as the outside temperature

varies the Flow Setpoint to the CH circuit will increase and

decrease proportionally.

2. If the CH Potentiometer Knob is rotated fully clockwise, the

Boiler Display will read 30ºC and the Room Temperature

Setpoint will be 30ºC hence the curve 30 will be followed.

3. If the CH Potentiometer Knob is rotated fully anticlockwise,

the Boiler Display will read 5ºC and the Room Temperature

Setpoint will be 5ºC. This is an unrealistic Room

Temperature Setpoint for a CH period during an ON time,

but it is calculated internally for managing Frost Protection

for the system based upon Outside Temperature.

DHW OPERATION

When the system is in a timed on period for DHW and the tank

stat is not satised, OV will be generated on the switched live

input SL2 of the boiler.

This will ensure that Weather Compensation adjustment is

ignored at this time. The set point will be xed at 80 degrees.

The demand is indicated on the display by ‘ON’ and the burner

on symbol as appropriate.

7 WEATHER COMPENSATION KIT OPERATION

FLOW SETPOINT

OUTSIDE TEMPERATURE

ROOM TEMPERATURE SETPOINT

WEEE DIRECTIVE 2012/19/EC

Waste Electrical and Electronic Equipment Directive

• At the end of the product life, dispose of the packaging and

product in a corresponding recycling centre.

• Do not dispose of the unit with the usual domestic refuse.

• Do not burn the product.

• Remove the batteries.

• Dispose of the batteries according to the local statutory

requirements and not with the usual domestic refuse.

Technical Training

The Ideal Technical Training Centre oers a series of ﬁrst class training courses for domestic, commercial and

industrial heating installers, engineers and system speciﬁers.

For details of courses please ring:........... 01482 498432

Ideal Boilers Ltd.

PO Box 103, National Avenue, Kingston Upon Hull, HU5 4JN

Tel 01482 492251 Fax 01482 448858

Registration No. London 322 137

deal Technical Helpline: 01482 498663

www.idealboilers.com

Ideal Boilers Ltd. pursues a policy of continuing improvement in the design and performance of its products.

The right is therefore reserved to vary speciﬁcation without notice.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Caldera de Ideal Boilers

Ideal Boilers

Ideal Boilers INDEPENDENT+ COMBI 24 Guía del usuario

Ideal Boilers

Ideal Boilers LOGIC MAX HEAT H 12 Manual de usuario

Ideal Boilers

Ideal Boilers LOGIC COMBI C30 Manual de usuario

Ideal Boilers

Ideal Boilers systemiser SE Manual de usuario

Ideal Boilers

Ideal Boilers HE24 Guía del usuario

Ideal Boilers

Ideal Boilers Classic RS 300 Guía del usuario

Ideal Boilers

Ideal Boilers Buccaneer GTE 4 Manual de usuario

Ideal Boilers

Ideal Boilers Concord CXSi 110-180 Manual de usuario

Ideal Boilers

Ideal Boilers BOXER C 24 Guía del usuario

Ideal Boilers

Ideal Boilers Mexico Super RS 3/60P Hoja de datos

Ideal Boilers

Ideal Boilers Mexico Super CF 3/60P Hoja de datos

Ideal Boilers

Ideal Boilers Maximiser SE 42 Nota de publicación

Ideal Boilers

Ideal Boilers FF 330 Manual de usuario

Ideal Boilers

Ideal Boilers HE15 Manual de usuario

Ideal Boilers

Ideal Boilers Mexico Super FF4100 Manual de usuario

Ideal Boilers

Ideal Boilers Concord CXD 40-100 Guía del usuario

Ideal Boilers

Ideal Boilers icos HE12 Manual de usuario

Ideal Boilers

Ideal Boilers Esprit 2 Guía del usuario

Ideal Boilers

Ideal Boilers VOGUE MAX COMBI 32 Manual de usuario

Ideal Boilers

Ideal Boilers Mexico Super FF440 Guía del usuario

Ideal Boilers

Ideal Boilers icos system m3080 Manual de usuario

Ideal Boilers

Ideal Boilers Classic LX RS 230 Manual de usuario

Ideal Boilers

Ideal Boilers VOGUE COMBI C32IE Guía del usuario

Ideal Boilers

Ideal Boilers Classic Combi FF 280 Manual de usuario

Manuales populares de Caldera de otras marcas

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manual de usuario

Radijator

Radijator BIO max 23.1 Manual de usuario

Brunner

Brunner BSV 20 Manual de usuario

Buderus

Buderus Logamax GB062-24 KDE H V2 Manual de usuario

Potterton

Potterton 50e Hoja de datos

UTICA BOILERS

UTICA BOILERS TriFire Manual de usuario

Joannes

Joannes LADY Series Manual

ECR International

ECR International UB90-125 Manual de instrucciones

Froling

Froling FHG Turbo 3000 Manual de usuario

Froling

Froling P4 Pellet 8 - 105 Manual de usuario

U.S. Boiler Company

U.S. Boiler Company K2 Manual de usuario

Henrad

Henrad C95 FF Manual de usuario

NeOvo

NeOvo EcoNox EF 36 Manual de usuario

Potterton

Potterton PROMAX SL 12 Manual de usuario

Eco Hometec

Eco Hometec EC 25 COMPACT Manual de usuario

Viessmann

Viessmann VITODENS 200 Guía

Baxi

Baxi Prime 1.24 Manual de usuario

REXNOVA

REXNOVA ISA 20 BITHERMAL Manual de usuario
