ICP DAS USA PISO-ENCODER300U Manual de usuario

PISO-ENCODER300U 3-axis Encoder Input Card - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PISO-ENCODER300U

PCl Bus, 3-axis Encoder Input Card

Quick Start Guide

Product Website:

http://www.icpdas-usa.com/piso_encoder_300_600.html

1. Introduction

PISO-ENCODER/300/600 has a 3-axis or 6-axis encoder counter. Each

axis has a 32-bit, true counter with maximum counting rate of 1MHz. The

Index reset resets by using a C+/C- channel, which will reset every

revolution. The hardware reset resets by an external pin (HR1 ~ HR6). The

HR1 ~ HR6 also can be a digital input. 8-channel digital outputs are also

provided. 2500Vrms photo couplers isolate the digital I/O. This board

provides DOS, windows 95 and windows NT drivers.

PISO-ENCODER300U 3-axis Encoder Input Card - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

2. Pins assignment

The pins assignment of PISO-Encoder600(U) board is shown in the following figure.

The power source of every encoder channel is designed for the DC 5V power source of

host computer’s PCB. Therefore, do not connect those pins with other DC 5V external

power source. And the maximum current of each encoder power is 100mA. Besides,

user should apply external DC 24V power source across pins of EXT_VCC and

EXT_GND in order to use digital inputs and outputs provided in PISO-Encoder600(U)0.

Hence, the digital inputs and outputs of PISO-Encoder600(U) will work correctly based

on the commands in digital output register (section 2.2.3) and digital input register

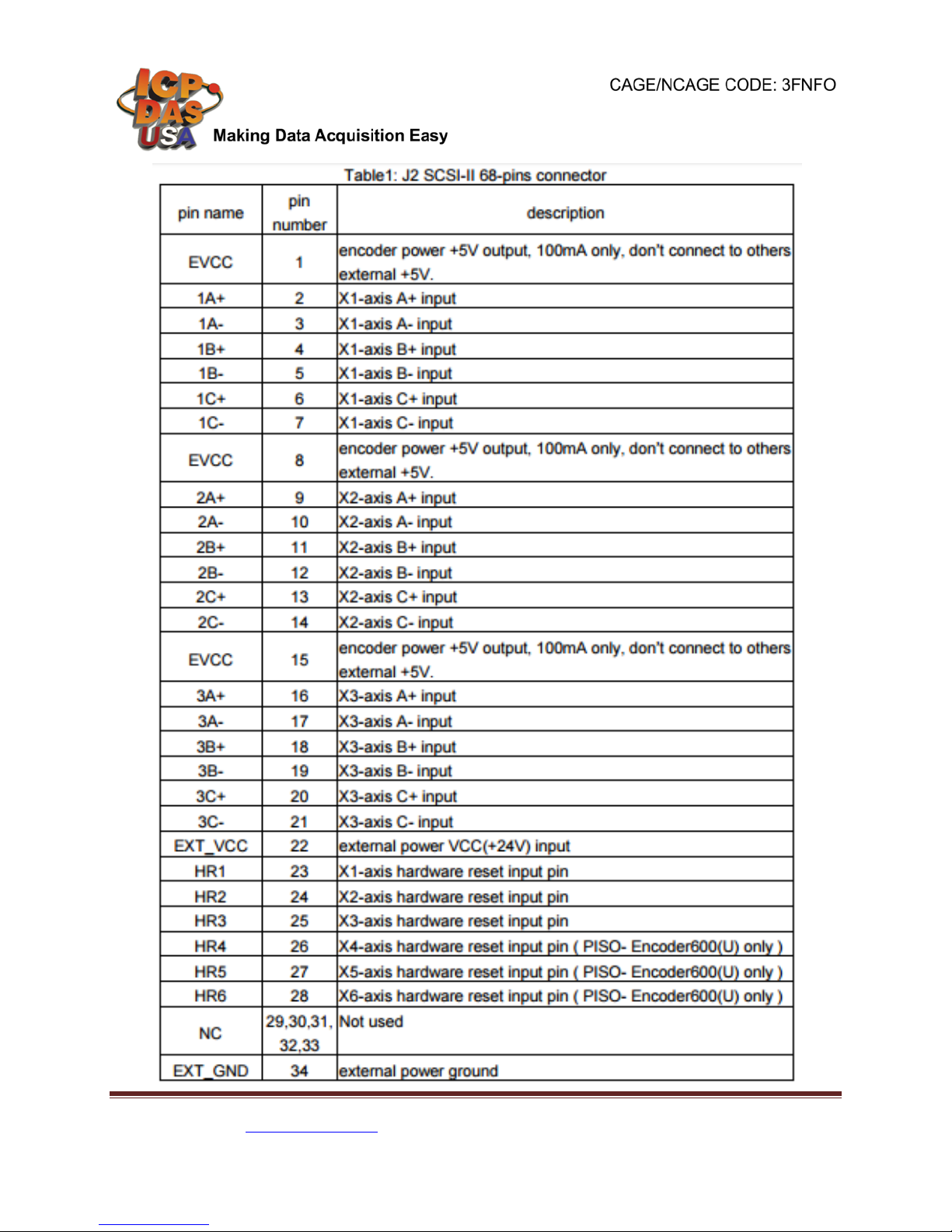

(section 2.2.4). The detailed description of pins’ function for PISO-Encoder600(U) is

listed in Table 1.

PISO-ENCODER300U 3-axis Encoder Input Card - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PISO-ENCODER300U 3-axis Encoder Input Card - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PISO-ENCODER300U 3-axis Encoder Input Card - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3. System Block Diagram

The PISO-Encoder600(U) has a 6-axis encoder counter. And each axis has a 32-bit

true counter with maximum counting rate of 1MHz. It also offers three different types of

the counting mode, which are QUADRANT mode, CW_CCW mode, and PULSE_DIR

mode. User should choose the correct mode based on actual type of encoder.

Otherwise, the PISO-Encoder600(U) will not work properly. Besides,

PISOEncoder600(U) also provides 3 different functions of counter resetting mode

including register reset, index reset and hardware reset. The Index reset function is

used to reset encoder counter through using a C+/C- channel signal during every

revolution. The hardware reset function is adopted to reset encoder counter by a pre-

defined external signal pin, namely HR1~HR6. Furthermore, when PISO-Encoder600(U)

is not set on the hardware reset mode, the pins of HR1~HR6 can be open as digital

inputs. In addition, PISO-Encoder600(U) also offers 8 channels of digital output. Every

digital output and input (digital I/O) is photo-coupled isolated up to 2500Vrms. The

detailed function block diagram of PISO-Encoder600(U) is demonstrated and

summarized in the following figure.

PISO-ENCODER300U 3-axis Encoder Input Card - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4. Hardware address selection

The hardware address of PISO-Encoder600(U) board can be set as 0~15 by DIP switch

A0~A3 on the PISO-Encoder600(U) board, as shown in Figure 2. The factory hardware

address setting is Hex 00. If the default address of this card is used by other device,

user can change the setting to various base addresses. The addressing of PCI bus is

defined in Table 1. According to the hardware address setting, programmer should call

function ENC6_REGISTRATION(cardNo, address) to confirm with the hardware setting

in the beginning of the program. The more detailed description for function of

ENC6_REGISTRATION() will be presented in chapter 3.
