Icop PPC-150T Manual de usuario

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 i

User’s Manual

PPC-150T

DMP Vortex86 DX2 Processor

Compact Panel PC with 15”Touchscreen

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 i

The information in this manual is subject to change without notice for

continuous improvement in the product. All rights are reserved. The

manufacturer assumes no responsibility for any inaccuracies that may

be contained in this document, and makes no commitment to update or

to keep current the information contained in this manual.

No part of this manual may be reproduced, copied, translated or

transmitted, in whole or in part, in any form or by any means without the

prior written permission of the ICOP Technology Inc.

Manual # IUMPPC150T-01 Ver.1.0AJun, 2014

TRADEMARKS ACKNOWLEDGMENT

Vortex86DX2is the registered trademark of DMP Electronics Inc.

Other brand names or product names appearing in this document are

the properties and registered trademarks of their respective owners. All

names mentioned herewith are served for identification purpose only.

For more detailed information or if you are interested in other ICOP

products, please visit our official websites at:

Global: www.icop.com.tw

USA: www.icoptech.com

Japan: www.icop.co.jp

Europe: www.icoptech.eu

China: www.icop.com.cn

For technical support or demo images of operating systems download,

please visit our websites at:

ICOP Technical Resource: http://tech.icop.com.tw/

Software Support: http://www.icoptech.net/

This Manual is for the PPC-150T.

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 ii

SAFETY INFORMATION

Read these Safety instructions carefully.

Please carry the unit with both hands, handle carefully.

Make sure the voltage of the power source is correct before

connecting the equipment to the power outlet.

Do not expose your Panel PC to rain or moisture in order to prevent

shock and fire hazard.

Input voltage rated +12 ~ 24 VDC

Operating temperature between 0~+50°C (+32~+122°F).

Keep PPC-150T away from humidity.

When a Compact Flash Card or a SATA Slim is the main operating

system storage, please turn off power before inserting or removing.

Do not open the cabinet to avoid electrical shock. Refer to your

nearest dealer for qualified personnel servicing.

Never touch un-insulated terminals or wire unless your power

adaptor is disconnected.

Locate your Panel PC as close as possible to the socket outline for

easy access and to avoid force caused by entangling of your arms

with surrounding cables from the Panel PC.

USB connectors are not supplied with Limited Power Sources.

If the equipment is not used for a long time, disconnect it from the

power source to avoid damage by transient overvoltage.

WARNING!

DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS

(ENCASING) OF THIS PRODUCT. PLEASE CONTACT YOUR DEALER

FOR SERVICING FROM QUALIFIED TECHNICIAN.

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 iii

Content

Ch. 1 General Information..........................................................................1

1.1 Product Description ............................................................................2

1.2 Product Specifications ........................................................................3

1.3 Inspection standard for TFT-LCD Panel..............................................5

1.4 Product Dimensions............................................................................7

1.5 Mounting Instruction ...........................................................................9

1.6 Ordering Information.........................................................................11

Ch. 2 System Installation.........................................................................12

2.1 CPU Board Outline ...........................................................................13

2.2 Connector Summary.........................................................................14

2.3 Connector Pin Assignments..............................................................15

2.4 External I/O Overview.......................................................................17

2.5 External I/O Pin Assignment.............................................................18

2.6 Watchdog Timer................................................................................19

Ch. 3 Hardware Installation .....................................................................20

3.1 Installing the SATASlim....................................................................21

3.2 Installing the Compact Flash.............................................................22

Ch. 4 Driver Installation ...........................................................................23

4.1 PPC-150T Development Note ..........................................................26

4.2 BIOS Default Setting.........................................................................27

Warranty....................................................................................................28

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 1

Ch. 1

General Information

1.1 Product Description

1.2 Product Specifications

1.3 Inspection standard for TFT-LCD Panel

1.4 Product Dimensions

1.5 Mounting Instruction

1.6 Ordering Information

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 2

1.1 Product Description

ICOP Technology Inc. is proudly going to release a brand new Panel PC,

which offers fanless design, low power consumption, and IP65 front panel.

The PPC-150T is powered by DMP’s latest Vortex86DX2 SoC, the 3rd

generation SoC of Vortex86 family, and dual-channel 1GB DDRII chipset

that handles processing more efficiently and provides faster performance.

The resistive touch panel with LED backlight TFT LCD increases operation

convenience and visibility in outdoor environments. The ultra-compact and

thin exterior design is perfect for the present demanding embedded and

productive applications.

The new PPC-150T inherited PDX/PMX-series’smooth appearance and

ultra-texture aluminum exterior design to make your industrial applications look

more stylish. The versatile I/O ports, IP65 front panel, 10/100Mps Ethernet,

GIGA high-speed Ethernet, WiFi, etc. can fulfill fundamental functions. Our

consistent advantages feature stable performance, extended working

temperature support, low power consumption and fanless design. The

expandable customize I/O ports can be accommodated connectivity

requirements to industrial machine platforms and industrial automation

equipment’s needs.

The PPC-150T supports Windows Embedded CE, Windows Embedded

Standard 2009, Windows Embedded Compact 7, and Linux to meet

ready-to-market demand and provide competitive advantages for customers.

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 3

1.2 Product Specifications

CPU BOARD SPECIFICATIONS

CPU

DM&P Vortex86DX2 933MHz

Cache

L1:16KB I-Cache, 16KB D-Cache

L2: 256KB Cache

BIOS

AMI BIOS

Memory

512MB / 1GB /2GB DDR2 onboard

Watchdog Timer

Software Programmable from

30.5u to 512 seconds x 2 sets

LAN

Integrated 10/100M Ethernet X1

Giga Ethernet (Optional) X1

Audio

HD Audio-Realtek ALC262 CODEC

Internal Drives

Compact Flash Type I / II Slot,

SATA SLIM

SD Slot (Optional)

I/O

RS-232/422/485 x 2

USB Ports (Ver2.0) x 3

PS/2 KB

Audio-Out

RJ-45 Port x 1

GIGA Ethernet Port X 1 (Optional)

MECHANICAL & ENVIRONMENT

Power Requirement

+12 ~ 24VDC

Power

Consumption

+24VDC@ 0.7A

Operating

Temperature

0~+50°C (+32~+122°F) /

-20~+60°C (-4~+140°F)

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 4

Storage

Temperature

-30~+70°C (-22~ +158°F)

Operating Humidity

0% ~ 90% Relative Humidity,

Non-Condensing

Dimensions

354.85x280.85x55mm (13.97"x8.22"x2.16")

Weight

3.8 Kg

Protection

IP65 Front Panel

Certification

CE / FCC / VCCI / Vibration

LCD SPECIFICATIONS

Display Type

15” XGATFT LCD

Backlight Unit

LED

Display Resolution

1024(W) x 768(H)

Brightness (cd/m2)

250/350 nits

Contrast Ratio

700 : 1

Display Color

262,144

Pixel Pitch (mm)

0.297 (H) x 0.297 (V)

Viewing Angle

Vertical 140o, Horizontal 160o

Backlight Lifetime

25,000/50,000 hrs

TOUCHSCREEN

Type

Analog Resistive

Resolution

Continuous

Transmittance

80%

Controller

PS/2 interface

Software Driver

DOS / Linux / Windows Embedded

Durability

1 million

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 5

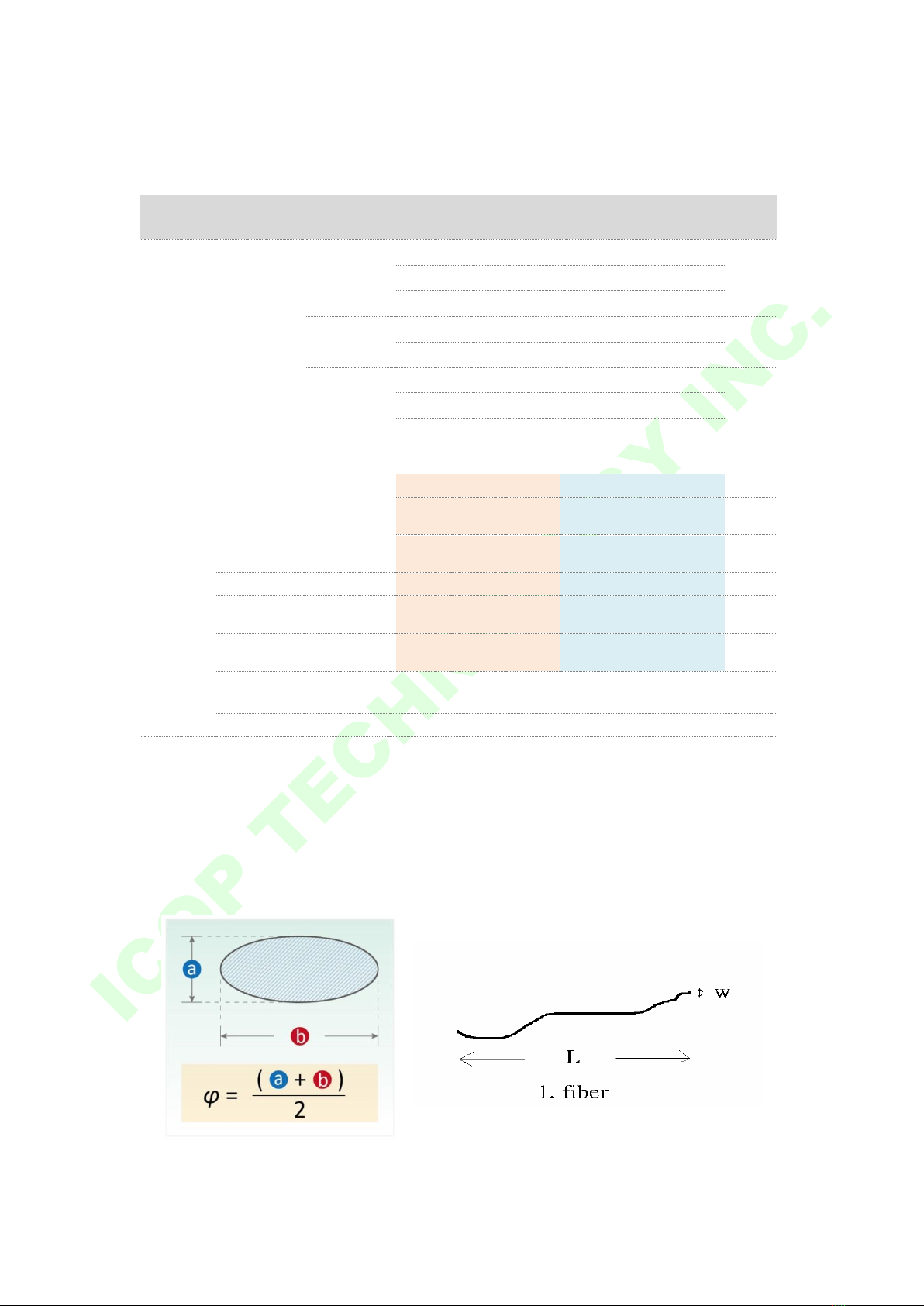

1.3 Inspection standard for TFT-LCD Panel

DEFECT TYPE

LIMIT

Not

VISUAL

DEFECT

INTERNAL

SPOT

φ＜0.15mm

Ignore

Note

0.15mm≦φ≦0.5mm

N≦4

0.5mm＜φ

N=0

FIBER

0.03mm<W≦0.1mm, L≦5mm

N≦3

Note

1.0mm＜W, 1.5mm＜L

N=0

POLARIZER

BUBBLE

φ＜0.15mm

Ignore

Note

0.15mm≦φ≦0.5mm

N≦2

0.5mm＜φ

N=0

Mura

It’ OK if mura is slight visible through 6%ND filter

ELECTRI

CAL

DEFECT

BRIGHT DOT

A Grade

B Grade

C Area

O Area

Total

C Area

O Area

Total

Note

N≦0

N≦2

N≦3

N≦5

Note

DARK DOT

N≦2

N≦3

N≦5

N≦8

TOTAL DOT

N≦4

N≦5

N≦6

N≦8

Note

TWO ADJACENT DOT

N≦0

N≦1

pair

N≦1

pair

N≦1

pair

N≦1

pair

N≦1

pair

Note

THREE OR MORE

ADJACENT DOT

NOT ALLOWED

LINE DEFECT

NOT ALLOWED

(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot)

(2) Little bright Dot acceptitable under 6% ND-Filter.

(3) If require G0 grand (Total dot N≦0), please contact region sales.

[ Note 1 ] W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter.

(a) White / Black Spot (b) Polarizer Bubble

ICOP TECHNOLOGY INC.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 6

[ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following.

[ Note 3 ] Display area

C Area: Center of display area O Area: Outer of display area

[ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below

(as A, B, C and D status) adjacent defect dots, including bright and dark adjacent

dot. And they will be counted 2 defect dots in total quantity.

R G

RDefect Dot

Adjacent Dot

The defects that are not defined above and considered to be problem shall

be reviewed and discussed by both parties.

Defects on the Black Matrix, out of Display area, are not considered as a defect

or counted.

Tabla de contenidos

Otros manuales de Panel táctil de Icop

Icop

Icop PEX-057T-5A Manual de usuario

Icop

Icop PMX-090T Manual de usuario

Icop

Icop PDX2-057T-5A Manual de usuario

Icop

Icop PDX-057T-D5A Manual de usuario

Icop

Icop PEX-090T-8A Manual de usuario

Icop

Icop PDX2-090T-5A Manual de usuario

Icop

Icop PDX-057T-D5A-512 Manual de usuario

Icop

Icop PPC-150-D2 Series Manual de usuario

Icop

Icop PMX-057T-5A Manual de usuario

Icop

Icop PN8M Series Manual de usuario

Icop

Icop PPC-104T-APL Manual de usuario

Icop

Icop PDX3-090T-5A Manual de usuario

Icop

Icop PMX-090T-5A Manual de usuario

Icop

Icop HMI-043T-EM41N-O Manual de usuario

Icop

Icop PDX2-090T-5A Manual de usuario

Icop

Icop PPC-090T-APL Series Manual de usuario

Icop

Icop HMI-043T-EM41N-B Manual de usuario

Icop

Icop PPC-150T-D2N4N Manual de usuario

Icop

Icop PN8M-090T-P5A-N5GM Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario
