Icom IP100H Manual de usuario
Version 1.0
March 2014
IP Advanced Radio System
IP100H / IP1000C / IP100FS
Demonstration Setup
Guide
DGX-IP1000C/IP100H -V1.0
This guide is designed to provide demonstration setup guide about Icom’s IP ADVANCED RADIO SYSTEM,
based on the IP100H’s firmware Revision 1.02 and IP1000C’s firmware Revision 1.02.
If you have any questions about this guide, please contact your local Icom distributors.
Guide Revisions
Icom reserves the right to make changes to the content of this guide at any time without notice or obligation.
Trademarks
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United
States, the United Kingdom, Germany, France, Spain, Russia, Japan and/or other countries.
Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
IDAS is a trademark of Icom Incorporated.
© 2014 Icom Inc.
OUTLINE
DGX-IP1000C/IP100H -V1.0
SECTION 1 REQUIRED EQUIPMENT .....................................................................................................1
SECTION 2 SETTING EXAMPLES ..........................................................................................................2
2-1 STAND ALONE NETWORK CONNECTION AND IP ADDRESS SETTINGS............2
2-2 IP NETWORK CONNECTIONS AND SETTING EXAMPLES.....................................9
2-3 HOW TO SET AND USE THE ID LIST......................................................................16
2-4 HOW TO ENTER AND SEND A MESSAGE.............................................................21
2-5 HOW TO SET AND USE THE IP100FS....................................................................27
SECTION 3 Q & A...................................................................................................................................51
TABLE OF CONTENTS
DGX-IP1000C/IP100H -V1.0
1
The following equipment is required to demonstrate the system.
IP1000C
IP100H (2 units)
Access point
•IEEE802.11a/g
•Recommendation:
Optional AP-90M
PC
With one of the following OSs
installed.
• Windows8 (32/64bit)
• Windows7 (32/64bit)
• Windows Vista(32bit)
(Home Premium / Professional /
Ultimate (or equivalent) editions
are supported.)
IP100FS
LAN cable (2 cables)
CLONING CABLES
(For IP100H, both cables are
required)
• OPC-2144
• OPC-478UC
CLONING SOFTWARE
(For IP100H)
CS-IP100H
SECTION 1 REQUIRED EQUIPMENT
DGX-IP1000C/IP100H -V1.0
2
Set an access point, PC, IP1000C and IP100H using the following steps.
STEP 1: CONNECTION EXAMPLE
See each equipment’s instruction manual for connection details.
SECTION 2 SETTING EXAMPLES
2-1 STAND ALONE NETWOR
K
CONNECTION AND IP ADDRESS SETTINGS
IMPORTANT! We recommend that you connect the access point, IP1000C and PC in a standalone
configuration. If you connect them to your local network with the following connection settings, your local
network may not operate correctly. (IP addresses may overlap.)
STEP 1: CONNECTION EXAMPLE
STEP 2: ACCESS POINT SETTINGS
STEP 5: DEMONSTRATION
STEP 3: IP1000C SETTINGS
STEP 4: IP100H SETTINGS
STEP 1 STEP 2 STEP 3 STEP 5STEP 4
Access point
IP address: 192.168.0.50
Subnet mask: 255.255.255.0
IP1000C
IP address: 192.168.0.1
Subnet mask: 255.255.255.0
DHCP Server:Enable PC
IP address: 192.168.0.70
Subnet mask: 255.255.255.0
IP100H (TR 2)
DHCP Client: Enable IP100H (TR 1)
DHCP Client: Enable
[LAN]
[LAN 1]
[
LAN 2
]
[LAN]
LAN cable
DGX-IP1000C/IP100H -V1.0
3
STEP 2: ACCESS POINT SETTINGS
Set your access point’s IP address to 192.168.0.50, and SSID to WAVEMASTER-0.
[RECOMMENDATION]
We recommend that you set the access point’s authentication as follows:
For example:
• Authentication: WPA-PSK·WPA2-PSK
• Encryption Type: TKIP·AES
• PSK: 5cf97dgh6
STEP 3: IP1000C SETTINGS
Setting steps are as follows.
STEP 3-1 The DHCP Server settings
STEP 3-2 Common settings
STEP 3-3 The IP100H (TR 1) settings
STEP 3-4 The IP100H (TR 2) settings
STEP 3-1 The DHCP Server settings
IMPORTANT! If you turn ON the Hide SSID function when using IEEE802.11a, the IP100Hs may not
connect to the access point.
Select
Click
Click
Click
STEP 1 STEP 2 STEP 3 STEP 5STEP 4
STEP 1 STEP 2 STEP 3 STEP 5STEP 4
DGX-IP1000C/IP100H -V1.0
4
STEP 3-2 Common settings
Click
Click
Confirm
DGX-IP1000C/IP100H -V1.0
5
STEP 3-3 The IP100H (TR 1) settings
STEP 3-4 The IP100H (TR 2) settings
[Confirm the IP100H (TR 1 and TR 2) settings]
Click
Click
Enter
Enter
Click
Confirm
DGX-IP1000C/IP100H -V1.0
6
STEP 4: IP100H SETTINGS (A CS-IP100H is necessary to set up the IP100H)
BEFORE you use a CS-IP100H, the following procedures are required. See the CS-IP100H and OPC-
478UC instruction manuals for setting and installation details.
• Install the CS-IP100H (Cloning software)
• Install the OPC-478UC (Cloning cable)’s USB driver
• Connect the OPC-478UC and the IP100H
• Run the CS-IP100H
The setting steps are as follows:
STEP 4-1 TR 1 settings
STEP 4-2 TR 2 settings
STEP 4-1 TR 1 settings
IP1000C’s setting screen
Enter the same SSID as the access point
Enter the same PSK as the access point
(Enter “5cf97dgh6” here)
Select
STEP 1 STEP 2 STEP 3 STEP 5
STEP 4
DGX-IP1000C/IP100H -V1.0
7

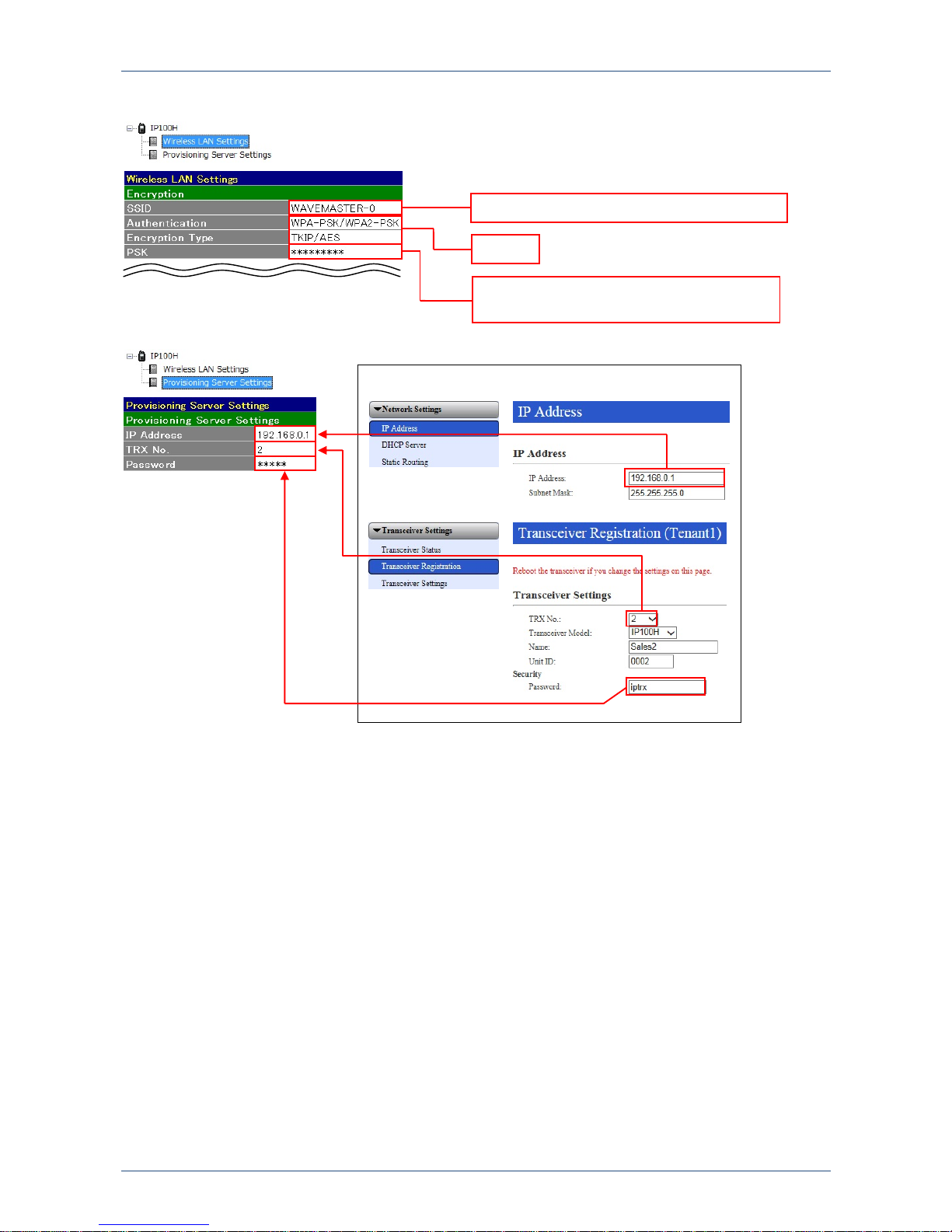

STEP 4-2 TR 2 settings
Enter the same SSID as the access point
Enter the same PSK as the access point
(Enter “5cf97dgh6” here)
Select
IP1000C’s setting screen
