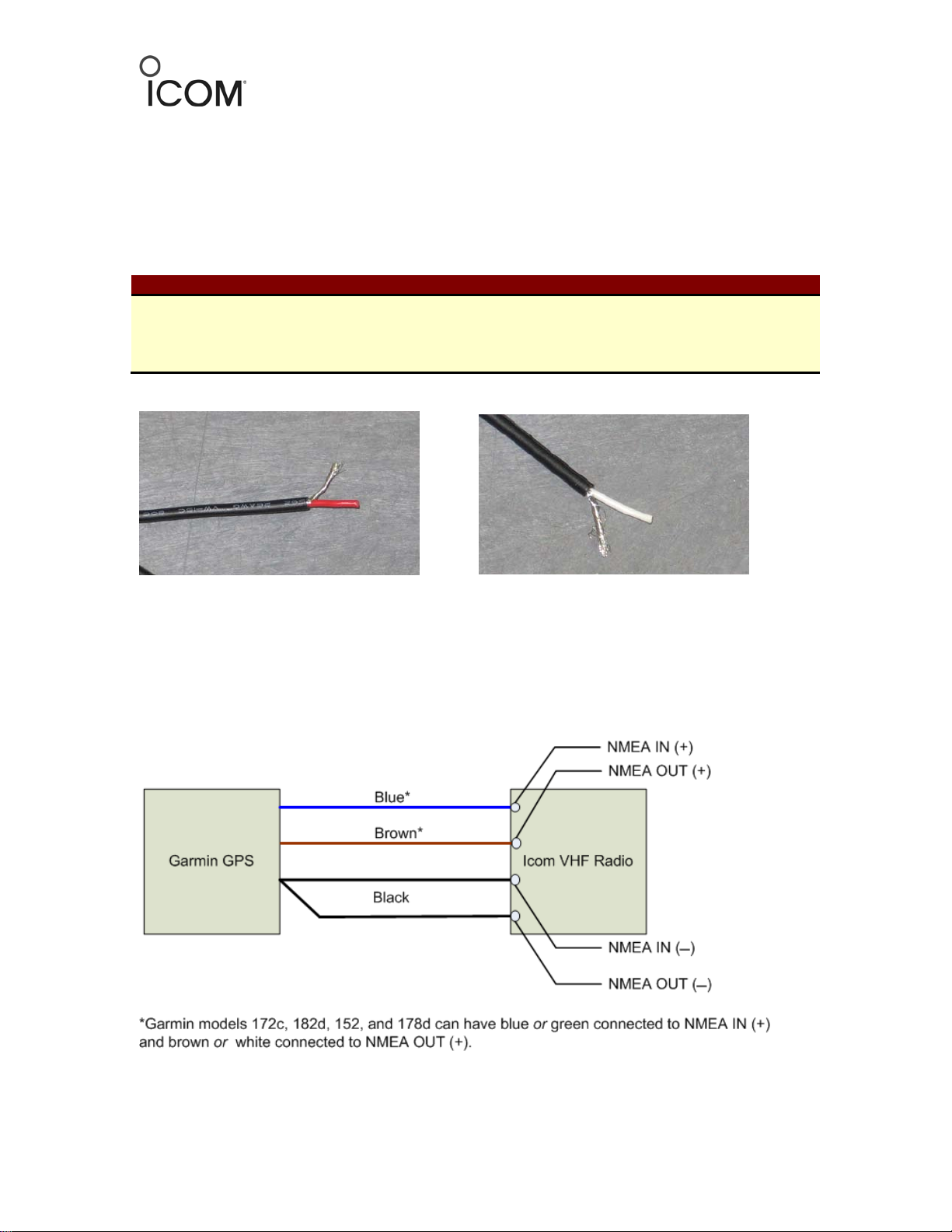

Connecting a GPS to Your Icom M504/M504A radio

The back panel of your M504/A radio has 2 wires that you can use to connect to your

GPS.

M504 Connections

Radio

GPS

NMEA in + (red wire)→

NMEA / Data out

NMEA in



(red wire shield) →

NMEA / Data ground

NMEA out + (white wire) →

NMEA / Data in

NMEA out (white wire shield)

→

NMEA / Data ground

GPS Example Connections

You will need to solder the 2 wires and their shields to the NMEA wires from your

GPS. For more specific information, consult the individual instruction manual from

the GPS manufacturer.

Garmin GPS

©2011 Icom America Inc Page 2

Icom America, Inc.

12421 Willows Rd NE

Kirkland, WA 98034

Raymarine GPS

Note: When using some Raymarine equipment you may need to connect your Icom

radio directly to the Raymarine GPS itself, not through a repeated port from other

equipment, such as a plotter. This ensures that the proper NMEA sentence passes to

the radio.

Standard Horizon GPS

©2011 Icom America Inc Page 3

Icom America, Inc.

12421 Willows Rd NE

Kirkland, WA 98034

Troubleshooting Your GPS Connection

•Your Plotter/GPS receiver must be capable of sending the proper sentences

(listed below) set for NMEA 0183 (Check your Plotter/GPS instructions for

information.)

•Verify that the plotter/GPS device is sending GPRMC, GPGGA, GPVTG, GPGLL, or

GPGNS sentences. (Check Plotter/GPS Instructions.)

•If you are still not receiving latitude and longitude, you can try setting the plotter

to send one sentence at a time (if possible). This can help it find the most

compatible sentence.

•Have a technician check the plotter/GPS using test equipment to verify it is

sending the GPS sentence.

•Check the solder points on the radio and plotter connectors. Some connectors are

very small, increasing the likelihood of solder bridging.
