INSTRUCTION MANUAL

UHF TRANSCEIVER

iF4002

VHF TRANSCEIVER

iF3002

Limited functions only

The photo shows the

VHF transceiver.

FOREWORD

READ ALL INSTRUCTIONS carefully and completely before

using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This instruction

manual contains important operating instructions for the IC-F3002

VHF TRANSCEIVER and the IC-F4002 UHF TRANSCEIVER.

EXPLICIT DEFINITIONS

WORD DEFINITION

RDANGER! Personal death, serious injury or an explo-

sion may occur.

RWARNING! Personal injury, ﬁre hazard or electric shock

may occur.

CAUTION Equipment damage may occur.

NOTE

If disregarded, inconvenience only. No risk

of personal injury, ﬁre or electric shock.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorpo-

rated (Japan) in Japan, the United States, the United Kingdom, Germany, France,

Spain, Russia and/or other countries.

PRECAUTIONS

RDANGER! NEVER short the terminals of the battery pack.

RWARNING! NEVER hold the transceiver so that the antenna

is very close to, or touching exposed parts of the body, especially

the face or eyes, while transmitting. The transceiver will perform

best if the microphone is 5 to 10 cm away from the lips and the

transceiver is vertical.

RWARNING! NEVER operate the transceiver with a headset

or other audio accessories at high volume levels.

CAUTION: NEVER use non-Icom battery packs/chargers, to pre-

vent the loss of the transceiver’s good performance and warranty.

CAUTION: MAKE SURE the ﬂexible antenna and battery pack

are securely attached to the transceiver, and that the antenna and

battery pack are dry before attachment. Exposing the inside of the

transceiver to water will result in serious damage to the transceiver.

DO NOT push [PTT] when not actually intending to transmit.

DO NOT use or place the transceiver in direct sunlight or in areas

with temperatures below –25°C or above +55°C.

DO NOT modify the transceiver. The transceiver warranty does

not cover any problems caused by unauthorized modiﬁcation.

KEEP the transceiver away from heavy rain, and never immerse

it in the water. The transceiver meets IP54* requirements for dust-

protection and splash resistance. However, once the transceiver

has been dropped, dust-protection and splash resistance cannot

be guaranteed because of possible damage to the transceiver’s

case or the waterproof seal.

* Only when the battery pack/case and jack cover are attached.

MAKE SURE to turn the transceiver power OFF before connect-

ing the supplied/optional equipment.

iii

TABLE OF CONTENTS

FOREWORD ..................................................................................i

EXPLICIT DEFINITIONS................................................................i

PRECAUTIONS.............................................................................ii

TABLE OF CONTENTS................................................................ iii

1 ACCESSORIES....................................................................1–4

 ■ Supplied accessories ............................................................1

 ■ Accessory attachments.........................................................1

2 PANEL DESCRIPTION ......................................................5–11

 ■ Front, top and side panels.....................................................5

 ■ LED indicator ........................................................................7

 ■ Programmable function keys.................................................8

3 BASIC OPERATION.........................................................12–22

 ■ Turning power ON ...............................................................12

 ■ Channel selection ...............................................................13

 ■ Call procedure.....................................................................14

 ■ Receiving and transmitting..................................................15

 ■ Setting the microphone gain ...............................................18

 ■ Setting the squelch level .....................................................19

 ■ Output power level selection ...............................................20

 ■ Priority A channel selection.................................................20

 ■ MDC 1200 system operation ..............................................20

 ■ Emergency Call...................................................................21

 ■ Lone Worker Emergency Call .............................................22

4 BATTERY CHARGING.....................................................23–31

 ■ Caution (for the BP-264 ni-mh battery) ..............................23

 ■ Caution (for the BP-265 li-ion battery)...............................25

 ■ Battery chargers..................................................................28

5 BATTERY CASE ....................................................................32

 ■ Optional battery case (BP-263)...........................................32

6 OPTIONS..........................................................................33–38

 ■ VOX function .......................................................................36

7 DOC..................................................................................39–40

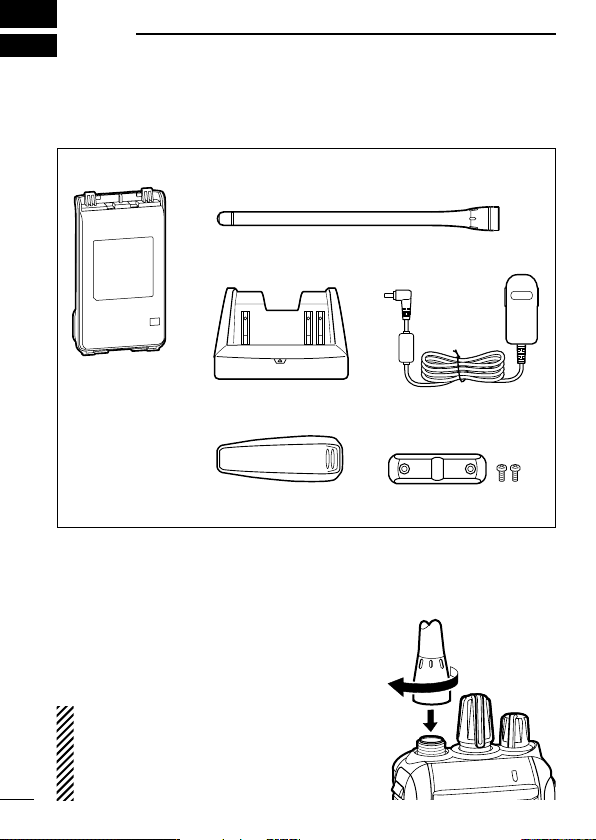

■Supplied accessories

The following accessories are supplied with the transceiver.

Flexible antenna

(This illustration is for the VHF type.)

Battery pack*

Belt clip Jack cover

(with screws)

Battery charger* AC adapter*

* Not supplied, or the shape is different, depending on the version.

■Accessory attachments

DFlexible antenna

Connect the ﬂexible antenna to the an-

tenna connector.

CAUTION:

•

NEVER HOLD just the antenna

when carrying the transceiver.

• Transmitting without an antenna will

damage the transceiver.

1ACCESSORIES

ACCESSORIES

DBelt clip

To attach the belt clip:

➥Slide the belt clip in the direction of the arrow until the belt clip

locks in place, and makes a ‘click’ sound.

Battery pack

Belt clip

To detach the belt clip:

qRemove the battery pack from the transceiver, if it is attached.

(p. 3)

wLift the tab up (q), and slide the belt clip in the direction of the

arrow (w).

Tab

1ACCESSORIES

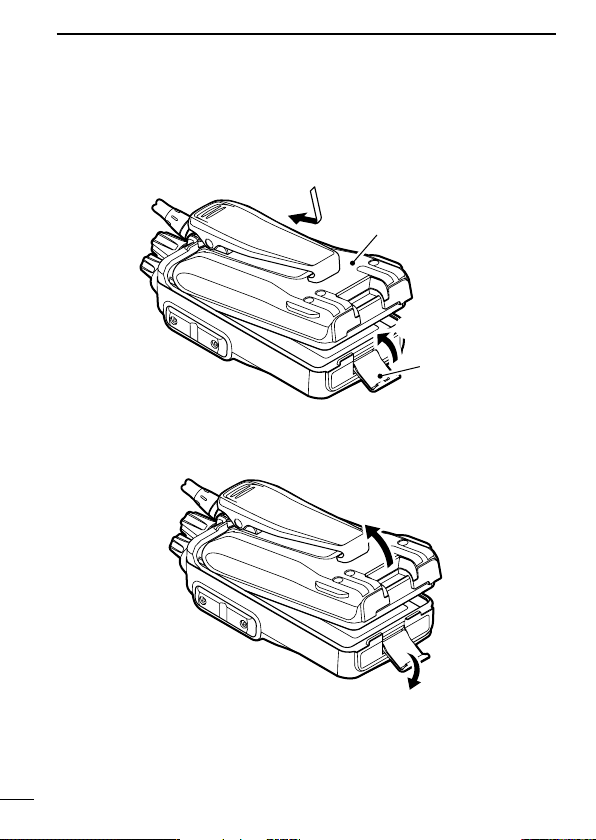

DBattery pack/case

To attach the battery pack/case:

Fit the battery pack/case in the direction of the arrow (q), then

close.

w Hook the latch until it makes a ‘click’ sound (w).

Latch

Battery pack/case

To remove the battery pack/case:

Unhook the latch (e), and lift up the

battery pack/case

in the

direction of the arrow (r).

Be careful! The latch is tightly locked, so use caution when re-

leasing it. DO NOT use your ﬁnger nail. Use the edge of a coin or

screwdriver tip to carefully release it.

ACCESSORIES

NEVER remove or attach the

battery pack/case

when the trans-

ceiver is wet or soiled. This may result in water or dust getting into

the transceiver,

battery pack/case,

and may result in them being

damaged.

NOTE: Keep the battery terminals clean. It’s a good idea to clean

the battery terminals once a week.

DJack cover

Attach the jack cover when the optional equipment is not used.

To attach the jack cover:

qAttach the jack cover to the

[SP MIC] jack.

wTighten the screws.

To detach the jack cover:

eRemove the screws with a

phillips screwdriver.

rDetach the jack cover to con-

nect the optional equipment.

2PANEL DESCRIPTION

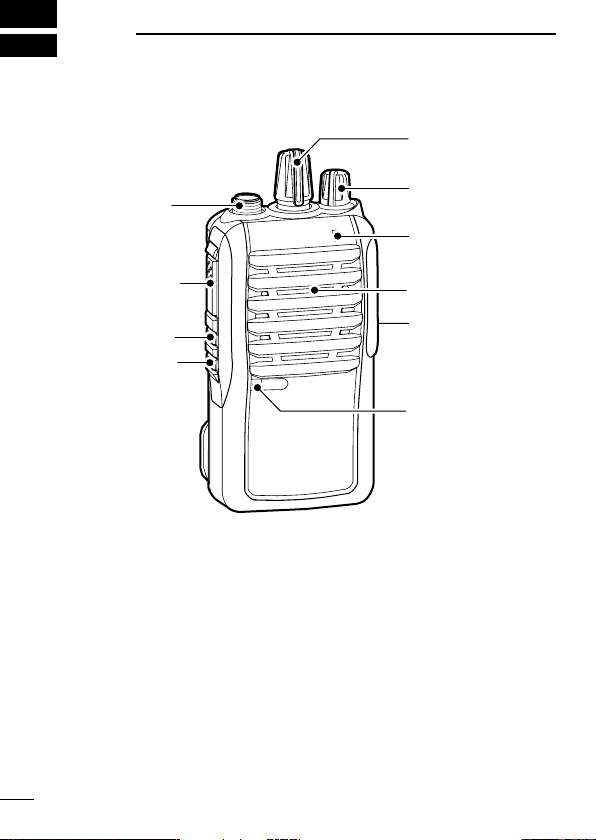

■Front, top and side panels

Microphone

Speaker

tLOWER KEY

UPPER KEY

PTT SWITCH

ANTENNA

CONNECTOR

ROTARY

SELECTOR

LED INDICATOR

VOLUME

CONTROL

SPEAKER-

MICROPHONE

JACK

qROTARY SELECTOR

Rotate to select the pre-programmed memory channels.

wVOLUME CONTROL [VOL]

Rotate to turn the power ON/OFF, and adjust the audio level.
