INSTRUCTION MANUAL

UHF dPMR HANDHELD TRANSCEIVER

iF4102D

VHF dPMR HANDHELD TRANSCEIVER

iF3102D

The photo shows

the VHF transceiver.

FOREWORD

READ ALL INSTRUCTIONS carefully and completely before

using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This instruction

manual contains important operating instructions for the IC-F3102D

VHF dPMR HANDHELD TRANSCEIVER and the IC-F4102D UHF

dPMR HANDHELD TRANSCEIVER.

This instruction manual includes some functions which are us-

able only when they are preset by your dealer. Ask your dealer

for details.

EXPLICIT DEFINITIONS

WORD DEFINITION

RDANGER! Personal death, serious injury or an explo-

sion may occur.

RWARNING! Personal injury, ﬁre hazard or electric shock

may occur.

CAUTION Equipment damage may occur.

NOTE

If disregarded, inconvenience only. No risk

of personal injury, ﬁre or electric shock.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorpo-

rated (Japan) in Japan, the United States, the United Kingdom, Germany, France,

Spain, Russia and/or other countries.

IDAS is trademark of Icom Incorporated (Japan).

dPMR and the dPMR logo are trademarks of the dPMR MoU Association.

All other products or brands are registered trademarks or trademarks of their re-

spective holders.

VOICE CODING TECHNOLOGY

The AMBE+2™ voice coding Technology embodied in this product

is protected by intellectual property rights including patent rights,

copyrights and trade secrets of Digital Voice Systems, Inc. This

voice coding Technology is licensed solely for use within this Com-

munications Equipment. The user of this Technology is explicitly

prohibited from attempting to extract, remove, decompile, reverse

engineer, or disassemble the Object Code, or in any other way

convert the Object Code into a human-readable form. U.S. Patent

Nos.

#5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365,

#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,

#5,247,579, #5,226,084 and #5,195,166.

iii

PRECAUTIONS

RDANGER! NEVER short the terminals of the battery pack.

RDANGER! Use and charge only speciﬁed Icom battery packs

with Icom radios or Icom chargers. Only Icom battery packs are

tested and approved for use with Icom radios or charged with Icom

chargers. Using third-party or counterfeit battery packs or chargers

may cause smoke, ﬁre, or cause the battery to burst.

RWARNING! NEVER hold the transceiver so that the antenna

is very close to, or touching exposed parts of the body, especially

the face or eyes, while transmitting. The transceiver will perform

best if the microphone is 5 to 10 cm away from the lips and the

transceiver is vertical.

RWARNING! NEVER operate the transceiver with a headset

or other audio accessories at high volume levels. Hearing experts

advise against continuous high volume operation. If you experience

a ringing in your ears, reduce the volume level or discontinue use.

RWARNING! NEVER operate the transceiver while driving a

vehicle. Safe driving requires your full attention—anything less may

result in an accident.

CAUTION: MAKE SURE the ﬂexible antenna and battery pack

are securely attached to the transceiver, and that the antenna and

battery pack are dry before attachment. Exposing the inside of

the transceiver to water will result in serious damage to the trans-

ceiver.

DO NOT operate the transceiver near unshielded electrical blast-

ing caps or in an explosive atmosphere.

DO NOT push [PTT] when not actually intending to transmit.

PRECAUTIONS

DO NOT use or place the transceiver in direct sunlight or in areas

with temperatures below –25°C or above +55°C.

DO NOT modify the transceiver. The transceiver warranty does

not cover any problems caused by unauthorized modiﬁcation.

DO NOT use harsh solvents such as benzine or alcohol when

cleaning, as they will damage the transceiver surfaces.

BE CAREFUL! The transceiver will become hot when operating

it continuously for long periods of time.

KEEP the transceiver away from heavy rain, and never immerse

it in the water. The transceiver meets IP54* requirements for dust-

protection and splash resistance. However, once the transceiver

has been dropped, dust-protection and splash resistance cannot

be guaranteed because of possible damage to the transceiver’s

case or the waterproof seal.

* Only when the battery pack/case and jack cover are attached.

MAKE SURE to turn the transceiver power OFF before connect-

ing the supplied/optional equipment.

TABLE OF CONTENTS

FOREWORD ........................................................................................ i

EXPLICIT DEFINITIONS...................................................................... i

VOICE CODING TECHNOLOGY ........................................................ ii

PRECAUTIONS.............................................................................. iii, iv

TABLE OF CONTENTS................................................................... v, vi

1 ACCESSORIES ......................................................................... 1–4

 ■ Supplied accessories.................................................................. 1

 ■ Accessory attachments .............................................................. 1

2 PANEL DESCRIPTION ............................................................ 5–13

 ■ Front, top and side panels .......................................................... 5

 ■ LED indicator .............................................................................. 7

 ■ Programmable function keys ....................................................10

3 BASIC OPERATION .............................................................. 14–26

 ■ Turning ON the power............................................................... 14

 ■ Channel selection ..................................................................... 15

 ■ Call procedure .......................................................................... 16

 ■ Receiving and transmitting ....................................................... 17

 ■ Setting the microphone gain..................................................... 20

 ■ Setting the squelch level........................................................... 21

 ■ Setting the Beep level............................................................... 22

 ■ Setting the Ringer level............................................................. 23

 ■ Output power level selection..................................................... 24

 ■ Priority A channel selection ...................................................... 24

 ■ Lone Worker Emergency Call................................................... 25

 ■ Emergency Call ........................................................................ 26

4 dPMR OPERATION ............................................................... 27–32

 ■ dPMR operation........................................................................ 27

 ■ Receiving a call......................................................................... 28

 ■ Transmitting a call ..................................................................... 30

 ■ Position data transmission........................................................ 32

 ■ Status message transmission................................................... 32

 ■ Scrambler function.................................................................... 32

5 BATTERY CHARGING .......................................................... 33–43

 ■ Caution (for the BP-264 ni-m h b at t e r y ).................................... 33

 ■ Caution (for the BP-265 Li-ion b at t e r y ) ................................... 35

 ■ Battery chargers ....................................................................... 38

6 BATTERY CASE .......................................................................... 44

 ■ Optional battery case (BP-263) ................................................ 44

7 OPTIONS ............................................................................... 45–50

 ■ VOX function ............................................................................. 48

8 COUNTRY CODE LIST................................................................ 51

TABLE OF CONTENTS

■Accessory attachments

DFlexible antenna

Connect the ﬂexible antenna to the an-

tenna connector.

CAUTION:

• NEVER HOLD just the antenna

when carrying the transceiver.

• Transmitting without an antenna will

damage the transceiver.

■Supplied accessories

The following accessories are supplied with the transceiver.

1ACCESSORIES

Battery pack*

Belt clip* Jack cover

(with screws)

Battery charger*AC adapter*

* Not supplied, or the shape is different, depending on the version.

Flexible antenna

(This illustration is for the VHF type.)

ACCESSORIES

DBelt clip

To attach the belt clip:

➥Slide the belt clip in the direction of the arrow until the belt clip

locks in place, and makes a ‘click’ sound.

Battery pack

Belt clip

To detach the belt clip:

qRemove the battery pack from the transceiver, if it is attached.

(p. 3)

wLift the tab up (q), and slide the belt clip in the direction of the

arrow (w).

Ta b

1ACCESSORIES

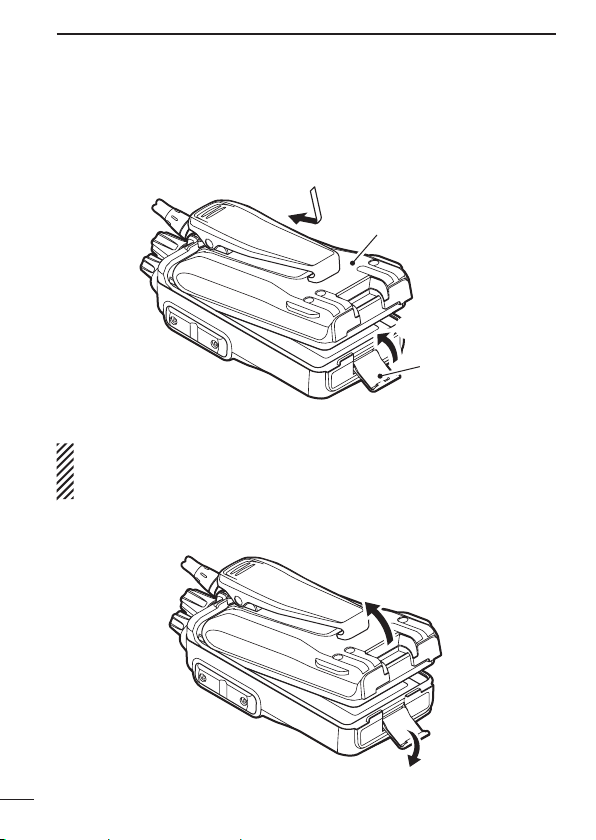

DBattery pack or case

To attach the battery pack or case:

q Fit the battery pack/case in the direction of the arrow, then close

it.

w Hook the latch until it makes a ‘click’ sound.

Latch

Battery pack/case

To remove the battery pack/case:

Be careful! The latch is tightly locked, so use caution when re-

leasing it. DO NOT use your ﬁnger nail. Use the edge of a coin

or screwdriver tip to carefully release it

qUnhook the latch.

wLift up the

battery pack/case

in the direction of the arrow.
