Icom IC-F15 Manual de usuario

INSTRUCTION MANUAL

UHF TRANSCEIVER

iF25/S

VHF TRANSCEIVER

iF15/S

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page A (1,1)

FOREWORD

READ ALL INSTRUCTIONS carefully and completely before

using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This instruction

manual contains important operating instructions for the IC-F15/

F15S

VHF TRANSCEIVER

and IC-F25/F25S

UHF TRANSCEIVER

EXPLICIT DEFINITIONS

OPERATING NOTES

• When transmitting with a portable radio, hold the radio in a vertical

position with its microphone 5 to 10 centimeters away from your

mouth. Keep the antenna at least 2.5 centimeters from your head

and body.

• If you wear a portable two-way radio on your body, ensure that the

antenna is at least 2.5 centimeters from your body when transmit-

ting.

WORD DEFINITION

RWARNING Personal injury, fire hazard or electric shock

may occur.

NOTE If disregarded, inconvenience only. No risk

of personal injury, fire or electric shock.

CAUTION Equipment damage may occur.

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page i (1,1)

PRECAUTION

RWARNING! NEVER hold the transceiver so that the antenna

is very close to, or touching exposed parts of the body, especially

the face or eyes, while transmitting. The transceiver will perform

best if the microphone is 5 to 10 cm away from the lips and the

transceiver is vertical.

RWARNING! NEVER operate the transceiver with a headset

or other audio accessories at high volume levels.

CAUTION! NEVER short the terminals of the battery pack.

NEVER connect the transceiver to a power source other than the

BP-230N or BP-232N. Such a connection will ruin the trans-ceiver.

DO NOT push the PTT when not actually desiring to transmit.

AVOID using or placing the transceiver in direct sunlight or in

areas with temperatures below –25°C or above +55°C.

DO NOT modify the transceiver for any reason.

MAKE SURE the ﬂexible antenna and battery pack are securely

attached to the transceiver, and that the antenna and battery pack

are dry before attachment. Exposing the inside of the transceiver

to water will result in serious damage to the transceiver.

The use of non-Icom battery packs/chargers may impair transceiver

performance and invalidate the warranty.

Icom, Icom Inc. and the logo are registered trademarks of Icom Incorpo-

rated (Japan) in the United States, the United Kingdom, Germany, France, Spain,

Russia and/or other countries.

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page ii (1,1)

iii

TABLE OF CONTENTS

FOREWORD ……………………………………………………………… i

EXPLICIT DEFINITIONS ………………………………………………… i

OPERATING NOTES ……………………………………………………… i

PRECAUTION …………………………………………………………… ii

TABLE OF CONTENTS ………………………………………………… iii

1 ACCESSORIES ……………………………………………………… 1–5

‘Supplied accessories………………………………………………… 1

‘Accessory attachments……………………………………………… 2

2 PANEL DESCRIPTION …………………………………………… 6–11

‘Front, top and side panels ………………………………………… 6

‘LED indicator ………………………………………………………… 8

‘Programmable function keys ……………………………………… 9

3 CONVENTIONAL OPERATION ………………………………… 12–17

‘Turning power ON ………………………………………………… 12

‘Channel selection ………………………………………………… 12

‘Call procedure ……………………………………………………… 13

‘ Receiving and transmitting ……………………………………… 14

‘ Scrambler function ………………………………………………… 16

‘ Setting the squelch level ………………………………………… 16

‘ Man Down Emergency Call ……………………………………… 17

‘ Emergency Call …………………………………………………… 17

4 OPTIONAL UNIT INSTALLATION……………………………… 18–19

‘Optional unit installation …………………………………………… 18

‘Scrambler unit installation ………………………………………… 19

5 BATTERY CHARGING ………………………………………… 20–27

‘Caution ……………………………………………………………… 20

‘Optional battery chargers ………………………………………… 23

6 BATTERY CASE ………………………………………………… 28–29

‘Optional battery case (BP-240) …………………………………… 28

7 SWIVEL BELT CLIP……………………………………………… 30–33

‘MB-93 contents …………………………………………………… 30

‘To attach …………………………………………………………… 30

‘To detach …………………………………………………………… 32

8 OPTIONS ………………………………………………………… 34–37

9 DOC………………………………………………………………… 38–39

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page iii (1,1)

ACCESSORIES

■Supplied accessories

The following accessories are supplied: Qty.

qFlexible antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

wBattery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

eBelt clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

rUnit cover (double-sided tape)* . . . . . . . . . . . . . . . . . . . . . . . .1

tJack cover (with screws) . . . . . . . . . . . . . . . . . . . . . . . . . . .1 set

* Use the unit cover as a spare. Ask your dealer for details.

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page 1 (1,1)

1ACCESSORIES

■Accessory attachments

DFlexible antenna

Connect the supplied flexible an-

tenna to the antenna connector.

CAUTION:

• NEVER HOLD by the antenna

when carrying the transceiver.

• Transmitting without an antenna

may damage the transceiver.

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page 2 (1,1)

ACCESSORIES

ïBattery pack

To attach the battery pack:

Slide the battery pack on the back of the transceiver in the direc-

tion of the arrow (q), then lock it with the battery release button.

• Slide the battery pack until the battery release button makes a ‘click’

sound.

To release the battery pack:

Push the battery release button in the direction of the arrow (w) as

shown below. The battery pack is then released.

NEVER release or attach the battery pack when the transceiver

is wet or soiled. This may result in water or dust getting into the

transceiver/battery pack and may result in the transceiver being

damaged.

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page 3 (1,1)

1ACCESSORIES

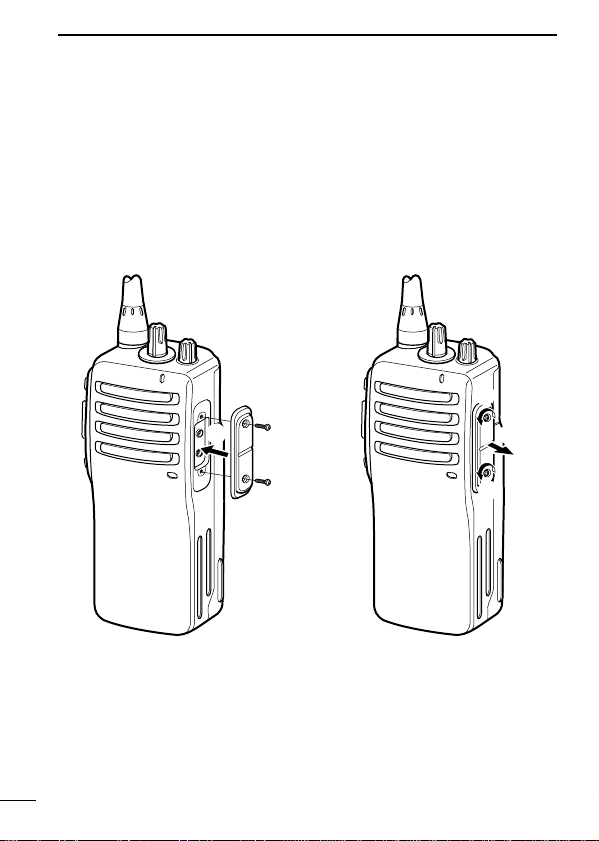

ïJack cover

Attach the jack cover when the optional speaker-microphone is not

used.

To attach the jack cover:

qAttach the jack cover to the

[SP MIC] connector.

wTighten the screws.

To detach the jack cover:

qUnscrew the screws with a

phillips screwdriver.

wDetach the jack cover for the

speaker-microphone connec-

tion.

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page 4 (1,1)

ACCESSORIES

DBelt clip

To attach the belt clip:

qRelease the battery pack if it is attached.

wSlide the belt clip in the direction of the arrow until the belt clip is

locked and makes a ‘click’ sound.

To detach the belt clip:

qRelease the battery pack if it is attached.

wPinch the clip (q), and slide the belt clip in the direction of the

arrow (w).

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page 5 (1,1)

2PANEL DESCRIPTION

■Front, top and side panels

qCHANNEL SW/SELECTOR

• IC-F15S/F25S: Toggle the channel switch to select the pre-pro-

grammed channel 1 or 2.

• IC-F15/F25 : Rotate the channel selector to select the pre-

programmed memory channels.

wVOLUME CONTROL [VOL]

Rotate to turn the power ON/OFF and adjust the audio level.

Microphone

Speaker

IC-F15S/F25S IC-F15/F25

IC-F15_F25-3.qxd 07.6.29 11:22 AM Page 6 (1,1)
