Icom IC-746PRO Manual de usuario

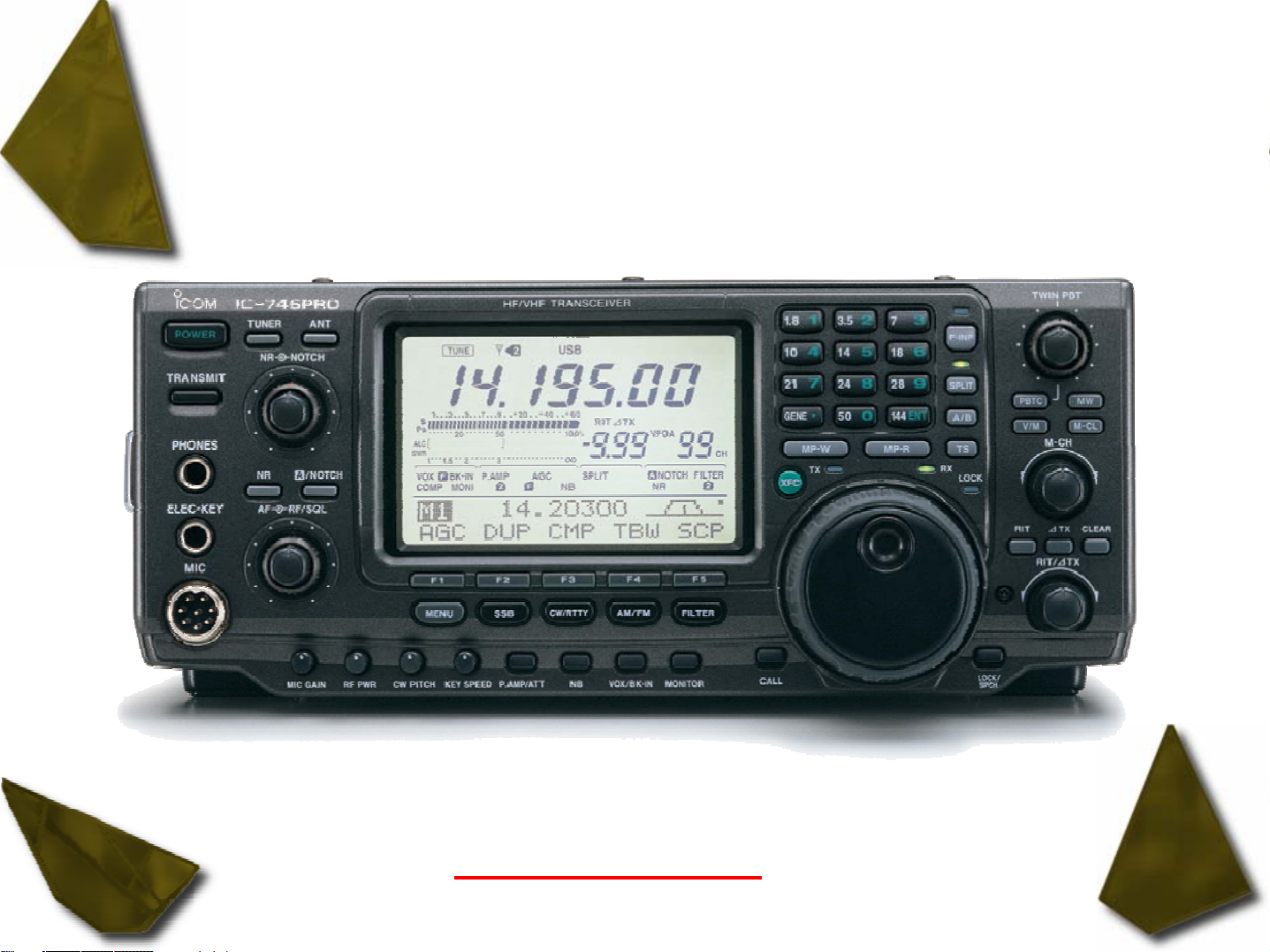

IC-746PRO

• Thank you for checking the interactive view of the

IC-746PRO.

– Use your mouse to navigate through the presentation by

clicking the desired control or function.

– To start this tour click either the Front Panel or Rear Panel

view.

– Use the arrow button at the bottom of each page to return

to the previous slide.

Front Panel
Rear Panel

Rear Panel
Front Panel

POWER Connector

• Accepts 13.8 V DC through the supplied DC

power cable (OPC-025D).

TX Indicator

• Lights red while transmitting.

RX Indicator

• Lights green while receiving a signal and

when the squelch is open.

Lock Indicator

• Lights when the dial lock function is activated.

• The dial lock function prevents accidental changes caused by

the tuning dial.

– Push [LOCK/SPCH] to turn the dial lock function ON and OFF.

– “LOCK” indicator lights while the dial lock function is activated.

– Lights while the dial lock function is activated.

Split Indicator

• Lights during split operation.

• Split frequency operation allows you to transmit and receive in the

same mode on two different frequencies.

• The split frequency operation is basically performed using 2

frequencies in VFO A and VFO B.

• [SPLIT] Lights during split operation

Frequency Input Indicator

• Lights during frequency input from the keypad is enable.

• The transceiver has a keypad for direct frequency.

– Push [F-INP].

• F-INP indicator lights

– Input the desired frequency.

– Input “•” (decimal point) between the MHz units and kHz units.

– Push [144 ENT] to enter the input frequency.

• To cancel the input, push [A/B] instead of [144 ENT].

– Lights when keypad input is activated.

POWER Switch

• Push momentarily to turn power ON.

– Turn the optional DC power supply ON in advance.

• Push for 1 sec. to turn power OFF.
