ICHRoboter Pool Cleaner Manual de usuario
Pool Cleaner
User Manual
For Warranty and Maintenance contact our
sales&Service Team on 1300886609 or Email
Service@roboticpoolcleaning.com.au
www.roboticpoolcleaning.com,au
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Catalogue
Sponge Wheel
4.5 Water Joint 10
218
218
Safty Warnings
Functions
Product Specifications
Parts List
Start Up Procedure
Proper Shut Down and Care
Remote Control
Maintenance
Packing List
Product Overview
19
6 Troubleshooting and Warning Lights
7 Safty Checklist
5.4 Filter Bag
5.3 Drive Belt
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
1 Safety Warnings
Please read this manual carefully before using the Pool Cleaner.
- 1 -
Before performing maintenance or service on the Pool Cleaner please
ensure the power is disconnected to avoid personal injury or property loss.
The Pool Cleaner is designed for use in swimming pools only. Any other
use is prohibited and will void manufacturers' warranty.
Do not swim in the pool whilst the Pool Cleaner is in use in order to avoid
personal injury.
Do not allow the Power Box to come in contact with water, and it is
recommended to be placed in a shady, dry and ventilated area.
When in use, the Power Supply and Caddy Cart must remain 3 meters
away from the edge of the pool.
Do not use the Pool Cleaner if there is a chance of thunder storm to avoid
personal injury.
Users are only permitted to perform maintenance described in this manual.
Any tampering with the Motor Box or Power Supply will void the
warranty.
Ensure the Pool Cleaner is fully submerged before turning the Power Box
on.
If the Pool Cleaner is not going be used for a long time, make sure to
disconnect the power, keep it clean and put it in a safe, dry and
well-Ventilated area.
If the Pool Cleaner stops working, please refer to
local distributor.
The optimum working temperature for the Pool Cleaner is between10℃
and 32℃, avoid direct sunlight when not in use.
The Pool Cleaner is suitable for the swimming pools no deeper than 3
meters or 2.5 meters when used with Floating Battery.
Lift the Pool Cleaner out of the water using the robot handles, do not lift
the iCleaner using the Floating Cable. Lifting via the cable voids warranty.
section 6
“Troubleshooting”. If you cannot find the root cause, please contact your
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
2 Product Overview
2.1 Functions
◇ Automatic Cleaning: the default mode is automatic, however, this can be overridden using the
Remote Control. When the Remote Control is not being used, the Pool Cleaner will return to
automatic mode.
◇ Overall Cleaning: the Pool Cleaner not only cleans the floor of your pool, it also cleans the
wall, at the same time, the Pool Cleaner will filter water, and the dirt will be collected into
Filter Bag.
◇ Timing Cleaning: you can select one of three cleaning time with Remote Control (0.5h, 1h or
2 h). The Pool Cleaner will shut down automatically when the selected cycle time is over.
◇ Manual Cleaning: the Remote Control can be used to clean specific areas immediately.
◇ Self Protection (out of water): Impeller decelerates to a stop in twenty five seconds if the Pool
Cleaner senses it is no longer in water, to prevent personal injury and to protect the water
pump.
◇ Stop Protection: the Pool Cleaner will stop if foreign matter retards the Impeller.
2.2 Product Parameters
Pool Cleaner
100~240VAC, 50-60Hz
200W
0.5Hr/1Hr/2Hrs
15m
3
18m /h
15m/min
Host: IP68
Model
Input Voltage
Rated Power
Cycle Time
Floating Cable Standard Length
Filter Bag
Water Pump Capacity
Moving Speed
Optimum Storage Temperature
Optimum Working Temperature
Dimension（L*W*H）
Grade of Waterproof
- 2 -
70μm
10~32℃
0~40℃
462.5*453*282mm
Gross Weight
574*574*413mm
Packing Measurement(L*W*H)
20.6kg
This appliance can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.Children shall
not play with the appliance.Cleaning and user maintenance shall not be made by
children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer,its service
agent or similarly qualified persons in order to avoid a hazard.
Power Box : IP23
Floating Battery: IP68
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
2.3 Parts List
Main Body Parts
Guide Vane
（Pic.2.3.2）
- 3 -
Drive Belt
Water Joint
Base Plate
Base Plate Latch
Fillter Net
Support Frame
Water Retaining Board
Motor Box
Filter Net
※
※ Power Box Parts
- 4 -
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
Upper Cover
Key Board
Bottom Cover
Power Socket
Cable Socket
POWER 0. 5h 1h 2h climb
(Pic.2.3.4)
Power Climb Timer Direction Light
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
1
1
9Floating Cable
Filter Bag 20μm
（Pic.3.2.1）
- 5 -
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
3 Packing List
Part Name
Unit Body
Power Box
Remote Control
Battery
Guide Vane
User Manual
Warranty Card
Certificate of Quality
Serial
Number Remarks
Host
Quantity
1
Spare parts
10
23465
1 0
9
78
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
4 Product Operation
4.1 Power Connection
※ Please connect the Floating Cable to the Cable Socket of Power Box (see Pic.
4.1.1), then connect the Power Box to an outside AC power of 100v/240v
50/60Hz (see Pic.4.1.2). For the complete connection guide please refer
Pic.4.1.3
Notices: Do not allow the Power Box to come in contact with water.
Please ensure the Power Box is kept in a shady, dry & ventilated area.(Refer Page 1.Safety Warning)
- 6 -
(Pic.4.1.1) (Pic.4.1.2) (Pic.4.1.1) (Pic.4.1.2)
2
3
2
3
5
6
2
3
2 Power Box
3 Floating cable
5 Power Socket
6 RCD
5
6
2
3
2 Power Box
3 Floating c abl e
5 Power Sock et
6 RCD
Outside AC
power
Power line
Cable
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.
4.2 Start Up Procedure
(1) When placing the Pool
Cleaner in the pool: you
mus t wo bbl e th e Po ol
Cleaner according Pic.4.2.1
to make sure the air inside is
released when you put the
Pool Cleaner in the water, so
it will automatically sink to
the bottom of pool.
（Pic.4.2.1）
- 7 -
（Pic.4.2.2）
(2)Start : press “ ”button,
LED “power” indicator and
“0.5H” cycle time LED will
illuminate(see pic.4.2.2).
you may select 0.5Hr, 1Hr or
2Hrs cleaning time using the
“ ” button on the Remote
Control and relative LED
indicators will illuminate on
the Power Box when selected.
HANGZHOU GAOYUE TECHNOLOGY CO., LTD.

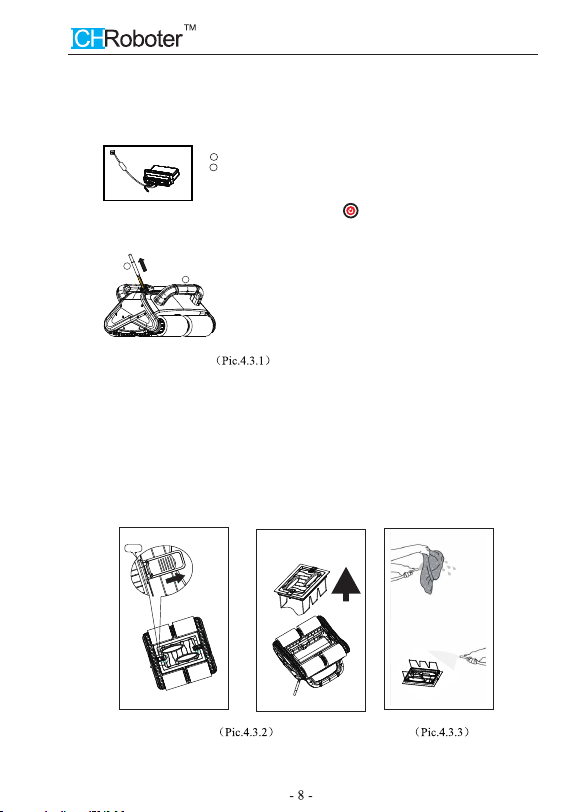

4.3 Proper Shut Down and Care4.3 Proper Shut Down and Care
(1) To Shut Down the Pool Cleaner:
turn the “ ” on the Power Box to the
off position, once the Pool Cleaner
finishes working, pull the Floating
Cable slowly until the Handle emerges
from the water (Pic.4.3.1), and then pull
the Pool Cleaner out of the pool by its
Handle.
(2) Clean Pool Cleaner: invert the Pool Cleaner gently onto the floor, unlock the
Latch on the Base Plate (Pic4.3.2) and remove the Filter Bag from Base Plate,
clean the Filter Bag (Pic.4.3.3). Once clean the Filter Bag on its frame,
reassemble the Base Plate and put it back into the Pool Cleaner once the Filter
Bag is dry.
(Note: when re-fitting the Filter Bag to the Base Plate, please ensure the long
sides of the Filter Bag are smooth to ensure an easy fit into the base of the Pool
Cleaner.)
6
4
OPEN
Pull
3
4 Floating Cab le
6 Handle
