IBT Technologies NMF94RM Manual de usuario

TECHNICAL MANUAL

Intel Q87 Express Chipset

Based

M/B for LGA 1150 Quad Core Ready

Intel Core Processor

Rev: 1.0

Release date: March 23, 2015

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

NMF94RM

ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iii

ENVIRONMENTAL PROTECTION ANNOUCEMENT........................................................... iii

USER’S NOTICE .................................................................................................................. iv

MANUAL REVISION INFORMATION ................................................................................... iv

ITEM CHECKLIST ................................................................................................................ iv

CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD

1-1 SPECIFICATION .................................................................................................... 1

1-2 LAYOUT DIAGRAM ............................................................................................... 2

CHAPTER 2 HARDWARE INSTALLATION

2-1 JUMPER SETTING................................................................................................. 5

2-2 CONNECTORS AND HEADERS ............................................................................ 7

2-2-1 REAR I/O BACK PANEL CONNECTORS ................................................. 7

2-2-2 MOTHERBOARD INTERNAL CONNECTORS.......................................... 8

2-2-3 HEADER PIN DEFINITION........................................................................ 10

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERNING SETUP .............................................................................................. 14

3-2 BIOS MENU SCREEN............................................................................................ 14

3-3 FUNCTION KEYS................................................................................................... 15

3-4 GETTING HELP...................................................................................................... 15

3-5 MENU BARS .......................................................................................................... 16

3-6 MAIN MENU ........................................................................................................... 16

3-7 ADVANCED MENU ................................................................................................ 17

3-8 CHIPSET MENU..................................................................................................... 22

3-9 BOOT MENU.......................................................................................................... 24

3-10 SECURITY MENU .................................................................................................. 25

3-11 SAVE & EXIT MENU .............................................................................................. 26

TABLE OF CONTENT

iii

Environmental Safety Instruction

 Avoid the dusty, humidity and temperature extremes. Do not place the product in

any area where it may become wet.

 0 to 40 centigrade is the suitable temperature. (The figure comes from the request

of the main chipset)

 Generally speaking, dramatic changes in temperature may lead to contact

malfunction and crackles due to constant thermal expansion and contraction from

the welding spots’ that connect components and PCB. Computer should go

through an adaptive phase before it boots when it is moved from a cold

environment to a warmer one to avoid condensation phenomenon. These water

drops attached on PCB or the surface of the components can bring about

phenomena as minor as computer instability resulted from corrosion and oxidation

from components and PCB or as major as short circuit that can burn the

components. Suggest starting the computer until the temperature goes up.

 The increasing temperature of the capacitor may decrease the life of computer.

Using the close case may decrease the life of other device because the higher

temperature in the inner of the case.

 Attention to the heat sink when you over-clocking. The higher temperature may

decrease the life of the device and burned the capacitor.

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize

pollution and ensure environment protection of mother earth, please recycle.

USER’S NOTICE

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED

OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN

PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE

DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME

WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY

KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,

INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE

REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE

USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT

INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Edition March 23, 2015

Item Checklist



Motherboard



User’s manual



DVD for motherboard utilities



Cable(s)



I/O back panel shield

Chapter 1

Introduction of the Motherboard

1-1 Specification

Spec Description

Design

 Micro-ATX form factor; PCB size: 24.4 x24.4 cm

Chipset

 Intel

Q87 Express Chipset

CPU Socket

 Supports Intel

Gen. Core™ i7, Core™ i5, Core™ i3 series,

Pentium

processor in LAG1150 Package

* for detailed CPU support information please visit our website

Memory Slot

 4* DDRIII RAM module slot

 Supporting four DDRIII 1600/1333MHz SDRAM Module expandable

to 32 GB (Maximum)

 Support dual-channel function

Expansion Slot

 1 * PCI-Express x16 slot (PE1)

 1 * PCI-Express x4 slot (PE2)

 1 * PCI-Express x1 slot (PCIE1)

 1 * Full-size Mini-PCIE slot (MPE)

Storage

 6 * SATAIII 6Gb/s ports support RAID 0, 1, 5, 10 function

 1* MSATA connector, share with SATA6 port

LAN Chip

 Integrated with Intel I211AT Gigabit PCI-E LAN chip & Intel I217LM

Gigabit LAN PHY chip

 Support Fast Ethernet LAN function of providing 10/100/1000Mbps

Ethernet data transfer rate

BIOS

 64M Bit DIP Flash ROM

Multi I/O

Rear Panel I/O:

 1* PS/2 keyboard port connector

 1* PS/2 mouse port connector

 1* HDMI port connector

 2* USB 3.0 port connector

 4* USB 2.0 port connector

 1*VGA port connector

 1*Serial port connector (*COM1 supports RS422/RS485 function)

 2*RJ-45 LAN connector

Internal I/O Connectors& Headers:

 1 *24-pin main power connector

 1 *8-pin 12V power connector

 1* 4-pin SATA power out connector

 1* Front panel header

 1* Speaker header+ 1* POWER LED header

 2* front panel USB 2.0 header (support 4* expansion USB 2.0 ports)

 1* front panel USB 3.0 header (support 2* expansion USB 3.0 ports)

 1* TPM 1.2 header

 1* COM port header

 1* GPIO header

 2* LAN Status indicator header

 1* VGA Port header (VGA2, shares with rear panel VGA port)

 1* SM_BUS header

 1* CPUFAN header

 4* SYSFAN header

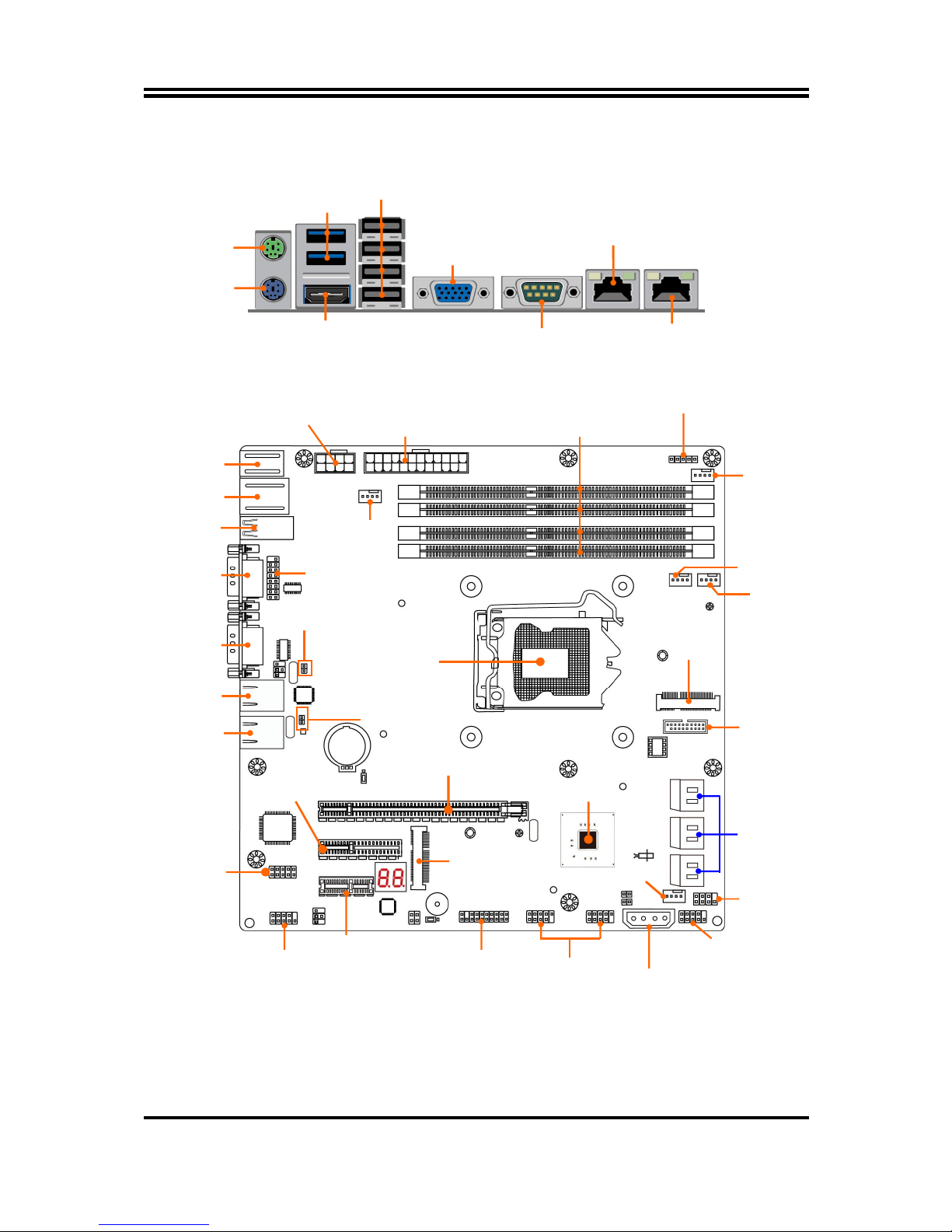

1-2 Layout Diagram

Rear IO Diagram

Motherboard Internal Diagram

*Note: VGA2 header shares with VGA1 port; MSATA slot shares with SATA6 port; i.e. only one of

them can work at a time.

LAN2

RJ-45 LAN Port

USB 3.0 Ports

VGA1 Port

12V Power Connector

LGA 1150

CPU Socket

COM1 Port

VGA1 Port

LAN2 RJ-45

LAN Port

USB 3.0 Header

PCI Express 2.0 x16

Slot (PE1)

Front Panel

Audio Header

TPM Header

Intel

Q87 Chipset

USB 2.0 Headers

Front Panel Header

DDRIII DIMM Slot x 4

SYS FAN1 Header

GPIO Header

CPUFAN1 Header

SATAIII Ports

HDMI Port

*MSATA Slot

(MSATA)

PWR LED Header &

Speaker Header

LAN1

RJ-45 LAN Port

PS/2 Mouse

Port

PS/2 Keyboard

Port

USB 2.0 Ports

PS/2 Mouse Port

Over Ps/2 Keyboard Port

USB 3.0 Ports

Over HDMI Port

COM1 Serial Port

USB 2.0 Ports

LAN1 RJ-45

LAN Port

Main Power Connector

*VGA2 Header

SMBUS Header

SYS FAN2 Header

SYS FAN3 Header

Full-size

Mini-PCIE Slot

(MPE)

PCI Express 2.0 x 4 Slot (PE2)

PCI Express 2.0 x 1 Slot (PCIE1)

SYSFAN4 Header

SATA Power Out

Connector

LAN1 Status LED Header

LAN2 Status LED Header

Motherboard Jumper Position

Jumper

Jumper Name Description

JBAT CMOS RAM Clear Function Setting 3-pin Block

JP1 COM1 Port Pin9 Function Select 4-pin Block

JP4 COM2 Header Pin9 Function Select 4-pin Block

JP5 Mini-PCIE Slot (MPE) Power VCC3.3V/3.3VSB Select

3-pin Block

JP3 ME_Feature Measure Function Select 2-pin Block

JP2 For Factory Test 2-pin Block

AT_COPEN

Pin 1-2: ATX Mode & AT Mode Select

Pin 3-4: Case Open Message Display Function

4-pin Block

JBAT

JP1

JP3

JP4

AT_COPEN

JP5

JP2

Connectors

Connector Name

ATXPWR ATX Power Connector

ATX12V1 ATX 12V Power Connector

SATA_PWR SATA Power Out Connector

SATA1/2/3/4/5/6 SATAIII Connector x6

KBMS(Top) PS/2 Mouse Port Connector

KBMS(Bottom) PS/2 Keyboard Port Connector

HDMI HDMI Port Connector

USB30 USB 3.0 Connector X2

USB20 USB 2.0 Connector X4

VGA1 VGA Port Connector

COM1 Serial Port Connector

LAN1/LAN2 RJ-45 LAN Connector X2

Headers

Header Name Description

JW_FP1 Front Panel Header:

PWR LED/

HDD LED /Power Button /Reset

9-pin Block

SPK-LED Speaker Header &

Power LED

Header

7-pin Block

FP_USB1/ FP_USB2 USB 2.0 Header 9-pin Block

TPM1 TPM 1.2 Header 19-pin Block

COM2 Serial Port Header 9-pin Block

GPIO1 GPIO Header 10-pin Block

LAN1_LED1/ LAN2_LED2 LAN Status LED Header 2-pin Block

VGA2 VGA Port Connector 15-pin Block

FP_USB30 USB 3.0 Header 19-pin Block

SMBUS1 SMBUS Header 4-pin Block

CPUFAN1 CPUFAN Header 4-pin Block

SYSFAN1/2/3/4 SYSFAN Header 4-pin Block

Chapter 2

Hardware Installation

2-1 Jumper Setting

JBAT (3-pin): Clear CMOS Function Settings

2-3 Closed: Clear CMOS.

JBAT

1-2 Closed: Normal;

JP1 (4-pin): COM1 Port Pin9 Function Select

JP1→COM1 Port

4-6 Closed:

RI= +12V.

3-4 Closed:

RI= +5V;

2-4 Closed:

RI=RS232;

JP4 (4-pin): COM2 Header Pin9 Function Select

JP4→COM2 Port

4-6 Closed:

RI= +12V.

3-4 Closed:

RI= +5V;

2-4 Closed:

RI=RS232;

JP5 (3-pin): Mini-PCIE (MPE) Slot VCC 3.3V/3.3VSB Select

2-3 Closed ：MPE Slot VCC= 3.3VSB.

JP5→Mini-PCIE (MPE) Slot

1-2 Closed ： MPE Slot VCC= 3.3V;

JP3 (2-pin): ME Security Measure Function Select

1-2 Closed:Disable Security Measures in

the Flash Descriptor(Override).

JP3

1-2 Open:Enable Security Measures

in the Flash Descriptor(Default) ;

Pin 1 & 2 of AT_COPEN (4-pin): AT Mode Select

AT_

COPEN(Pin 1&2)

→

AT Mode Select

1-2 Close: AT Mode Selected.

1-2 Open: ATX Mode Selected;

Pin 1

*ATX Mode Selected: Press power button to power on after power input ready;

AT Mode Selected: Directly power on as power input ready.

Tabla de contenidos

Otros manuales de Placa madre de IBT Technologies

IBT Technologies

IBT Technologies IB710 Manual de usuario

IBT Technologies

IBT Technologies MI889 Manual de usuario

IBT Technologies

IBT Technologies MB966 Manual de usuario

IBT Technologies

IBT Technologies MB877 Manual de usuario

IBT Technologies

IBT Technologies IBT999 Manual de usuario

IBT Technologies

IBT Technologies IB828 Manual de usuario

IBT Technologies

IBT Technologies IB880 Manual de usuario

IBT Technologies

IBT Technologies IB530 Manual de usuario

IBT Technologies

IBT Technologies IB798 Manual de usuario

IBT Technologies

IBT Technologies MI979 Series Manual de usuario

IBT Technologies

IBT Technologies MI952 Manual de usuario

IBT Technologies

IBT Technologies IB881 Manual de usuario

IBT Technologies

IBT Technologies MB968 Manual de usuario

IBT Technologies

IBT Technologies IB791 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

IBT Technologies

IBT Technologies IM-970 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
