IBM Power System LC922 Manual de usuario

IBM

Power System LC922

(9006-22P) Quick Install

Guide IBM

IBM®Power®System LC922 (9006-22P) Quick Install Guide

The IBM Knowledge Center is available online from: http://www.ibm.com/support/knowledgecenter/

POWER9/p9hdx/9006_22p_landing.htm.

vRead all precautions and instructions before you start working on key parts.

vUse normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM

recommends wearing gloves and an anti-static wrist strap to avoid possible damage to the equipment.

9006-22P parts

Figure 1. Rack final assembly

Rear ports

Figure 2. System parts

2

Table 1. Input and output ports

Identifier Description

1 USB 2.0 used for keyboard and mouse.

Certain USB drives might be too wide to fit properly into

the USB ports on the rear of the system. Test the fit of

your USB drive before proceeding.

2 Ethernet Intelligent Platform Management Interface

(IPMI)

3 Serial IPMI

4 Video Graphics Array (VGA) used for monitor. Only the

1024 x 768 at 60 Hz VGA setting is supported. Only up

to a 3-meter cable is supported. Only text-based

capability is supported.

Installing and Removing

Figure 4. Removing a power supply from the system

Figure 5. Releasing and opening the cover

Figure 3. Rear ports

3

Figure 6. Removing a front drive Figure 7. Removing the 3.5-inch drive from the tray

Figure 8. Removing a DOM

Figure 9. Removing a rear drive

4

Figure 10. Opening the rear drive tray

Figure 11. Disconnecting the drive signal cables the drive

power cables

Figure 12. Removing the disk drive backplane and screws

Figure 13. Disconnecting the drive signal cables the drive

power cables from the system backplane

5

Figure 14. Disconnecting the drive signal cables and the

drive power cables from the disk drive backplane

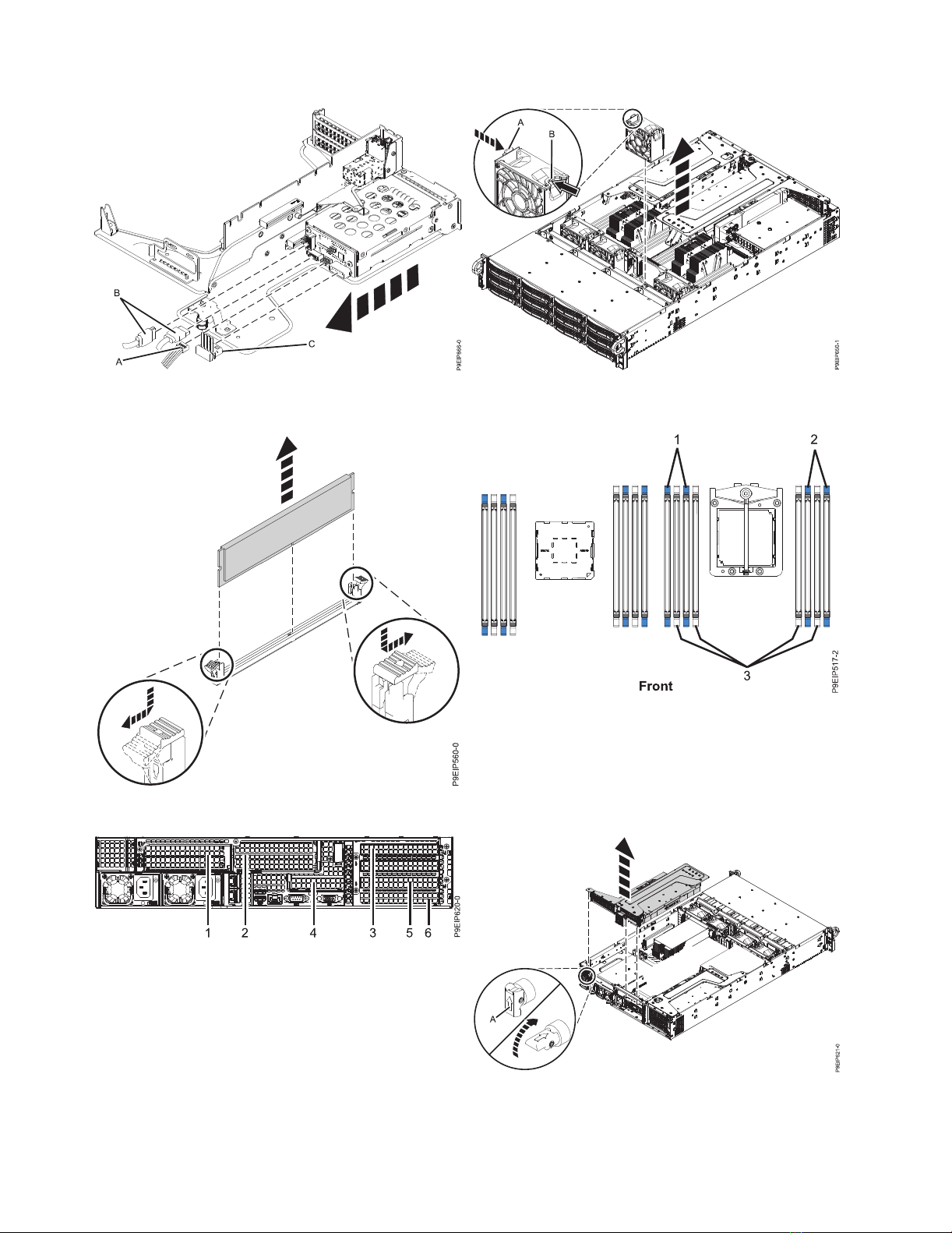

Figure 15. Removing a fan

Figure 16. Removing the memory DIMM

Figure 17. Single-processor plugging sequence

Figure 18. 9006-22P PCIe adapter positions

Figure 19. Removing the PCIe riser

6

Figure 20. Removing an adapter in position 1 from the

riser Figure 21. Removing a position 2 adapter from the riser

Figure 22. Removing position 1 riser card

Figure 23. Removing the PCIe riser Figure 24. Removing an adapter from the riser

7

Figure 25. Removing position 3, 5, or 6 riser card

Figure 26. Releasing the tail-stock

Figure 27. Screw locations Figure 28. Lifting out the system backplane

8

Figure 29. Opening the system processor module

packaging

Figure 30. Loosening the load arm screw of the heat sink

Figure 31. Lifting the heat sink from the load arm Figure 32. Lowering the removal tool onto the system

processor module

9

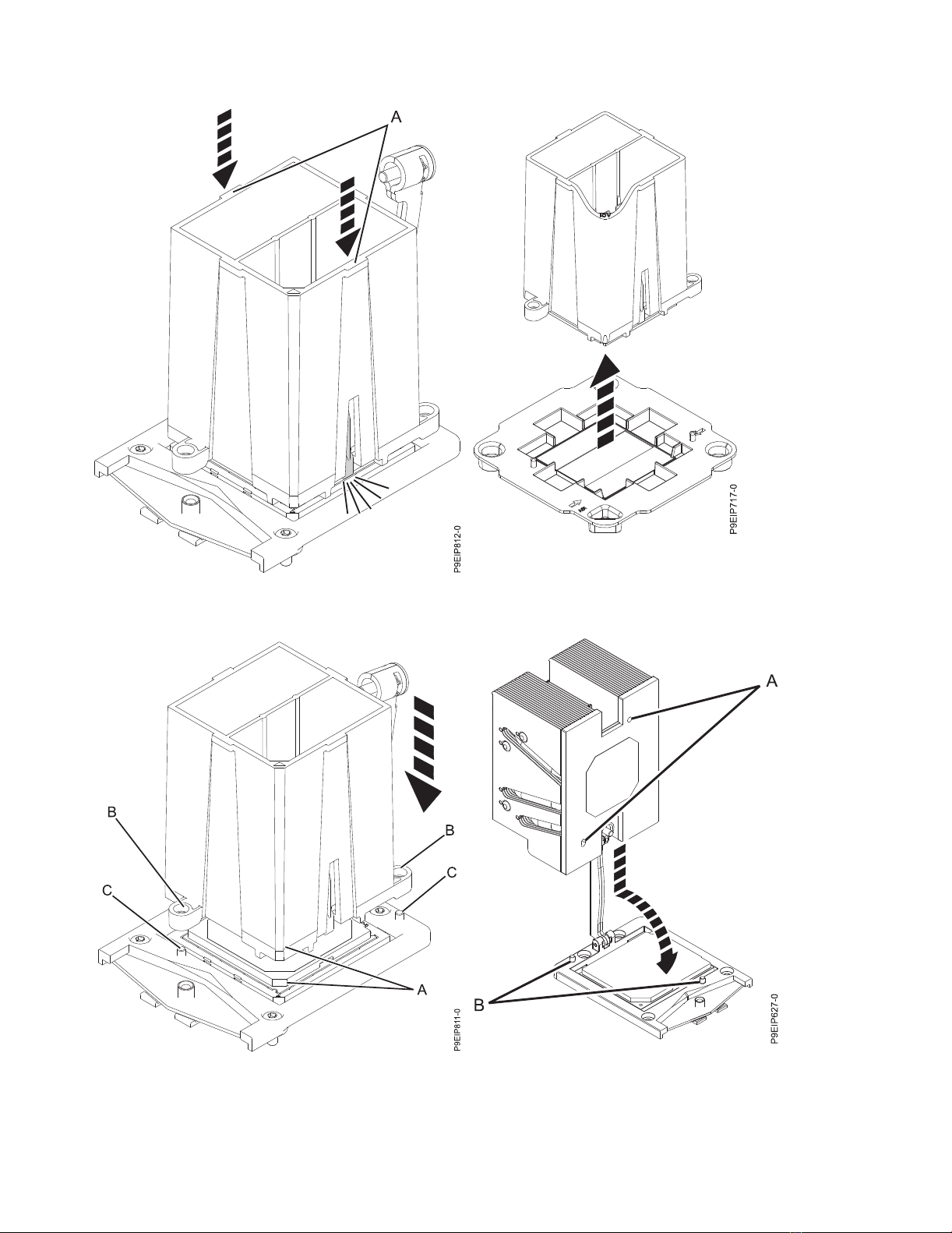

Figure 33. Locking the system processor module into the

tool

Figure 34. Lifting the system processor module from the

packaging tray

Figure 35. Installing the system processor module Figure 36. Installing the heat sink

10
