IBM®Power®System LC921 (9006-12P) Quick Install Guide

The IBM Knowledge Center is available online from: http://www.ibm.com/support/knowledgecenter/

POWER9/p9hdx/9006_12p_landing.htm.

vRead all precautions and instructions before you start working on key parts.

vUse normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM

recommends wearing gloves and an anti-static wrist strap to avoid possible damage to the equipment.

9006-12P parts

Figure 1. Rack final assembly

Figure 2. System parts

2

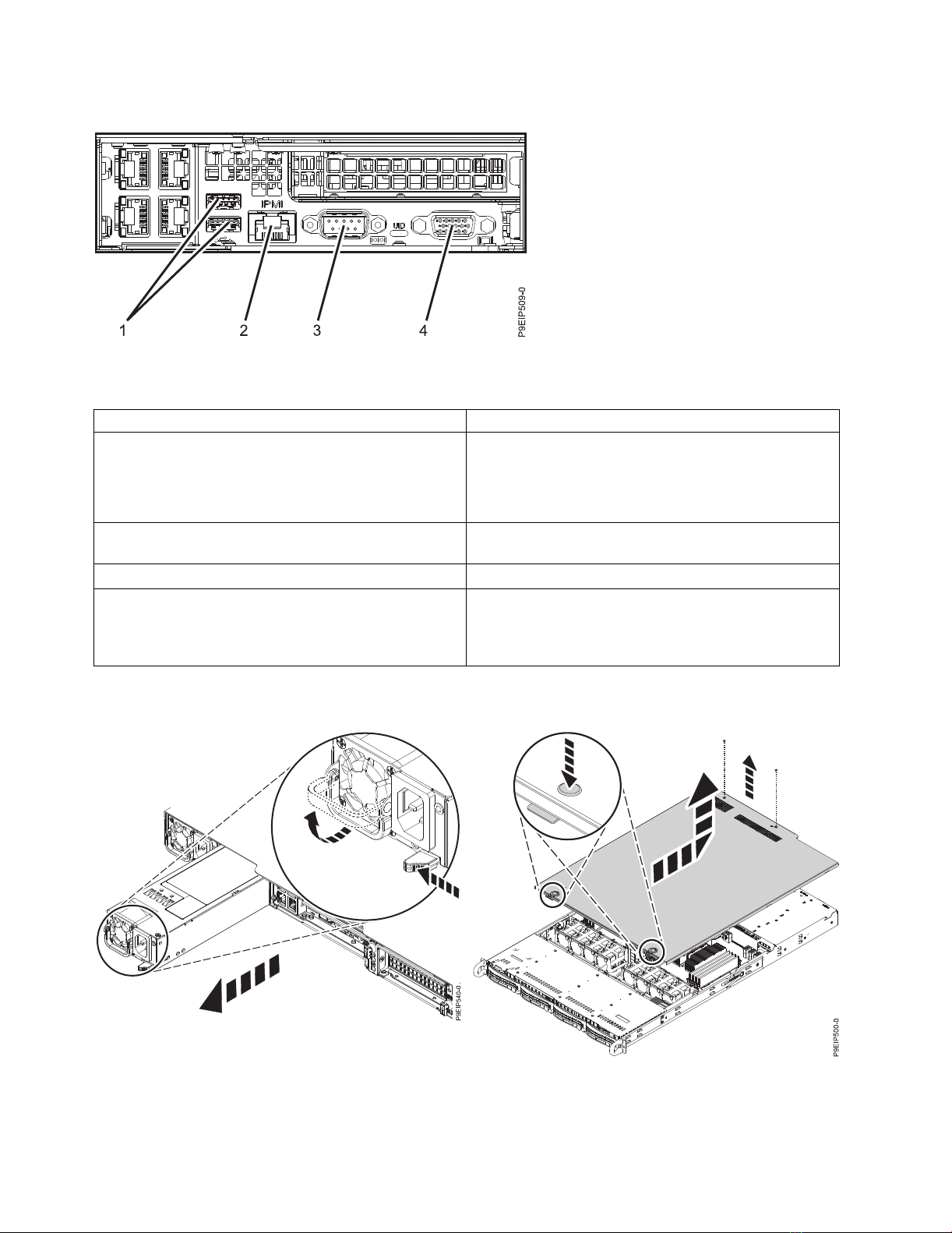

Rear ports

Figure 3. Additional system parts

3

Table 1. Input and output ports

Identifier Description

1 USB 2.0 used for keyboard and mouse.

Certain USB drives might be too wide to fit properly into

the USB ports on the rear of the system. Test the fit of

your USB drive before proceeding.

2 Ethernet Intelligent Platform Management Interface

(IPMI)

3 Serial IPMI

4 Video Graphics Array (VGA) used for monitor. Only the

1024 x 768 at 60 Hz VGA setting is supported. Only up

to a 3-meter cable is supported. Only text-based

capability is supported.

Installing and Removing

Figure 5. Removing a power supply from the system

Figure 6. Releasing and opening the cover

Figure 4. Rear ports

4

Figure 7. Removing a front drive Figure 8. Removing the 3.5-inch drive from the tray

Figure 9. Removing a DOM

Figure 10. Removing the disk drive backplane and screws

5

Figure 11. Removing the fan holder

Figure 12. Removing a fan

Figure 13. Disconnecting the fan cable

Figure 14. Aligning the fan holder

6

Figure 15. Removing the memory DIMM

Figure 16. Two-processor memory plugging sequence

Figure 17. 9006-12P PCIe adapter positions

Figure 18. Removing the PCIe riser

7

Figure 19. Removing the UIO Network screws

Figure 20. Removing a PCIe adapter from position 3 of

the riser

Figure 21. Removing a PCIe adapter from position 2 or 3

of the riser Figure 22. Removing the PCIe riser cards from the PCIe

adapter cage

8

Figure 23. Removing the processor socket screws from

the bottom of the chassis

Figure 24. Screw locations

Figure 25. Lifting out the system backplane

Figure 26. Loosening the load arm screw of the heat sink

9

Figure 27. Removing the heat sink

Figure 28. Locking the system processor module into the

tool

Figure 29. Installing the system processor module

Figure 30. Removing the system processor module tool

10
