IBM Power System IC922 (9183-22X)
Quick Install Guide
IBM
This 2021-04-12 edition applies to IBM® Power Systems servers that contain the POWER9™ processor and to all
associated models.
© Copyright International Business Machines Corporation 2020, 2021.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with
IBM Corp.
IBM Power® System IC922 (9183-22X) Quick Install
Guide
Read all precautions and instructions before you start working on the system and its parts.
Use normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM
recommends wearing gloves and an ESD wrist strap to avoid possible damage to the equipment.
The information about the 9183-22X system is available online in the IBM Knowledge Center: http://
www.ibm.com/support/knowledgecenter/9183-22X
© Copyright IBM Corp. 2020, 2021 1
2 IBM Power System IC922 (9183-22X) Quick Install Guide
Parts
Figure 1. Rack nal assembly
Table 1. Rack nal assembly part numbers
Index
number
Part number Units per
assembly
Description
1 1 Top access-cover assembly
2 01EM868 1 Slide rail kit - contains left and right slide rails and
attaching screws
3 1 Side channel
4 2 Screws
5 01EM895 1 Power switch and cables kit (includes power switch,
power switch cable, USB cable, left Electronic
Industries Association (EIA) bracket and right EIA
bracket)
© Copyright IBM Corp. 2020, 2021 3
Table 1. Rack nal assembly part numbers (continued)
Index
number
Part number Units per
assembly
Description
6 2 Screws
7 01EM895 1 Left EIA bracket
8 2 Screws
9 01EM868 1 Slide rail kit - contains left and right slide rails and
attaching screws
10 01EM869 1 Cable management arm assembly
Figure 2. System parts
4 IBM Power System IC922 (9183-22X) Quick Install Guide
Table 2. System parts
Index number Part number Units per
assembly
Description
11 0-4 PCI adapters. Use the feature type of the adapter to nd
the FRU number in PCIe adapter information by feature
type for the 9183-22X system.
12 01EM888 1 PCIe riser (riser 1 for PCIe adapter slots 8, 9, and 10)
Note: For more information about riser locations, see
9183-22X locations.
13 01EM906 1 PCIe riser (riser 0 for PCIe adapter slots 3, 4, and 5)
Note: For more information about riser locations, see
9183-22X locations.
14 01EM841 1 Air baffle
15 0-6 PCI adapters. Use the feature type of the adapter to nd
the FRU number in PCIe adapter information by feature
type for the 9183-22X system.
16 01EM892 1 Power distribution board
17 01EM899 1 Cable holder (left)
18 01EM839 6 Fan
19 01EM838 1 Fan cage assembly
20 01EM891 0-3 SAS and SATA drive backplane (each supports 8 SAS or
SATA drives)
21 01EM852 0-3 8-bay ller for drives
22 01EM843 0-24 Drive holder (carrier and ller)
22 01LU995 0-24 600 GB SAS disk drive
22 01LU996 0-24 1.2 TB SAS disk drive
22 01LU997 0-24 2.4 TB SAS disk drive
22 02YC527 0-24 240 GB SATA solid-state drive
22 02YC528 0-24 960 GB SATA solid-state drive
22 02YC529 0-24 1.92 TB SATA solid-state drive
22 02YC530 0-24 3.84 TB SATA solid-state drive
22 02YC531 0-24 3.84 TB SAS solid-state drive
23 01EM900 1 Cable holder (right)
24 01EM867 2 Power supply
Parts 5

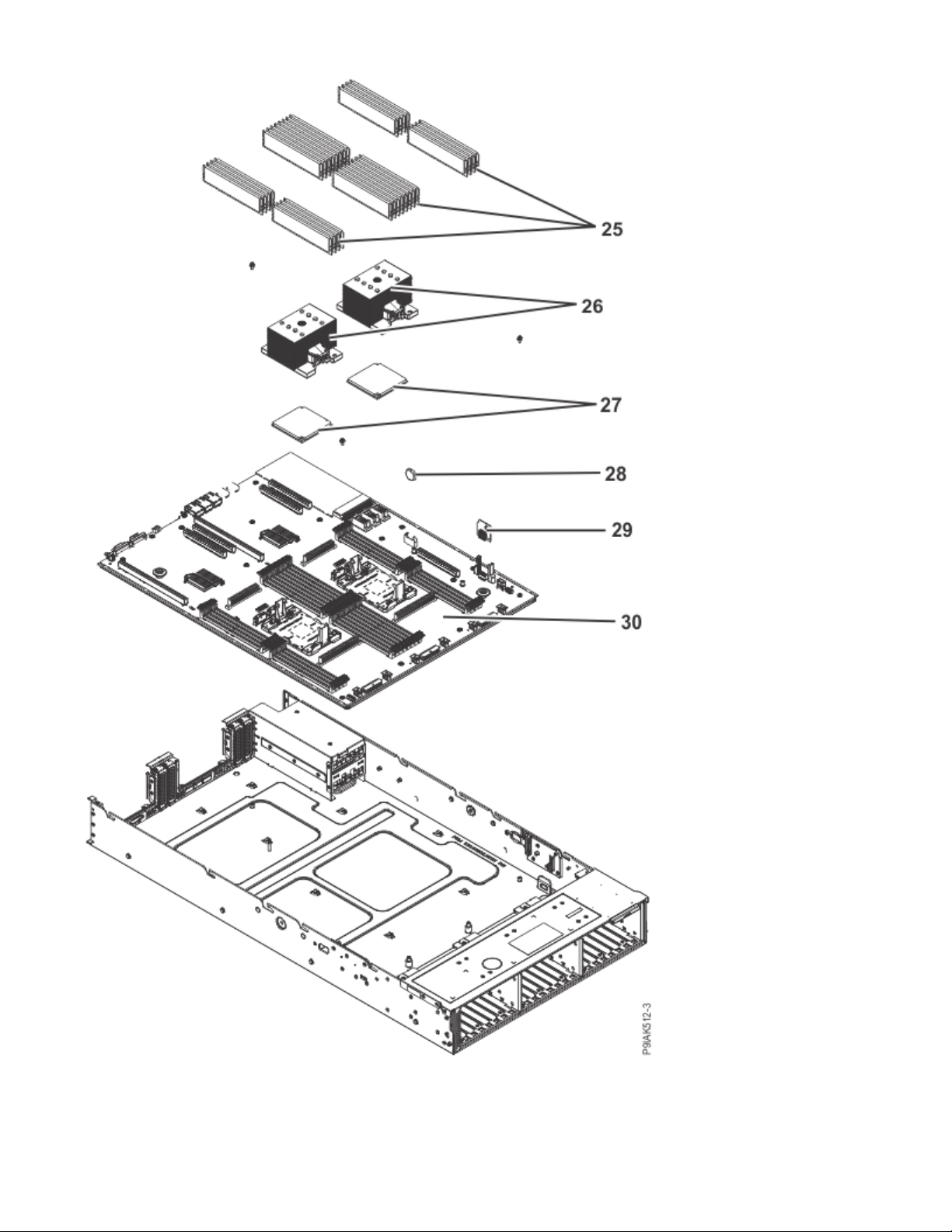

Figure 3. Additional system parts
6 IBM Power System IC922 (9183-22X) Quick Install Guide
Table 3. Additional system parts
Index
number
Part number Units per
assembly
Description
25 78P4197 4, 8, 12, 16, 24, or
32
16 GB, 2666 Mbps DDR4 RDIMM
25 78P4198 4, 8, 12, 16, 24, or
32
32 GB, 2666 Mbps DDR4 RDIMM
25 78P4199 4, 8, 12, 16, 24, or
32
64 GB, 2666 Mbps DDR4 RDIMM
26 01EM317 2 System processor heat sink kit (includes heat sink and
TIM)
27 01EM896 2 12 core 3.8 GHz system processor module kit (includes
system processor module, processor tray, 4 mm hex
driver, module replacement tool, air pump, TIM)
27 01EM897 2 16 core 4.0 GHz system processor module kit (includes
system processor module, processor tray, 4 mm hex
driver, module replacement tool, air pump, TIM)
27 01EM898 2 20 core 3.8 GHz system processor module kit (includes
system processor module, processor tray, 4 mm hex
driver, module replacement tool, air pump, TIM)
28 00RY544 1 Time-of-day battery (CR2032)
29 00VK865 1 Trusted platform module
30 01EM894 1 System backplane kit (includes system backplane on a
sheet, module removal tool, 4 mm hex key, air pump,
TIM, tweezers, CPU socket covers)
Table 4. Miscellaneous system parts
Description Part number Units per assembly
External USB DVD drive 01LU635 1
Parts 7
8 IBM Power System IC922 (9183-22X) Quick Install Guide
