PHYSICAL PLANNING INSTALLATION MANUAL

650 SYSTEM

This manual contains the information necessary for planning the installation

of a650 System .It should be carefully studied well in advance of planning a650

installation

In addition to the technical information needed for preinstallation planning,

there are recommendations and suggestions that will help to make aconvenient

and effective installation.

INTERNATIONAL BUSINESS MACHINES CORPORATION

SALES ENGINEERING DEPARTMENT

OCTOBER 1, 1957

(/>

CONTENTS

Page No

Introduction

General Description —

Space and Layout Requirements

.A.Space

B.Layout

Floor Construction

Area Cleanliness

A. Materials

B.Cleaning

Air Conditioning Requirements

A. Basic System

B.Tape System

C.Disk Storage System

D. Tape and Disk Storage System

E. Air Filtration

Tape Storage

A.Short Term Storage

B.Long Term Storage

Temperature and Humidity Recording Instruments

Customer Engineering Area

Connecting Cables

Power Distribution

Power Cords, Plug Connectors and Receptacles

Power Requirements

KVA and Current Requirements

Heat Dissipation

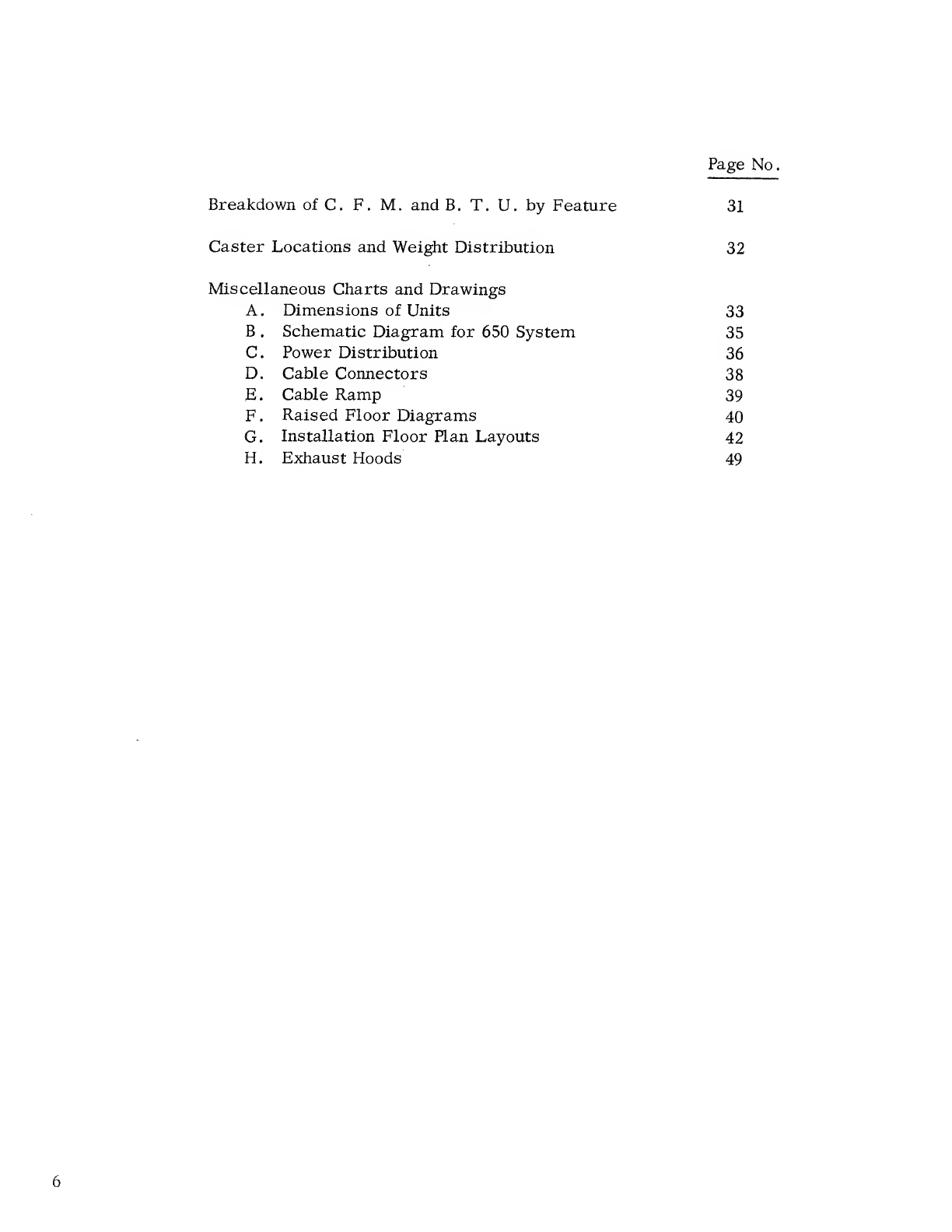

Page No

Breakdown of C. F. M. and B. T. U. by Feature 31

Caster Locations and "Weight Distribution 32

Miscellaneous Charts and Drawings

A. Dimensions of Units 33

B.Schematic Diagram for 650 System 35

C. Power Distribution 36

D. Cable Connectors 38

E. Cable Ramp 39

F. Raised Floor Diagrams 40

G. Installation Floor Plan Layouts 42

H. Exhaust Hoods 49

INTRODUCTION

Successful installation of a650 System requires considerable planning. Physical

installation planning should start at least twelve months before a650 System with

magnetic tapes and/or disk storage is scheduled for delivery. Six months of

advance planning- is usually adequate for a650 System with punched card input-

output and storage unit.

This physical planning manual should be carefully studied and consideration given

to the following items and their requirements:

1.Sufficient and suitable floor space

2. Floor loading

3. Power source

4. Air conditioning

5.Temperature and humidity controls

6. Customer Engineering service area

7. Tape storage

8.Unit arrangement for efficient customer operation

GENERAL DESCRIPTION

A650 Data Processing System is made up of acombination of several units

connected by cables

A650 Basic System must have:

650 Console Unit 1only

655 Power Unit 1only

These units may be installed:

407 Accounting Machine

533 Card Read Punch

537 Card Read Punch

653 Storage Unit 1only

A650 System with magnetic tapes and/or disk storage must have:

650 Console Unit 1only

652 Control Unit 1only

653 Storage Unit 1only

655 Power Unit 1only

727 Magnetic Tape Unit 1to 6

and/or

355 Disk Storage 1to 4

These units may be installed:

407 Accounting Machine

533 Card Read Punch

537 Card Read Punch

838 Inquiry Station

The 650 Console Unit has acontrol console and contains the magnetic drum and

the logical and arithmetic circuits .

The 652 Control Unit has an indicating panel and contains the power supply and

control circuits for the 727 and/or the 355 and 838 units.

The 653 Storage Unit has an indicating panel and may contain immediate access

storage, index registers and automatic floating- decimal arithmetic. This unit

with immediate access storage is anecessary component of atape system, and/or

disk storage system.
