I-CAT FLX Guía de instalación

Installation Training

I-6800-39

Installing the FLX

•There are two methods used for shipping the unit, assembled and non-

assembled.

•We will focus on the non-assembled method first.

Non-assembled Setup

1. With the help of an assistant, install the

lower plate under the two leg assemblies, as

shown.

2. Attach with mounting hardware, four SHCS

1/4-20 x 5 long with1/4” split washers, both

sides.

3. Remove both top covers (six mounting

screws).

4. With an assistant, lift overhead into place

on top of leg assemblies.

WARNING This scanner requires a two person lift. Failure to comply may cause bodily

injury. Two adults are required to assemble this scanner.

5. Ensure the pins on rear of the overhead are

seated into the holes on leg assemblies.

6. When seated properly, overhead locks into

place. To ensure safety, the overhead should

still be supported by an assistant until

mounted.

7. From rear of scanner, secure overhead with mounting hardware, two SHCS1/4-20 x 5/8

long with 1/4” split washers, both sides.

8.The scanner must be checked for

square, prior to installing the

mounting hardware at the top of the

overhead.

9.Hook a tape-measure on bottom

rear edge of scanner, as shown.

10.Run the tape diagonally to the

upper open corner, as shown and

record the measurement.

Measurement should be

approximately 65-3/8” [166cm].

11.Take the same measurement on

the opposite corners and record

measurement.

The two measurements must be

identical + 1/16” [1.6mm]. If

measurements are not within

tolerance, push the top of the

scanner to the right or left and re-

measure.

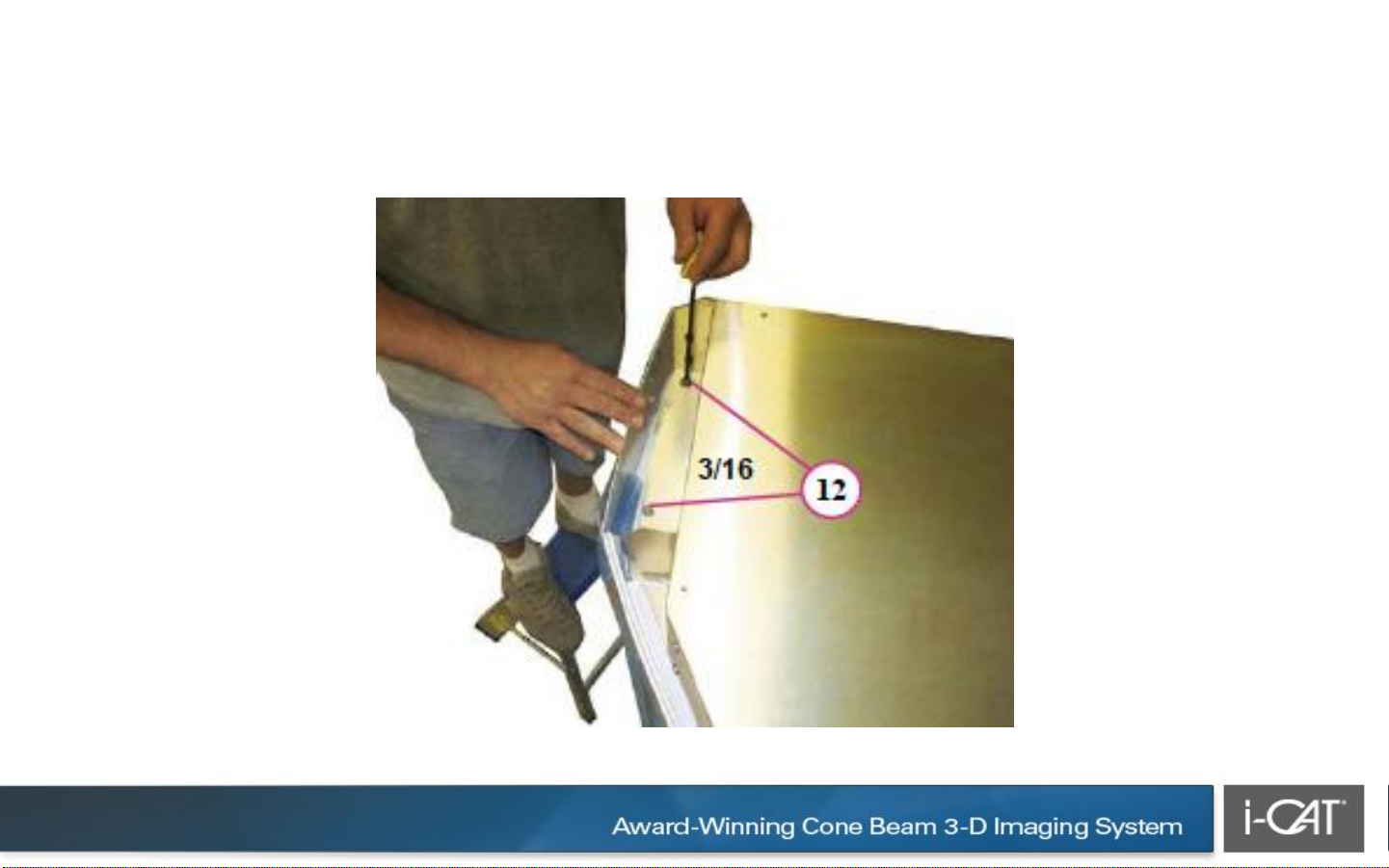

12. From top of scanner, secure overhead with mounting hardware, two SHCS 1/4-20 x

5/8 long with 1/4” split washers, both sides.

Assembled Setup

13. With the help of an assistant, tilt the

scanner to install the glides under the four

feet (corners of scanner).

14. Slide the scanner into place and remove

the glides.

15. Position patient chair on gantry base.

Ensure base frame centering screw is seated

within patient chair centering block.

16. Loosely secure patient chair to gantry (4

bolts). Do not tighten.

CAUTION Care must be taken when sliding the scanner into place. To prevent the

scanner from scratching the floor surface, place the four glides under the scanner feet.

17. Remove four long screws from red shipping plate. Keep shipping plate attached

with remaining hardware.

•Do NOT discard mounting hardware. Long screws used for receptor assembly

mounting and short screws for source assembly.
