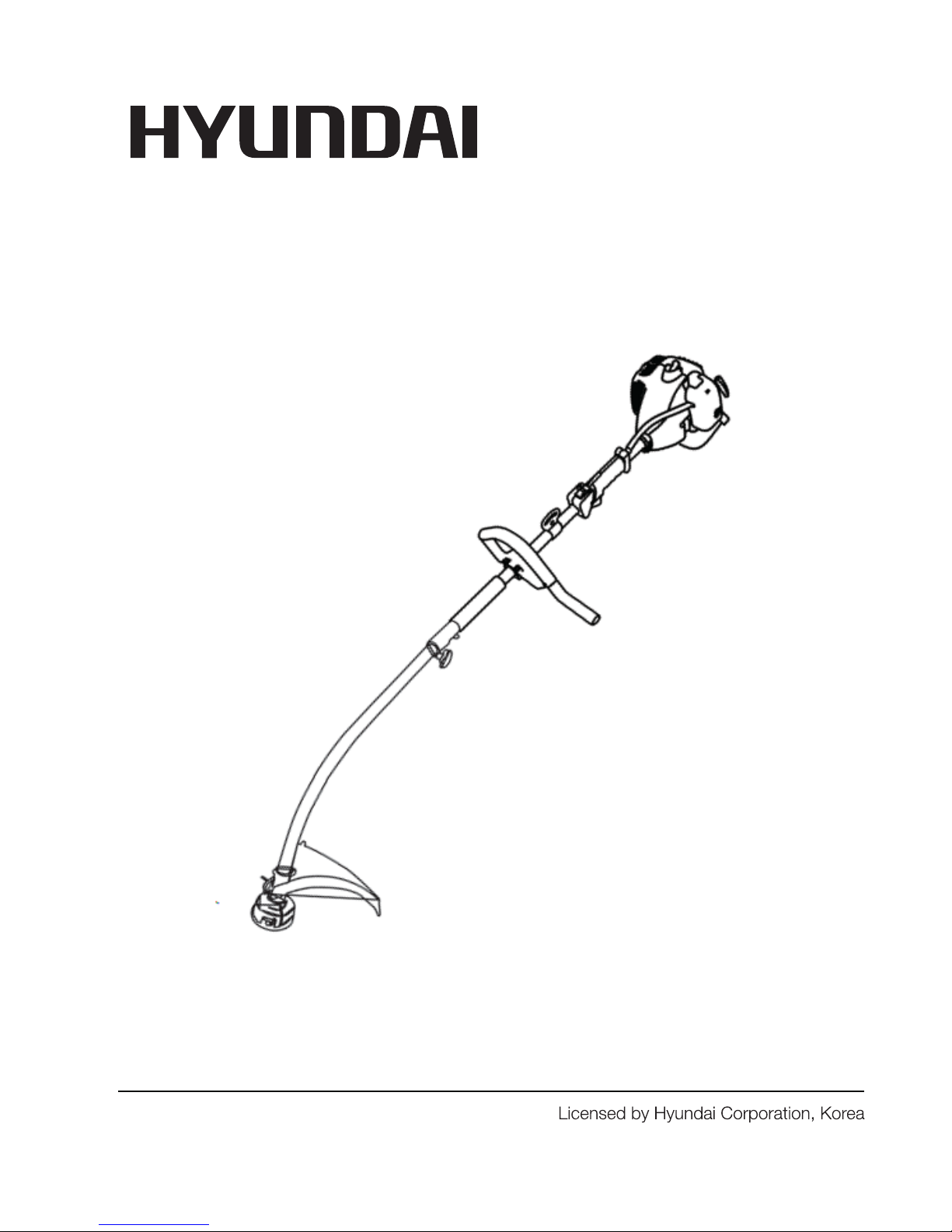

GRASS TRIMMER

Model HYTR33

User Manual

CONTENTS

1. SAFETY 3 - 6

2. MACHINE COMPONENT LOCATIONS 6

3. ASSEMBLY AND INITIAL OPERATION 6 - 8

4. OPERATION 8 -10

5. INSPECTION AND MAINTENANCE 11 - 12

6. TRANSPORATION AND STORAGE 12

7. SPECIFICATION 13

8. TROUBLESHOOTING 14

9. DECLARATION OF CONFORMITY 15

Page 2

Rev 2

1. SAFETY.

1.1. The operator of the machine;

1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely

and in accordance with the instructions in this user manual.

1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised

person/s to operate this machine.

1.1.3. Should take care and show due diligence for the safety of and with regard to those around

whilst using the machine, to include but not limited to;

1.1.3.1. Elderly, children, pets, livestock and property.

1.2. Some or all of the following PPE, Warning Signs and symbols may appear throughout this manual

and you must adhere to their warning/s. Failure to do so may result in personal injury.

Personal Protective clothing (PPE)

Warning Signs and Symbols –FOLLOW safety messages to avoid or reduce risk of injury or death.

DANGER - indicates a

hazard which if not

avoided could result in

serious injury or death.

WARNING - indicates a

hazard which if not

avoided could result in

serious injury or death.

CAUTION - indicates a

hazard which if not

avoided might result in

minor or moderate injury.

NOTE - indicates a

situation that could

easily result in

equipment damage.

READ MANUAL

BEWARE OF THROWN OBJECTS BEWARE OF POWER LINES KEEP BYSTANDER 15ft AWAY FROM WORKING AREA

Page 3

Rev 2

1.3. Carbon Monoxide

1.3.1. Carbon monoxide is a colourless and odourless gas, inhaling this gas can cause death as well as

serious long term health problems such as brain damage.

1.3.2. The symptoms of Carbon monoxide poisoning can include the following;

1.3.2.1. Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.

1.3.2.2. Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and

simply tiredness. That’s why it’s quite common for people to mistake this very dangerous

poisoning for something else.

1.3.3. To avoid Carbon monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside

a home or garage even if doors and windows are open.

1.3.4. If you think you or someone around you has been affected by carbon monoxide poisoning;

1.3.4.1. Get fresh air immediately.

1.3.4.2. Open doors and windows, turn off machine and leave the affected area.

1.3.4.3. See your doctor immediately or go to hospital - let them know that you suspect

carbon monoxide poisoning.

1.3.5. DO NOT use in an enclosed area or a moving vehicle.

1.4. General fuel safety.

1.4.1. Fuel Safety additional information can be obtained from the Health and Safety Executive

(HSE) document SR16.

1.4.2.

All fuels are Flammable.

1.4.3. Keep away from all ignition sources i.e. Heaters, Lamps, sparks from Grinding or welding.

1.4.4. Hot work on tanks that have contained fuel is extremely dangerous and should not be

carried out.

1.4.5. Keep work area clean and tidy.

1.4.6. Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.

Page 4

Rev 2

1.4.7. Dispose of waste fuels correctly.

1.5. Petrol safety.

1.5.1.1. Always fuel and defuel in well-ventilated area.

1.5.1.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment

(PPE), suggested items are as follows, but are not limited too.

1.5.1.3.

Hand protection.

1.5.1.4.

Protective clothing.

1.5.1.5.

Respiratory protective equipment should be used when in an unventilated

area.

1.5.1.6. When defueling always use a propriety fuel retriever.

1.5.1.7. Always carry fuel in the correct and clearly marked container.

1.6. Tool safety

Risk of finger severing

DO NOT modify unit in any way

Only use the tool for job for which it is intended

Always remove the HT lead from the spark plug when checking the

machine or changing parts

1.6.1. DO NOT operate closer than 6 metres (20 feet) to electric hazards (electric cables).

1.6.2. Keep all bystanders at least 4.5 metres (15 feet) away from working area.

1.6.3. Beware of falling objects.

1.6.4. If machine becomes clogged/blocked/obstructed –STOP machine remove HT lead from

spark plug, remove obstruction.

1.6.5. Inspect tool before each use, and replace any damaged parts before operation. Check for

fuel leaks and make sure all fasteners are secure and in place. Make sure the safety guard,

handles and safety features are all in good working order.

Page 5

Rev 2

1.6.6. Replace parts that are dull, cracked, chipped or damaged in any way before using the tool.

Make sure the safety guard is properly attached.

1.6.7. Use only recommended accessories and parts, approved by the manufacturer. Non

approved attachments may cause damage to the machine or harm to the user, and will also

void your machine’s warranty.

1.6.8. Always use certified replacement sourced from the manufacturer. Only use genuine

Hyundai spare parts.

1.6.9. Under no circumstances should you ever take the product apart or alter it in any way even if

the item is faulty. You may damage or cause further harm by taking the product apart and you

will void your warranty in doing so.

1.6.10. This grass trimmer is designed exclusively for cutting grass edges in garden areas and ina

private domestic setting. Using it for any other purpose other than those intended qualify as

improper use. The operator is solely responsible for assuming all risks.

1.6.11. Do not overload the machine. It will safer and better when operated within its specified

performance range.

1.6.12. Keep others away from machine when making carburettor adjustments’.

Page 6

Rev 2

2. MACHINE COMPONENT LOCATIONS

2.1 Power unit.

1 Start handle 2. Air filter 3. Throttle lockout 4. Stop switch 5. Front handle

6. Unit locking screw 7. Throttle lock 8. Throttle trigger 9. Fuel tank 10. Choke lever

11. Primer Bulb 12. Exhaust 13. Fuel tank cap 14. Spark plug

2.1 Grass trimmer.

1 Locking hole 2. Guard 3. Cutting string (cord)

3. ASSEMBLY AND INITIAL OPERATION

3.1 Power unit handle.

1 Front handle (1) 2. Screw 5mm x 35mm (4) 3. Nut 5mm (4) 4. Cover (1)

5. Front handle bar (1) 6. Screw 4,2mm x 9.5mm (1)

3.1.1 Assemble the front handle as shown in the diagrams. Do not over tighten the screws

until you have set the perfect working position with the carrying strap. The front handle

should be aligned as show in “Power Unit” diagram.

Page 7

Rev 2

3.2 Grass trimmer.

3.3 Fuel information.

3.3.1 Refuelling:

3.3.1.1 For air-cooled 2-stroke engines, mix unleaded petrol thoroughly with

synthetic 2-stroke oil at 40:1 ratio or mineral 2-stroke oil at 25:1 ratio.

3.3.2 TIP - Always prepare 1 litre of the mix at a time because the mix turns unusable

after prolonged storage. Take care of fire.

Petrol is highly flammable. Take the following precautions:

3.3.3 Store fuel in containers specifically designed for this purpose.

3.3.4 Refuel outdoors only and do not smoke while refuelling.

3.3.5 Add fuel before starting the engine. Never remove the cap of the fuel tank or

add petrol while the engine is running or when the engine is hot.

3.3.6 Avoid spillage:

3.3.6.1 If petrol is spilled, do not attempt to start the engine but move the

machine away from the area of spillage and avoid creating any source of

ignition until petrol vapours have dissipated.

3.3.7 Tighten all fuel tank and container caps securely.

4. OPERATION

4.1 Starting the tool.

4.1.1 Start the tool only after the integrated piece has been correctly connected.

4.1.2 Put the operating switch at position “I”.

4.1.3 Put the starting choke lever in position “Start”.

Page 8

Rev 2

4.1.4 Push the primer bulb 3-5 times.

4.1.5 Push throttle lock and throttle trigger to accelerate.

4.1.6 Push the throttle lock in at this position (cold).

4.1.7 Start the machine by carefully pulling the starter cable. Do this whilst holding

the machine against the ground.

4.1.8 Now, control the throttle so that the machine runs evenly for it to reach full

speed.

4.1.9 As soon as the engine is running smoothly, the choke may be returned to its

normal position.

Page 9

Rev 2

4.2 Spark plug check or replacement.

4.2.1 Pull the spark plug cover off, unscrew the plug using the plug wrench and

replace it.

4.2.2 If you are checking the spark plug remember to clean it and check that it is

correctly adjusted.

4.2.3 If you are replacing the spark plug remember to check that it is correctly

adjusted.

4.3 Operation safety instructions.

4.3.1 To turn the machine off, the switch has to be in “STOP” position.

4.3.1.1 When trimming, check local regulations for restrictions on use at

certain times especially in communal living areas.

4.3.1.2 DO NOT mow at night.

4.3.1.3 Any hard objects – stones, metal parts etc. – have to be removed.

They could be thrown out and cause personal or material damage.

4.3.1.4 When working in shrubs or bushes, the working height must be 15 cm

as a minimum not to expose animals, such as hedgehogs, at any risk.

4.3.2 Grass trimming.

4.3.1 When trimming on grass areas, hold the machine at an angle of 30°

and make semi-circular turns to the left and right.

4.3.2 The best results are achieved with grass 15 cm high. If it is higher, it is

recommended to repeat mowing several times.

When the machine is running never put the mowing head on the ground.

4.3.3 If the cutting decreases, then the cord has become too short

4.3.3.1 Hold the running machine over the grass and knock the ground

several times with the mowing head the cord will become longer.

4.3.3.2 The cutter enclosed in the protection shield will cut any excess cord to

the required length.

The cutting cord remnants may be thrown off and cause an injury.

Page 10
