Hyundai Kl22ns62 Manual de usuario

In case of smoke, strange noise or strange smell

from the unit:

Turn off the power switch immediately;

Disconnect the power plug from the power

outlet;

Contact your dealer or service centre. Never

attempt to make repairs yourself because this

could be dangerous.

High Voltage

Do not open

Risk of electronic shock, do not open.

Do not attempt to service this product yourself

as opening or removing covers may expose

you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

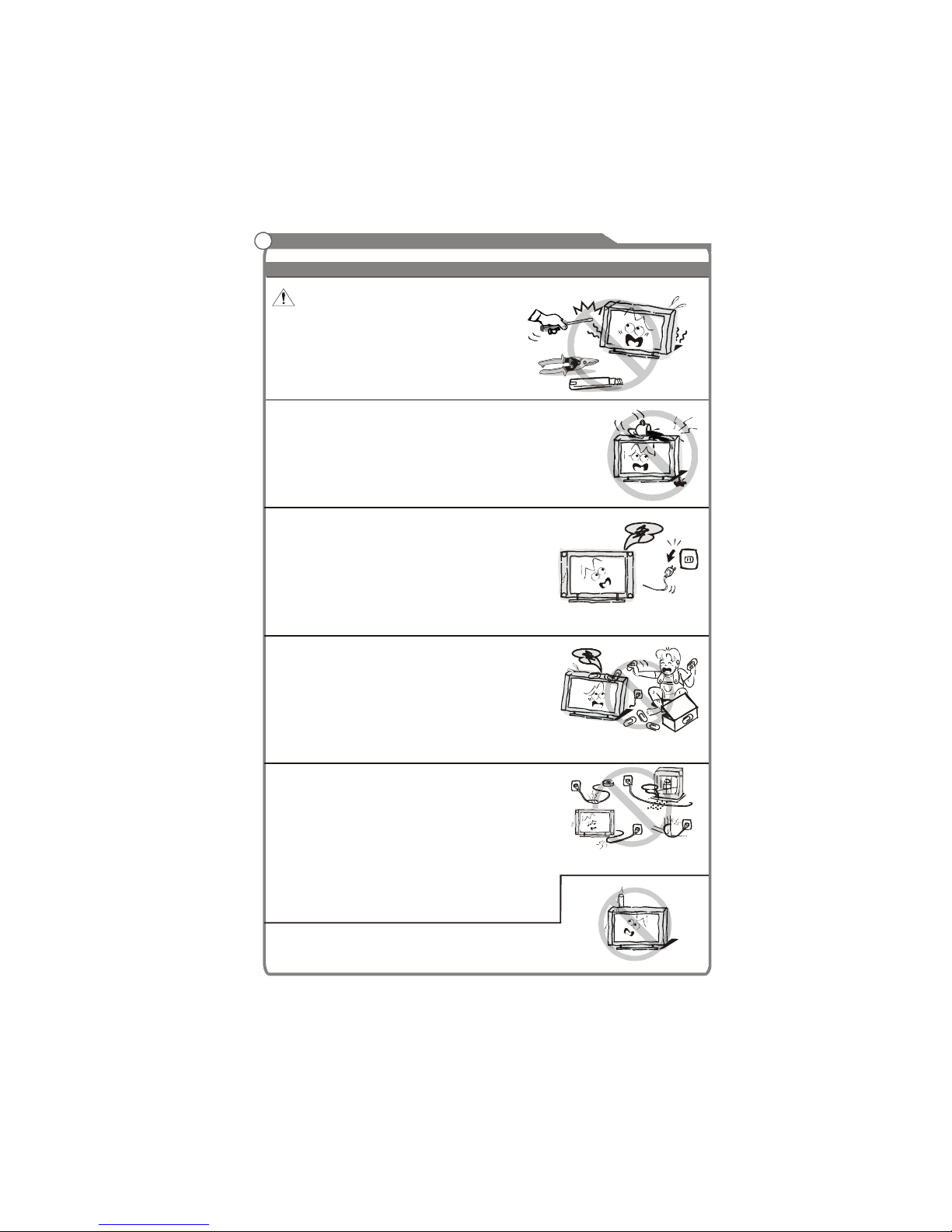

CAUTION

Important Safety Instructions

Important Safety Instructions and Maintenance

Never push objects of any kind into the set

through the cabinet slots as they may touch

dangerous voltage points or short-circuit parts that

could result in a fire or electric shock. Never spill

liquid of any kind on the set. Use special caution

in households where children are present. The

apparatus is not suitable for children under 3-year

to operate.

Power supply cords should be routed safety to

prevent life and property from dangerous with

damaged cord.

Mains plug is used as the disconnect device. It

shall remain readily operable and should not be

obstructed during intended use. To be completely

disconnected the apparatus from supply mains, the

mains plug of the apparatus shall be disconnected.

The apparatus shall be connected to a mains

socket outlet with a protective earthing connection.

To reduce the risk of fire or electric shock, do not

expose this product to rain or moisture.

The apparatus shall not be exposed to dripping

or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

To avoid the fire, no naked flame source,

such as lighted candles, should be

placed on the apparatus.

Important Safety Instructions and Maintenance

Important Safety Instructions

Always turn the set off when it is not being used.

Unplug the apparatus from the AC outlet when it will

not be used for a long period of time. And when there

is a lightning, unplug the unit from the AC outlet

immediately. Never touch the antenna wire during

lightning.

An outside antenna system should not be located in

the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such

power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep

from touching such power lines or circuits as contact

with them might be fatal.

Installation

The ventilation should not be impeded by covering the

ventilation opening with items, such as newspapers,

tablecloths, curtains, etc.

At least 10 cm space should be left around the

apparatus for sufficient ventilation.

The product should be situated away from heat

sources such as radiators,heat registers, stoves, or

other products (including amplifiers) that produce heat.

Place the apparatus in such a position that the screen

is not exposed to direct sunlight. It is best to have soft

indirect lighting while watching and avoid complete

dark environment and reflection from the screen as

these may cause eye fatigue.

Keep the product away from high magnetic field (i.e.

power-amplified power speaker) to avoid affecting the

tint;

Do not pull the plug out by the wire;

Never touch the plug with wet hands.

Excessive sound pressure from earphones and

headphones can cause hearing loss.

Important Safety Instructions and Maintenance

Installation

Do not place this apparatus near water, for example,

near a bath tub, wash bowl, kitchen sink, or laundry

tub; in a wet basement; or a swimming pool; and

the like;

Cleaning

When the TV being moved in from cold place, it needs

some right time for dew inside unit evaporating fully

before turn on the unit;

Unplug this apparatus from the AC outlet before

cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning;

Do not place the set on an unstable cart, stand, table

or shelf. The set may fall, causing serious personal

injury as well as damage to the product. Use only with

the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. An

appliance and cart combination should be moved with

care. Quick stops, excessive force, and uneven

surfaces may cause the appliance and cart

combination to overturn.

To prevent injury, this apparatus must be securely

attached to the floor/wall in accordance with the

installation instructions.

Move

For your protection, please read this instruction completely, and keep this manual for

future reference.

General description 5

Specifications and accessories 6

Overview 7

Basic operation 10

External connection 20

Trouble shooting 23

Picture defects and countermeasures 24

Basic operation

Contents

General description

Feature:

lZero X radiation complies to green environment protection requirement

lAuto tuning and fine tuning

lOne composite video input socket

lOne S-Video input socket

lOne PC VGA input socket

lOne YPbPr input socket

lOne HDMI input socket (HDMI 1.3)

lTwo audio input sockets

lHeadphones

lOne AV output socket

lNICAM

lMulti-language OSD

lProgrammable TV sleep timer

lNo-signal automatic power off function

l256 total channels to preset

lPC VGA mode: VGA, SVGA, XGA, WXGA

lYPbPr mode: 480i, 480P, 576i, 576P, 720P, 1080i, 1080P

lHDMI mode: 480P, 576P, 720P, 1080i, 1080P

Note:

1. In case of any design change,a notice will not be released.

2. The composite video output function only support TV and AV input.

Specification

Specifications:

Accessories:

l User s manual l Remote control

l Wall-mounted accessories: Two wall-mounted brackets, four fixed screws

and four fixed sleeves.(Optional)

Note:

1.Due to TV may be used with different display screen, weight marked in this

user's manual or in packaging box are subject to change without notice.

2.The illustrations and on-screen displays in this user s manual are for

explanation purposes and may vary slightly from actual operations.In case of

any design change, a notice will not be released.

Specifications and accessories

1366X768

2WX2

36W

AC ~110-240V 50/60Hz

4.6 Kg

5.0 .JDescription KL19NS62 KL22NS62

19" Diagonal (max.) 22" Diagonal (max.)

1366X768

2WX2

50W

Dimensions

(LXWXH)

TV with stand

TV without stand

458X209X357mm

;;PP

530 209 393

458X77X318mm

;;PP

530 77 TV with stand

TV without stand 4.0 Kg

4.8 .J

Overview

. INPUT

Press this button to display the selected

signal source as main source.

5. MENU

Press this button to display OSD menu.

6. PROG /

Press these two buttons to select channel

or operate menu.

. Power switch

Press this button to turn TV on or off.

2. Power indicator

Blue: Normal playing status.

Red: Standby status.

3. IR remote sensor

Point remote control at this sensor to

conduct remote control.

7. VOL /

Press these two buttons to increase or

decrease the volume or operate menu.

Press this button to enter standby mode

under normal play, and press this button

to enter normal play mode under standby

mode.

r s

IR remote sensor

Power indicator

Power switch

Program up/down

Volume up/down

Standby

Input select

Overview

AV AUDIO OUT

Audio out for external devices.

AV VIDEO OUT

Video out for external devices.

Y Pb/Cb P r/C r

Connect to YPbPr/YCbCr video.

Note: HDMI is supporting for DVI commutator.

Overview

Remote control

Loading batteries:

1) Remove the lid of the battery compartment.

2) Insert 2 size AAA batteries with polarities as indicated inside the compartment.

3) Replace the lid.

Note:

1) One loading of batteries will last 1 year under normal use.

2) If you don t intend to use the remote control for a long period of time, remove

them to avoid damage due to leakage.

3) Do not mix old and new batteries, or different types.

4) Don t throw the batteries into fire or water.

5) The batteries (battery pack or batteries installed) shall not be exposed to exces-

sive heat such as sunshine, fire or the like.

NICAM

POWER

LED

HDMI

RECALL

VOLUME UP

PROGRAM DOWN

ZOOM


INPUT

VOLUME DOWN

PROGRAM UP

YPbPr

SOUND

DIGITAL BUTTONS

FREEZE

SLEEP

MUTE

NICAM

EXIT

ARROW BUTTONS



TV YPbPr PC HDMI

ZOOM

SOUND

INPUT

INFO RECALL

SLEEP

EXIT

INFO

Basic operation

Remote control introduction

1. LED

Press any button, the led will light.

2. POWER

Press this button to switch to standby mode, and press it again to turn TV on.

3. TV

Switch to TV mode directly.

4.YPbPr

Switch to YPbPr mode directly.

5.PC

Switch to PC mode directly.

6. HDMI

Switch to HDMI mode directly.

7. INPUT

This button is used to switch among different sources.

8. SOUND

This button is used to select the sound mode.

9. PICTURE

This button is used to adjust user picture mode, press this button repeatedly and

select one of four settings.

10. ZOOM

This button is used to set display window.

11. Digital buttons(0~9)

To select channel with digital buttons.

12. INFO

The button is used to display current channel information.

13. RECALL

To swap to the previous program you wanted from current program.

14. FREEZE

This function is no available for this model.
