Hyundai MB-110 Manual de usuario

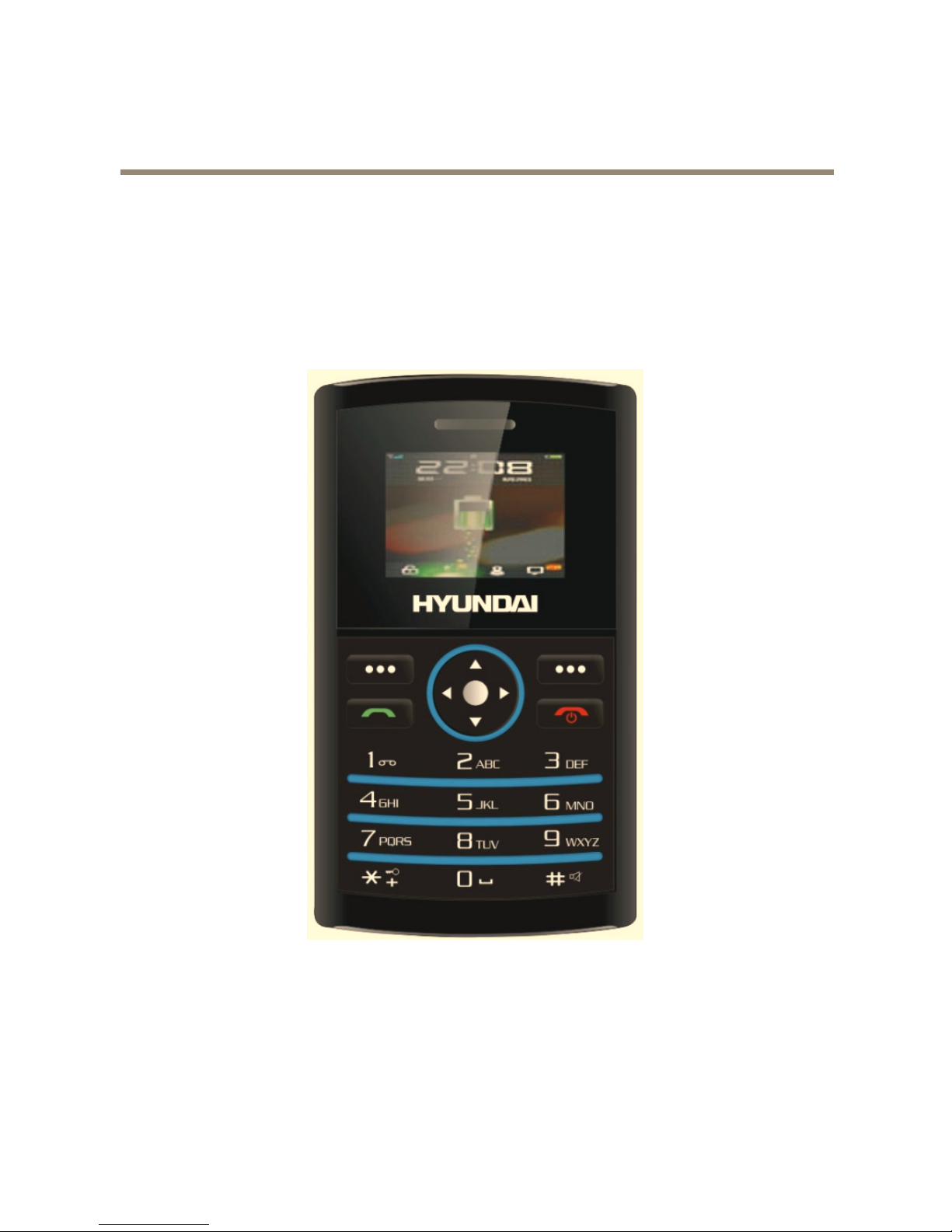

U SE R G UI D E

M B-1 1 0 G S M

Before operating this set,

please read these instructions carefully.

IMPORTANT –Your handset is not supplied with a

simcard. The MB-110 GSM will work on all GSM networks.

You will need to insert a simcard for the handset to work

properly.

Network Services – The MB-110 GSM is approved for

use on the GSM900 and GSM1800 networks. Check with

your mobile phone service provider to see if you can use

the Dualband feature or other Network Services described

in this guide. Some networks may not support all

language dependent characters and/or services.

Unpacking your MB-110 GSM Mobile

In the box are:

•the mobile handset

•a mains power adaptor

•the handset back cover

•a rechargeable battery pack

•this user guide

Keep the packing materials for future use.

Keep your sales receipt - it is your guarantee.

Where to find it…………………..…………..………… 3

Symbols on the display ………..………………….… 4

Menu Operation …………….…..………………..…… 5

Read these notes first……....……….………….…… 5

Installation and setup………………………..….…… 6

Switching On and Off …………………..……..…..… 8

Making & answering calls…………………………… 9

Using the Phone Book……………………………… 10

Call Log…………………….……………………….…. 13

SMS text messaging……………………………….… 13

Tools…………………………..……………….............. 16

Setting…………………………..…………………..… 19

Profiles………………………..…………………….….…. 19

Display settings ……………………..……………. 19

Security settings……………………………………. 19

Network settings …………………………………… 20

Call settings……………………………………….…. 20

Set Phone Others…………………………………… 20

Troubleshooting……………………………………… 21

Guarantee and Service information……………….. 22

Battery Information…………………………………… 23

Additional Safety Information………………………. 23

Contents

Where to find it

Earpiece

Press to end or reject a call.

Press

return

standb

Select buttons

(Left/Right soft keys)

Perform functions

indicated by the

display text above

Talk button

Press to answer a

phone call.

Press to enter

redial list

Left/Right/Up/Down

butto

Press to adjust receiving

volume in talk and

speakerphone modes.

Press to step through

names, phone numbers,

menus and settings.

Standby mode shortcuts:

Left – to Inbox

Right – to Alarm

Up - to Sound Profiles

Down - to Phonebook

Press and hold to switch

the

phone

off

End Call / Power

On-Off button

OK button

The same as Left

key function

Press to select or

deselect the day on

weekly alarm

function

The network name

Time

Date

Symbols on

the

display

1 - The left soft key in the standby mode is Menu.

2 - The right soft key in the standby mode is SMS.

The Soft keys change to different functions in other

modes.

Radio signal level - Shows the signal strength.

Battery level/Charge – Shows battery remaining

level or show animation during charging.

Call Divert - On if call divert unconditional is set.

Alarm - On if an alarm is set.

Ringer Off - On if handset's ringer is turned off.

Headset - On when a headset is plugged in.

New SMS - Indicates you have new text messages.

Lock - On when the handset's keypad is locked.

Missed Call - On if you have missed Call records.

Mute - On if the handset microphone is muted.

1 2

Menu Operation

Menu lists are used for set up operation.

The left and right soft keys are Menu and SMS shortcut in

standby.

Press Menu ( ) and the display changes and the soft

keys become Select and Back.

Use Up or Down to move up or down menu lists, and

Select or Back for the next or previous display.

When writing text, use the # key to switch cases:

Upper case (ABC), Title case (Abc), Lower case (abc) or

Numerals (123). Use Left ,Right, Up or Down to move

the cursor, and Clear to delete letters.

Read these notes first

Your phone is an electronic product and should be treated

with care to meet any warranty and safety obligations.

•SWITCH ON SAFELY – Don’t switch on when mobile

phone usage is prohibited or may cause interference

or danger.

•HEARING AID COMPATIBILITY – With the hearing

aid set to normal, adjust the phone volume. If this fails

to be ok, then to try the hearing aid in the ‘T’ position.

•WATER-RESISTANCE – Keep it dry. The phone is

not water-resistant.

•TEMPERATURE RANGE – Operating 0°C to 40°C.

Storage -20°C to 60°C.

•CARE & CLEANING - Do not drop or knock the phone

excessively, and keep it clean using a damp cloth if

necessary - do not use chemicals, cleaning solvents,

or strong detergents.

Installation and setup

Before operating the MB-110 GSM a SIM card must be

installed. Keep the SIM card out of small children’s reach.

The SIM card and its contacts can be damaged easily by

scratches or bending, so handle the card carefully.

Install the SIM card and battery

1. Switch off the phone, disconnect the

power adaptor and remove the battery.

2. To remove the back cover and slide the

cover down.

3. Remove the battery by lifting from the

top edge.

4. Carefully slide the SIM card into the

holder with the gold connectors face

down and angled corner bottom right.

5. Replace the battery by aligning the

gold connectors on the battery with

those on the phone, and push the

top end of the battery down until

it clicks into place.

6. Replace the back cover by

placing it flat on the back

of the handset and sliding

up until it clicks into place.

Charge the battery

Warning! Use only batteries and chargers supplied with

or approved for this MB-110. Use of others will invalidate

approvals or warranty and may be dangerous.

Do not charge the battery with the back cover removed.

1. Connect the charger lead firmly into the socket on the

Right side of the handset.

2. Plug the charger into an AC mains socket. The battery

indicator bar scrolls and “Charging…” is displayed.

3. Charging the battery may take up to 5 hours.

4. If no “Charging…”is displayed, disconnect the charger,

and retry. If charging still fails, contact the helpline.

5. The battery is fully charged when the bar stops

scrolling. Disconnect the charger from the phone and

the AC outlet.

Connect a compatible headset (Optional)

You can use the MB-110 GSM with the headset along.

The connector must be a jack plug that inserts in the

Power/Headset socket on the right side of the handset.

When connecting a headset, including those approved for

used with the MB-108 GSM, pay special attention to

volume levels. Read its user guide for detailed safety

instructions. Do not connect incompatible products.

When correctly inserted the headset icon will show on

the handset display.

Headset / Charging Connector

Plug in power adapter to charge battery.

Plug in headset accessory for headset use.

Switching On and Off

To switch the phone on and off

To switch off, press and hold End Call until the

display clears.

To switch back on, press and hold End Call until the

display turns on.

Warning! Do not switch on when mobile phone usage

is prohibited or it may cause interference or

danger.

To lock the handset keypad

When you do nothing for some time the keypad will

be locked the display shows

Or press Menu key(left soft key), Then press“”

key to lock the keypad when idle mode.

To unlock the keypad press Unlock key(left soft key),

Then press “”key to unlock.

Note: When the keypad is locked, you can answer, end

or reject a call in the normal way. During a call, you

can operate the phone as usual.

When the keypad is locked, you can dial

emergency number like “112”.

Making & Answering calls

To make a call

Ensure the phone is switched on and in service.

Key in the telephone number including area code.

(To add prefix "+" press the “*” key twice quickly)

Press Talk to dial the number on the display.

To end calls press the End Call button.

Last Number Redial

In standby mode, press Talk to see the last 10

numbers & press Up / Down to go to the number

Press Talk to dial the number.

To answer a call

When the phone rings, press Talk to answer it.

Earpiece volume

During a call, press Up / Down to alter the volume.

The volume level displays.

To switch to speakerphone

During a call, press Option & Down to go to

HandsFree, & Select

To end the call press End Call, or to return to normal

handset use, press Option again then select

HandsFree Off.
