Hussmann MWG Manual de usuario

P/N 0395228B

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Merchandisers

MWG

Data Sheet Set

P/N 0395228B

NSF®Certified

December, 2003

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0378349 Fan Motor, Evaporator (120V)

0141070 Fan Blade, 8 ft and 12 ft Case

embossing toward motor

0315470 Fan Blade, 6 ft Case

embossing toward motor

B. 0137880 Optional Adjustable (2)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

None

Note: Changed items have been underlined.

MWG Data Sheet

2 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Front

(513)

1/8

3/8

(681)

(711)

5 7/8

(159) 3

1/2

(89)

1/4

(57)

5/8

(1895)

7/8

(1470)

(432)

Refrigeration Outlet

Waste Outlet

& Water Seal

(See Note*)

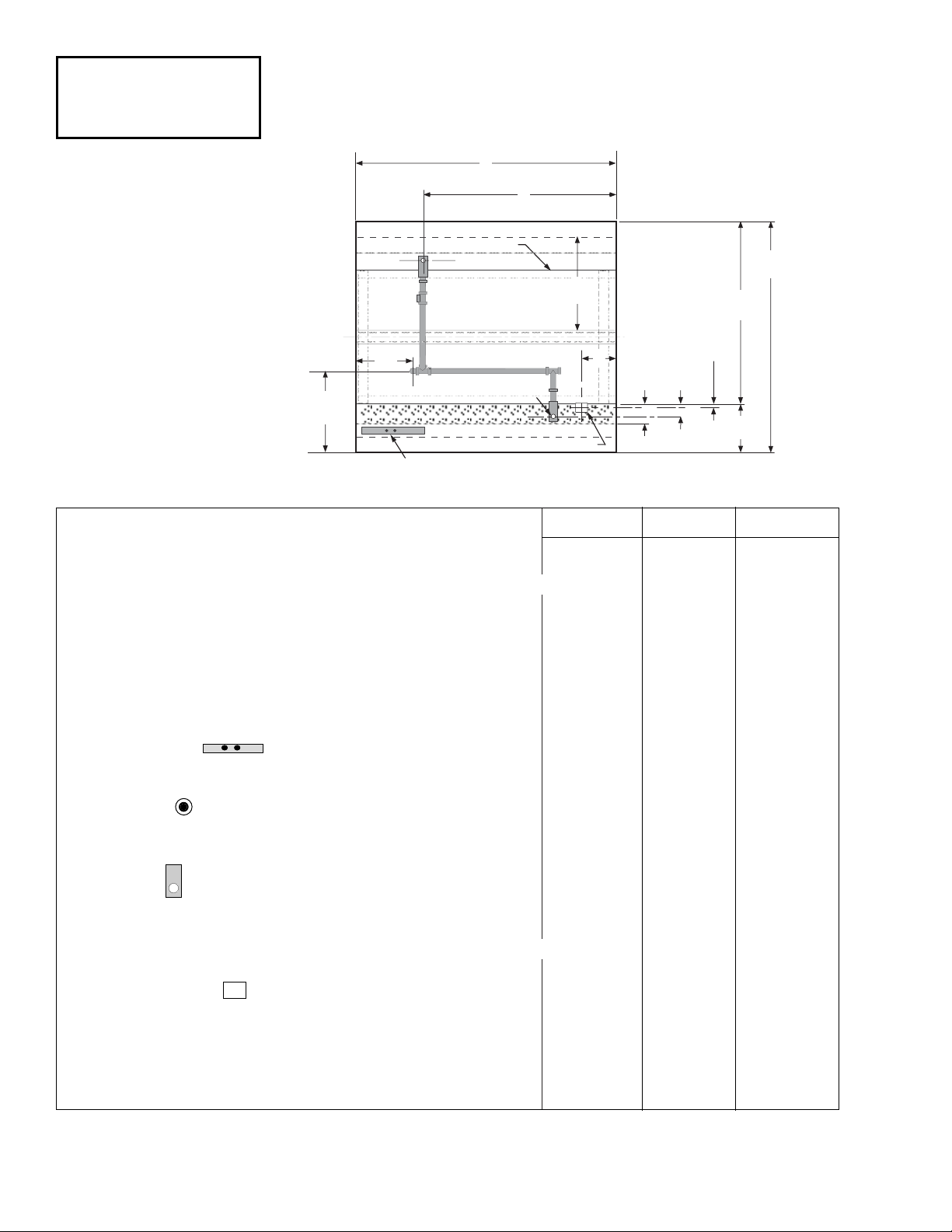

MWG-8

External Base

Engineering

Plan Views Dimensions shown as inches and (mm).

Wide Island

Meat

12-2003

6 ft 8 ft 12 ft

General

(A) Case Length 72 1/4 (1835) 96 3/8(2448) 144 1/2(3670)

Each End and Partition adds 1 1/2in. (38 mm) to the length of the lineup.

Maximum outside dimension of case back to front (includes bumper) 74 5/8(1895) 74 5/8(1895) 74 5/8(1895)

Front of splashguard to outside edge of front skidrail 5 7/8 (149) 5 7/8 (149) 5 7/8 (149)

Back of case to outside edge of front skidrail 57 5/8 (1470) 57 5/8 (1470) 57 5/8 (1470)

Front of case to outside edge of front skidrail 17 (432) 17 (432) 17 (432)

Width of skidrail 4 1/2(115) 4 1/2(115) 4 1/2(115)

Stub-up area between front skidrail and spashguard 4 7/8(124) 4 7/8(124) 4 7/8(124)

Electrical Service

*Note: Electrical Box (Optional Kit)

Waste Outlet

(B) Righthand end of case to the center of waste outlet 46 1/2(1175) 72 1/4 (1835) 72 1/4 (1835)

Center of waste outlet to outside edge of front skidrail 3 1/2(89) 3 1/2(89) 3 1/2(89)

Water Seal

Edge of water seal to center of waste outlet 7 (178) 7 (178) 7 (178)

Outside diameter of drip piping 1 1/2(38) 1 1/2(38) 1 1/2(38)

Field installed water seal outlets, tees, and connectors are shipped with the case.

Refrigeration Outlet

Center of refrigeration outlet to outside edge of front skidrail 2 1/4 (57) 2 1/4 (57) 2 1/4 (57)

Outside diameter of the liquid line 3/8(9.5) 3/8(9.5) 3/8(9.5)

Outside diameter of the suction line 7/8(22) 7/8(22) 7/8(22)

3 of 4

P/N 0395228B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact MWG

REFRIGERATION DATA

Note: This data is based on store

temperature and humidity that does not

exceed 75°F and 55% R.H.

MWG

Discharge Air °F 26

Evaporator °F 18

Unit Sizing °F 16

Btu/hr/ft** MWG

Parallel 778

Conventional 890

**For all refrigeration equipment other

than Hussmann, use conventional BTU

values.

DEFROST DATA

Frequency (hr) 6

ELECTRIC OR GAS Not Recommended

Defrost Water (lb/ft/day) 2.2

OFFTIME MWG

Temp Term °F 43°F

Failsafe Minutes 60

CONVENTIONAL CONTROLS

Low Pressure Backup Control

MWG

CI/CO** 12°F / 2°F

Indoor Unit Only, Pressure Defrost

Termination** 43°F

**Use a Temperature Pressure Chart to

determine PSIG converisons.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lbs)***

MWG

6 ft 2.3

8 ft 2.8

12 ft 4.3

***This is an average for all refrigerant

types actual refrigerant charge may vary

by approximately half a pound.

Length (in.) added to Lineup

by Each End or Insulated

Partition 1 1/2

Wide Island, 1 Display Level with Front Glass

Optional

Positions

(711)

COIL

Front

Case

COIL

FAN

MWG

Electrical

(Optional Kit)

(711)

5 1/2

(140)

57 7/8

(1470)

74 5/8

(1895)

17 (432)

2 1/4 (57)

5 7/8 (149)

3 1/2 (89)

(382)

(1118)

8 1/4

(210)

7 3/4

(197) 11 3/4

(298)

37 3/8

(949)

17 3/8

(441)

25 1/2

(648)

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

MWG Data Sheet

4 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact MWG

Meat / Delicatessen

Electrical Data

6 ft 8 ft 12 ft

Number of Fans –9W 1 2 3

Amperes Watts

Merchandiser 6 ft 8 ft 12 ft 6 ft 8 ft 12 ft

Fans

Standard (120V 60Hz) 0.77 1.54 2.31 62 124 186

Export (230V 50Hz) 0.47 0.94 1.41 70 140 210

Energy Efficient (120V 60Hz) 0.38 0.76 1.14 25 50 75

Constant on Anti-sweat Heaters NA

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.97 1.74 2.51

Export (230V 50Hz) 0.67 1.14 1.61

With Energy Efficient Fans (120V 60Hz) 0.58 0.96 1.34

Maximum Over Current Protection (120V) 20 20 20

Maximum Over Current Protection (230V) 15 15 15

Supplemental Gas Heaters NA

208V 1ΦΦElectric Defrost NA

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost 1, 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

6 ft 8 ft 12 ft
