Hussmann IMPACT ED1C-ICE Manual de usuario

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0454041

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

A. 4W Fan Assemblies (1)

0404551 Fan Motor, Ambient

Merchandisers

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

B. 0355398 Ledge Lamps (2)

Electronic 3-Lamp

Ballast (Optional)

C. Fluorescent Lamp (3)

Replace with like fixtures

ED1C-ICE

Data Sheet Set

P/N 0454041

July, 2003

Note: Changed items have been underlined.

ED1C-ICE Data Sheet

2 of 5 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

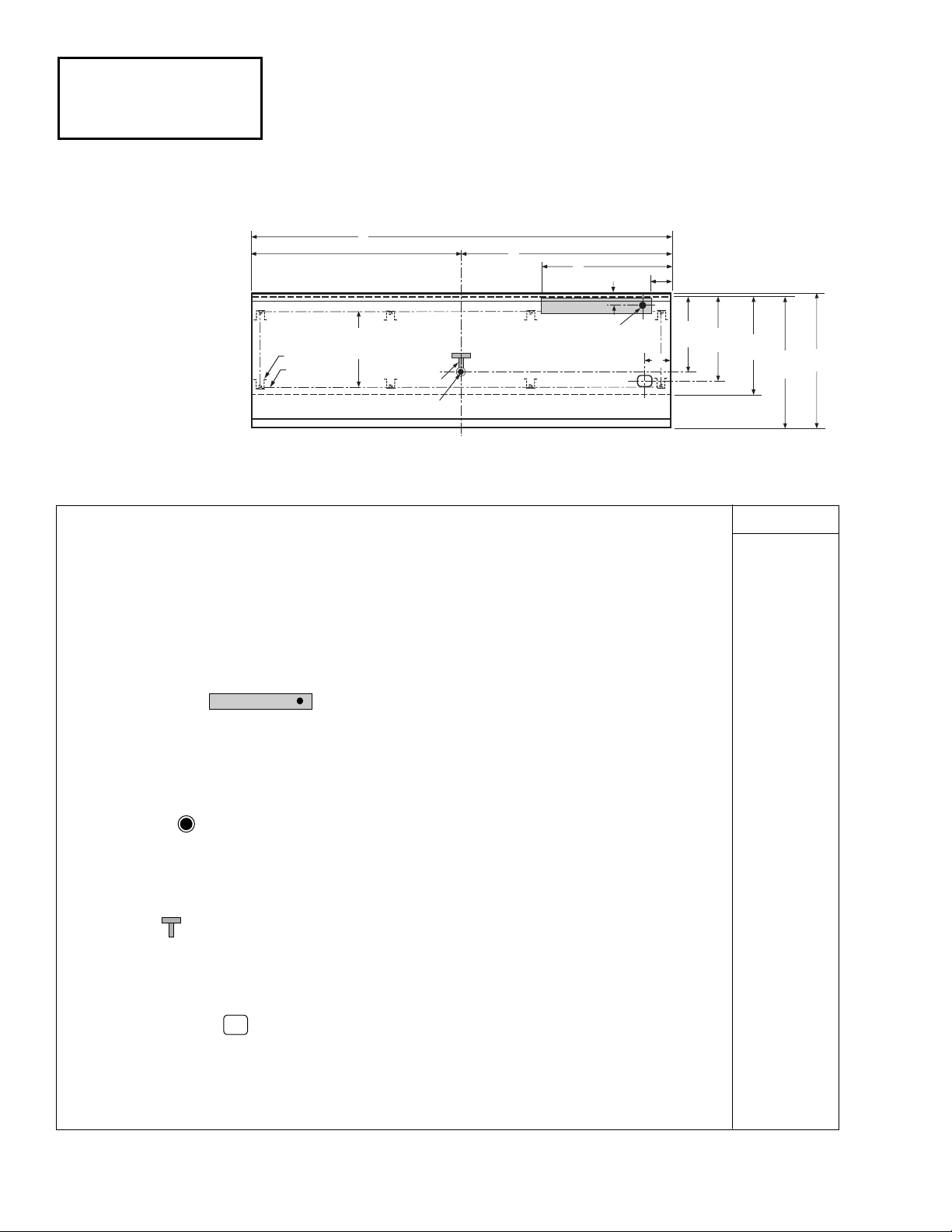

Engineering

PlanViews

Delicatessen

Curved Glass

Models

07-2003

(See Note**)

25 5/8

(651)

Legs

Front

Refrigeration

Outlet

Water Seal

Waste Outlet

Leg Center Lines

Electrical

5/8

(92)

(See Note***)

ED1C-ICE

DCB

(651) 28

(730) 33

(849) 44

(1133)

(1168)

Dimensions shown as inches and (mm).

6 ft 8 ft 12 ft

General

(A) Length of Case* 72 1/4(1835) 96 1/4(2444) 144 1/2(3670)

*Each End and Partition adds 1 1/2inches (38 mm.) to the length of the lineup.

Maximum outside dimensions of case back to front 46 (1333) 46 (1168) 46 (1168)

(includes bumper and Rear Sill)

Back of case to front of splashguard 33 3/8(848) 33 3/8(848) 33 3/8(848)

Center of rear legs to center of front legs 25 5/8(651) 25 5/8(651) 25 5/8(651)

Electrical Service

(B) Righthand end of case to right edge of electrical raceway 7 (178) 7 (178) 7 (178)

Back outside of case to center of knockout 3 5/8(92) 3 5/8(92) 3 5/8(92)

**Note: Electrical Field Wiring Connection Point

Waste Outlet

(D) Right end of case to center of waste outlet 24 (611) 24 (611) 72 1/4(1835)

Left end of case to center of waste outlet 48 1/4(1835) 72 1/4(1835) 72 1/4(1835)

Back outside of case to center of waste outlet 25 5/8(652) 25 5/8(652) 25 5/8(652)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102)

Outside diameter of drip pipe lines 1 1/2(38) 1 1/2(38) 1 1/2(38)

***Note: Field installed water seal outlets, tees, and connectors are shipped with the merchandiser.

Refrigeration Outlet

(E) Right end of case to center of refrigeration outlet 9 3/8(238) 9 3/8(238) 9 3/8(238)

Back of case to center of refrigeration outlet 28 3/4(730) 28 3/4(730) 28 3/4(730)

Outside diameter of the liquid line 3/8(9.5) 3/8(9.5) 3/8(9.5)

Outside diameter of the suction line 5/8(16) 5/8(16) 5/8(16)

ED1C-ICE

Refrigeration

Outlet Electrical

FAN

DAO

(457)

22 1/2

(572)

113/8(289)

35/8

(92) 133/4

(349)

(864)

25 5/8(651)

28 3/4(730)

33 3/8(849)

44 5/8(1133)

46(1168)

341/2

(875)

7 3/4(196)

Impact ED1C-ICE

Delicatessen

Dimensions shown in inches & (mm).

REFRIGERATION DATA

Note: This data is based on store

temperature and humidity that does not

exceed 75°F and 55% R.H. ED1C

Discharge Air (°F) 24

Evaporator(°F) 22

Unit Sizing (°F) 20

Btu/hr/ft* ED1C

Parallel 150

Conventional 155

*For all refrigeration equipment other

than Hussmann, use conventional Btu

values.

DEFROST DATA ED1C

Frequency (hr) 24

Defrost Water (lb/ft/day) NA

(± 15% based on case configuration and

product loading).

OFFTIME ED1C

Temp Term (°F) 70°F

Failsafe minutes 90

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat N/A

CONVENTIONALCONTROLS

Low Pressure Backup Control ED1C

CI/CO** 28°F / 1°F

Indoor Unit Only, Pressure Defrost

Termination** N/A

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICALDATA ED1C

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 5/8

Estimated Charge (lb)***

12 ft 1.0

***This is an average for all refrigerant

types. Actual refrigerant charge may vary

by approximately half a pound.

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End/Partition (in.) 1 1/2

NOTE: The bumper is 4 inches wide. Center of the bumper is

18 1/2(470 mm.) inches from the floor.

Self Service Glass, Serpentine Coil, 1 Display Level

3 of 5

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0454041

ED1C-ICE Data Sheet

4 of 5

Impact ED1C-ICE

Delicatessen

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

Number of Fans 12 ft

Ambient Air Wipe — 15W 6

Amperes Watts

Merchandiser 12 ft 6 ft 12 ft

Fans (Refrigeration) NA NA

Fans (Ambient Air Wipe)

Standard (120V 60Hz) 1.56 60 90

Export (230V 50Hz) NA NA NA

Minimum Circuit Ampacity 1.76

Maximum Over Current Protection 120V 20

Optional Lighting*

Optional Ledge Lighting 0.71 85

*230V lighting values are under review.

5 of 5

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0454041

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

Electric Service Receptacle Receptacles

120V N

EUTRAL

MAROON

BAND

120V POWER

N.E.C.

TAGS MAROON

BAND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

Ambient Fan

Wiring

Glass Air Wipe

Fans

12 ft case has 6 Fans

GGG

33 3

Optional Ledge

Light Circuit Light Circuits
