Husqvarna 520iLX Manual de usuario

520iLX

EN Operator's manual 2-26

Contents

Introduction..................................................................... 2

Safety..............................................................................4

Assembly...................................................................... 17

Operation...................................................................... 17

Maintenance................................................................. 20

Troubleshooting............................................................ 22

Transportation, storage and disposal........................... 23

Technical data.............................................................. 23

Accessories.................................................................. 25

EC Declaration of Conformity....................................... 26

Introduction

Product description

Husqvarna 520iLX is a battery grass trimmer with an

electrical motor.

Work is constantly in progress to increase your safety

and efficiency during operation. Speak to your servicing

dealer for more information.

Intended use

The product is used with a trimmer head to cut grass.

Do not use the product for other tasks than grass

trimming and grass clearing.

Note: National regulations can set limit to the operation

of the product.

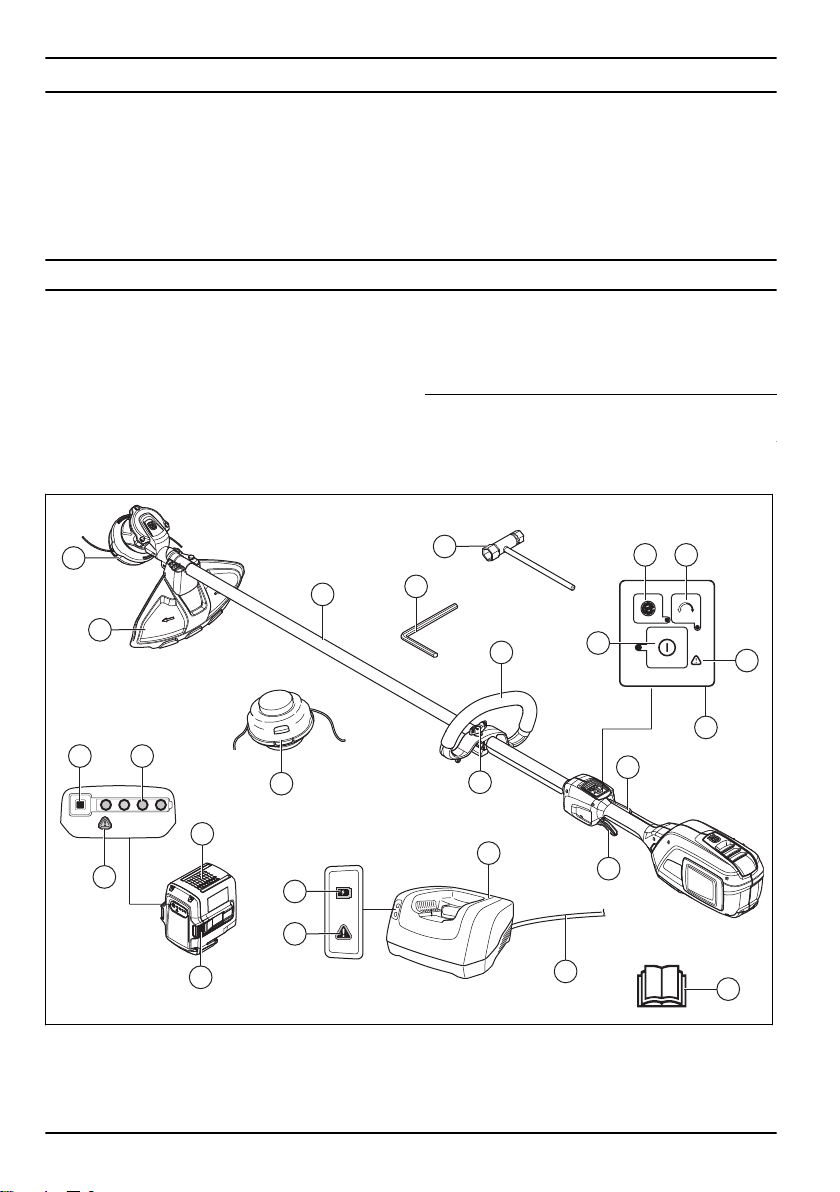

Product overview

13 14

17 16

1. Trimmer head

2. Cutting attachment guard

3. Shaft

4. Loop handle

5. Power trigger

6. Keypad

2756 - 003 - 24.06.2020

7. Power trigger lockout

8. Battery

9. Cord

10. Battery charger

11. Operator's manual

12. Handle adjustment

13. Battery indicator button

14. Battery status

15. Warning indicator (error LED)

16. Rotation direction button

17. SavE button

18. Start and stop button

19. Power on and warning indicator (error LED)

20. Battery release buttons

21. 4 mm hex key

Symbols on the product

WARNING! This product can be dangerous!

Careless or incorrect use can result in

serious injury to the operator or others. It is

very important that you read and understand

the contents of the operator's manual.

Please read the operator’s manual carefully

and make sure you understand the

instructions before the product is used.

Use approved eye protection.

/min

Maximum speed of the output shaft.

The product agrees with the applicable EC

directives.

50FT

15 m

50FT

15 m

Keep a minimum distance of 15 m to

persons and animals during operation of the

product.

Use approved protective gloves.

Use heavy-duty slip-resistant boots.

Risk of blade thrust if the cutting equipment

touches an object that it does not

immediately cut. The product can cut off

body parts. Keep a minimum of 15 m

distance to persons and animals during

operation of the product.

Symbols on the product or its packaging

indicate that this product cannot be handled

as domestic waste. This product must be

deposited at an appropriate recycling facility.

The product can cause objects to eject,

which can cause injury.

Use flexible cutting wire as trimmer line. Do

not use metal cutting elements.

The arrows show the limit for the handle

position.

Protected against splashing water.

Direct current.

Noise emissions to the environment

according to European Directive 2000/14/EC

and New South Wales legislation “Protection

of the Environment Operations (Noise

Control) Regulation 2017”. Noise emission

data can be found on the machine label and

in the Technical data chapter.

yyyywwxxxx The rating plate shows the serial

number. yyyy is the production year,

ww is the production week.

Symbols on the battery and/or on the

battery charger

Recycle this product at a recy-

cling station for electrical and

electronic equipment. (Applies

to Europe only)

Fail-safe transformer.

Use and keep the battery charger indoors

only.

756 - 003 - 24.06.2020 3

Double insulation.

Product liability

As referred to in the product liability laws, we are not

liable for damages that our product causes if:

• the product is incorrectly repaired.

• the product is repaired with parts that are not from

the manufacturer or not approved by the

manufacturer.

• the product has an accessory that is not from the

manufacturer or not approved by the manufacturer.

• the product is not repaired at an approved service

center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes

are used to point out specially

important parts of the manual.

WARNING: Used if there

is a risk of injury or death

for the operator or

bystanders if the

instructions in the

manual are not obeyed.

CAUTION: Used if there

is a risk of damage to the

product, other materials

or the adjacent area if

the instructions in the

manual are not obeyed.

Note: Used to give more

information that is necessary in

a given situation.

General power tool safety

warnings

WARNING: Read all

safety warnings and all

instructions. Failure to

follow the warnings and

instructions may result in

electric shock, fire and/or

serious injury.

Note: Save all warnings and

instructions for future reference.

The term "power tool" in the

warnings refers to your mains-

operated (corded) power tool or

battery-operated (cordless)

power tool.

Check before starting

•Always remove the battery to

prevent the product being

started by accident. Always

remove the battery before any

maintenance on the product.

•Before using the product and

after any impact, check for

signs of wear or damage and

repair as necessary.

•Inspect the working area.

Remove all loose objects,

such as stones, broken glass,

nails, steel wire, string etc.

4756 - 003 - 24.06.2020

that could be thrown out or

become wrapped around the

cutter or cutter guard.

•Check the motor for dirt and

cracks. Clean off grass and

leaves from the engine using

a brush. Gloves should be

worn when necessary.

•Check that the trimmer head

is completely attached to the

trimmer.

•Check that the product is in

perfect working order. Check

that all nuts and screws are

tight.

•Check that the trimmer head

and trimmer guard are not

damaged or cracked. Replace

the trimmer head or trimmer

guard if the have been

exposed to impact or are

cracked. Always use the

recommended guard for the

cutting attachment you are

using. See chapter on

Technical data.

•The product operator must

ensure that no people or

animals come closer than 15

meters while working. When

several operators are working

in the same area the safety

distance should be at least 15

meters.

•Carry out an overall

inspection of the product

before use. See the

maintenance schedule.

•National or local regulations

may regulate the use. Comply

to given regulations.

Personal safety

•The cutting tool does not stop

immediately after the product

is turned off.

•The product is only designed

for trimming.

•Keep bystanders away.

•Stay alert, watch what you

are doing and use common

sense when operating a

power tool. Do not use a

power tool while you are tired

or under the influence of

drugs, alcohol or medication.

A moment of inattention while

operating power tools may

result in serious personal

injury.

•This appliance is not intended

for use by person (including

children) with reduced

physical, sensory or mental

capabilities, or lack of

experience and knowledge,

unless they have been given

supervision or instruction

concerning use of the

appliance by a person

responsible for their safety.

Children should be

supervised to ensure that

they do not play with the

appliance.

756 - 003 - 24.06.2020 5

•Never allow children or other

persons not trained in the use

of the product and/or the

battery to use or service it.

Local laws may regulate the

age of the user.

•Store the equipment in a

lockable area so that it is out

of reach of children and

unauthorized persons.

•Keep hands and feet away

from the cutting area at all

times and especially when

switching on the motor.

•Dress properly. Do not wear

loose clothing or jewelry.

Keep your hair, clothing and

gloves away from moving

parts. Loose clothes, jewelry

or long hair can be caught in

moving parts.

•Wear personal protective

equipment. See instructions

under the "Personal

protective equipment"

heading.

•Always use face or dust mask

if operation is dusty.

•Turn off the product when it

has to be moved. Always

remove the battery when

passing the machine to

another person.

•Keep in mind that it is you,

the operator that is

responsible for not exposing

people or their property to

accidents or hazards.

•The transport guard must

always be used for storage

and transport.

Power tool use and care

•The only accessories you can

operate with this product are

the cutting attachments we

recommend in the technical

data chapter.

•Never use a product that has

been modified in any way

from its original specification.

Never use the product near

explosive or flammable

materials.

•Never use a product that is

faulty. Carry out the safety

checks, maintenance and

service instructions described

in this manual. Some

maintenance and service

measures must be carried out

by trained and qualified

specialists. See instructions

under the Maintenance

heading.

•Only use original spare parts.

•Always ensure that ventilation

openings are kept clear of

debris.

•Keep handles dry, clean and

free from oil and grease.

6756 - 003 - 24.06.2020

•All covers, guards and

handles must be fitted before

starting.

•Only use the machine in

daylight or in other well-lit

conditions.

•Do not overreach. Keep

proper footing and balance at

all times.

•Don't force the product. It will

do the job better and with less

likelihood of injury at the rate

for which it was designed.

•Working in bad weather is

tiring and often brings added

risk. It is not recommended to

use the product in very bad

weather, for instance, in

dense fog, in heavy rain,

strong winds, intense cold,

risk of lightning.

•If the product starts vibrating

abnormally, stop the product

and remove the battery.

•Avoid Unintentional Starting –

Don’t carry appliance with

finger on switch.

•Store Idle Appliances Indoors

– When not in use, appliances

should be stored indoors

•Walk, never run.

Always use common sense

It is not possible to cover every

conceivable situation you can

face. Always exercise care and

use your common sense. Avoid

all situations which you consider

to be beyond your capability. If

you still feel uncertain about

operating procedures after

reading these instructions, you

should consult an expert before

continuing.

WARNING: Never allow

children to use or be in

the vicinity of the

machine. Since the

machine is easy to start,

children may be able to

start it if they are not kept

under full surveillance.

This can mean a risk of

serious personal injury.

Therefore disconnect the

battery when the

machine is not under

close supervision.

General safety instructions

WARNING: Read the

warning instructions that

follow before you use the

product.

•Remove the battery to

prevent the product from

being started by accident.

•This product is a dangerous

tool if you are not careful or if

you use the product

incorrectly. This product can

756 - 003 - 24.06.2020 7

cause serious injury or death

to the operator or others.

•Do not use the product if it is

changed from its initial

specification. Do not change

a part of the product without

approval from the

manufacturer. Only use parts

that are approved by the

manufacturer. Injury or death

is a possible result of

incorrect maintenance.

•Do a check of the product

before use. See,

Safety

devices on the product on

page 13

and

Maintenance

on page 20

. Do not use a

defective product. Do the

safety checks, maintenance

and service instructions

described in this manual.

•Children should be

supervised to ensure that

they do not play with the

product. Never allow children

or other persons not trained in

the use of the product and/or

the battery to use or service

it. Local laws may regulate

the age of the user.

•Keep the product in a locked

area to prevent access for

children or persons that are

not approved.

•Store the product out of reach

of children.

•Under no circumstances may

the design of the product be

modified without the

permission of the

manufacturer. Always use

original accessories. Non-

authorized modifications

and/or accessories can result

in serious personal injury or

the death of the operator and

others.

Note: National or Local laws

can regulate the use. Comply to

given regulations.

Safety instructions for operation

WARNING: Read the

warning instructions that

follow before you use the

product.

•If you encounter a situation

where you are uncertain how

to proceed you should ask an

expert. Contact your dealer or

your service workshop. Avoid

all usage which you consider

to be beyond your capability.

•Never use the product if you

are fatigued, while under the

influence of alcohol or drugs,

medication or anything that

could affect your vision,

alertness, coordination or

judgment.

•Faulty cutting attachment can

increase the risk of accidents.

8756 - 003 - 24.06.2020

•Do not allow children to use

or be in the vicinity of the

product. Since the product is

easy to start, children may be

able to start it if they are not

kept under full surveillance.

This can mean a risk of

serious personal injury.

Disconnect the battery when

the product is not under close

supervision.

•Ensure that no people or

animals come closer than 15

metres while you work. When

several operators are working

in the same area the safety

distance should be at least 15

metres. Otherwise there is a

risk of serious personal injury.

Stop the product immediately

if anyone approaches. Never

swing the product around

without first checking behind

you to make sure that no one

is within the safety zone.

•Ensure that people, animals

or other things can not affect

your control of the product or

that they do not come in

contact with the cutting

attachment or loose objects

that are thrown out by the

cutting attachment. However,

do not use the product unless

you are able to call for help in

the event of an accident.

•Always inspect the working

area. Remove all loose

objects such as stones,

broken glass, nails, steel wire,

string, etc., that could be

thrown out or become

wrapped around the cutting

attachment.

•Make sure that you can move

and stand safely. Check the

area around you for possible

obstacles (roots, rocks,

branches, ditches, etcetera)

in case you have to move

suddenly. Take great care

when you work on sloping

ground.

•Keep a good balance and a

firm foothold at all times. Do

not overreach.

•Deactivate the product before

you move to another area.

•Never put the product down

unless you have deactivated

it and removed the battery.

Do not leave the product

unsupervised when it is

switched on.

•Remove the battery before

you pass the product to

another person.

•Make sure that no clothes or

parts of the body come in

contact with the cutting

attachment when the product

is activated. Keep the product

below waist level.

•If anything jams in the cutting

attachment while you operate

756 - 003 - 24.06.2020 9

the product, stop and

deactivate the product. Make

sure that the cutting

attachment stops completely.

Remove the battery before

you clean, inspect or repair

the product and/or the cutting

equipment. There is a risk of

burns as the gear housing

can become very hot. Use

gloves when working with the

trimmer head.

•Keep your hands and feet

away from the cutting

attachment until it has

stopped completely when the

product is deactivated.

•Watch out for stumps of

branches that can be thrown

out when you cut. Do not cut

to close to the ground where

stones and other objects can

be thrown out.

•Watch out for thrown objects.

Always wear approved eye

protection. Never lean over

the cutting attachment guard.

Stones, rubbish, etc., can be

thrown up into the eyes which

can cause blindness or

serious injury.

•Listen out for warning signals

or shouts when you wear

hearing protection. Always

remove your hearing

protection as soon as the

product stops.

•Never work from a ladder,

stool or any other raised

position that is not fully

secured.

•If any unwanted vibrations

occur, tap out new line to give

the line the correct length to

stop the vibrations.

•Overexposure to vibration can

lead to circulatory damage or

nerve damage in persons

who have poor circulation.

Speak to your physician if you

experience symptoms of

overexposure to vibration.

Such symptoms include

numbness, loss of feeling,

tingling, pricking, pain, loss of

strength, changes in skin

colour or condition. These

symptoms usually show in the

fingers, hands or wrists.

•Always hold the product with

both hands. Hold the product

on the right side of your body.

•Do not remove the cut

material, or let other persons

remove cut material, while the

product is on or the cutting

equipment rotates, as this can

result in serious injury.

•Always stop the product,

remove the battery and make

sure that the cutting

equipment does not rotate

before you remove material

that is wound around the

blade shaft or caught

10 756 - 003 - 24.06.2020

Otros manuales para 520iLX

Tabla de contenidos

Otros manuales de Recortadora de Husqvarna

Husqvarna

Husqvarna Mondo Max Manual de usuario

Husqvarna

Husqvarna 128DJ Manual de usuario

Husqvarna

Husqvarna 324L X-series Manual de usuario

Husqvarna

Husqvarna 129DJx Manual de usuario

Husqvarna

Husqvarna 536LiL Manual de instrucciones

Husqvarna

Husqvarna HU625HWT Manual de usuario

Husqvarna

Husqvarna 333R Mark II Manual de usuario

Husqvarna

Husqvarna 224L Manual de usuario

Husqvarna

Husqvarna HU675HWT Manual de usuario

Husqvarna

Husqvarna 122LK Manual de usuario

Husqvarna

Husqvarna 225H60, 225H75 Manual de usuario

Husqvarna

Husqvarna 531RB Manual de instrucciones

Husqvarna

Husqvarna 324R X-Series Manual de usuario

Husqvarna

Husqvarna 533RS Manual de usuario

Husqvarna

Husqvarna 535RJ Manual de usuario

Husqvarna

Husqvarna 325iLK Manual de usuario

Husqvarna

Husqvarna KLIPPO 329 L Manual de usuario

Husqvarna

Husqvarna 359.79509 Manual de usuario

Husqvarna

Husqvarna 543RBS Manual de usuario

Husqvarna

Husqvarna 535RX Manual de usuario

Husqvarna

Husqvarna 325HDA55X-Series, 325HE3X-Series, 325HE4X-Series,... Manual de usuario

Husqvarna

Husqvarna HUS625HWT Manual de usuario

Husqvarna

Husqvarna 326R X-SERIES Manual de usuario

Husqvarna

Husqvarna 215iHD55 Manual de usuario

Manuales populares de Recortadora de otras marcas

MTD

MTD HT 51 E Manual de usuario

McCulloch

McCulloch T22 LS Manual de usuario

COCKRAFT

COCKRAFT PRO HL36-S Manual de usuario

Grizzly

Grizzly CT 1800 Li Manual de usuario

Peco

Peco Z Trimmer ZT-3000 Manual de usuario

Solo

Solo 116 Manual de usuario

Stiga

Stiga ST 1200 Manual de usuario

Echo

Echo GT-225 - 10-09 Manual de usuario

RedMax

RedMax BT17 Manual de usuario

GreenWorks

GreenWorks STA806 Manual de usuario

Parkside

Parkside PHSL 900 A3 Manual de usuario

Gardeo

Gardeo PRO GPTHT2560 Manual de usuario

Park

Park DT-810870 Manual de usuario

Worx

Worx WG209 Manual de usuario

Gardenline

Gardenline 43671/HTKS26 Manual de usuario

Makita

Makita 3710 Manual de usuario

Champion

Champion 100683 Manual de usuario

Stihl

Stihl FS 311 Manual de usuario
