Husqvarna YTH2042 Manual de usuario

YTH2042

Owner's Manual

532 43 56-85

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" Front

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire Front 15 x 6.0-6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 42 05-31 Tire Rear 18 x 9.5-8 "Turf Saver LT"

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 41 16-58 Decal, Fender Warn./Instructions

2 532 42 91-96 Decal, Badge Logo

3 532 42 41-02 Decal, Warning Spark Arrestor

4 532 41 06-42 Decal, Hood Panel

5 532 42 38-29 Decal, Customer Respons.

6 532 43 33-90 Decal, Replacement

7 532 43 06-26 Label Emiss. CA.

8 532 42 95-51 Decal, Engine

9 532 14 50-05 Decal, Battery Dnge/Poi

11 532 17 05-63 Decal, Warning

12 532 16 03-96 Decal, Mower V-Belt Schematic

- - 532 16 69-60 Decal, Bypass

- - 532 41 08-05 Pad, Footrest, LH

- - 532 41 10-56 Pad, Footrest, RH

- - 532 43 56-85 Manual, Owner's (English)

- - 532 43 56-86 Manual, Owner's (French)

2 5 6

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

DECALS

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

SCHEMATIC

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

A2A1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUIT

POSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

ELECTRICAL

30 33

79 21

100

227

43 27

With 12V Outlet Option

103

With Service Minder Option

4646

T01S

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 41 41-25 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

24 532 40 02-53 Cable Battery

25 532 41 28-95 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4

71 532 19 42-76 Harness Chassis

79 532 17 52-42 Socket Asm Bulb Twistlock

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 40 07-24 Cover, Terminal Battery

91 532 19 02-70 Strap Battery Mount Front

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

CHASSIS

chassis-tex_TEX GT HUSQ_90

150

130

194

181

162

196

287

138 36

182

176 176

175

177

195

214

130

176

202

203

204 210

208

207

211

209

212

176

205

206

181

137

234

298 238

217

189

152

213

218

228

194

180

189

159

183

236

235

289

165

161

3 532 40 50-12 Logo

5 532 40 87-04 Dash

14 532 41 10-46 Hood

15 532 19 89-07 Lens LH

18 532 40 86-07 Grille

25 532 19 89-06 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 42 36-94 Fender

52 873 68 05-00 Nut Crown Lock 5/16

58 532 41 22-80 Drawbar Upper

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x 0.750 BOS Thread

137 532 40 75-90 Bumper Dash

138 532 40 29-54 Cupholder

150 532 19 85-14 Air Duct

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw Hexwash Thor 3/8-16 x 3/4

161 532 40 49-41 Window Fuel

162 532 14 24-32 Screw

165 532 19 68-26 Support Tank Rear

175 532 19 63-04 Crossmember Plate

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

180 532 41 50-63 Chassis

181 532 40 30-25 Bushing Mtg. Fender Crgo

182 532 40 68-59 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4 Full Thd

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

195 532 40 41-37 Plug Dash

196 532 41 45-80 Console Asm. Deck Lift

202 532 40 30-48 Vent Side Hood RH

203 532 40 30-76 Vent Side Hood LH

204 532 41 66-13 Vent Top Hood

205 532 40 17-09 Skirt Side RH

206 532 40 17-11 Skirt Side LH

207 532 19 71-98 Bezel RH

208 532 19 71-99 Bezel LH

209 532 19 91-30 Insert Hex Top RH

210 532 19 91-31 Insert Hex Top LH

211 532 19 91-32 Insert Hex Bottom RH

212 532 19 91-33 Insert Hex Bottom LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

238 532 40 86-06 Trim

287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8

289 532 40 35-71 Plug Cruise/Phone

298 532 11 04-52 Nut Push

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

CHASSIS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

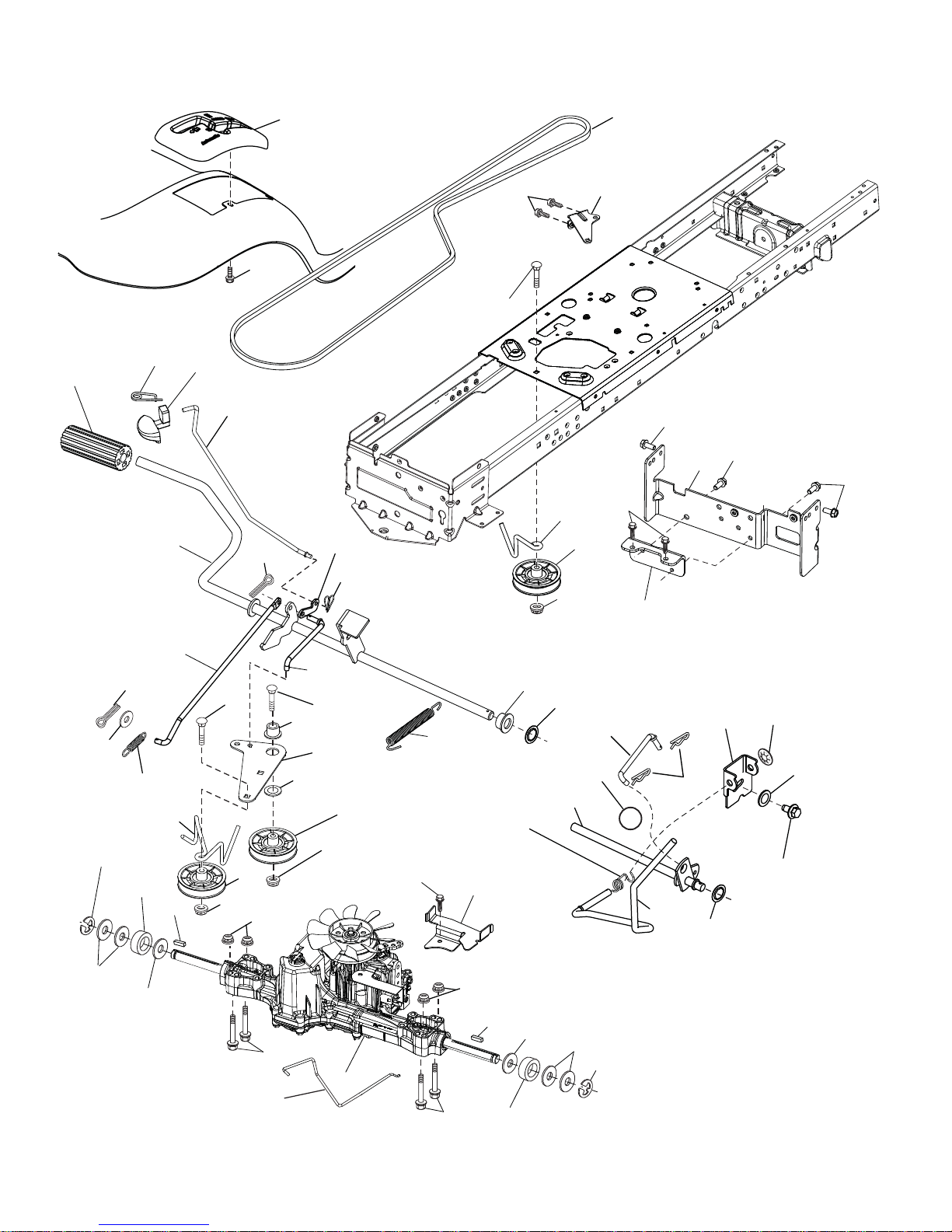

DRIVE

185

231

170

161

184

216

143

125

226

125

80 125

221

211

175

279 176

178

174

166

232

153 233

166

159

167

160

188

186

189

187

190

185

159

116

drive-tex_K46_fender_18

225

125

205

230

183

205

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

DRIVE

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - - - - Transaxle, Tufftorq K46BA

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 14 08-45 Knob

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 95-91 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt, Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 14-74 Console

73 874 49 05-44 Bolt Hex 5/16-18 Gr. 5

74 532 14 24-32 Screw 1/4 x 1/2

80 532 41 00-24 Strap Torque

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw THDROL 5/16-18

153 532 12 47-88 Retainer Spring 1"

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

166 532 42 91-64 Nut Push .625

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

174 532 19 72-89 Nut Push

175 532 40 85-39 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Axle

184 532 40 31-18 Handle Parking Brake

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

211 532 19 62-12 Bushing Shaft

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

225 532 40 33-19 Keeper Belt Transaxle

226 532 40 15-64 Bracket Mount Torque

230 532 18 89-67 Washer Harden .793 x 1.637 x 060

231 532 40 72-87 Idler V-Groove 1.688" Offset

232 874 78 07-16 Bolt 7/16-14 x 1 Gr 5

233 532 40 52-96 Washer Serrated

279 532 41 31-50 Link Shift

TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

ENGINE

OPTIONAL EQUIPMENT

SPARK ARRESTER

engine-tex_BS_48

113

110

109

111

Otros manuales para YTH2042

Tabla de contenidos

Otros manuales de Tractor de Husqvarna

Husqvarna

Husqvarna 289580/LGTH2454 Guía de configuración

Husqvarna

Husqvarna TC 242TX Manual de usuario

Husqvarna

Husqvarna CTH126 Manual de usuario

Husqvarna

Husqvarna DXR140 Manual de usuario

Husqvarna

Husqvarna TS 254G Manual de usuario

Husqvarna

Husqvarna DXR300 Manual de usuario

Husqvarna

Husqvarna TC 112 Manual de usuario

Husqvarna

Husqvarna P 535HX Manual de usuario

Husqvarna

Husqvarna GTH264T/96041025001 Guía de configuración

Husqvarna

Husqvarna 960510124 Manual de usuario

Husqvarna

Husqvarna TS 248G Manual de usuario

Husqvarna

Husqvarna YTH2348/289571 Guía de configuración

Husqvarna

Husqvarna 96051009300 Guía de configuración

Husqvarna

Husqvarna TC 138M Euro Manual de usuario

Husqvarna

Husqvarna 96051009200 Guía de configuración

Husqvarna

Husqvarna YTH24K48 / 96043014000 Manual del propietario

Husqvarna

Husqvarna LTH1842/96041005207 Guía de configuración

Husqvarna

Husqvarna TS 112 Manual de usuario

Husqvarna

Husqvarna TC 38 Manual de usuario

Husqvarna

Husqvarna YTH22K48 Manual del propietario

Husqvarna

Husqvarna TS148X Manual de usuario

Husqvarna

Husqvarna YT46LS Manual del propietario

Husqvarna

Husqvarna CTH 184T (96051007600) Manual de usuario

Husqvarna

Husqvarna YTH2754T/96041022100 Guía de configuración

Manuales populares de Tractor de otras marcas

Ariens

Ariens 936051 Manual de usuario

MacDon

MacDon M150 Manual de usuario

Belarus

Belarus 3522.5 Manual de usuario

CARRARO

CARRARO Vigneto Manual de usuario

Cub Cadet

Cub Cadet 3208 Manual de usuario

GREMO

GREMO 1250F Manual de instrucciones

HATTAT

HATTAT A90 Manual de usuario

Kubota

Kubota WSM STV32 Manual de instrucciones

Kubota

Kubota M108DC Manual de usuario

Case

Case 385 Diesel Guía de instalación

AL-KO

AL-KO Heritage RS 14/82 Manual de usuario

Webb

Webb WE1742SD Manual de usuario

MacDon

MacDon 9250 Manual de usuario

Toro

Toro 03200 Reelmaster 3100-D Manual de usuario

MASSEY FERGUSON

MASSEY FERGUSON 5400 Series Manual de usuario

Kubota

Kubota T1880 Manual de usuario

Case

Case JX 90 Manual de usuario

Iseki

Iseki TXG23 Manual de usuario
