Husqvarna YTH18K46 Manual del propietario

English

581 50 98-49

Repair Parts Manual

IPL Manual

YTH18K46/96043014300

Please read the operator's manual carefully and make sure

you understand the instructions before using the machine.

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The

illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble

or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “TRACTOR”

• MODEL NUMBER - “YTH18K46" (96043014300)”

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC .......................................................................................................................................................................3

ELECTRICAL.................................................................................................................................................................. 4-5

CHASSIS ........................................................................................................................................................................ 6-7

DRIVE.............................................................................................................................................................................. 8-9

ENGINE....................................................................................................................................................................... 10-11

STEERING .................................................................................................................................................................. 12-13

MOWER DECK ........................................................................................................................................................... 14-15

MOWER LIFT....................................................................................................................................................................16

SEAT .................................................................................................................................................................................17

DECALS............................................................................................................................................................................18

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

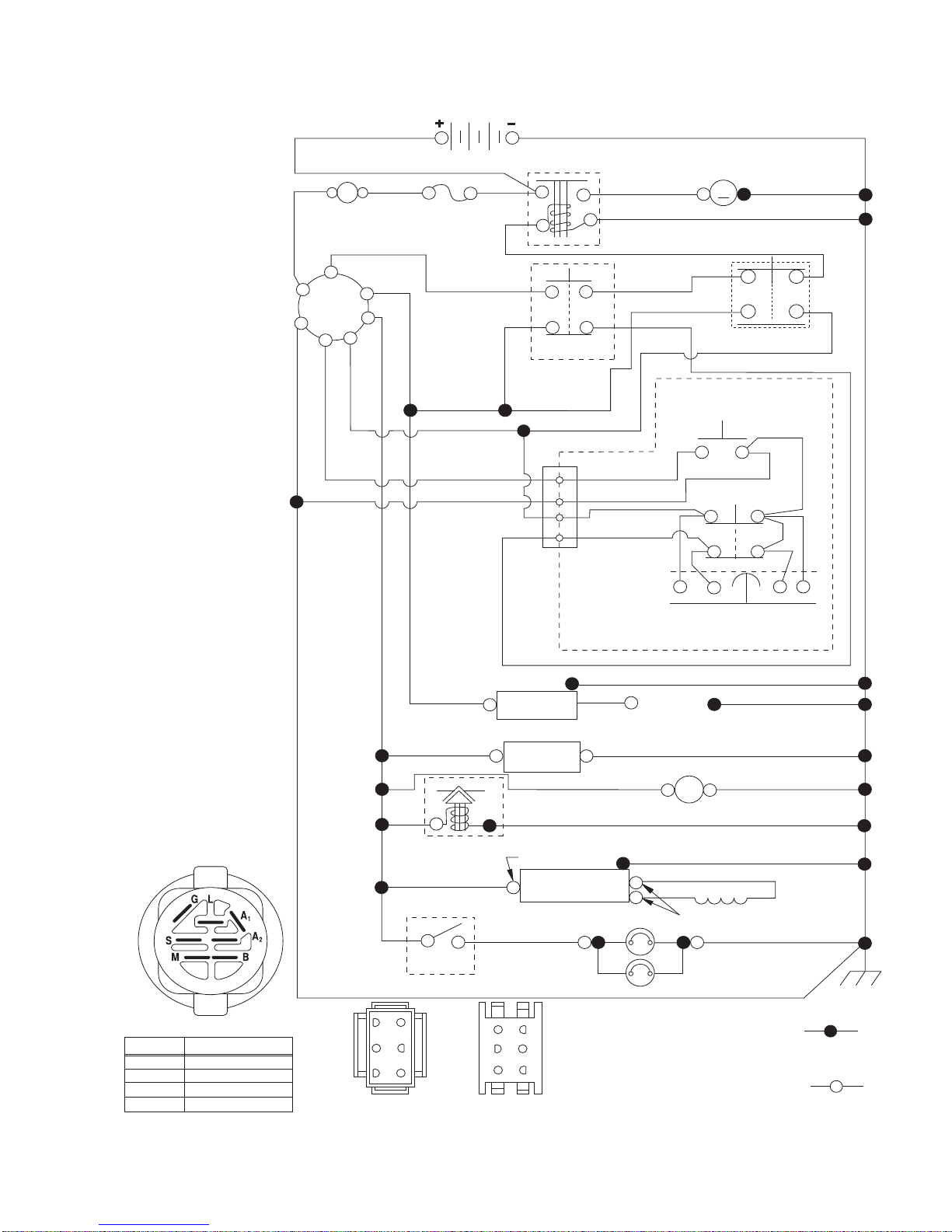

SCHEMATIC

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH10

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

03107

ATTACHMENT CLUTCH

(CLUTCH OFF)

REGULATOR STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16 AMP DC @ 3600 RPM

RED

BLACK

BLACK /WHITE

ORANGE

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

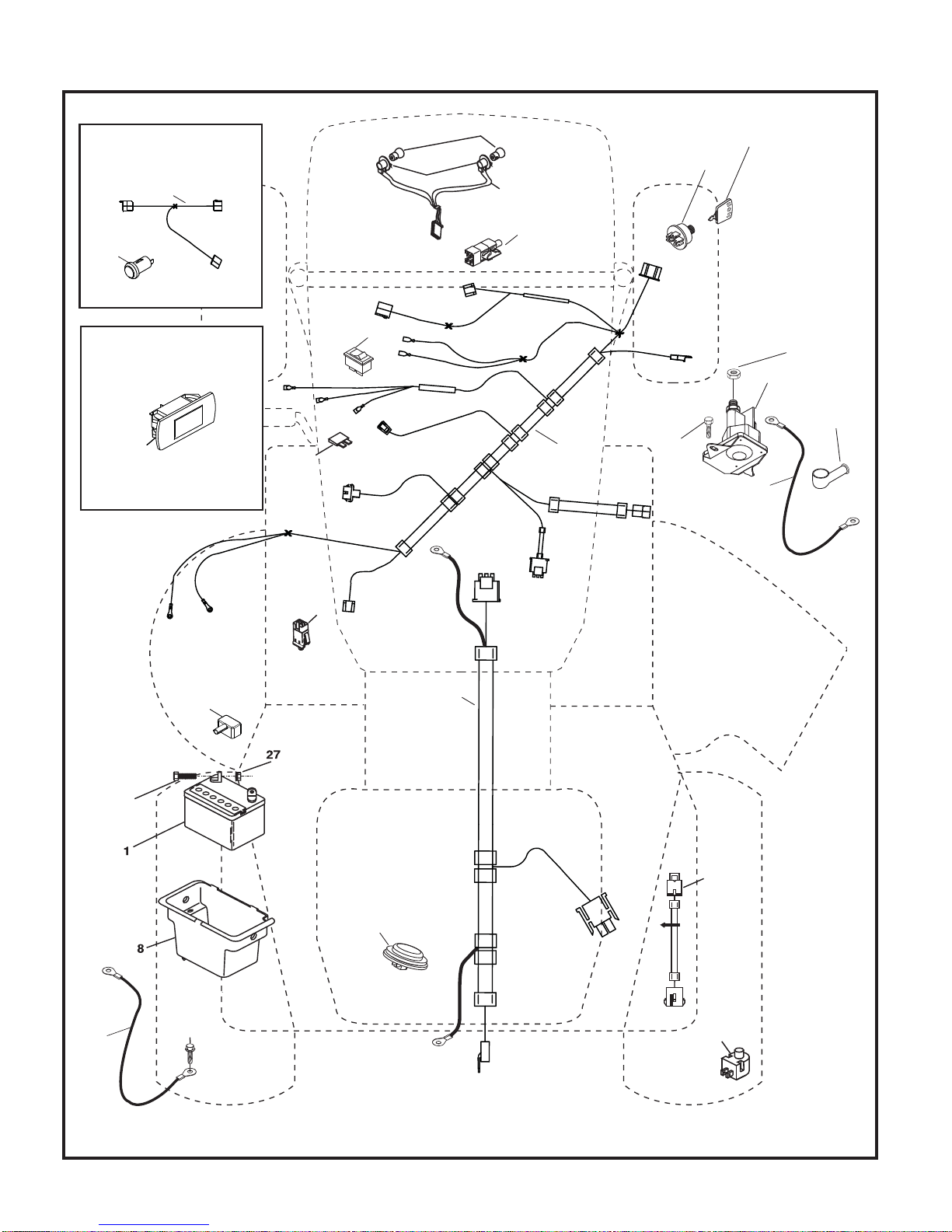

ELECTRICAL

30 33

79 21

43 27

T06S

With 12V Outlet Option

103

With Service Minder Option

4646

102

105

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 532 41 28-95 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Serviceminder Hrmtr

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 40 04-49 Harness Ign. Chassis

79 532 17 52-42 Socket Asm. Bulb

87 532 19 78-02 Switch Interlock

90 532 43 53-95 Cover Terminal

102 532 40 44-54 Harness Pigtail

105 532 40 75-68 Switch Reverse

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

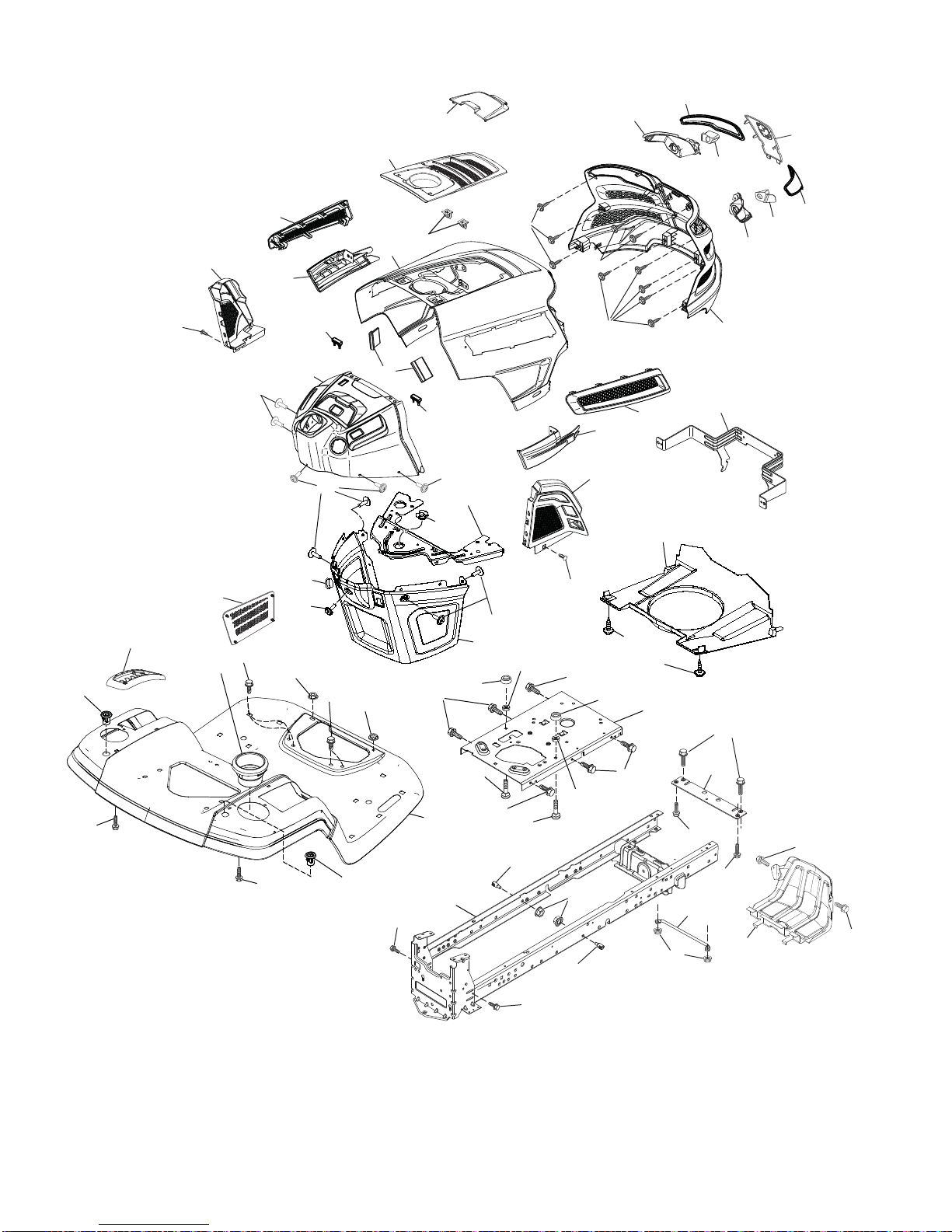

CHASSIS

183

236

chassis-tex_GT HUSQ_II_136

235

180

182

176 176

175

177

150

130

195

194

181

162

287

138 36

196

228

194

213

218

217

202

203

205

151

206

137

214

204

229 208

207

297

191

130

176

234

159

152

159

350

335

178

350

336

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

CHASSIS

KEY PART

NO. NO. DESCRIPTION

3 532 43 97-52 Applique Sub Asm.

5 532 43 74-81 Dash

14 532 44 11-77 Hood

15 532 43 97-33 Lens LH

18 532 43 77-62 Grille

25 532 44 33-85 Lens RH

34 580 91 08-01 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 12-06 Fender

52 873 68 05-00 Nut Lock 5/16-18

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x 0.750

137 532 40 75-90 Bumper Dash

138 532 43 97-47 Cupholder

150 532 43 97-31 Air Duct

151 532 43 66-70 Bracket Pivot

152 532 43 98-70 Shield Browning

159 817 00 06-12 Screw Hexwsh Thrd 3/8-16 x 3/4

162 532 14 24-32 Screw

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Asm. Net

180 532 19 54-57 Chassis

181 532 43 97-46 Bushing Mtg. Fender Crgo

182 532 40 68-59 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4

191 532 43 74-55 Insert Reflective RH NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

195 532 40 41-37 Plug Hole Dash Lower

196 532 43 96-47 Console Asm. Deck Lift

202 532 43 97-28 Vent Side Hood RH

203 532 43 97-27 Vent Side Hood LH

204 532 44 06-65 Vent Top Hood

205 532 43 97-30 Skirt Hood Side RH

206 532 43 97-29 Skirt Hood Side LH

207 532 43 97-34 Bezel RH

208 532 43 97-35 Bezel LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer Tinner

217 532 40 91-67 Rod Pivot

218 532 19 63-95 X-Piece Hood Stop

228 532 19 51-61 Stud Fastner

229 532 44 14-63 Lid Extension

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

287 817 60 04-06 Screw 1/4-20 x 3/8

297 532 43 74-56 Insert Reflective LH

335 532 44 82-04 Cover RH

336 532 44 53-09 Cover LH

350 532 44 51-43 Clip X-mas Tree

KEY PART

NO. NO. DESCRIPTION

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

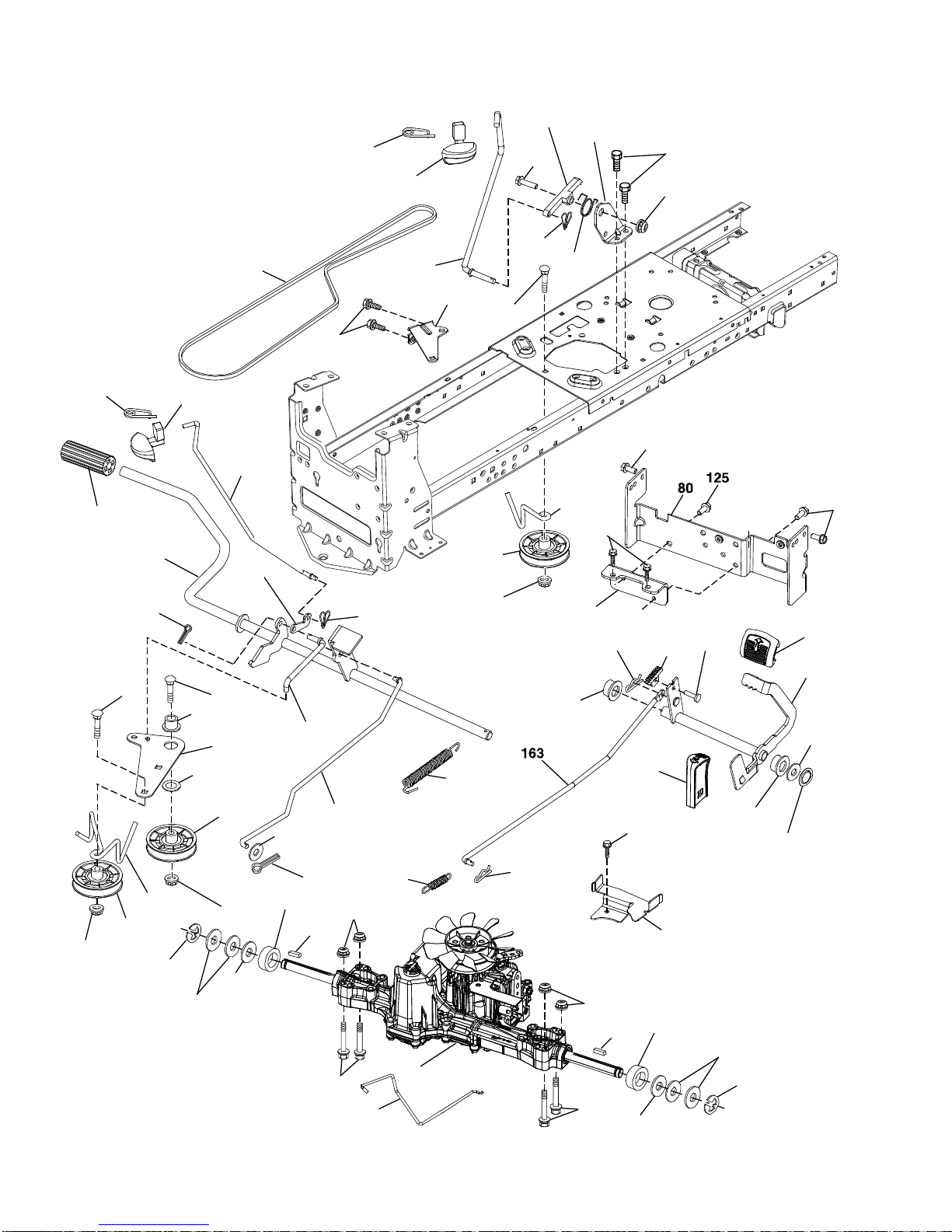

DRIVE

170

171

225

125

drive-tex_K46_pedal_87

73 33

205

116

230

183

205

116

213

221

160

206

207

209

92 125

116

188

161

184

167

160

159

221

186

189

187

190

185

125

226

227

125

208

210

214

125

215

153

166

211

222

17 153

216

143

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

DRIVE

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 – – – – – – Transaxle, TUFFTORQ K46BT

(426120) (Order parts from

transaxle manufacturer.)

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 43 54-86 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

73 874 49 05-40 Bolt Hex 5/16-18 x 2 1/2 G.5

80 532 44 06-19 Strap Torque

92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring 1"

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

163 532 44 82-75 Rod Control

166 532 42 91-64 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper V-Idler

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

171 872 11 06-16 Bolt 3/8-16 unc x 2

183 532 13 70-57 Spacer Axle

184 532 44 14-55 Handle Parking Brake

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

206 532 19 78-67 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 95-92 Rod Control Cruise

210 532 40 09-80 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

213 532 40 31-19 Knob Control Cruise

214 532 42 12-63 Pedal Forward

215 532 40 17-23 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.

225 532 40 33-19 Keeper Belt Transaxle

226 532 40 15-64 Bracket Strap Torque

227 817 49 05-12 Screw 5/16-18 x 3/4

230 532 18 89-67 Washer .793 x 1.637 x 060

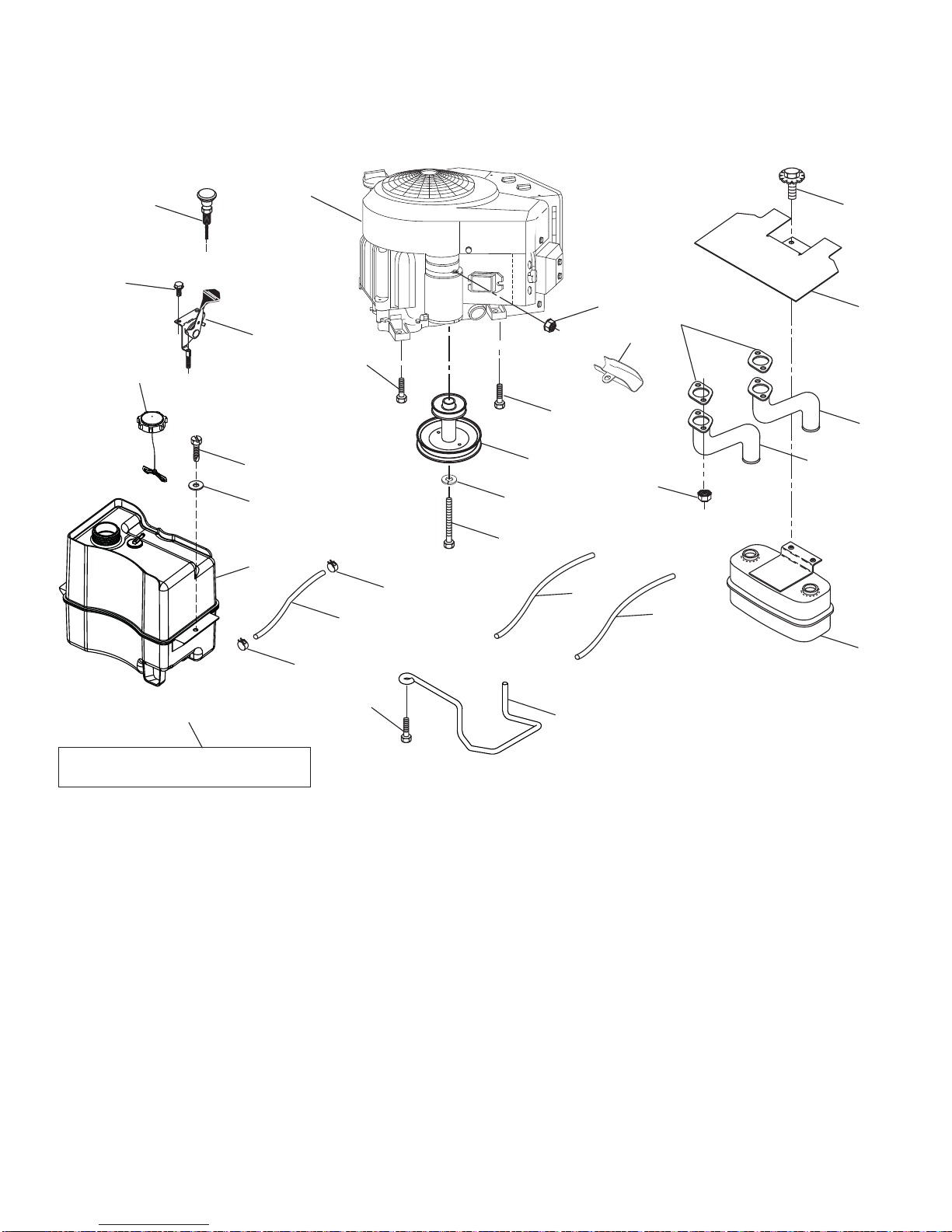

SPARK ARRESTER KIT

122

engine-tex_Kawa-2cyl_22

111

TRACTOR - MODEL NO. YTH18K46 (96043014300), PRODUCT NO. 960 43 01-43

ENGINE

Otros manuales para YTH18K46

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Tractor de Husqvarna

Husqvarna

Husqvarna TS 242D Manual de usuario

Husqvarna

Husqvarna TS 138 Manual de usuario

Husqvarna

Husqvarna YTH2754T/96041022100 Guía de configuración

Husqvarna

Husqvarna 96051009300 Guía de configuración

Husqvarna

Husqvarna TS 342 Manual de usuario

Husqvarna

Husqvarna GTH26V48LS/96043009000 Guía de configuración

Husqvarna

Husqvarna 289580/LGTH2454 Guía de configuración

Husqvarna

Husqvarna TS148X Manual de usuario

Husqvarna

Husqvarna DXR300 Manual de usuario

Husqvarna

Husqvarna TC 138M Euro Manual de usuario

Husqvarna

Husqvarna TC 112 Manual de usuario

Husqvarna

Husqvarna 96051009200 Guía de configuración

Husqvarna

Husqvarna YTH24K48 / 96043014000 Manual del propietario

Husqvarna

Husqvarna LTH140 Manual de usuario

Husqvarna

Husqvarna GTH264T/96041025001 Guía de configuración

Husqvarna

Husqvarna LTH17538 Manual de usuario

Husqvarna

Husqvarna TS 142XK Manual de usuario

Husqvarna

Husqvarna TC 242TX Manual de usuario

Husqvarna

Husqvarna CTH 184T (96051007600) Manual de usuario

Husqvarna

Husqvarna TF545P Manual de usuario

Husqvarna

Husqvarna DXR140 Manual de usuario

Husqvarna

Husqvarna LTH1842/96041005207 Guía de configuración

Husqvarna

Husqvarna TS 112 Manual de usuario

Husqvarna

Husqvarna TC 138M Manual de usuario

Manuales populares de Tractor de otras marcas

Ariens

Ariens 936051 Manual de usuario

MacDon

MacDon M150 Manual de usuario

Belarus

Belarus 3522.5 Manual de usuario

CARRARO

CARRARO Vigneto Manual de usuario

Cub Cadet

Cub Cadet 3208 Manual de usuario

GREMO

GREMO 1250F Manual de instrucciones

HATTAT

HATTAT A90 Manual de usuario

Kubota

Kubota WSM STV32 Manual de instrucciones

Kubota

Kubota M108DC Manual de usuario

Case

Case 385 Diesel Guía de instalación

AL-KO

AL-KO Heritage RS 14/82 Manual de usuario

Webb

Webb WE1742SD Manual de usuario

MacDon

MacDon 9250 Manual de usuario

Toro

Toro 03200 Reelmaster 3100-D Manual de usuario

MASSEY FERGUSON

MASSEY FERGUSON 5400 Series Manual de usuario

Kubota

Kubota T1880 Manual de usuario

Case

Case JX 90 Manual de usuario

Iseki

Iseki TXG23 Manual de usuario
