Husqvarna YTH2648TDRF Manual del propietario

English

532 44 83-72 Rev. 7

Repair Parts Manual

YTH2648TDRF / 96041026401

Please read the operator’s manual carefully and make sure

you understand the instructions before using the machine.

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her trac-

tor when ordering repair parts. The illustrations may or may not represent the actual assemblies;

therefore, it is not recommended to use this manual as a guide to assemble or disassemble the

tractor. Some hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “Lawn Tractor”

• Model Number - “YTH2648TDRF” (96041026401)

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC ...............................................................................................................3

ELECTRICAL...........................................................................................................4-5

CHASSIS AND ENCLOSURES...............................................................................6-7

DRIVE.......................................................................................................................8-9

ENGINE................................................................................................................10-11

STEERING WHEEL ............................................................................................12-13

MOWER DECK ....................................................................................................14-15

MOWER LIFT............................................................................................................16

SEAT ........................................................................................................................ 17

DECALS ...................................................................................................................18

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

SCHEMATIC

NOTES

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16AMPDC@3600 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH12

IGNITION SWITCH

CIRCUIT

POSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1

START

M+G+A1

B+A1

RUN

“MAKE”

L+A2

POWER OUTLET

(OPTIONAL)

12V

AMMETER

(OPTIONAL)

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

PTO SWITCH

BLUE BLACK

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

ELECTRICAL

100

227

30 33

79 21

With Service Minder Option

4646

With 12V Outlet Option

103

T11S

102

105

With Charge Indicator Option

142

(+) (-)

143

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd. 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 40 02-52 Harness Socket Light

22 532 00 41-52 Bulb, Light # 1156

24 532 40 02-53 Cable Battery

25 532 41 28-95 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable Ground 21" Blk. 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign.

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 581 02 27-01 Harness Ignition Dash

41 817 72 04-08 Screw Thd. Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Hourmeter

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw Thdrol. 5/16-18 x 3/4

59 532 40 03-03 Outlet 12-Volt

71 532 19 42-76 Harness Chassis

79 532 17 52-42 Socket Asm. Bulb

90 532 43 53-95 Cover Terminal Battery

91 532 19 02-70 Strap Battery

99 817 67 04-12 Screw Hex Wsh. Thdrol. 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

102 532 40 44-54 Harness Pigtail

103 532 40 79-62 Harness Pigtail 12V Outlet

105 532 40 75-68 Switch Reverse

142 583 85 78-01 Harness Charge Port

143 532 44 80-59 Charge Port

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

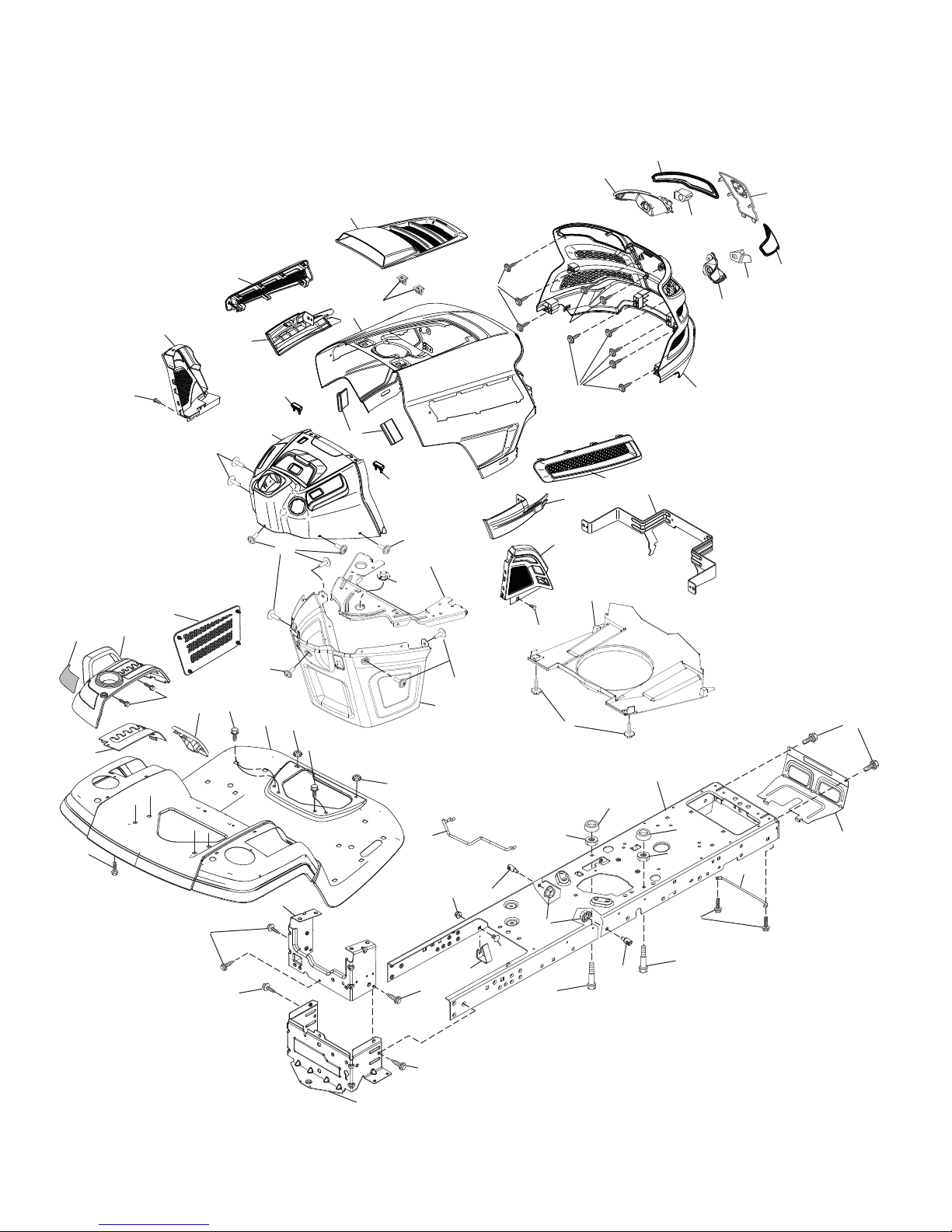

CHASSIS

306

125

146

chassis-tex_GT HUSQ II_94_r1

182

176

175

150

130

177

37 194

194

178

161 36

199

162

196

221

162

180

194

228

236

235

183

165

233

189

233

217

152

159

176

202

203

205 151

206

137

214

204

208

207

297

191

130

234

350

335

350

336

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

CHASSIS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

2 532 41 22-82 Drawbar Lower

3 532 44 44-81 Applique

5 532 43 74-86 Dash

14 532 44 11-77 Hood

15 532 43 97-33 Lens LH

18 532 44 06-53 Grille Asm.

25 532 44 33-85 Lens RH

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 12-08 Fender

58 532 41 22-81 Drawbar Upper

68 817 49 05-08 Screw 5/16-18 x 1/2

125 581 68 48-01 Clip Fuel Line

130 532 41 63-58 Screw #10 x 0.750 BOS Thread

137 532 40 75-90 Bumper Dash

146 581 85 79-01 Bolt

150 532 43 97-74 Air Duct

151 532 43 66-70 Bracket Pivot

152 532 43 60-86 Shield Browning

159 817 00 06-12 Screw Hexwsh THDR 3/8 - 16 x 3/4

161 532 43 99-29 Window Fuel

162 532 14 24-32 Screw

165 532 19 43-30 Support Tank Rear

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Net Asm.

180 532 44 55-59 Chassis

182 532 40 68-59 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4 Full Thread

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 43 74-55 Insert RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 43 96-74 Console Asm. Deck Lift

199 532 19 82-59 Plate Deck Lift

202 532 43 97-28 Vent Side Hood RH

203 532 43 97-27 Vent Side Hood LH

204 532 43 57-14 Vent Top Hood

205 532 43 97-30 Skirt Hood Side RH

206 532 43 97-29 Skirt Hood Side LH

207 532 43 97-34 Bezel RH

208 532 43 97-35 Bezel LH

214 532 19 91-45 Clip Retainer Tinner

217 532 40 91-67 Rod Pivot

221 532 19 89-09 Reflector LH

228 532 19 51-61 Stud Fastner

233 532 19 65-39 Bolt Shoulder

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

297 532 43 74-56 Insert LH

306 873 90 06-00 Nut Lock

335 532 44 82-04 Cover Dash RH

336 532 44 53-09 Cover Dash LH

350 532 44 51-43 Clip X-mas Tree

- - 532 42 49-18 Kit Guard Brush

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

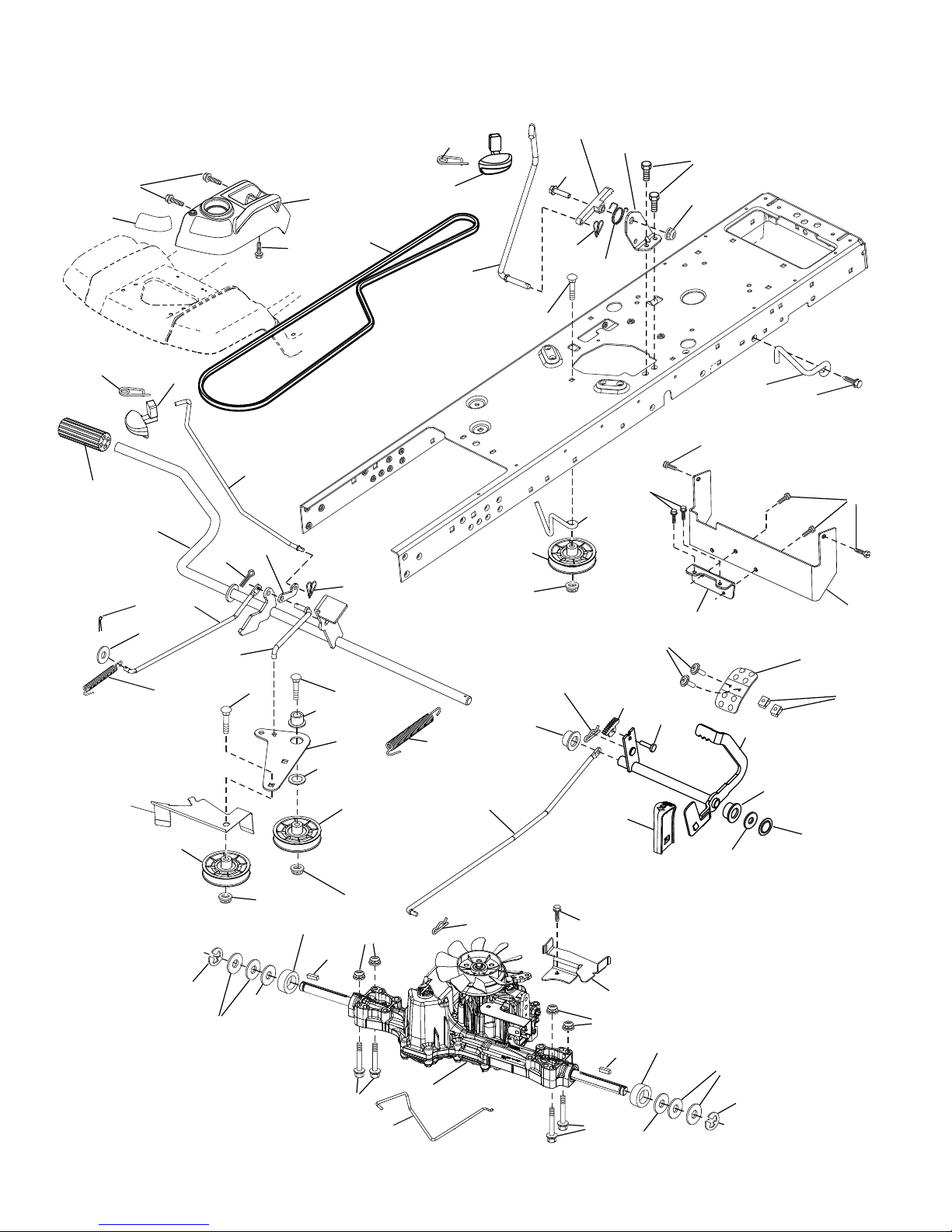

DRIVE

231

170

185

225

125

drive-tex_K46_pedal_110

220

213

221

160

206

207

209

92 125

116

188

161

184

167

160

159

221

186

189

187

185

163

153

208

210

125

215

153

211

166

211

222

125

226

227

159

197 196

73 33

205

116

230

183

205

116

307 214

284

190

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

DRIVE

1 – – – – – – Transaxle, TUFFTORQ K46CR

(426121) (Order parts from

transaxle manufacturer.)

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 583 86 45-01 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

70 532 43 96-61 Console Shift

73 874 49 05-40 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw Hex Wsh. Hi-Lo 1/4 x 1/2 unc

80 532 44 06-19 Bracket Strap Torque

92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

163 532 44 82-75 Rod Pedal Control

166 532 42 91-64 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

183 532 13 70-57 Spacer Split

184 532 44 14-55 Handle Parking Brake

185 872 11 06-22 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 58-04 Bracket Clutch Anti-Rotation

205 532 12 17-48 Washer

206 532 19 78-67 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 95-92 Rod Control Cruise

210 532 19 78-60 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

213 532 40 31-19 Knob Control Cruise

214 532 41 68-63 Pedal Forward

215 532 40 17-23 Pedal Reverse

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.

225 532 40 33-19 Keeper Belt Trans.

226 532 40 15-64 Bracket Mount Torque

227 817 49 05-12 Screw Thdrol 5/16-18 x 3/4

230 532 18 89-67 Washer Hardened

231 532 40 72-87 Idler V-Groove

284 532 41 76-93 Nut U-CHNL 1/4-20

307 874 18 04-12 Screw MACH CR 1/4-20 x 3/4

TRACTOR - MODEL NO. YTH2648TDRF (96041026401), PRODUCT NO. 960 41 02-64

ENGINE

SPARK ARRESTER KIT

116

engine-tex_bs-2cyl_27

117

Otros manuales para YTH2648TDRF

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Husqvarna

Husqvarna

Husqvarna M105-85F Manual de instrucciones

Husqvarna

Husqvarna YTH24K54 Manual de usuario

Husqvarna

Husqvarna AUTOMOWER 550 EPOS Manual de usuario

Husqvarna

Husqvarna Auto Mower Manual de usuario

Husqvarna

Husqvarna CTH2542T Manual de usuario

Husqvarna

Husqvarna MZ5225ZT / 966690501 Manual de usuario

Husqvarna

Husqvarna YTH2246TDR Manual de usuario

Husqvarna

Husqvarna LC221RH Manual de usuario

Husqvarna

Husqvarna LC 141LI Manual de usuario

Husqvarna

Husqvarna LR120 Manual de usuario

Husqvarna

Husqvarna YT48CS Manual de usuario

Husqvarna

Husqvarna 591111301 Manual de usuario

Husqvarna

Husqvarna RZ5424 Manual de usuario

Husqvarna

Husqvarna HD800AWDX/BBC Manual de usuario

Husqvarna

Husqvarna YTH 20 K 46 Manual de usuario

Husqvarna

Husqvarna Rider 15V2 AWD Manual de usuario

Husqvarna

Husqvarna MZ28ZTBF Manual de usuario

Husqvarna

Husqvarna Z400 Series Manual de usuario

Husqvarna

Husqvarna Z200 Manual de usuario

Husqvarna

Husqvarna M48 Pro, M53 S Pro Manual de usuario

Husqvarna

Husqvarna LTH18542 Manual de usuario

Husqvarna

Husqvarna Automower 305 Manual de usuario

Husqvarna

Husqvarna 917.374421 Manual de usuario

Husqvarna

Husqvarna MZ61 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario

Stihl

Stihl RMA 443 PV Manual de usuario
