Husqvarna LTH2142 Manual de usuario

532 44 15-84 Rev. 7

ILLUSTRATED PARTS LIST

MODEL NO. 96041022300

CUSTOMER CATALOG NO. LTH2142

PRODUCT NO. 960 41 02-23

2 532 14 08-37 Decal, Brake Parking Sandle

3 581 62 73-01 Decal, Hood

4 532 19 68-41 Decal, Warning Engine Syms

5 532 16 03-96 Decal, V-Belt Sch.

6 532 15 97-36 Decal, Chassis Hot Muffler

7 532 18 21-66 Decal, Mower Cutfinger Symbol

9 532 16 88-69 Decal, Tick Mark

10 532 40 03-89 Decal, Warning Symbols CE

11 532 14 50-05 Decal, Bat Dan/Poi P/L Sym

12 532 17 83-02 Decal, Oper. Cruise Symbols

13 532 44 15-55 Decal, Sidepnl

15 532 15 97-37 Decal, Brake/Clutch Symbol

17 532 19 63-57 Decal, Cutfinger Warning

18 532 12 44-33 Decal, 80 DBA

19 532 43 37-74 Decal, Replacement

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 16 69-60 Decal, Bypass Lt Hydro

- - 532 41 08-05 Pad, Footrest LH

- - 532 41 08-06 Pad, Footrest RH

- - 532 44 15-83 Manual, Operator's (English)

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

WHEELS & TIRES

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service

4 532 05 99-04 Tube Front (Service Item Only)

5 532 13 83-36 Rim Asm 6" Front Silver Service

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 13 83-37 Rim Asm 8" Rear Silver Service

9 532 12 20-82 Tire R Ts 20 x 10-8 C Service

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 17 50-39 Cap Axle Blk 1 50 x 1 00

- - 532 14 43-34 Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

5,8

4,10

3,9

wheel_1

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

DECALS

NOTES

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16AMPDC@3600 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH12

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1

START

M+G+A1

B+A1

RUN

“MAKE”

L+A2

POWER OUTLET

(OPTIONAL)

12V

AMMETER

(OPTIONAL)

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

PTO SWITCH

BLUE BLACK

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

SCHEMATIC

79 21

T12S

With 12V Outlet Option

103

With Service Minder Option

4646

102

105

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock

21 532 40 02-52 Harness Asm Light w/4152J

22 532 00 41-52 Bulb Light #1156

25 532 41 28-94 Cable Battery 6 Ga. Red 14.5

26 532 17 51-58 Fuse 20 AMP

27 873 51 04-00 Nut Keps Hex 1/4-20 Unc

28 532 19 88-85 Cable 18" Rear. BATT.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ignition

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light

40 532 40 11-04 Harness Ign.

41 817 72 04-08 Bolt Hex Hd. Fin 1/4-20 x 1/2 Gr. 5

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

46 532 40 17-63 Hourmeter

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw 5/16-18 x 3/4

71 532 40 04-49 Harness Ign. Chass. Tex

79 532 17 52-42 Socket, Asm. Bulb

90 532 43 53-95 Cover Terminal Battery

102 532 40 44-54 Harness Pigtail K46 TEX ROS

105 532 40 75-68 Switch Reverse TT Pedal Control

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm.

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

ELECTRICAL

180

chassis-tex_lt husq_8_r4

177

213 213

218

194

228

159

194

217

189

152

162

282

176

137

130 150

175

285

182

286

283

199

284

183

236

235

234

206

203

234

205

202 25

191

297

204

130

239

238

130

287

130

151

214

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

CHASSIS AND ENCLOSURES

3 532 40 50-12 Logo

5 532 40 75-94 Dash

14 532 41 10-73 Hood

15 532 41 10-79 Lens LH

18 532 42 69-63 Grille

25 532 41 10-78 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 41 63-07 Fender

52 873 68 05-00 Nut Crown Lock 5/16

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x 0.750 BOS Thread

137 532 40 75-90 Bumper, Dash

150 532 40 75-37 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw Hex Wsh Thdr 3/8-16 x 3/4

162 532 14 24-32 Screw

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 19 54-57 Chassis

182 532 40 71-76 Dash Lower

183 874 52 05-20 Bolt 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-01 Insert Reflective RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18 NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

199 532 41 34-85 Plate Deck Lift

202 532 41 10-75 Vent Side Hood RH

203 532 41 10-74 Vent Side Hood LH

204 532 41 17-68 Vent Top Hood

205 532 41 10-76 Skirt Side RH

206 532 41 10-77 Skirt Side LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93-05-00 Nut Lock 5/16-18 unc Center

238 532 41 11-19 Trim

239 532 40 48-83 Clip Tinnerman

282 532 41 41-10 Clip Retainer

283 532 41 63-16 Console Deck Lift

284 532 41 78-87 Console Control Pedal

285 532 41 63-15 Console Insert RH

286 532 41 63-17 Console Insert LH

287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8

297 532 40 66-65 Insert Reflective LH

- - 532 43 18-83 Kit Bumper

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

CHASSIS AND ENCLOSURES

170

216

143 171

225

125

drive-tex_K46_pedal_69_r1

73 33

205

116

230

183

205

116

188

161

184

167

160

159

221

186

189

187

190

185

125

226

227

125

80 125

210

214

215

153

166

211

222

163

153

196

197

211

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

DRIVE

KEY PART

NO. NO. DESCRIPTION

1 – – – – – – Transaxle, TUFFTORQ K46 BT

(Order parts from transaxle

manufacturer)

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 40 10-31 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

73 874 49 05-40 Bolt Hex Flghd 5/16-18 x 2-1/2 G5

80 532 44 06-19 Bracket Strap Torque

99 532 41 57-42 Rod Spring Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

163 532 44 82-75 Rod Pedal Control

166 532 42 91-64 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2

183 532 13 70-57 Spacer Split

184 532 40 97-47 Handle Parking Brake

185 872 11 06-22 Bolt RDHD 3/8-16 unc x 2-3/4 Gr. 5

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 58-04 Bracket Clutch Anti-Rotation

205 532 12 17-48 Washer

210 532 40 09-80 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

214 532 42 12-63 Pedal Forward

215 532 40 17-23 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.

225 532 40 33-19 Keeper Belt Trans.

226 532 40 15-64 Bracket Mount Torque

227 817 49 05-12 Screw Thdrol 5/16-18 x 3/4

230 532 18 89-67 Washer Hardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

DRIVE

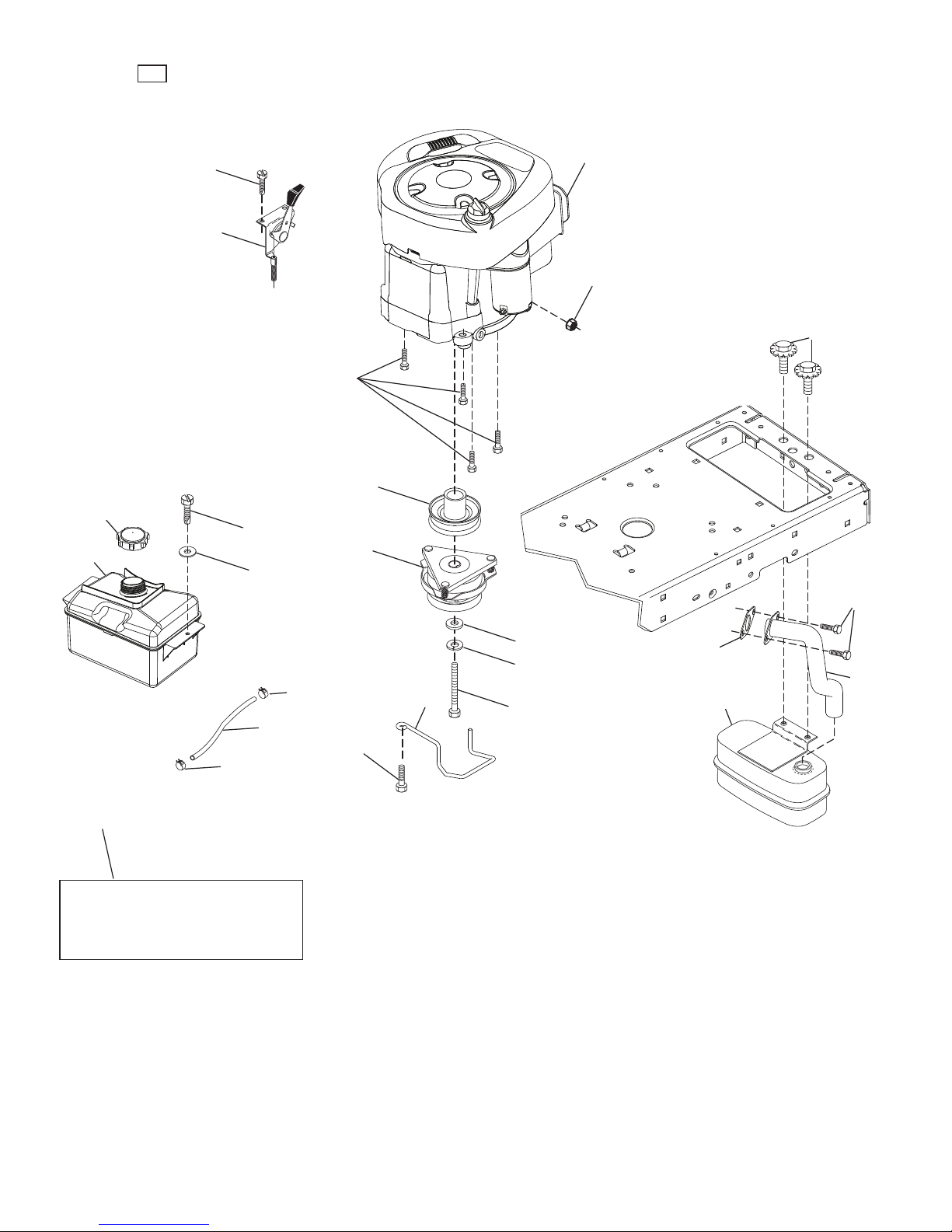

OPTIONAL EQUIPMENT

Spark Arrester

engine-tex_BS_44

TRACTOR - - MODEL NO. LTH2142 (96041022300), PRODUCT NO. 960 41 02-23

ENGINE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Husqvarna

Husqvarna

Husqvarna Z4219 Manual de usuario

Husqvarna

Husqvarna 967 678701-00 Manual de usuario

Husqvarna

Husqvarna AUTOMOWER 550 EPOS Manual de usuario

Husqvarna

Husqvarna LB553S e Manual

Husqvarna

Husqvarna Z 242F Manual de usuario

Husqvarna

Husqvarna AUTOMOWER 315X Manual de usuario

Husqvarna

Husqvarna GTH3052TF Manual de usuario

Husqvarna

Husqvarna HU725F Manual de usuario

Husqvarna

Husqvarna HU550F Guía de configuración

Husqvarna

Husqvarna 917.279260 Manual de usuario

Husqvarna

Husqvarna HU700F Guía de configuración

Husqvarna

Husqvarna 96041041200 Manual de usuario

Husqvarna

Husqvarna TC 242T Manual de usuario

Husqvarna

Husqvarna CTH130 Manual de usuario

Husqvarna

Husqvarna MZ 54S Manual de usuario

Husqvarna

Husqvarna LTH18538/250170 Manual del propietario

Husqvarna

Husqvarna CZ4815KAA, CZ4817KOA Manual de usuario

Husqvarna

Husqvarna LT152 Manual de usuario

Husqvarna

Husqvarna Royal 46S Manual de usuario

Husqvarna

Husqvarna MZ52LE Manual de usuario

Husqvarna

Husqvarna 2354GXLS Manual de usuario

Husqvarna

Husqvarna TS 142TX Manual de usuario

Husqvarna

Husqvarna Automower 305 Manual de usuario

Husqvarna

Husqvarna W3613ETS, W4815ETS Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario

Stihl

Stihl RMA 443 PV Manual de usuario
