ILLUSTRATED PARTS LIST

MODEL NUMBER HU725BBC

PRODUCT NUMBER 961 43 00-94

MFG. ID. NUMBER 96143009400

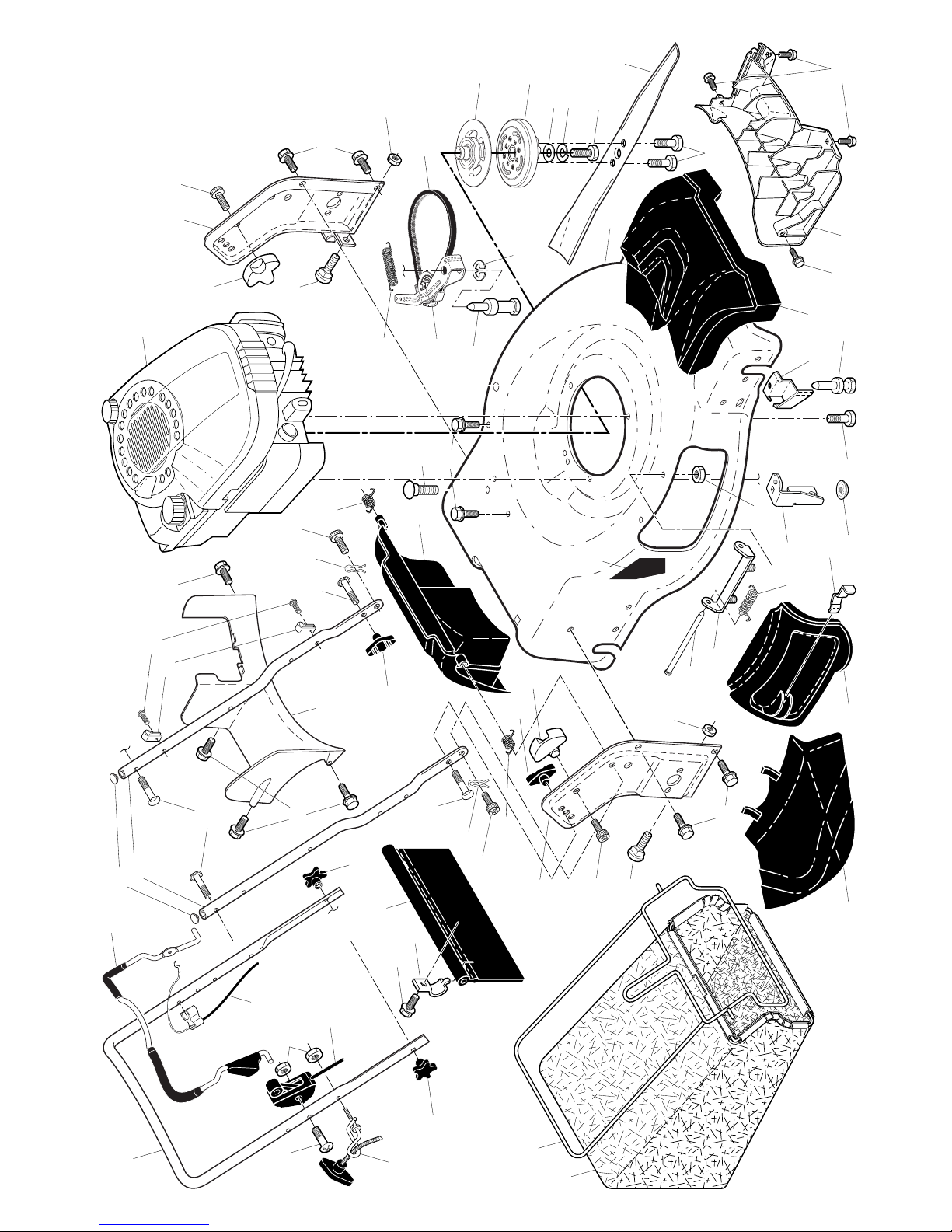

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU725BBC (96143009400) PRODUCT NO. 961 43 00-94

106

112

113

109

108

100

101

41 37

97 99

107

103

110

111

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU725BBC (96143009400) PRODUCT NO. 961 43 00-94

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 581 84 47-01 Upper Handle

2 579 48 42-02 Cable, Blade Brake / Clutch Control

6 532 18 23-98 Handle Knob, Star

8 580 74 97-08 Control Bar Assembly (Includes Blade

Control Lever, Roll Pin and Spring)

9 532 43 13-90 Rear Door Assembly

11 532 42 55-75 Hairpin, Door/Handle Pivot

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Pug, Handle Bar

17 532 43 12-38 Rear Bafﬂe

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 44 45-01 Rear Skirt

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Panhead, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

26 532 41 99-45 Screw, Rear Door/Handle Pivot

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

30 580 94 73-07 Grassbag

31 532 41 99-51 Frame, Grass Catcher

32 532 44 11-92 Latch, Mulcher Door

33 532 41 99-27 Mulcher Door

34 532 43 81-34 Bracket, Grassbag

36 532 17 57-35 Hinge Bracket Assembly

37 532 43 73-45 Screw, Hex Washer Head

38 532 42 61-29 Discharge Deﬂector

39 581 35 37-02 Handle Bracket, LH

40 581 35 36-02 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint 3/8-16 x 1-1/8

42 532 19 30-00 Spring, Torsion

43 532 19 17-30 Nut, Hex, Nylock

44 581 68 86-01 Kit, Lawn Mower Housing

45 532 17 56-50 Rod, Hinge

46 581 27 74-01 Blade Brake/Clutch Assembly

47 581 04 52-01 Blade, 22"

48 579 27 38-01 Washer, Flat

49 532 85 02-63 Washer, Lock

50 532 18 04-60 Bolt, Hex Head, Grade 8

51 581 23 89-01 Front Bafﬂe

52 532 40 47-63 Decal, Danger

53 817 00 05-10 Screw

56 817 41 13-12 Screw, Hex Washer Head

#13 x 3/4

57 532 15 53-77 Nut, Hex

58 532 44 11-97 Bar, Lower Handle

59 532 19 15-74 Handle Bolt

60 579 48 28-01 E-Ring

61 581 42 45-01 Bolt, Pivot, Tension Arm

64 - - - Engine, Briggs & Stratton, Model

Number 128M02-0005-F1

(order parts from Briggs & Stratton)

83 532 75 00-97 Screw

84 532 42 81-24 Fastener, Push

85 532 43 45-30 Mounting Brackeet, Skirt

96 532 19 79-91 Clip, Cable

97 581 11 53-02 Belt Keeper

99 532 43 73-89 Cover, Drive

100 580 32 48-01 Control, Throttle/Engine

101 532 18 33-65 Screw

103 581 53 07-01 Spring, Brake Reset

106 579 14 69-01 Bolt, Brake Reset Spring

107 579 27 32-01 Belt, Blade Brake/Clutch

108 532 85 10-84 Bolt, Blade Brake/Clutch

109 581 30 81-01 Free Hub/Blade Adapter

110 581 35 45-01 Tension Arm Assembly, Blade Brake/Clutch

111 872 14 04-05 Bolt, Carriage 1/4-20

112 579 47 18-02 Bracket, Mounting,

Blade Brake/Clutch Cable

113 532 43 81-30 Nut, Hex, Flanged 1/4-20

- - 115 53 92-49 Operator’s Manual, English / French

- - 115 53 92-32 Operator’s Manual, Spanish

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU725BBC (96143009400) PRODUCT NO. 961 43 00-94

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 43 09-95 Drive Control Assembly

(Includes Cable)

5 532 08 83-48 Washer, Flat

6 532 19 74-80 O-Ring

9 532 43 16-50 Cable, Drive

10 532 43 27-90 Mounting Bracket, Drive Control

12 532 40 65-57 Belt, Drive

13 581 68 08-01 Gear Case Assembly, Complete

14 532 19 41-28 Pulley, Drive

15 581 49 79-04 Wheel Adjuster, Rear, RH

16 581 49 79-03 Wheel Adjuster, Rear, LH

18 532 70 10-37 Selector Knob

20 580 80 69-01 Debris Shield

22 817 00 05-10 Bolt, Hex Head 5/16-18

25 581 31 38-02 Mounting Bracket, Debris Shield

26 532 42 60-66 Belt Keeper

27 532 06 77-25 Washer

28 812 00 00-58 E-Ring 7/16

29 532 18 94-03 Cover, Dust, Wheel

30 532 19 17-30 Nut, Hex

31 532 40 48-45 Pawl, Drive

32 581 68 51-01 Wheel & Tire Assembly, Rear

33 532 40 91-48 Nut, Flangelock 3/8-16

34 532 40 48-35 Pinion

35 532 43 11-38 Kit, Wheel Adjuster, Front, RH

36 532 43 11-39 Kit, Wheel Adjuster, Front, LH

37 532 16 34-09 Screw, Hi-Lo Thread

40 532 41 08-31 Wheel & Tire Assembly, Front

41 532 43 84-89 Kit, Water Washout Assembly

42 532 43 49-94 Fitting, Water Washout

43 532 41 55-85 Washer, Lock, Internal Tooth

44 532 41 55-86 Locknut, Hex, with O-Ring

55 581 35 13-01 Spring, Return

59 532 44 21-13 Support Bracket, Front Axle

61 532 18 16-98 Screw

84 532 41 64-05 Adapter, Quick-Connect
