Husqvarna GTH264T Guía de configuración

ILLUSTRATED PARTS LIST

MFG. ID NO. 96041031000

CUSTOMER CATALOG NO. GTH264T

PRODUCT NO. 960 41 03-10

581 60 13-26 Rev. 4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-vgt

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

16 16

1 532 05 91-92 Cap, Valve, Tire

2 532 06 51-39 Stem, Valve

3 532 18 18-39 Rim Assembly, Front

4 532 00 81-34 Tube, Front (Service Item Only)

5 532 10 62-30 Tire, Front

6 532 12 49-57 Fitting, Grease (Front Wheel Only)

7 532 12 49-59 Bearing, Flange (Front Wheel Only)

8 532 17 50-39 Cap, Axle

9 532 10 55-88 Tire, Rear

10 532 00 71-54 Tube, Rear (Service Item Only)

11 532 14 45-10 Rim Assembly, Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

3 581 57 92-01 Decal, Warning

4 581 57 97-01 Decal, Engine Warning Symbols

5 581 72 40-01 Decal, Brake Pedal

7 581 57 81-01 Decal, Warning Symbols

8 581 58 00-02 Decal, Mower Sch.

9 532 14 50-05 Decal, Battery Dan./Poi.

10 581 57 82-01 Decal, Fender DB/CE

11 581 57 91-01 Decal, Hand/Foot Sym.

14 532 44 65-46 Decal, Panel Side

15 581 56 37-01 Decal, Replacement Parts

16 581 62 73-01 Decal, Hood Logo

17 581 57 80-01 Decal, Park Brake

18 581 57 96-01 Decal, Chassis Hot Muffler

- - 581 72 46-01 Decal, Drawbar Load Limit

- - 581 72 48-01 Decal, Bypass

- - 532 43 98-82 Pad, Footrest, LH

- - 532 43 98-81 Pad, Footrest, RH

- - 115 53 33-20 Manual, Operator's (Euro)

- - 115 53 41-10 Manual, Operator's (Scan)

- - 115 53 42-50 Manual, Operator's (E-Bloc)

- - 115 53 43-40 Manual, Operator's (Baltic)

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

DECALS

NOTES

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16AMPDC@3600 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH12

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1

START

M+G+A1

B+A1

RUN

“MAKE”

L+A2

POWER OUTLET

(OPTIONAL)

12V

AMMETER

(OPTIONAL)

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

PTO SWITCH

BLUE BLACK

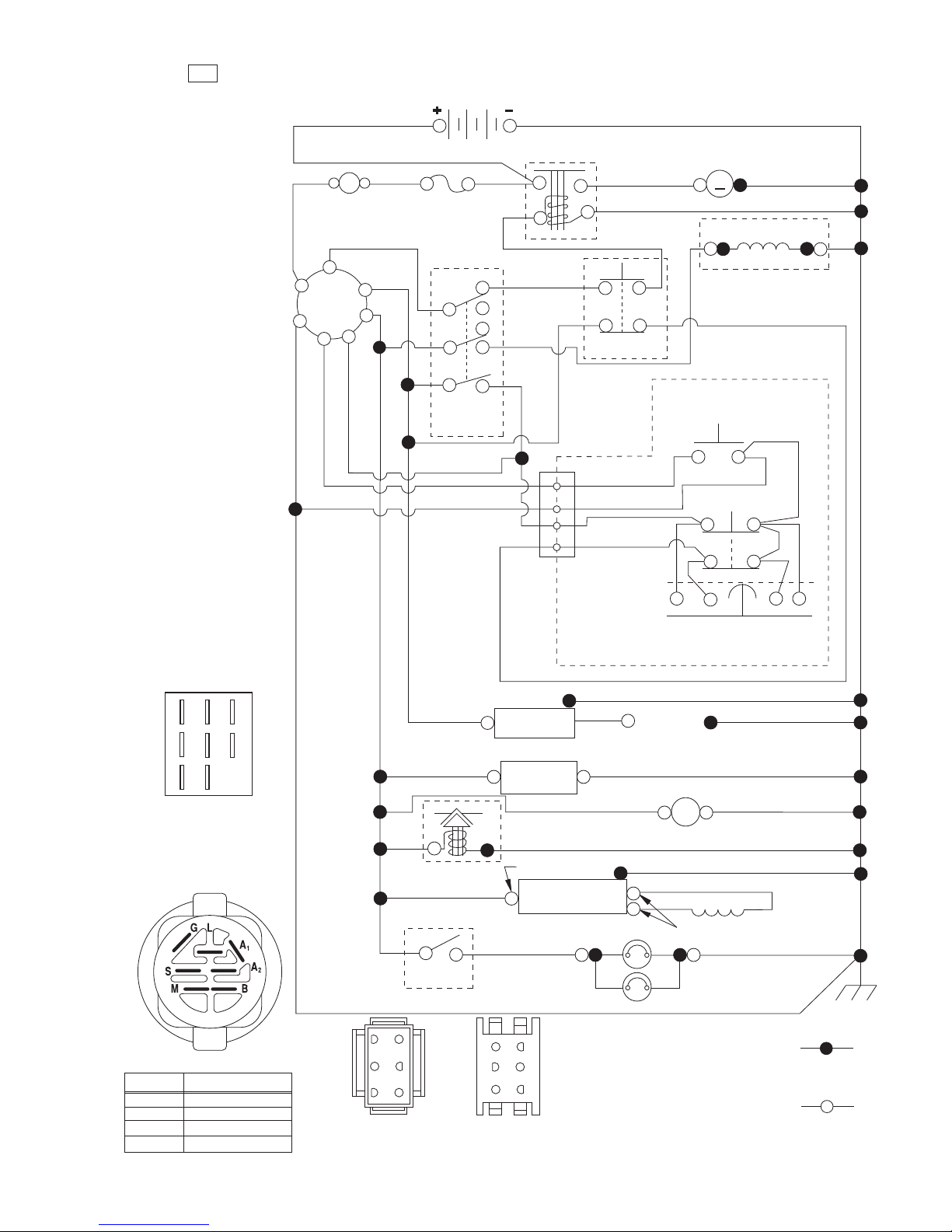

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

SCHEMATIC

100

227

79 21

With Service Minder Option

4646

With 12V Outlet Option

103

T11S

102

105

With Charge Indicator Option

142

(+) (-)

143

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd. 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 40 02-52 Harness Socket Light

22 532 00 41-52 Bulb, Light # 1156

24 532 40 02-53 Cable Battery

25 532 41 28-95 Cable Start Red

26 532 17 51-58 Fuse

27 873 51 04 00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable Ground 21" Blk. 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign.

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 581 02 27-01 Harness Dash/Ign.

41 817 72 04-08 Screw 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Hourmeter

50 532 17 46-51 Switch PTO

55 817 06 05-12 Screw 5/16-18 x 3/4

71 532 19 42-76 Harness Chassis/Ing.

79 532 17 52-42 Socket Asm. Bulb

90 532 43 53-95 Cover Terminal Battery

91 532 19 02-70 Strap Battery

99 817 67 04-12 Screw Hex Wsh. Thdrol. 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

102 532 40 44-54 Harness Pigtail Tex Ros Tuff Torq.

105 532 40 75-68 Switch Reverse

142 532 44 80-57 Harness Charge Port

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

ELECTRICAL

Chassis-tex_GT HUSQ_ll_130_r2

182

176

175

165

180

199

162

177

196

221

183

236

236 34

235

161

194

162

189

217

228

194

213

218

203

205

151

206

137

214

204

208

207

297

191

130

202

176

234

159

152

178

350

335

350

336

195

150

130

306

125

146

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

3 532 43 97-52 Applique Sub Asm.

5 532 43 74-84 Dash

14 532 44 11-77 Hood

15 532 43 97-33 Lens LH

18 532 43 77-62 Grille

25 532 44 33-85 Lens RH

34 580 91 08-01 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 44 12-08 Fender

52 873 68 05-00 Nut Crownlock 5/16-18

58 532 19 43-14 Bracket Fender

68 817 49 05-08 Screw 5/16-18 x 1/2

125 581 68 48-01 Clip Fuel Line

130 532 41 63-58 Screw #10 x 0.750

137 532 40 75 90 Bumper Dash

146 581 85 79-01 Bolt

150 532 43 97-74 Duct Heat Hood

151 532 43 66-70 Pivot Bracket

152 532 43 98-70 Shield Browning/Debris

159 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

161 532 43 99-29 Console Fuel Window

162 532 14 24-32 Screw Hex Wsh. Hi-Lo 1/4 x 1/2

165 532 19 68-26 Bracket Support Tank

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw #10-24 x 5/8

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Asm. Net

180 532 19 54-77 Chassis

182 532 40 68-59 Dash Lower

183 874 52 05-20 Bolt 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 43 74-55 Insert Reflective RH

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

195 532 40 41-37 Plug 12 V Adapter

196 532 43 97-16 Console Asm. Deck Lift

199 532 19 82-59 Plate Deck Lift

202 532 43 97-28 Vent Side Hood RH

203 532 43 97-27 Vent Side Hood LH

204 532 43 57-14 Vent Asm. Hood Top

205 532 43 97-30 Skirt Hood Side RH

206 532 43 97-29 Skirt Hood Side LH

207 532 43 97-34 Bezel RH

208 532 43 97-35 Bezel LH

213 874 76 05-12 Bolt Hex Hd. 5/16-18 unc x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot

218 532 19 63-95 Hood Stop

221 532 19 89-09 Reflector LH

228 532 19 51-61 Stud Fastener

234 532 40 47 42 Bumper Hood

235 532 40 61 29 Spacer Fender

236 873 93 05-00 Nut 5/16-18 unc

297 532 43 74 56 Insert Reflective LH

306 873 90 06-00 Nut Lock

335 532 44 82-04 Lower Dash Cover RH

336 532 44 53-09 Lower Dash Cover LH

350 532 44 51-43 Clip X-mas Tree

- - 532 43 18-82 Kit Bumper

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

CHASSIS AND ENCLOSURES

188

161

184

167

160

221

159

Drive-tex_K66_pedal_10_r2

116

183

116

183

169

208

210

163

214

125

215

153

166

211

222

186

189

187

185

170

171

213

221

160

206

207

209

92 125

116

125

226

196

125

216

143

197

196

220

225

125

190

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

DRIVE

1 – – – – – – Transaxle, TuffTorq K66Y(426118)

(Order parts from transaxle

manufacturer.)

2 532 00 70-70 Key

3 532 00 75-63 Hardened Washer

7 532 19 98-37 Hub Asm. Wheel

9 532 14 00-80 Bolt Hub Wheel

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 40 10-72 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 72-45 Rod, Brake

33 812 00 00-53 Ring E

35 583 86 45-01 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 12 59-07 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

69 532 12 38-00 Washer 1 1/32 x 1 5/8 x 16 Ga.

70 532 43 96-61 Console Asm.

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw Hx Wsh Hi-Lo 1/4 x 1/2 unc

80 532 40 71-82 Strap Torque

92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

99 532 41 57-44 Rod Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

163 532 40 72-46 Rod Pedal Control

166 532 42 91-64 Nut Push .625

167 532 40 52-57 Latch Brake Parking

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt

183 532 19 73-57 Spacer Axle

184 532 44 14-55 Handle Parking Brake

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 97-69 Bracket Clutch Anti-Rotation

206 532 19 78-67 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 95-92 Rod Control Cruise

210 532 19 78-60 Rocker Asm Cruise

211 532 12 01-83 Bearing Nylon

213 532 40 31-19 Handle Parking Brake

214 532 42 12-63 Pedal Forward Pad

215 532 40 17-23 Pedal Reverse Pad

216 532 19 61-31 Bracket Pulley Idler

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.

225 532 40 73-11 Keeper Belt Trans.

226 532 40 71-09 Bracket Mount Torque

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SPARK ARRESTER KIT

engine-tex_Kawa-2cyl_8

TRACTOR - - MODEL NO. GTH264T (96041031000), PRODUCT NO. 960 41 03-10

ENGINE

Otros manuales para GTH264T

Tabla de contenidos

Otros manuales de Cortacésped de Husqvarna

Husqvarna

Husqvarna 917.374454 Manual de usuario

Husqvarna

Husqvarna Twin LTH1842TWIN Manual de usuario

Husqvarna

Husqvarna 968999268 Manual de usuario

Husqvarna

Husqvarna Royal 49S Manual de usuario

Husqvarna

Husqvarna Z 554 Series Manual de usuario

Husqvarna

Husqvarna R 145SV Manual de usuario

Husqvarna

Husqvarna RZ4219 Manual de usuario

Husqvarna

Husqvarna LTH125 Manual de usuario

Husqvarna

Husqvarna YTH2642TDF Manual de usuario

Husqvarna

Husqvarna ROTARY LAWN MOWER 917.38451 Manual de usuario

Husqvarna

Husqvarna RZ4222F / 966659401 Manual de usuario

Husqvarna

Husqvarna GTH2754 Manual de usuario

Husqvarna

Husqvarna LGT2654 Manual de usuario

Husqvarna

Husqvarna HVT52 Manual de usuario

Husqvarna

Husqvarna LC 151 Manual de usuario

Husqvarna

Husqvarna AUTOMOWER 210 C Manual de usuario

Husqvarna

Husqvarna Automower Aspire R4 Manual de usuario

Husqvarna

Husqvarna HD700L Manual de instrucciones

Husqvarna

Husqvarna CT151 Manual de usuario

Husqvarna

Husqvarna AUTOMOWER 105 Manual de usuario

Husqvarna

Husqvarna YT54LS Manual de usuario

Husqvarna

Husqvarna CTH 224T Guía de configuración

Husqvarna

Husqvarna HD800AWD/BBC / 961450029 Manual de usuario

Husqvarna

Husqvarna P-ZT 54 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario

Stihl

Stihl RMA 443 PV Manual de usuario
